Тестер твердости TIME5120 тестер
- Категория: Другие инструменты для испытаний >>>
- Поставщик: Shenzhen,Pantai,Precision,Instruments,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.69 $* | 0.89 $* |
| Aug-15-2025 | 0.36 $* | 0.95 $* |
| Jul-15-2025 | 0.15 $* | 0.52 $* |
| Jun-15-2025 | 0.28 $* | 0.67 $* |
| May-15-2025 | 0.44 $* | 0.33 $* |
| Apr-15-2025 | 0.19 $* | 0.88 $* |
| Mar-15-2025 | 0.80 $* | 0.51 $* |
| Feb-15-2025 | 0.38 $* | 0.31 $* |
| Jan-15-2025 | 0.17 $* | 0.32 $* |
Характеристики
Features:

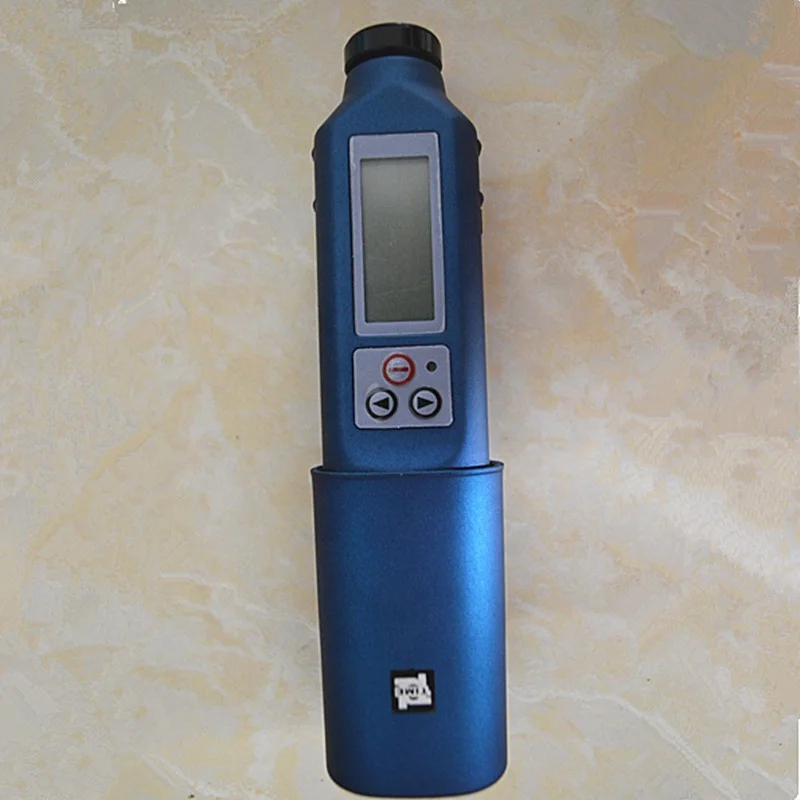

TIME5120 Hardness Tester,LEEB HARDNESS TESTER
Specifications
TIME5120 is replace model of the TH1100
SPECIFICATIONS:
Impact size, easy operation. Wide measuring range in HLD, direct display of converted hardness values in
HB, HRB, HRC,HRA, HV.
FEATURES:
Impact size, easy operation.
Wide measuring range in HLD, direct display of converted hardness values in HB, HRB, HRC,HRA, HV, HS
High applicability, can be used for hardness testing of most metals.
Test at any angle even upside down.
Optional printer TA220s available
Easy measurements on large & heavy workpieces
Measuring for confined spaces of large workpieces
TH130: integrated with D impact device for normal hardness testing
TH132: integrated with C impact device for hardness testing on thin, light and face-hardened workpieces
TH134: integrated with DL impact device for hardness testing of deep grooves and mould-face
(such as tooth surface) workpieces
TECHNICAL SPECIFICATIONS:
| TH1100 | TH132 | TH134 | |
| Impact device | D integrated | C integrated | DL integrated |
| Hardness scales | HLD, HB, HRC, HRA, HV, HS | HLD, HB, HRC, HV, HS | HLDL,HB, HRC, HRB, HV, HS |
| Accuracy | ±6HLD(760 ±30HLD) | ±12HLC | ±12HLDL |
| Memory | 99 average readings | ||
| Output | RS232 to printer | ||
| Average Surface Roughness of Work piece | 1.6μ ( Ra) | 0.4μ ( Ra) | 1.6μ ( Ra) |
| Diameter = 2.8mm | |||
| Max. Work piece Hardness | 900HLD | 960HLC | 950HLDL |
| Min. radius of Work piece (convex/concave) | Rmin = 50mm | Rmin = 11mm (with support rings) | Rmin = 10mm |
| (with support ring Rmin= 10mm) | |||
| Min. Work piece weight | 2~5kg on stable support | 0.5~1.5kg on stable support | 2~5kg on stable support |
| 0.05~2kg with compact coupling | 0.02~0.5kg with compact coupling | 0.05~2kg with compact coupling | |
| Min. Work piece thickness coupled | 5mm | 1mm | 5mm |
| Min. Thickness of hardened layers | 0.8mm | 0.2mm | 0.8mm |
| Indentation depth | Impact Devices data | Impact Devices data | Impact devices data |
| Continuous working time | 60 h | 60 h | 60 h |
| Power | Rechargeable Li-Polymer batteries | Rechargeable NiMH battery | rechargeable NiMH battery |
| Operating temperature | 0~40°C | 0~40°C | 0~40°C |
| Overall dimensions | 155×24×55mm | 155×24×55mm | 210×24×55mm |
| Weight | 180 g | 175g | 200g |

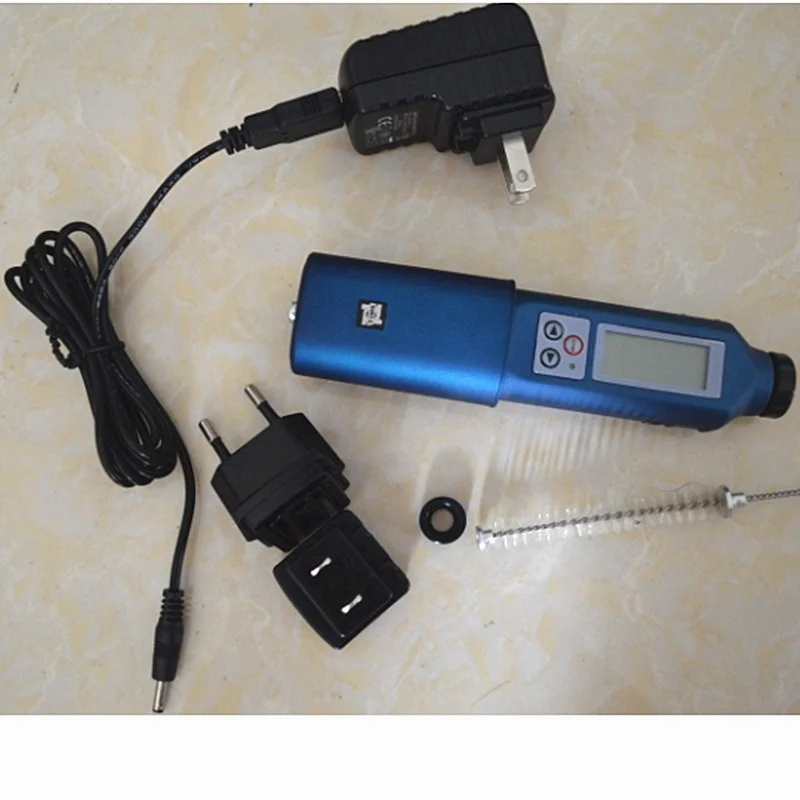

STANDARD CONFIGURATIONS:
Main unit

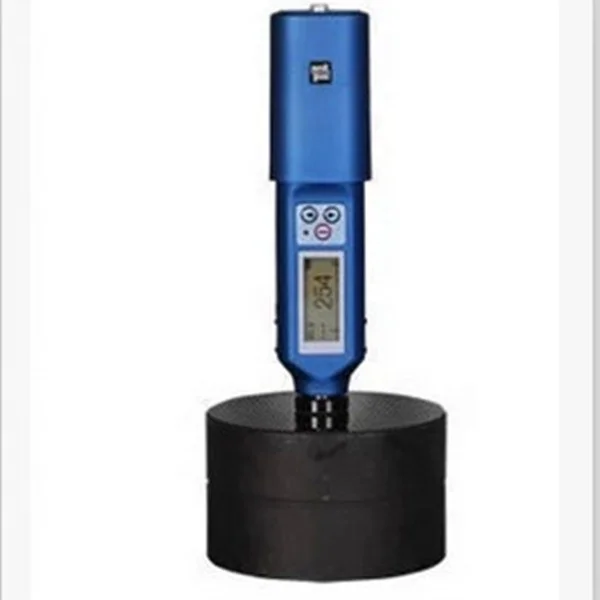

Test block with HLD value
Charger
Brush
Protection pocket
TIME certificate
Instruction manual
Warranty card
