Нулевой фазный Нанокристаллический трансформатор тока ZCT

Описание и отзывы

Трекер стоимости

Характеристики

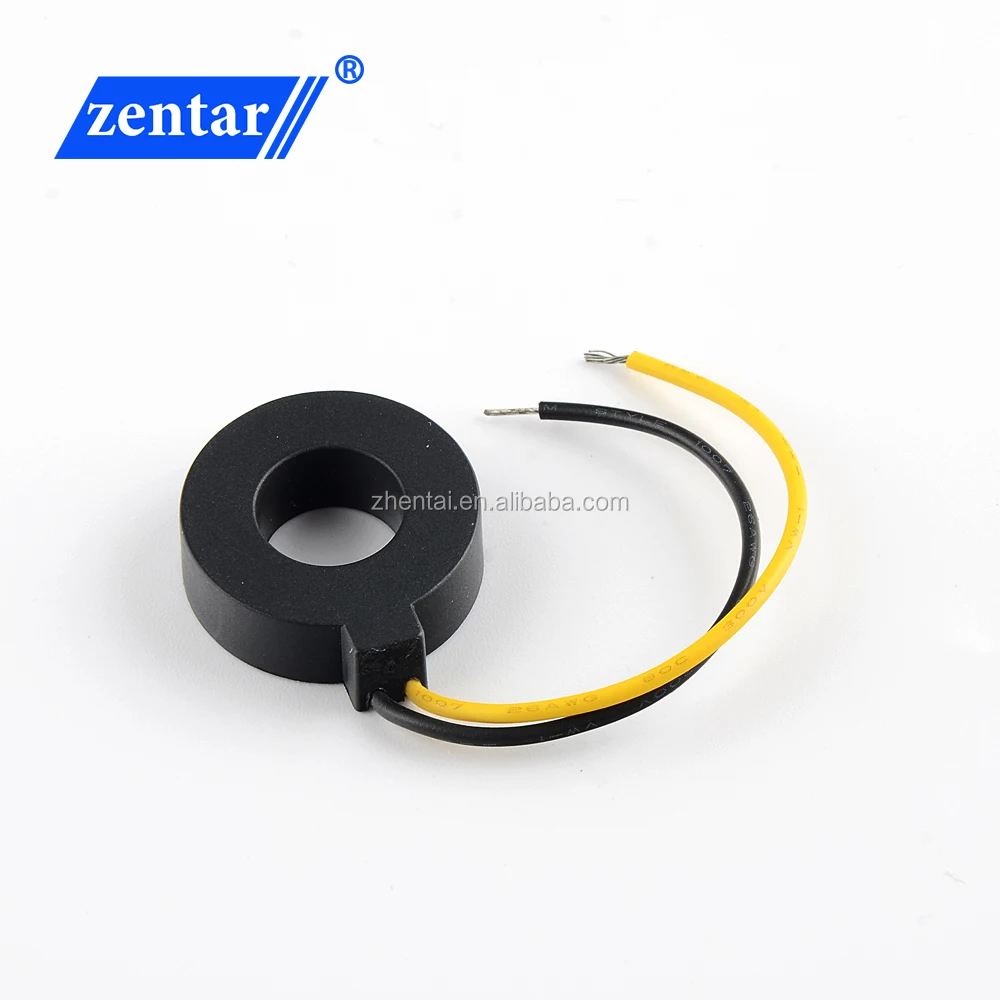

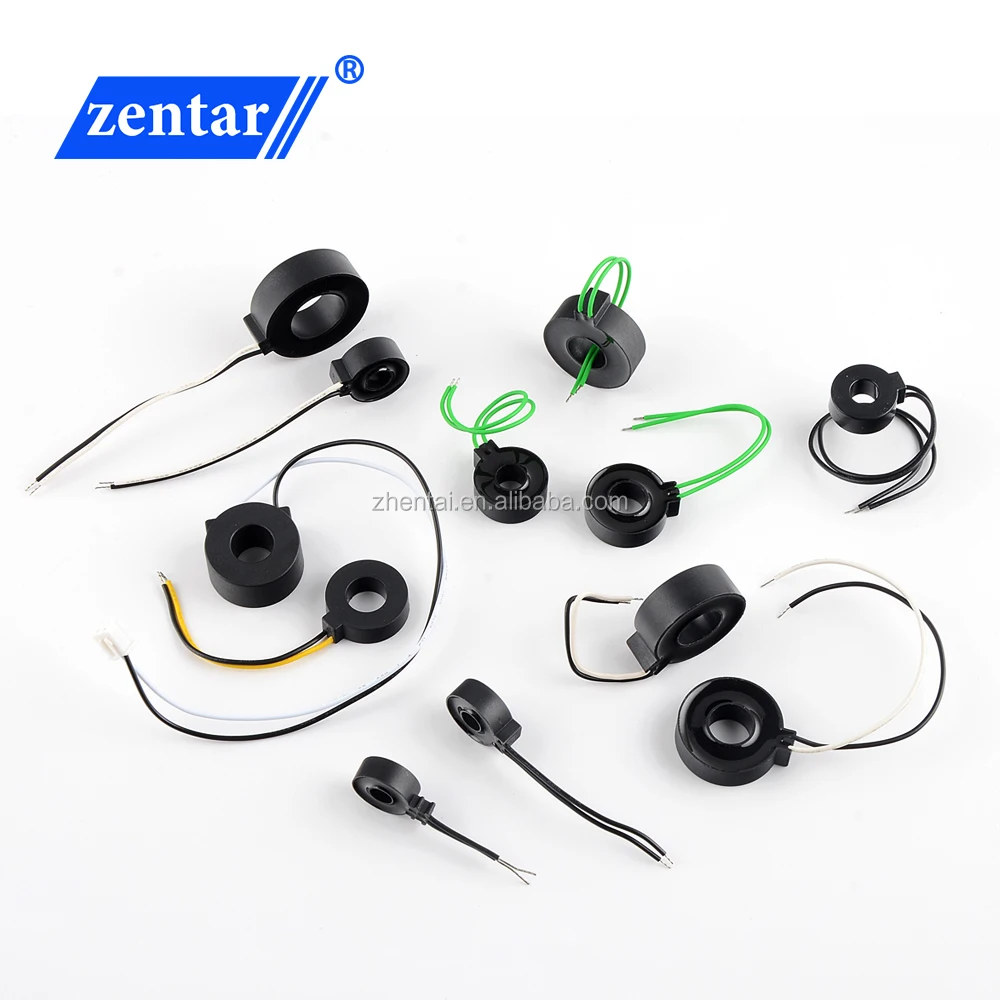

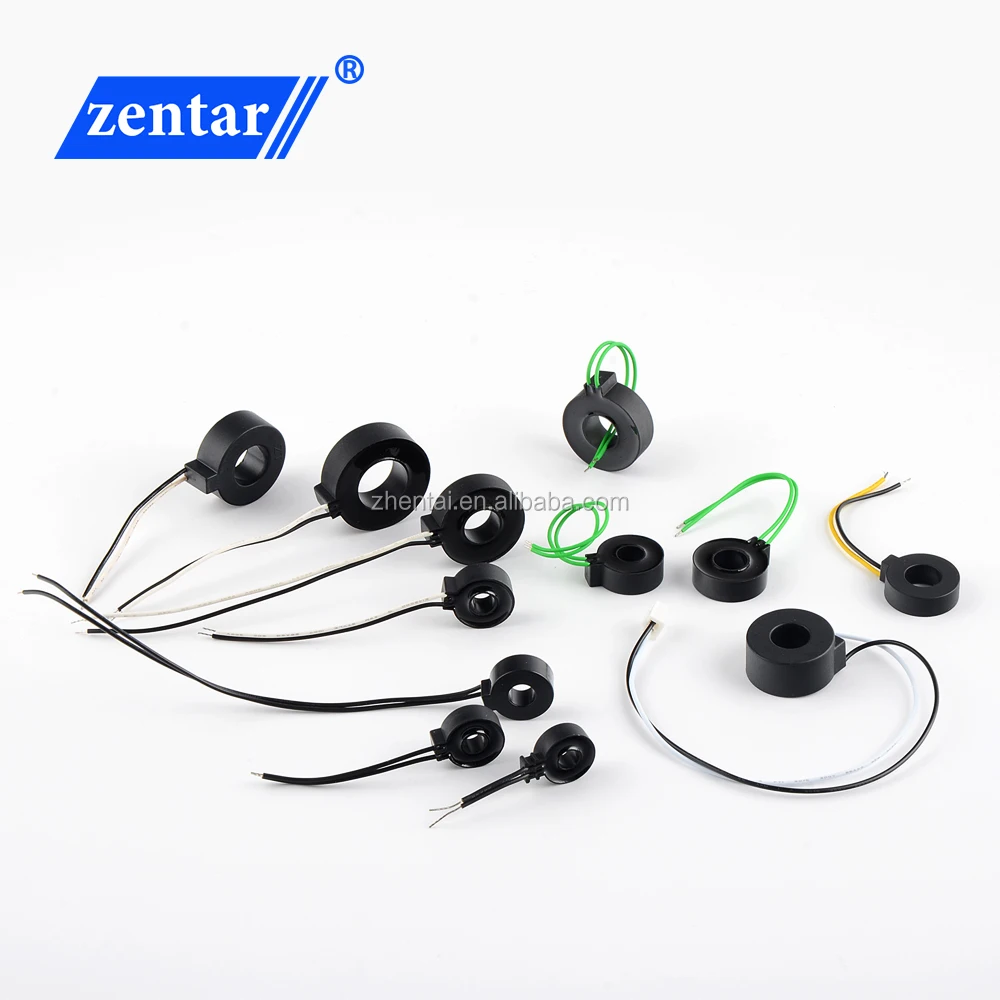

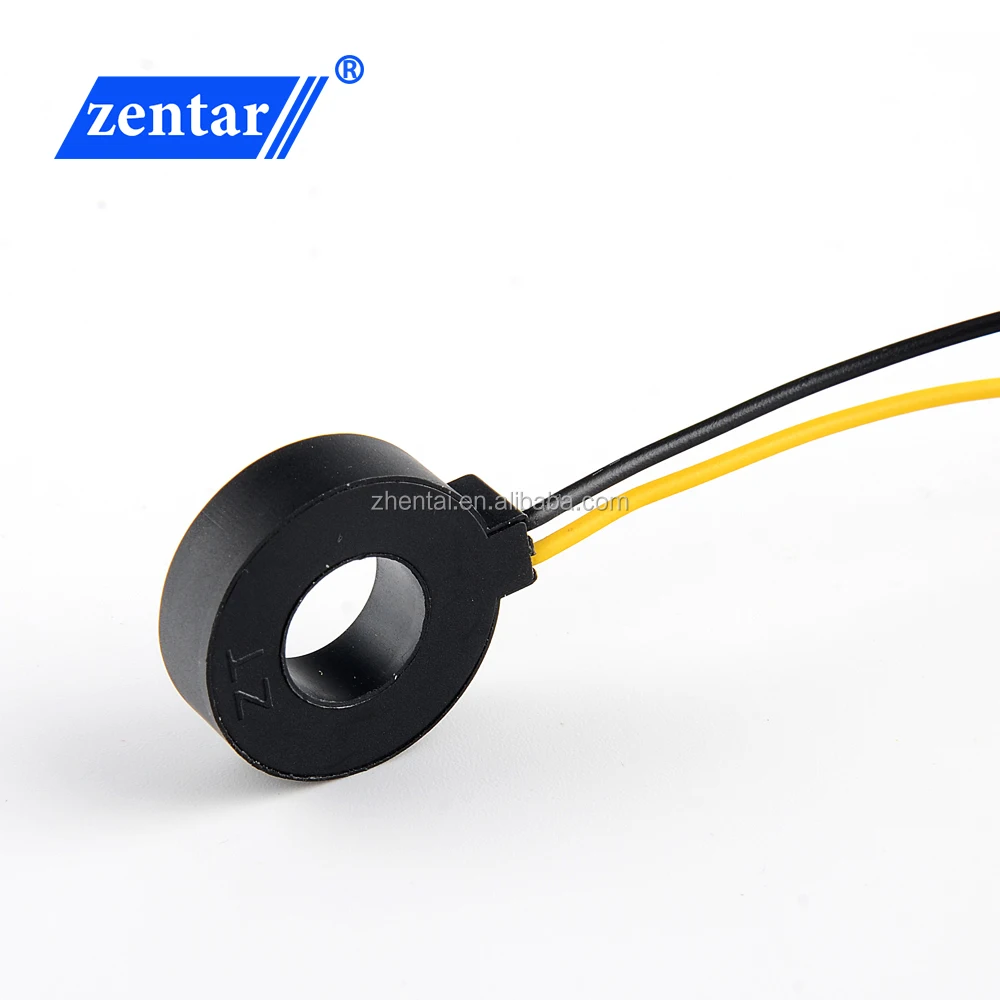

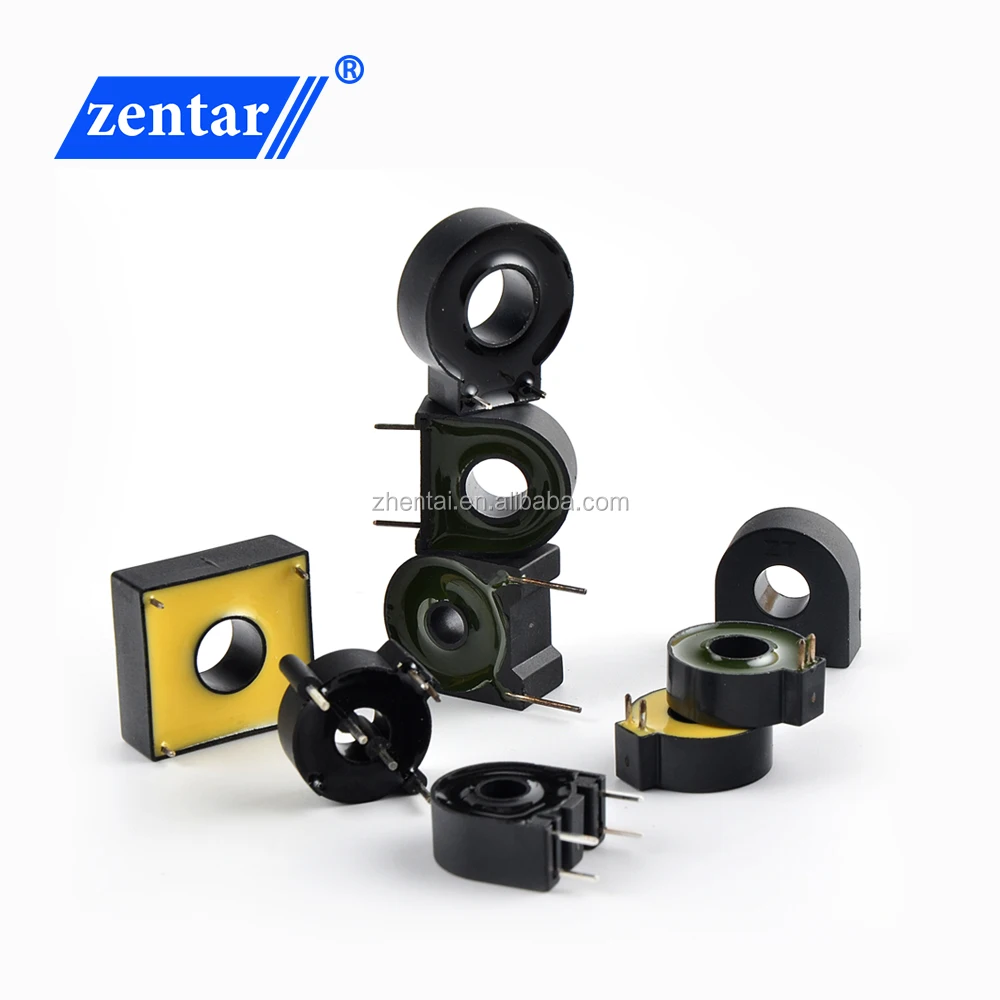

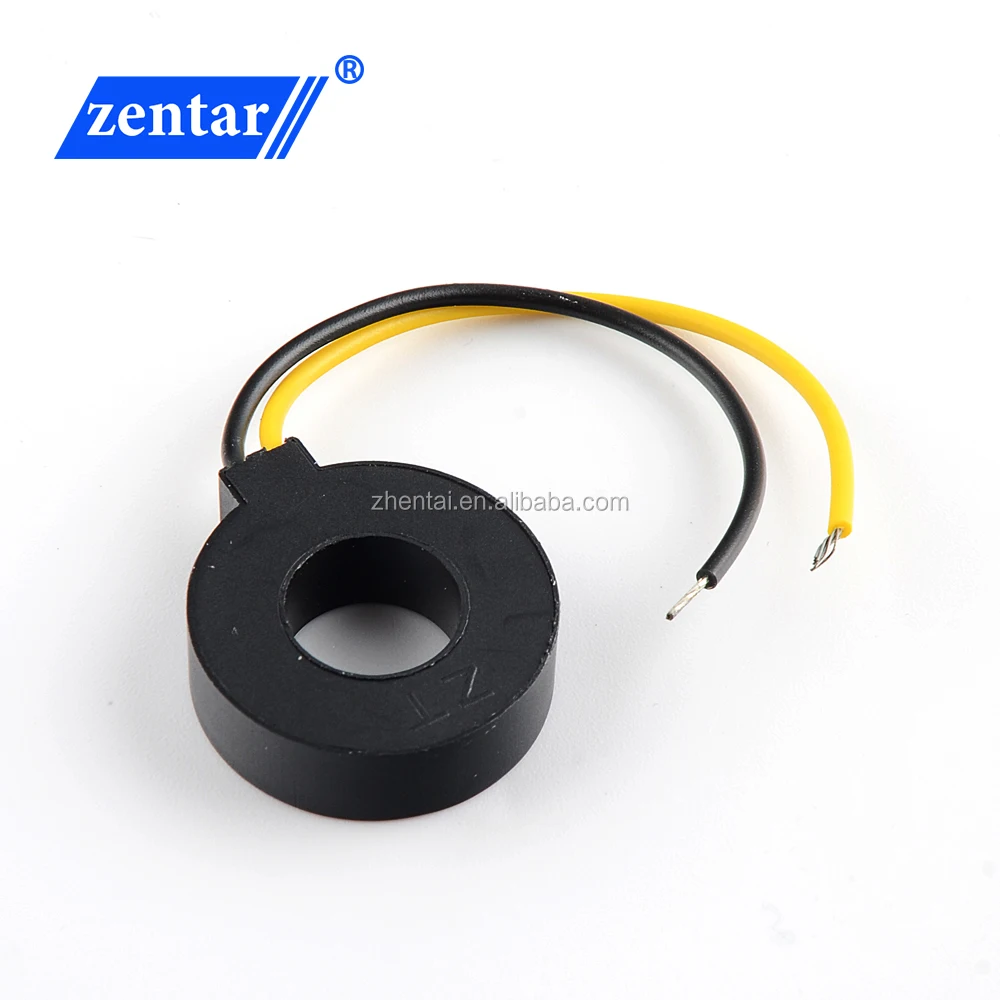

nanocrystalline current transformer



Applications :

1.Residual current circuit breaker

2.Earth Leakage protection switch

3.Leakage circuit protection Breaker

4.Leakage circuit protection plug (Appliance Leakage Circuit Interrupter -ALCI)



 Features:

1.High sensitivity

2.Close to zero load shift and zero phase shift

3.Excellent balance characteristics

4.Perfect temperature stability

5.Small change for output voltage after passing the heavy current IDC

6.A variety of configuration and output characteristics



Technical  specifications:



Material Specifications:

1		Core		1J85 80%Ni Permalloy
2		Core case		PBT-RG201 E171666
3		Winding		2-UEN φ0.08mm  E164502
4		Shields		Magnetic  iron
5		Filling		Epoxy resin 9001A/B E222893
6		Outer case		PBT-RG201 E171666
7		Lead wire		PVC  insulated wire     1007  #24AWG  E148000



Other specificitions shall be supplied according to your requirements,please contact us.
