Geothermal heat pump, High temp geothermal heat pump, DC inverter geothermal heat pump



Geothermal heat pump.

 1. room cooling, room heating and domestic hot water, flexiable functional combination.

 2. split and monobloc type available;

3. close loop and open loop available

 4. full rang from2kw,4kw, up to 30kw. Heat recovery function is also available as the optional.

5.  high temp version available, leaving water temp can be 70C,full range from 2kw up to 30kw.

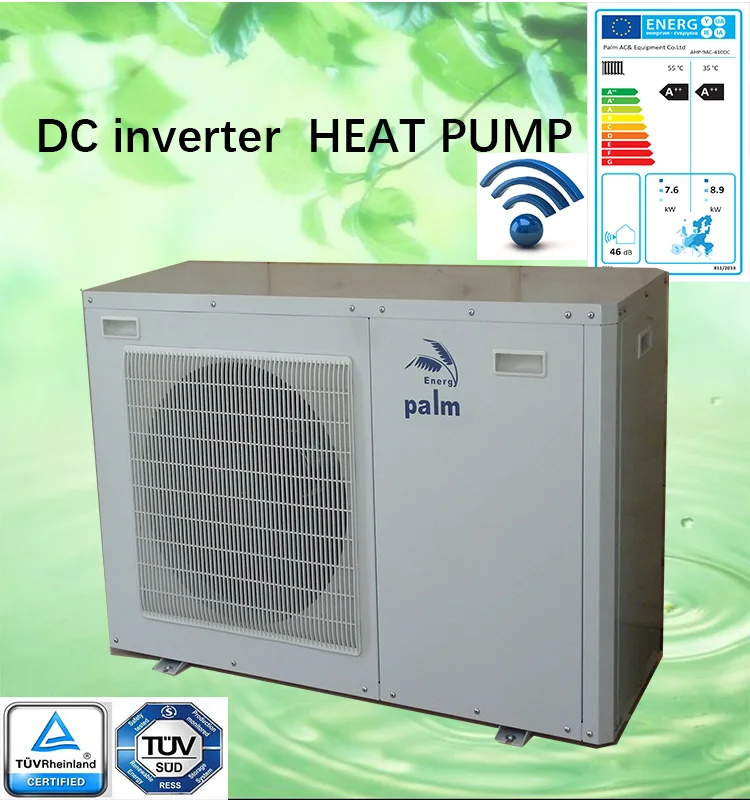

 6. DC inverter available with 8kw and 15kw

Our geothermal heat pump is exported to Sweden, Belgium, Poland, Russia, Ukraine… The unit has been very reliable and stable.







l

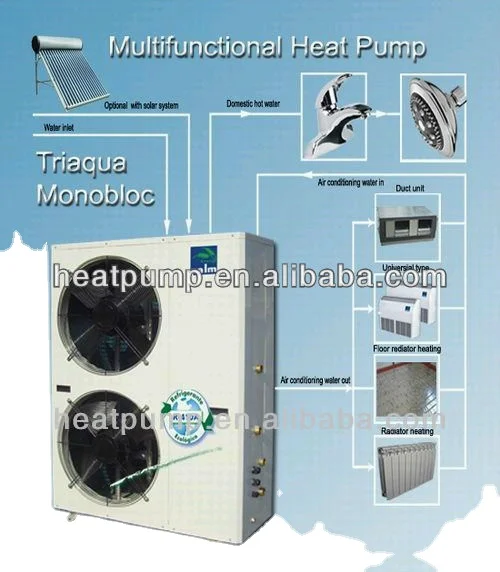

Heating + cooling ; heating + cooling+ DHW can be available as an optional function.

l  The unit can match most of the different cases with the most competitive cost.

l   Adapt to Solar panel, floor heating, radiator, fan coil. Very flexible with the installation.

l  High efficiency above 7.0

l     High  leaving water temp> 70C. DC inverter available

l  Very large range from 2k ~ 40k.

l  Group control available, can control up to 16 sets.









Our main products





Our certification

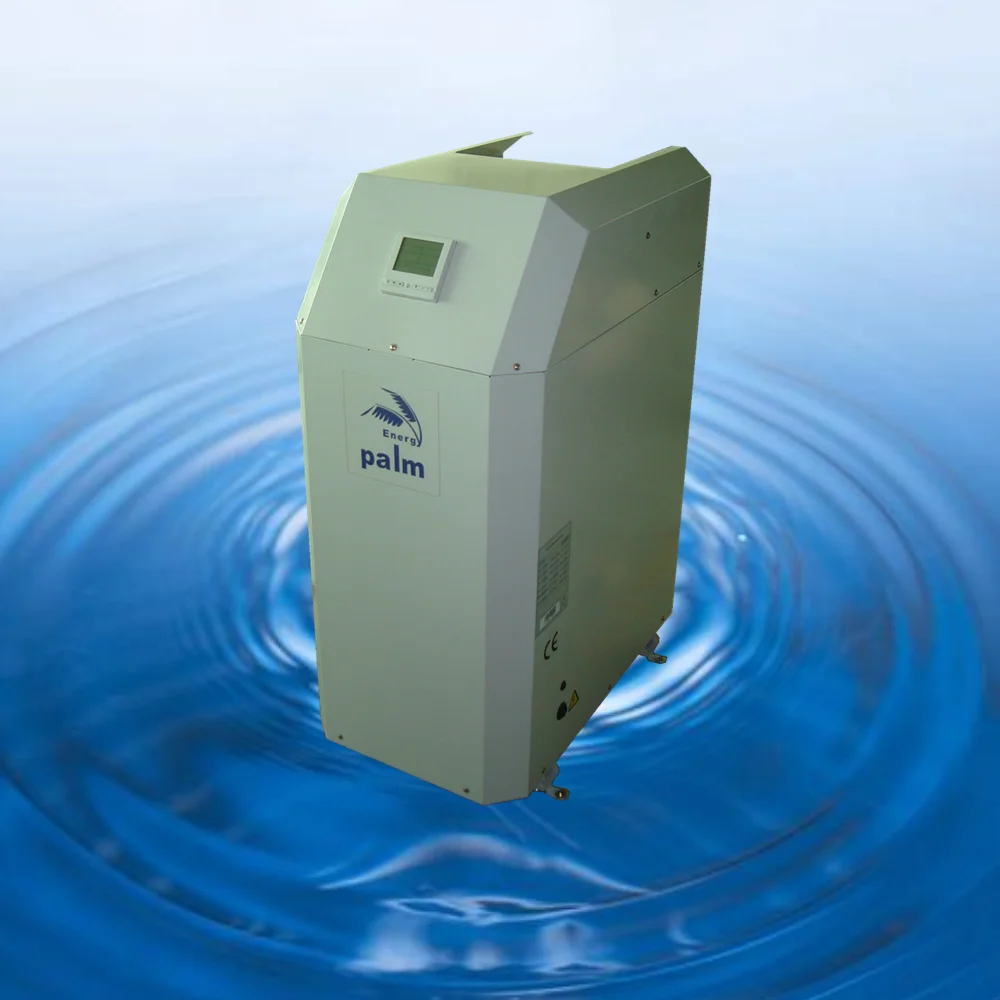

1) 7kw high temp. heat pump,geothermal heat pump

1. stable heat source, running and performance, no heat loss at low temp. -45c



2. compact and slim design, good looking and space-saving



3.at full range to meet your demand

heating+cooling;

heating+cooling+D.H.W;

heating+cooling+DHW+heat recovery



4.name brand components ensure high quality.

SWEP Heat exchanger  Toshiba compressor  Emerson heat expansion valve  Wilo water pump

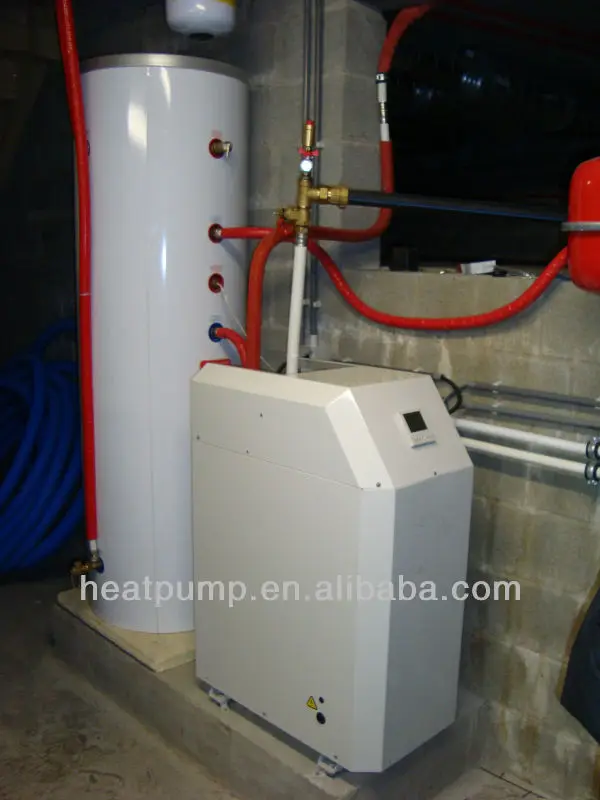

2) Flexible installation:

Open Loop Well Water Source Heat Pump

Geothermal heat pump for Lake, Pond and River



for Horizontal Ground loop

heat pump for vertical ground loop

3) High temp. heat pump spec

Model NO.			GH-2-HT	GH-5-HT	GH-7-HT
Heating	Nominal Capacity	KW	2.64	4.83	7.94
	(W10ºC/W35ºC)
	Power Input	KW	0.51	1.07	1.72
	(W10ºC/W35ºC)
	COP(W10ºC/W35ºC)	KW/KW	5.18	4.51	4.62
	Nominal Capacity	KW	1.7	3.2	7.2
	(B0ºC/W35ºC)
	Power Input	KW	0.42	0.8	1.8
	(B0ºC/W35ºC)
	COP(B0ºC/W35ºC)	KW/KW	4.05	4	4
Cooling	Nominal Capacity	KW	3.09	5.21	8.25
	Power Input	KW	0.58	1.25	1.94
	EER	KW/KW	5.33	4.17	4.25
Power Supply			220-230V/50HZ
Max Output water temp		ºC	70
Mini water flow		Litre/Hour	340	680	1000
(Water Source side)
Mini water flow		Litre/Hour	340	680	1000
(Heatpump side)
Water source side Diameter		mm	DN25	DN20
Heatpump side diameter		mm	DN25	DN20
Packing size	L*H*W	mm	600x880x410
Unit size	L*H*W	mm	550x760x350
Protection class			IPx4
Anti Shock class			Class 1
Refrigerant			R134a
Noise Level		dB	22	23	29
Regulation component			Emerson expansion valve
Condenser HX			Plate heat exchanger
Evaporator  HX			Plate heat exchanger
Net weight		kg	35	52	70
Gross weight		kg	40	58	75



4) 2 years warranty!!
We provide 1% of total value free spare part and 2 years warranty since shipment arrival.

We can provide free heat pump installation consultation and technical assistant.



5) Our main products:

air source split heat pump,



air source monobloc heat pump,



double source heat pump,



solar heat pump,



geothermal heat pump,



inverter heat pump,



high temp. geothermal heat pump,



high COP heat pump,ect,



pool heat pump,



fan coil, water pump,water tank,ect.
