Автоматическая линия производства сэндвич-панелей mgo из оксида

Описание и отзывы

Трекер стоимости

Характеристики

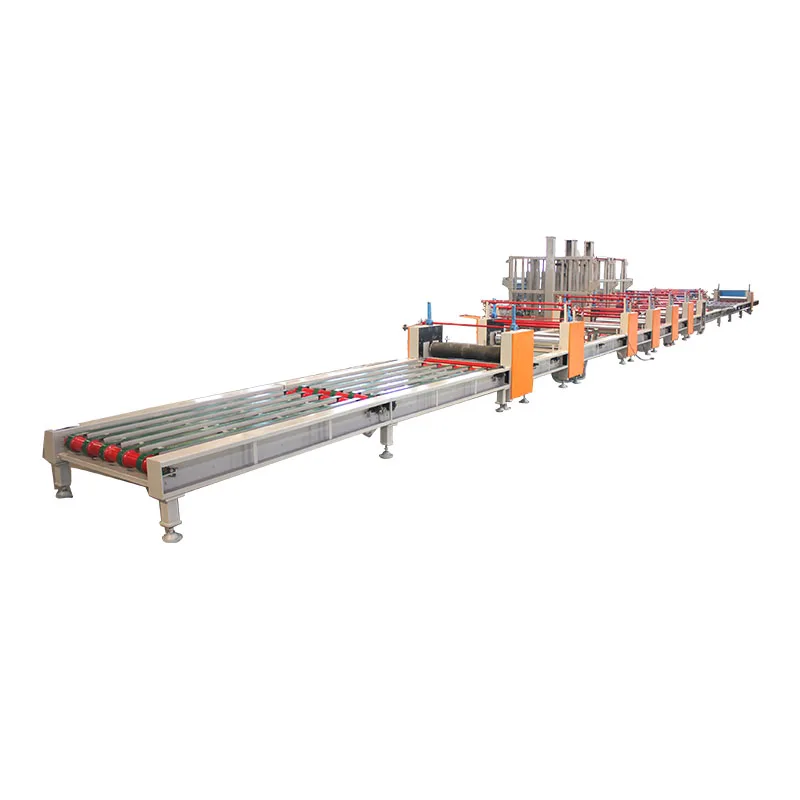

 Automatic magnesium oxide mgo sandwich panel production line



MGO Machine Parameter
Machine Capacity	Now can up to 2000pcs per shift ,we still update our technique
Machine advantage	With lots of machine patent
Finished board thickness range	3-20mm
Finished board type	Sanding mgo board and normal mgo board
degree of automation	Full automatic machine and semi-automatic machine ,can customized
Raw material	MGO; Mgcl2 /magnesium sulfate ; perlite; saw dust, etc.

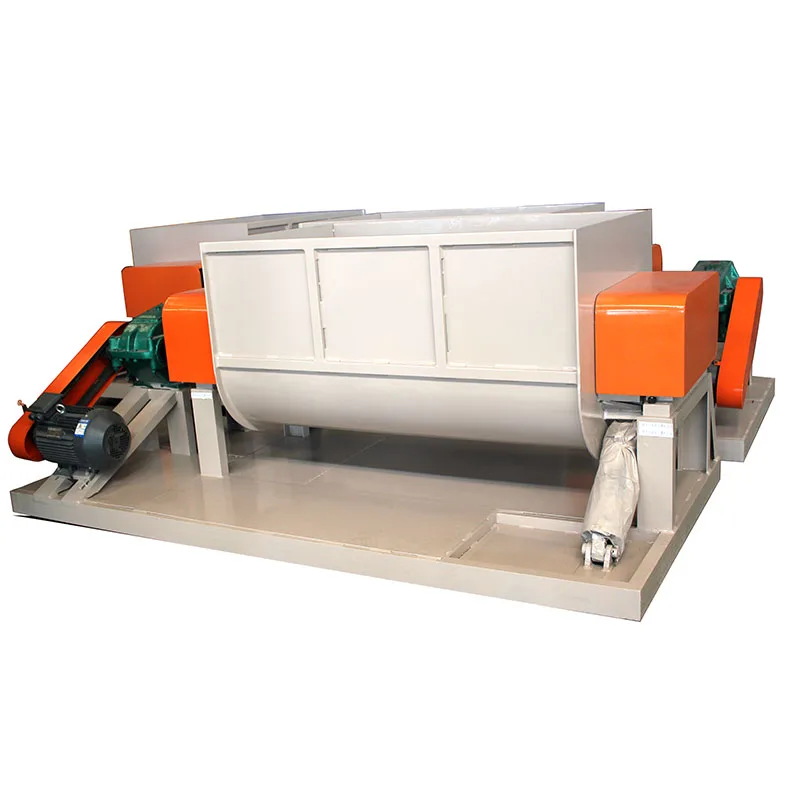

1:Feeding mgo board material system with full Automatic

With this system All the material can be mixed as certain proportion,high effective ,also the most important thing is our engineer can help you adjust the material proportion according to the range of different factor,which is have most relation with the final board quality



2:MGO board forming machine

Multifunction board making machine is the main equipment for the wet extrusion molding for high standard decorate board,it is also the prior choice for the high-grade plate manufacturers in China.After research development and technology accumulation for years,the machine with the advantage of high precision,large capacity,easy operation,good practicality and stable property,etc.It is widely used for Interior wall decorating plate,out wall heated board,sanding veneer,Core board of fire door,fiber cement board,etc for construction and decorated material. magnesium oxide board production equipment

Power(KW)	6.25	7.75
Max transmission speed(m/min)	18	18
Layer	2	6
Capacity(Hour)	300	300

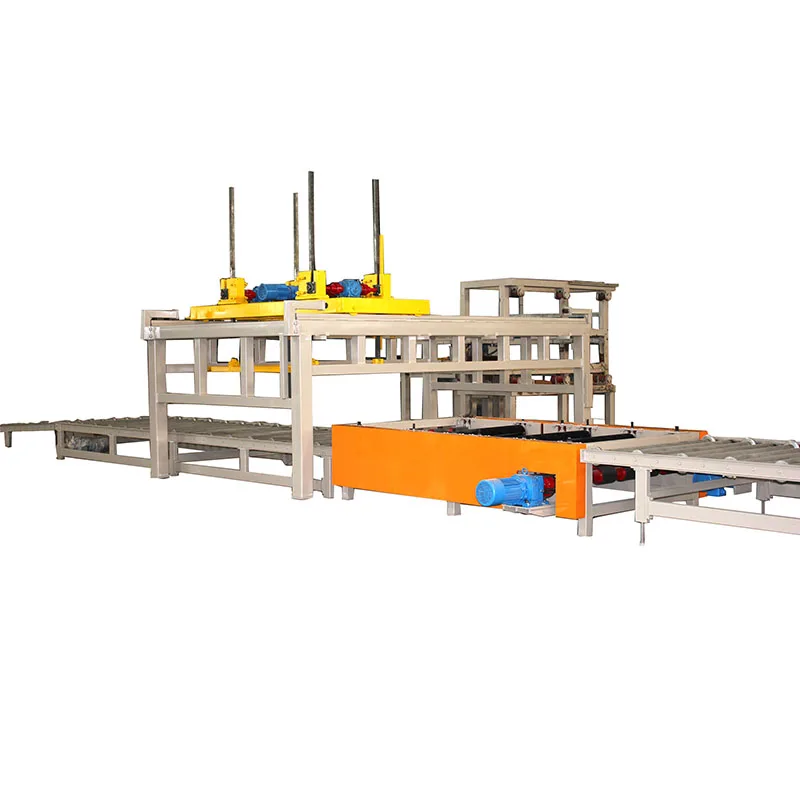

3:Automatic loading/unloading machine

Automatic loading/unloading machine is the necessary machine for upper and bottom frame,stacking and curing.It adopts hydraulic upright balance lifting,with the function of automatic tally,automatic ferry,etc,and it replace the manual operate,greatly reduce the labor intensity and improve the operating efficiency and product quality.With the advantage of easy operation,stable property and good security,etc. magnesium oxide board production equipment



Model	Power(KW)	Loading(T)	Main Roller Speed(m/min)
Shift Type	8	3.5	22
Separate Type	4	3.5	22



4;Automatic demould and mould clean system

• Frame 4mm steel plate bending,


• PVC seamless belt,


• galvanized belt roller,


• 1.5 kilowatt drive motor,


• overall size: 0.8×3.9×26 meters,


• single machine power: 9KW;

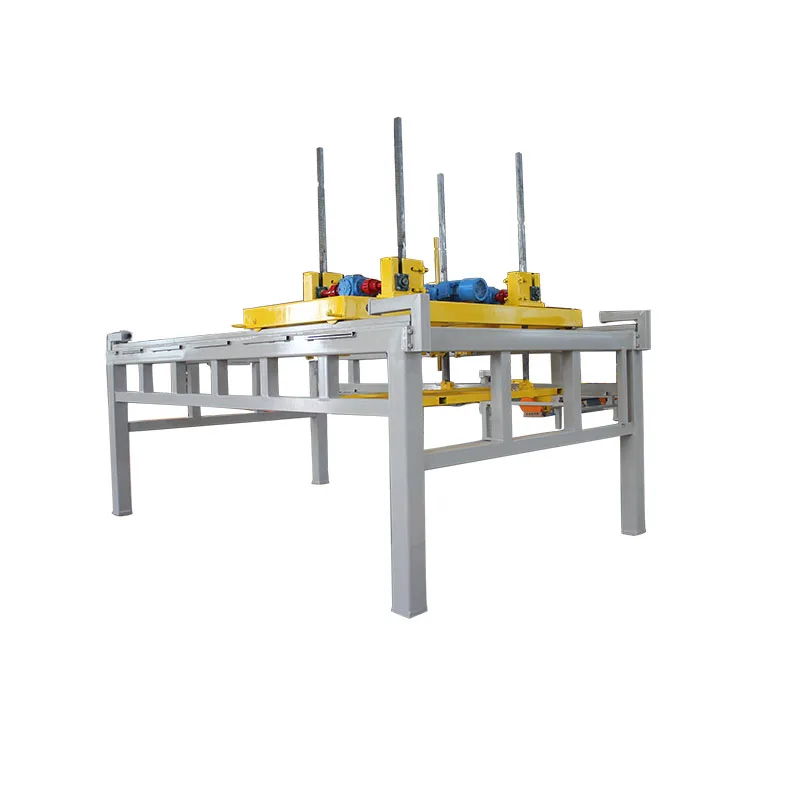

5:Automatic Suction Machine

• capacity: 6 standard boards/minute


• Gear electric synchronous lifting, motor drive,


• displacement servo positioning,


• water circulation vacuum pump,


• square tube frame, linear guide rail,


• surface spray treatment,


• overall size: 2.4×3.2×4.5m,


• single machine power: 9.2KW;


• capacity: 6 standard boards /minute.

6:Automatic cutting machine

• Frame Q235


• motor displacement


• linear square guide rail


• high-speed cutting


• length adjustable


• surface spray treatment


• dimensions: 2.6×1.3×5.7 meters


• single machine power: 2.95KW


• capacity: 8 standard boards/min
