Характеристики
Company Profile
KINGREAL MACHINERY：
KINGREAL was established in 1995, specializing in the ceiling machinery production industry, has many years of industry experience and technology accumulation, and is trustworthy！
Products Description
Fully Automatic Metal Ceiling Tile Making Machine with Spring Tee Profiles
Roll Forming Line
Roll Forming Line
Metal Ceiling Macking Machine

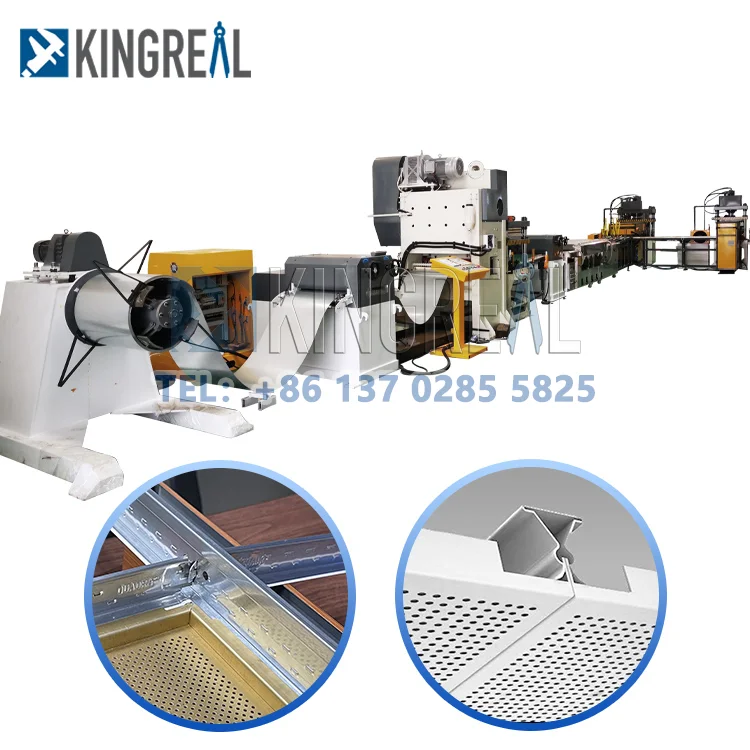

KINGREAL fully automatic ceiling production line is one of the most popular machine production lines at present, including uncoiling, straightener, perforation press machine, notching and shearing machine,bending forming machine. Equipped with ten-inch full-color touch screen control, the entire production line is easy to operate, requiring only one or two workers to operate, saving a lot of labor costs.The Spring Tee Roll Forming Production Line

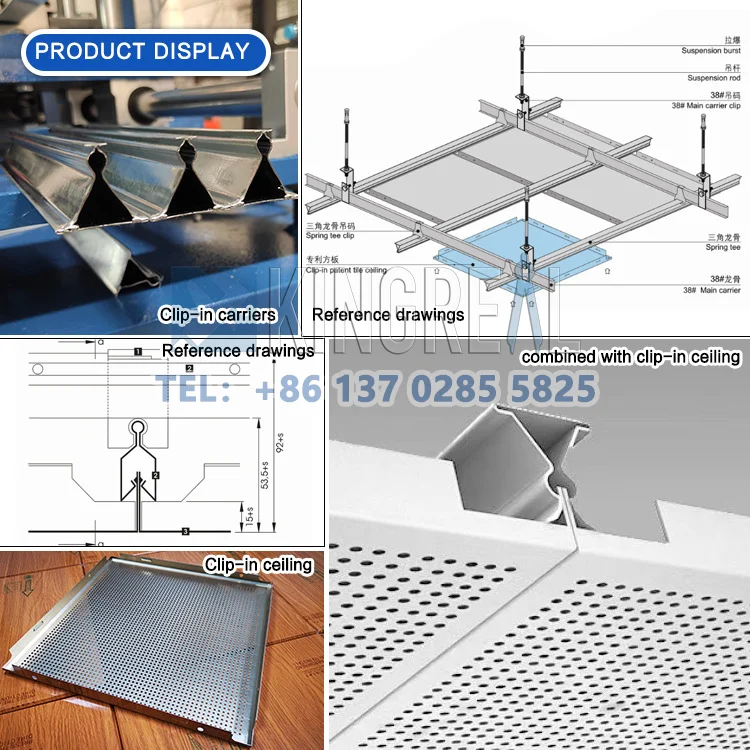

The spring tee profiles is a technical profile for supporting suspended ceiling panels (cell grid suspended ceiling). A Gi sheet metal base gives structure and strength to the ceiling.It can achieve efficient and stable production. Automated production can reduce manual intervention and improve production efficiency.
The spring tee profiles is a technical profile for supporting suspended ceiling panels (cell grid suspended ceiling). A Gi sheet metal base gives structure and strength to the ceiling.It can achieve efficient and stable production. Automated production can reduce manual intervention and improve production efficiency.

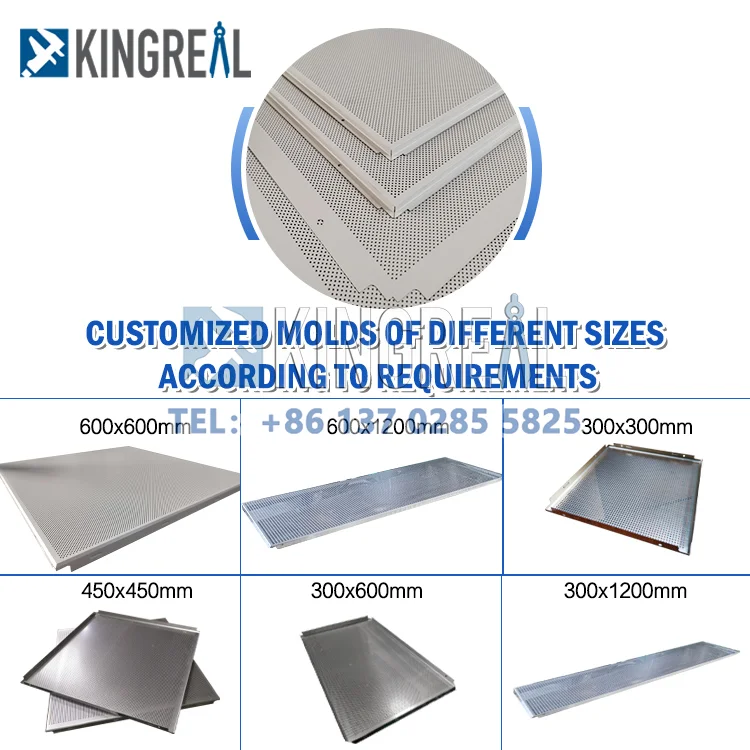

KINGREAL provide customized services and can provide you with 300*300/600*600/600*1200ceiling production solutions, optional full-automatic or semi -automatic.
Main Components
Fully Automatic Production Line
(1)Equipped with Turn-over Machine and Feeding Machine Arm, no labor is required in the production process.
(2)High precision, and improved production efficiency. The entire production line only needs 1-2 workers to collect products at the terminal, which reduces a lot of labor costs and production costs.
Replaceable molds for perforation press machines
A production line can use different molds for different types of ceiling punching styles, which is quick and easy to replace, without the need to purchase additional production equipment, to maximize utilization.
(KINGREAL also provides mold customization, which can customize different molds for you according to your needs)

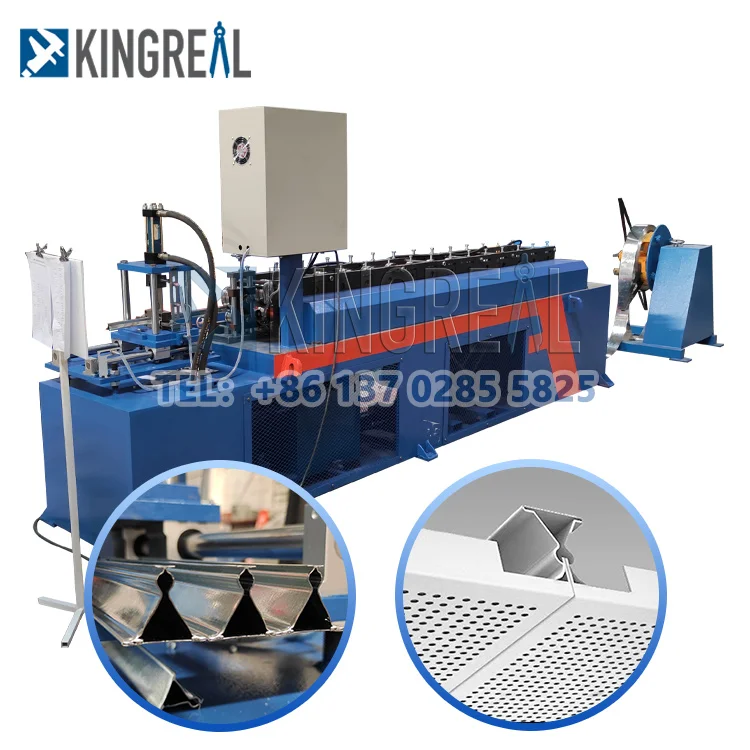

With the Spring Tee Roll Forming Machine, a complete ceiling production plan is formed.
The speed of the triangle keel machine can reach 30m/min.
Working Procedure
Metal Ceiling Macking Machine：

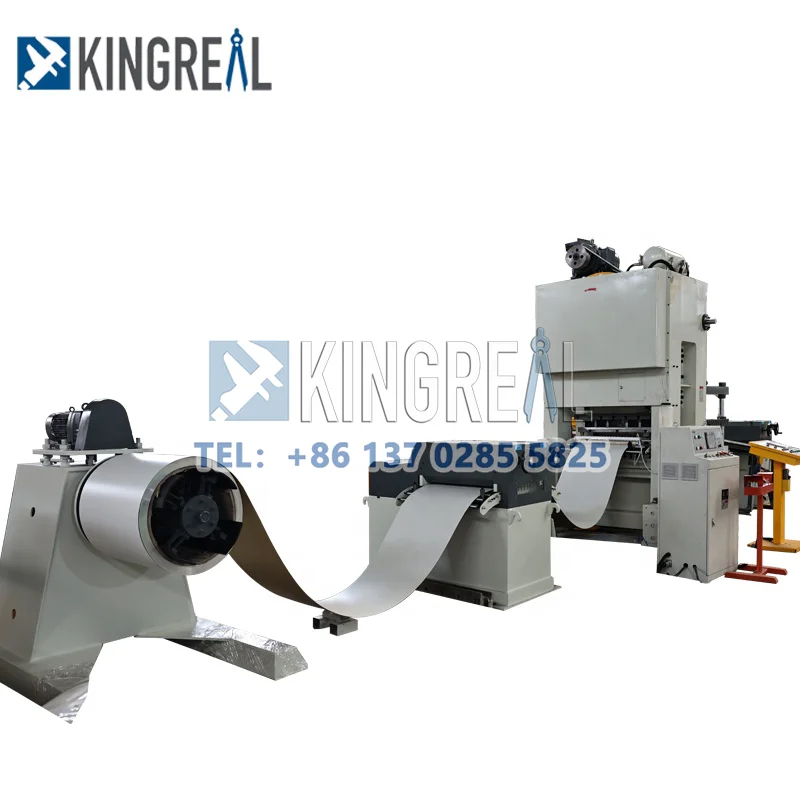

Hydraulic Decoiler → Precision Straightener → High Speed Gantry Perforation Machine → Notching And Shearing Press →High Precision Straightener→ Tiles Flipping Machine→Bending Forming MachineThe Spring Tee Roll Forming Production Line
Raw Material Uncoil → Material Straightening →Continuously Cold Roll Forming →Follow Shearing→ Products Output
Reference Date
Machine name | Metal Ceiling Tile Making Machine |
Decoiler | Hydraulic Decoiler |
Pre-Straightener | Rough\\Precision Straightener |
High Speed Perforation Press | Up to 220 SPM About 6-8 pcs/min |
Servo Feeding Machine | standard |
Re-Straightener | Rough\\Precision Straightener |
Washing and Drying Machine | Depending on the raw material |
Notching and Shearing Press | Custom size available |
Bending Forming Press | Lay-In and Clip-In |
Acoustic Fleece Sticking Machine | Optional |
Raw materials | galvanized steel strips |
Carrier sizes | According with customers’ drawing |
Maximum forming speed | 30 m / min |
Roll Forming stands | 15-20 Rollers station |
Machine Power | 30 KW |
Application
The main production of mental ceilings is widely used in commercial, industrial and residential buildings, such as office buildings, shopping malls, hotels, airports, hospitals, etc., with the effects of decoration and sound insulation.
Related products
Why Choose Us
1. Use the plastic protective film
2. Stick the mark
3. Prepare the trailer for loading
4. Secure equipment
Overall Solution
Our company can provide a overall solution according to customer needs, including product punching, automatic forming, bending,
welding, etc. This solution is widely used in full automatic production of various complex profiles, such as closed complex profiles, shelf columns, etc.
welding, etc. This solution is widely used in full automatic production of various complex profiles, such as closed complex profiles, shelf columns, etc.
