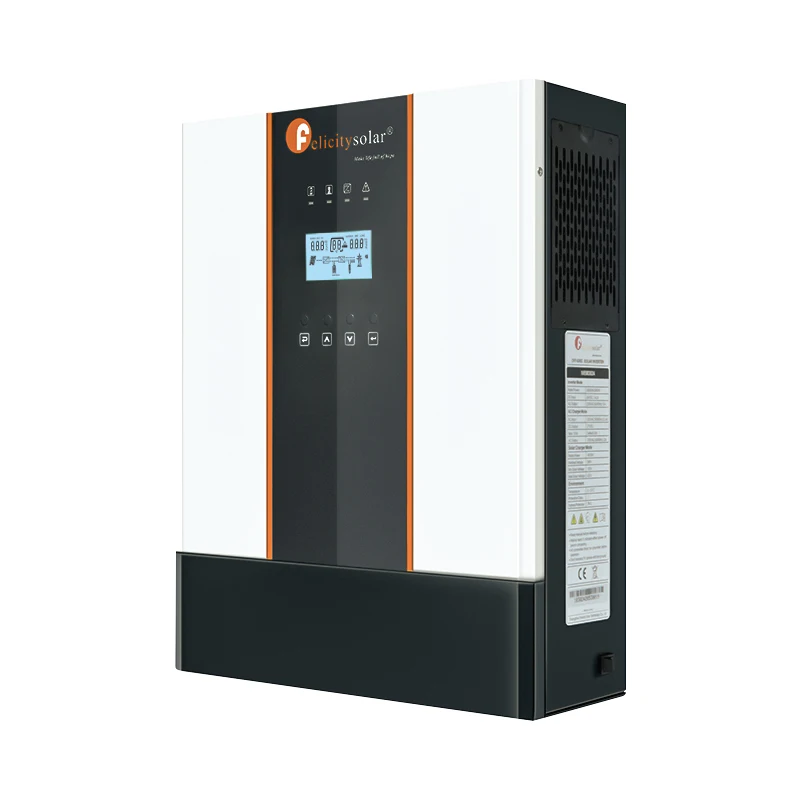

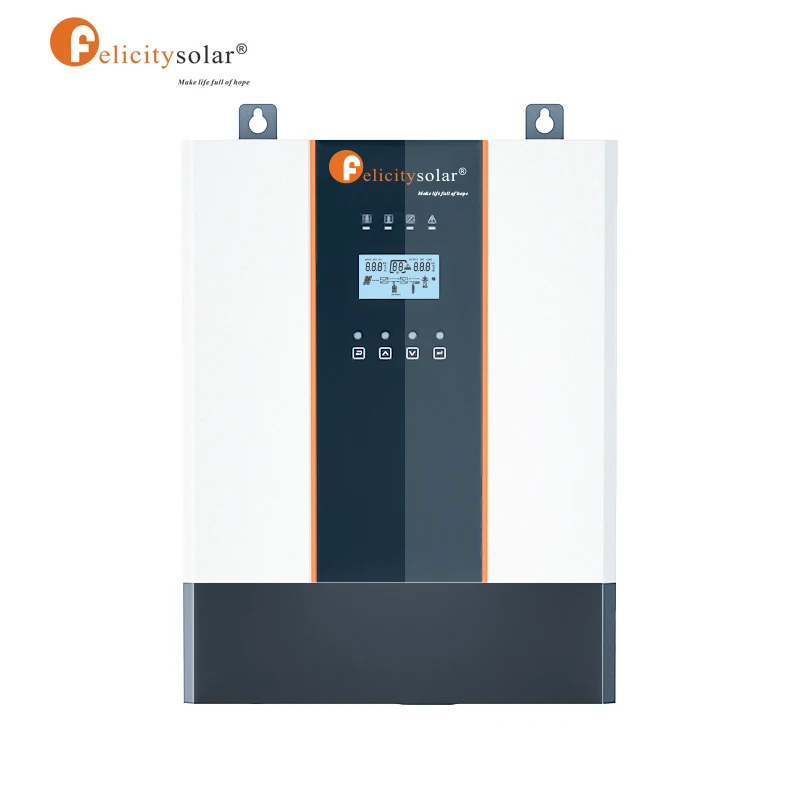

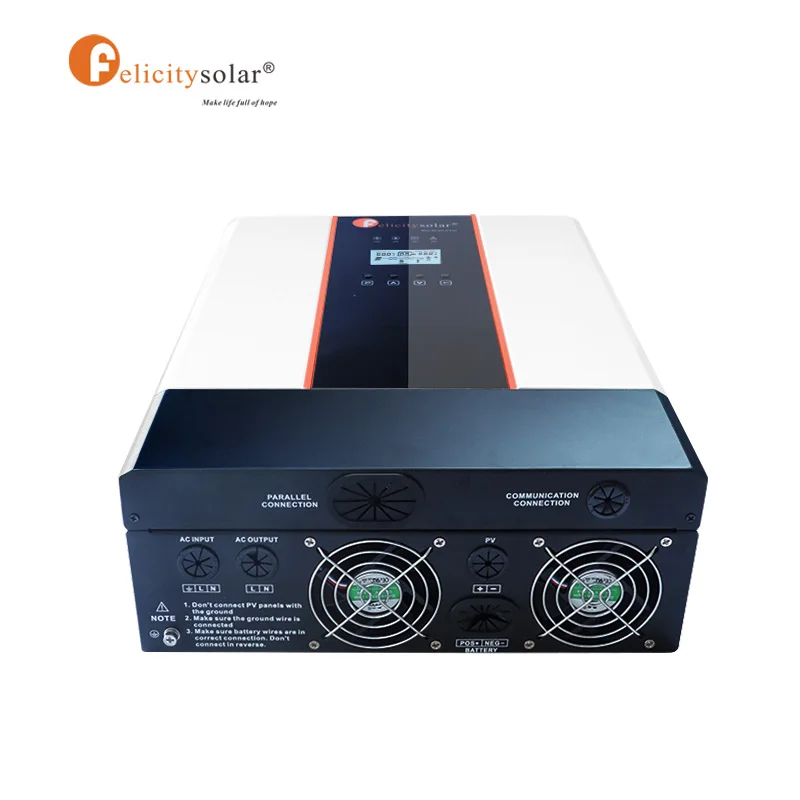

Гибридный инвертор felтолета 3 кВА немодулированный солнечный синусоидальной волны 24 в 3000 Вт byd mppt с
- Категория: Solar Energy Products >>>
- Поставщик: Guangzhou,Felicity,Solar,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 329.25 $* | 336.32 $* |
| Jul-20-2025 | 267.27 $* | 272.85 $* |
| Jun-20-2025 | 324.20 $* | 330.40 $* |
| May-20-2025 | 321.23 $* | 327.71 $* |
| Apr-20-2025 | 256.95 $* | 261.88 $* |
| Mar-20-2025 | 316.57 $* | 322.5 $* |
| Feb-20-2025 | 313.1 $* | 319.44 $* |
| Jan-20-2025 | 311.41 $* | 317.50 $* |
Характеристики
Products Description
Advantages:
●Pure sine wave Built-in MPPT solar charge controller Configurable solar input voltage up to 450V Maximum Configurable input
●voltage range for home appliances and personal computers via LCD setting Configurable battery charging current based on
●applications via LCD setting Configurable AC/Solar Charger priority via LCD setting Compatible to mains voltage or generator power
●Auto restart while AC or Solar is recovering Capable working without battery connection Capable supplying power to AC output with
●solar and utility at same time Capable supplying AC output with solar input only Overload/ Over temperature/ short circuit
●protection Cold start function Parallel operation with up to 9 units only available for 5KVA model
●Pure sine wave Built-in MPPT solar charge controller Configurable solar input voltage up to 450V Maximum Configurable input
●voltage range for home appliances and personal computers via LCD setting Configurable battery charging current based on
●applications via LCD setting Configurable AC/Solar Charger priority via LCD setting Compatible to mains voltage or generator power
●Auto restart while AC or Solar is recovering Capable working without battery connection Capable supplying power to AC output with
●solar and utility at same time Capable supplying AC output with solar input only Overload/ Over temperature/ short circuit
●protection Cold start function Parallel operation with up to 9 units only available for 5KVA model
Model | IVEM3048 | IVEM5048 |
Nominal DC Input Voltage | 24V | 48V |
Rated Output Power(VA) | 3000VA | 5000VA |
Rated Output Power(W) | 3000W | 5000W |
Input Voltage Waveform | Sinusoidal(Utility or generator) | Sinusoidal(Utility or generator) |
Nominal Input Voltage | 230Vac | 230Vac |
Low Line Disconnect | 170Vac±7(UPS); 90Vac±7Vac(Appliances) | 170Vac±7(UPS); 90Vac±7Vac(Appliances) |
Low Line Re-connect AC Input Range | 180Vac±7(UPS); 100Vac±7Vac(Appliances) | 170Vac±7(UPS); 90Vac±7Vac(Appliances) |
High Line Disconnect | 280Vac±7Vac | 280Vac±7Vac |
High Line Re-connect | 270Vac±7Vac | 270Vac±7Vac |
Max AC Input Voltage | 280Vrms | 280Vrms |
Nominal Input Frequency | 50Hz/60Hz(Auto detection) | 50Hz/60Hz(Auto detection) |
Max PV Open Circuit Voltage | 450V | 450V |
PV Voltage Working Range | 120V~450V | 120V~450V |
Max Input Power | 4000W | 6000W |
Max Solar Charging Current | 100A | 100A |
Max Charging current(Utility + Solar) | 100A | 100A |
Max Input Current | 15A | 20A |
Min Start Up Voltage | 125V | 125V |
Mono Panel Configeration
Mono Suitable for mono panel, from household, to farm, commercial use or project can also use

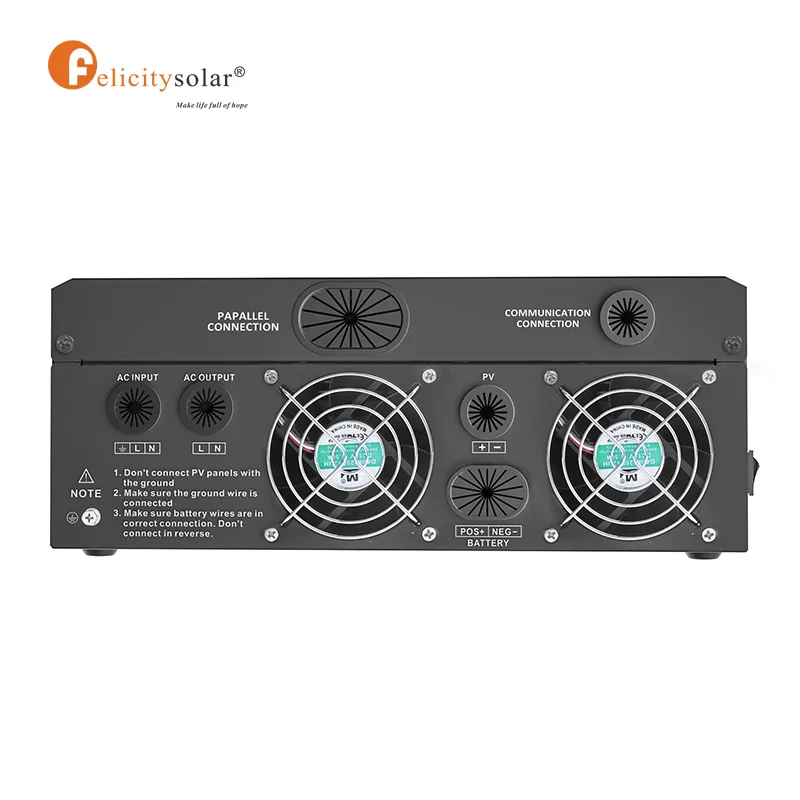

Parallel operation
Parallel operation with up to 9 units only available for 5KVA model
Built-in Anti dust filter
Activated carbon material prevents dust from entering the box and prolongs the service life of the machine
100A MPPT built in
Can pass medium and large currents, without external MPPT, no worries about safe use

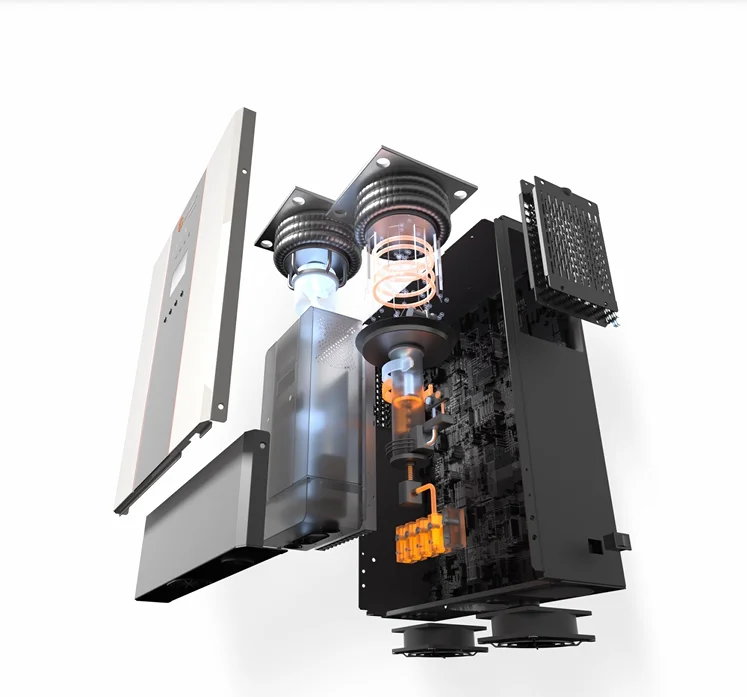

Precision Structure
Ultra-small Precision size, compressed version of the body, not occupying space and saving place
