Угольный карбонизатор для печи
- Категория: Woodworking Machinery >>>
- Поставщик: HENAN,SUPERB,MACHINERY,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1428.75 $* | 1499.22 $* |
| Aug-15-2025 | 1416.10 $* | 1487.88 $* |
| Jul-15-2025 | 1188.17 $* | 1247.5 $* |
| Jun-15-2025 | 1392.37 $* | 1462.5 $* |
| May-15-2025 | 1212.44 $* | 1273.33 $* |
| Apr-15-2025 | 1368.46 $* | 1436.36 $* |
| Mar-15-2025 | 1356.43 $* | 1424.76 $* |
| Feb-15-2025 | 1344.62 $* | 1411.9 $* |
| Jan-15-2025 | 1332.89 $* | 1399.70 $* |
Характеристики
Product Description
Biomass carbonizer oven kiln
Introduction:
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.
Product Advantages
The feature:

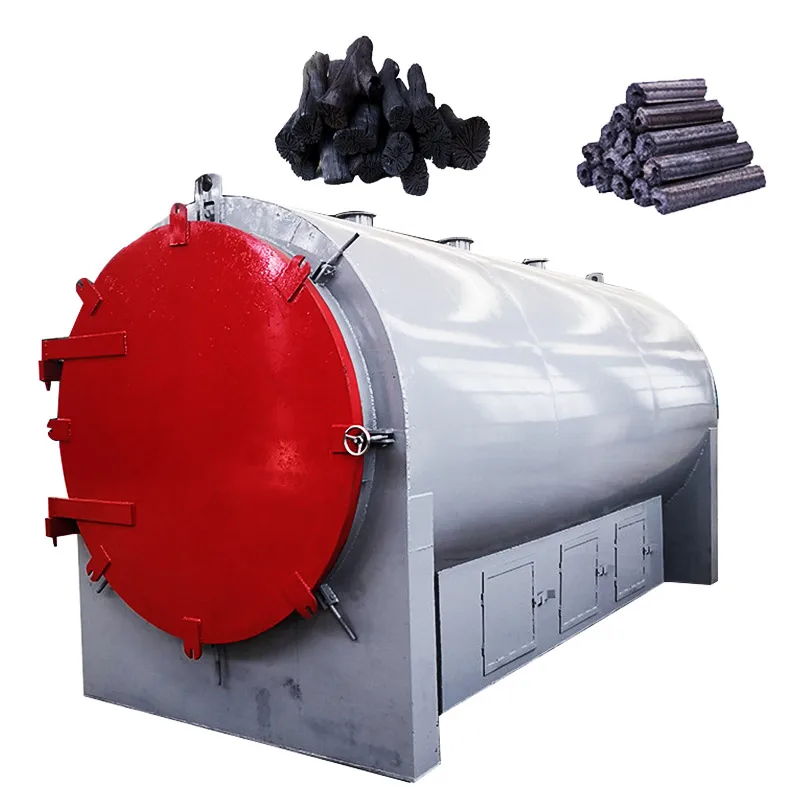

1).Carbonization furnace is the use of horizontal manufacturing process, carbonization furnace has a three-layer structure, and the middle of light insulation materials,It is possible to keep the temperature in the furnace at all times.
1).Carbonization furnace is the use of horizontal manufacturing process, carbonization furnace has a three-layer structure, and the middle of light insulation materials,It is possible to keep the temperature in the furnace at all times.
2).The door use packing seal, not into the air, Out of carbon than the conventional carbonization furnace is much higher.
3).The reason is called green carbonization furnace because the stick in the carbonization process will produce a lot of light
yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to
the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.
yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to
the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.
4).Carbonization furnace excess gas can be used to dry the sawdust or to burn the boiler.
5).Carbonization furnace to end charcoalcooling time is shorter, we use the inter layer of the gap between the unit water cooling carbonization furnace natural cooling,more efficient and convenient.
6).Environmental air carbonization furnace Supporting a track and kiln car, use more
convenient,reduce worker labor intensity.
convenient,reduce worker labor intensity.
Customers to buy this carbonization furnace really reached a simple, labor-intensive, easy to install charcoal out of carbon, cooling time greatly reduced, carbonization furnace production can be greatly improved.
Application
It can use different material as heating source.Such as the Firewood/coal gas/ natural gas/liquefied gas/Combustible gas(produced during the carbonized process)
Specification
Model | STHL120 | STHL170A | STHL170B | STHL190 | |||
Capacity | 2000kg/24h | 4000kg/24h | 7000kg/24h | 10500kg/24h | |||
Dimension | 2.86*1.6*2.1m | 2.85*2.1*2.1m | 4.6*2.1*2.1m | 5.5*2.2*2.2m | |||
Weight | 1.68t | 3t | 3.5t | 6.8t | |||
Inner Pot Diameter | 1.2m | 1.7m | 1.7m | 1.9m | |||
Inner Pot Length | 2.6m | 2.2m | 4.4m | 5.3m | |||
Volume | 3m³ | 5m³ | 10m³ | 15m³ | |||
Carbonization | 6-8 hours | ||||||
Carbonization furnace can be customized according to customer requirements.(Materials and working process)
Packing & Delivery
According to different types of machines, we use protective film or standard import & export wooden cases to pack.
Company Profile
You are welcome to consult at any time!
Our Services
Pre-service: Enthusiasm
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement; 3.Train technical personnel for clients.
Services during the sales: Servant
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans.
After-sale services: Faithfulness
Provide considerate services to minimize clients' worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical exchanging.
7.Revisit regularly for establishing long-term and friendly relationship.
Service Commitment
Provide clients one-year warranty to make sure the machine work well. Have spare parts of our very machine in stock all the time which means the replacements can bu sent to you timely.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement; 3.Train technical personnel for clients.
Services during the sales: Servant
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans.
After-sale services: Faithfulness
Provide considerate services to minimize clients' worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical exchanging.
7.Revisit regularly for establishing long-term and friendly relationship.
Service Commitment
Provide clients one-year warranty to make sure the machine work well. Have spare parts of our very machine in stock all the time which means the replacements can bu sent to you timely.
