Реле неисправности заземления MH DTL EF18 ANSI 50G/51G 50N/51N 86 с уникальной механической кнопкой
- Категория: Other Electrical Instruments >>>
- Поставщик: MUN,HEAN,SINGAPORE,PTE,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.57 $* | 0.99 $* |
| Aug-16-2025 | 0.98 $* | 0.45 $* |
| Jul-16-2025 | 0.6 $* | 0.82 $* |
| Jun-16-2025 | 0.85 $* | 0.56 $* |
| May-16-2025 | 0.9 $* | 0.59 $* |
| Apr-16-2025 | 0.13 $* | 0.13 $* |
| Mar-16-2025 | 0.46 $* | 0.57 $* |
| Feb-16-2025 | 0.73 $* | 0.1 $* |
| Jan-16-2025 | 0.99 $* | 0.93 $* |
Характеристики
Products Description

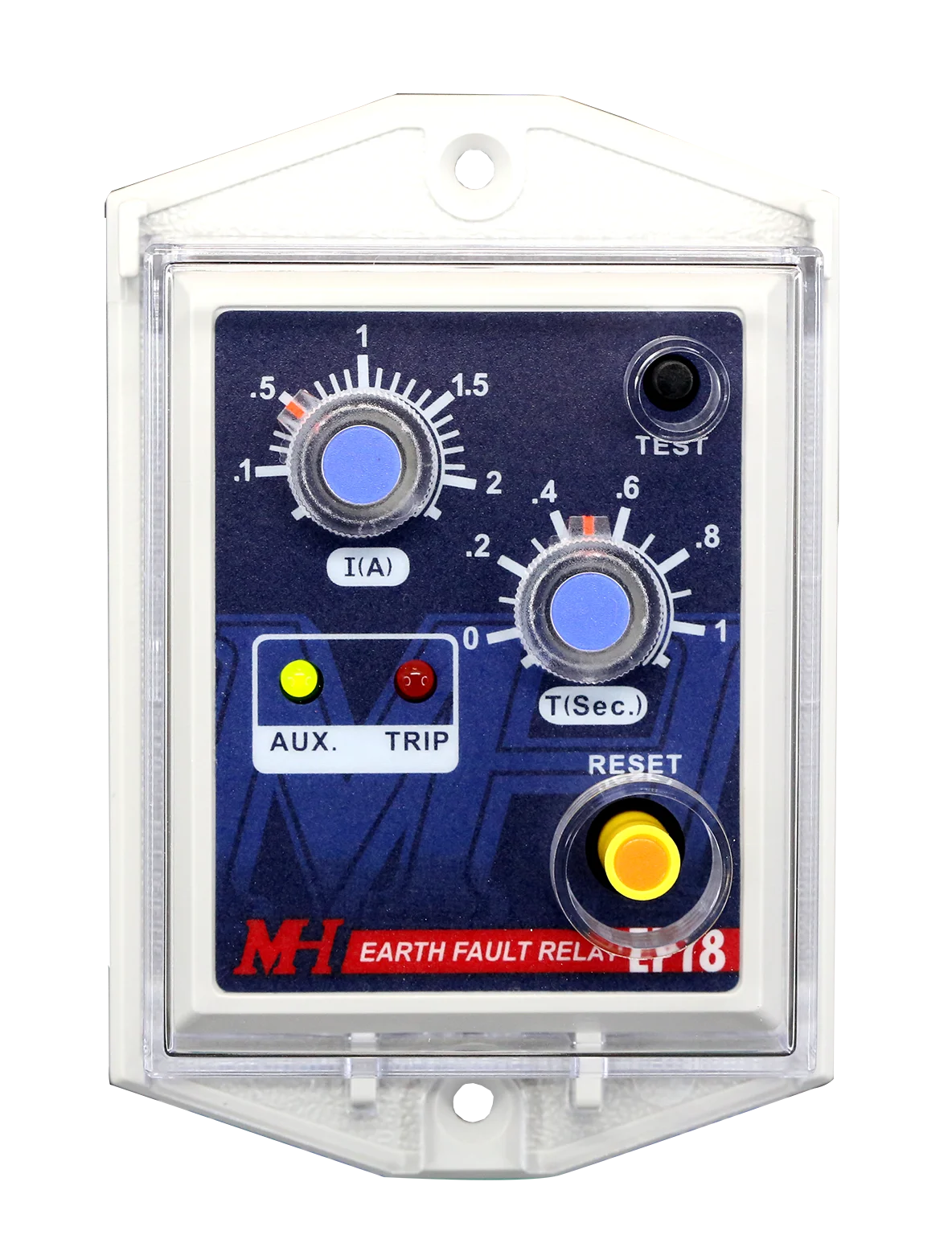

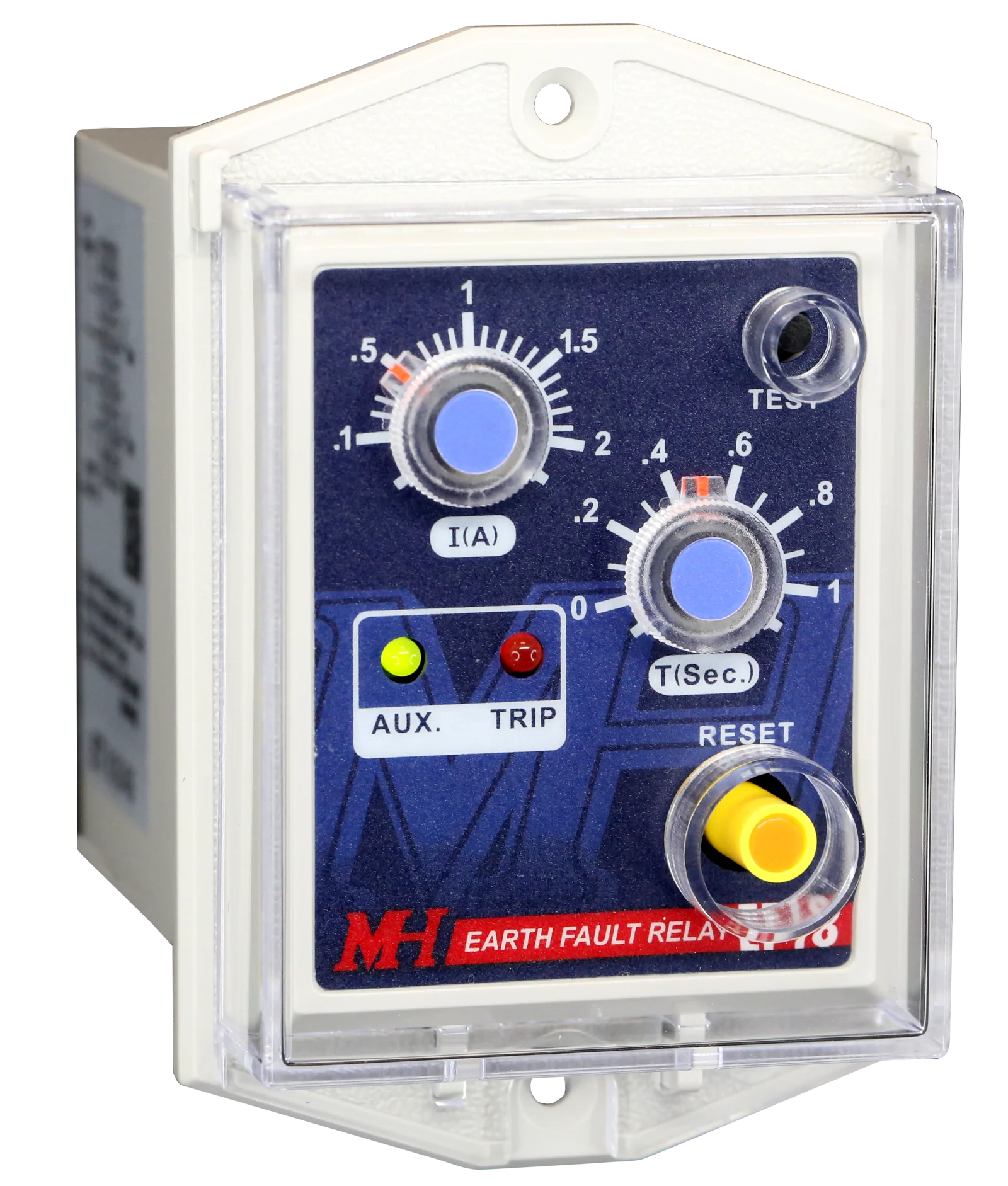

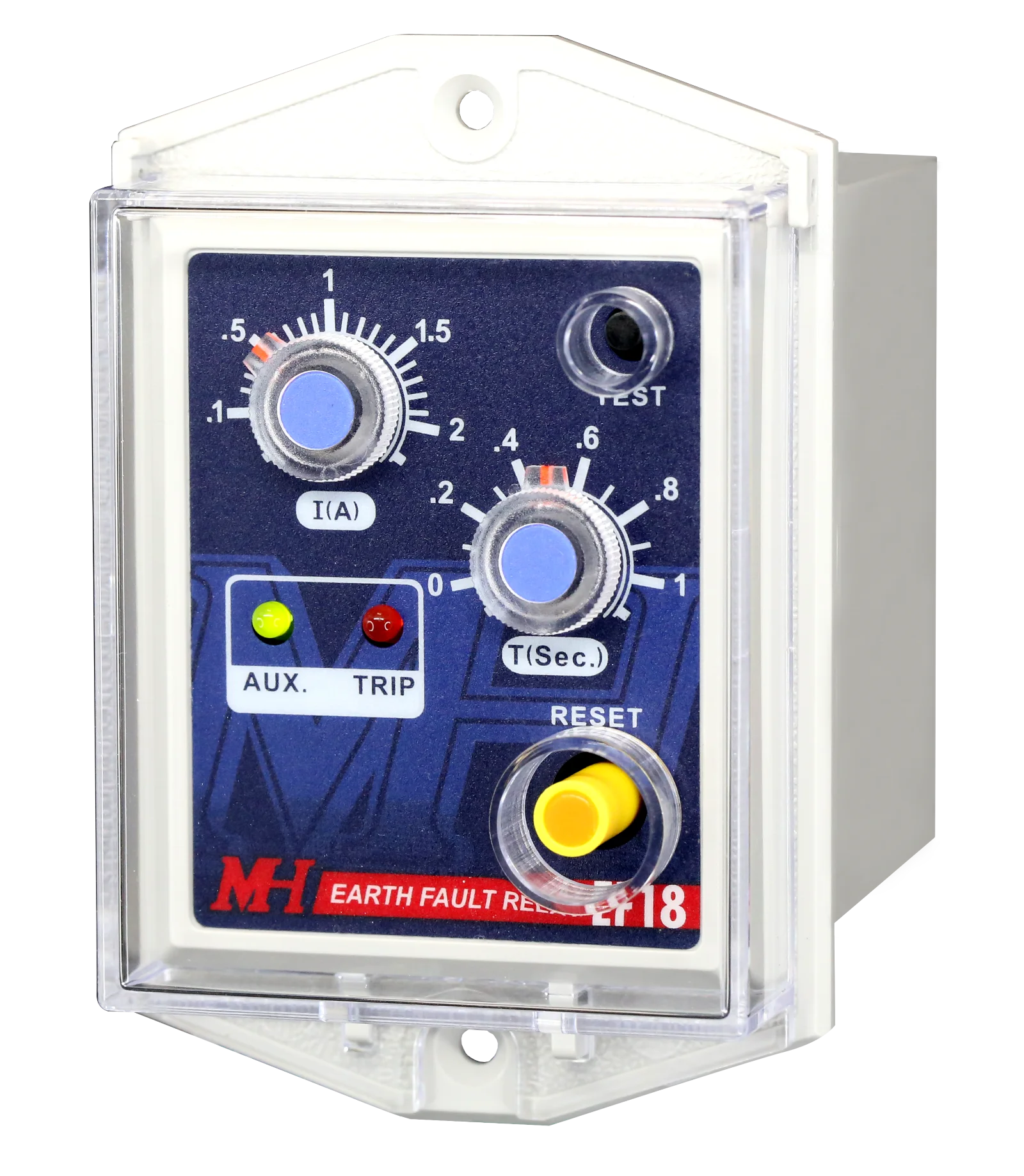

The MH EF18 DTL Earth Fault Relay is a protective relay designed to detect earth fault. It is equipped with a unique fault indicative system which called MTB. This MTB is a Mechanical Trip Button that latched with output contact after relay operated. The MTB is designed in accordance with ANSI 86 lockup relay.
Highlights of EF18
- Comply to ANSI 50N/51N, 50G/51G, 86
- Unique fault indicative system in accordance with ANSI 86 Lockup Relay
- No requirement for auxiliary power supply for fault indicative system
- Safeguard against automatic reset before fault rectification
- Simple, compact and user friendly
- Fully type tested by accredited laboratory
Applications
Incoming feeder protection
Outgoing feeder protection
Busbar protection
Product Parameters
Characteristic | |||
Protection functions | ANSI 50N/51N, 50G/51G, 86 | ||
Power Supply | AC 230V±15% (other voltages available on request) | ||
Operating frequency | 50 / 60 Hz | ||
Power consumption | Approximately ≤ 2VA | ||
Rated input current | 5A (1A available upon request) | ||
Earth fault pickup setting | 0.1 to 2.0A | ||
Definite time delay setting | 0 to 1 sec (0 to 5 sec available upon request) | ||
Operating temperature range | -10 to 55°C | ||
Relative humidity | <93%, non-condensing | ||
Degree of protection | IP31 (front), IP20 (back) | ||
Overcurrent withstandability | 10 * I rated (for 1 sec) | ||
Output | Relay output | 1 x C/O (changeover), 1 x N/O (normally open) | |
Contact rating | 2A at 250VAC | ||
LED status indication | Normal operation, fault current detected | ||
Safety feature | Mechanical Trip Button (MTB) complying with ANSI 86 | ||
Housing material | ABS resin complying with UL94V0 | ||
Net weight | Approximately 300g | ||
Dimensions | 59mm (width) x 88mm (height) x 105mm (depth) | ||
Panel cut-out | 51mm (width) x 65mm (height) | ||
Standard compliance | IEC60255, CE Marking | ||
Connection Diagram
3P4W
3P3W
