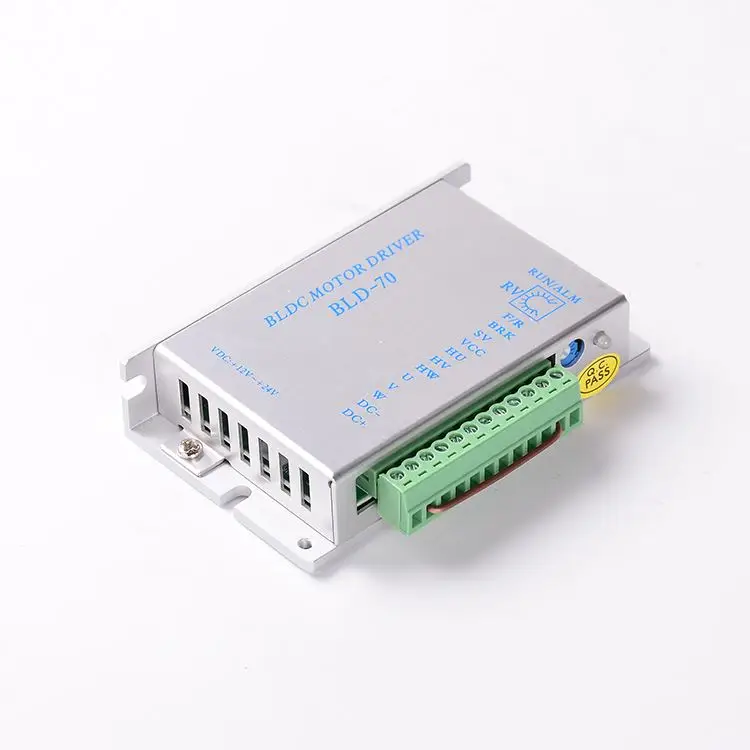

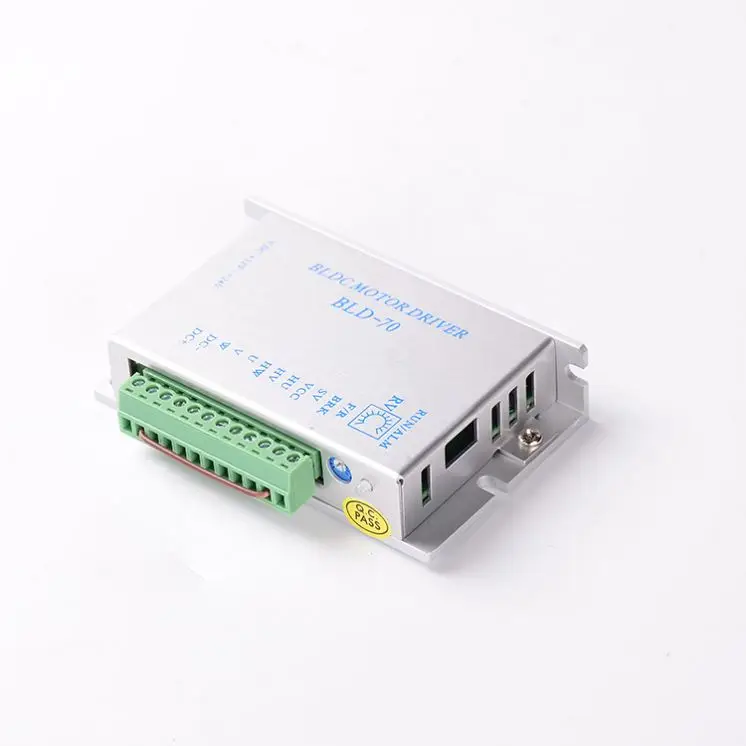

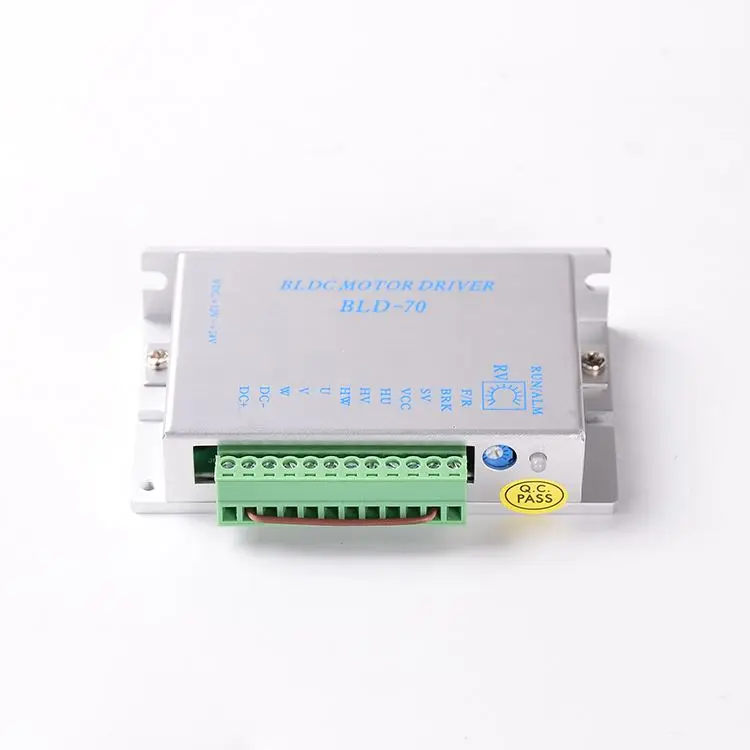

BLD-70  Factory supply custom bldc driver motor dc,  motor driver controller



View More Related Driver.

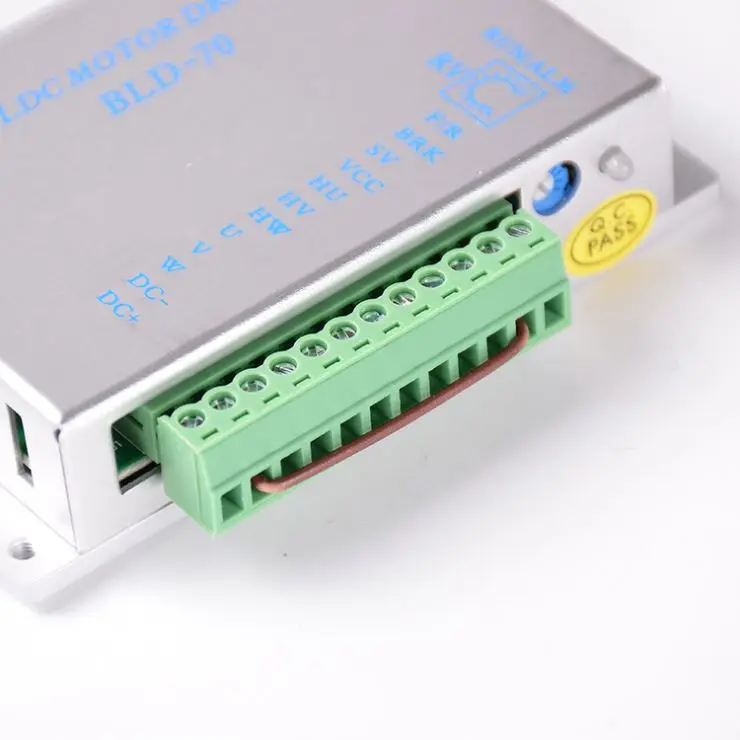

CN5Terminal	Single category	functional Description
DC+	Power connection	Power supply positive electrode(12-30VDC)
DC-		Power supply negative electrode( Hall sensor negative electrode)
W	Motor connection	Motor line W phase
V		Motor line V  phase
U		Motor line U  phase
	Hall Single
HW		Hall senor single HW
HV		Hall senor single HV
HU		Hall senor single HU
SV	Control single	External speed setting signal input terminal; When connecting external potentiometer, The middle terminal connects SV,the other two terminals connect to VCC and DC-
VCC		External potentiometer power (Hall sensor positive)
F/R		Motor direction control terminal; F/R is disconnected from DC, the motor rotates clockwise, otherwise the motor rotates counterclockwise
BRK		Motor brake stop control signal; BRK and DC- connect in default, when BRK and DC- disconnect, motor brake stops.



We are factory direct for sale. OEM/ODM is available. Above are only some typical models. For more information or customized. Please contact us.
