Реле управления вентилятором 8-1393292-9
- Категория: Auto Relays >>>
- Поставщик: Wenzhou,Ningyue,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.4 $* | 0.38 $* |
| Aug-16-2025 | 0.0 $* | 0.78 $* |
| Jul-16-2025 | 0.26 $* | 0.68 $* |
| Jun-16-2025 | 0.60 $* | 0.42 $* |
| May-16-2025 | 0.65 $* | 0.15 $* |
| Apr-16-2025 | 0.57 $* | 0.79 $* |
| Mar-16-2025 | 0.20 $* | 0.17 $* |
| Feb-16-2025 | 0.81 $* | 0.97 $* |
| Jan-16-2025 | 0.88 $* | 0.74 $* |
Характеристики

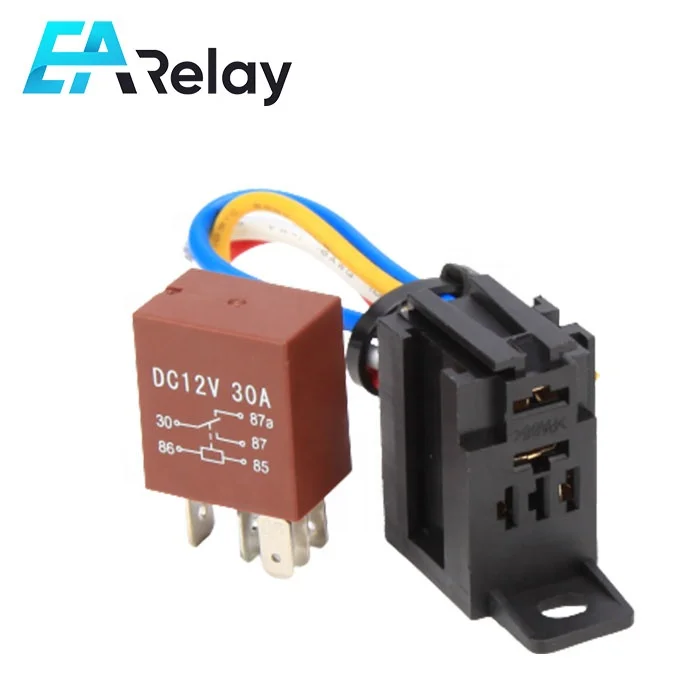

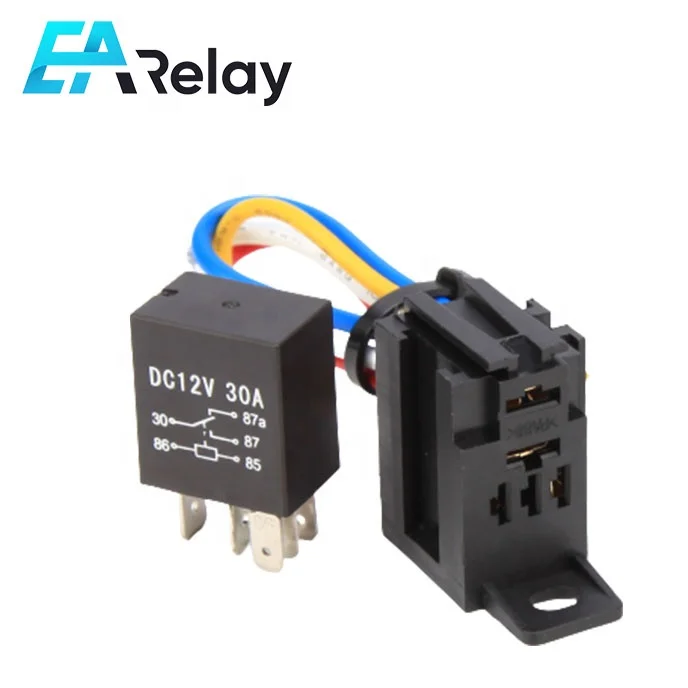

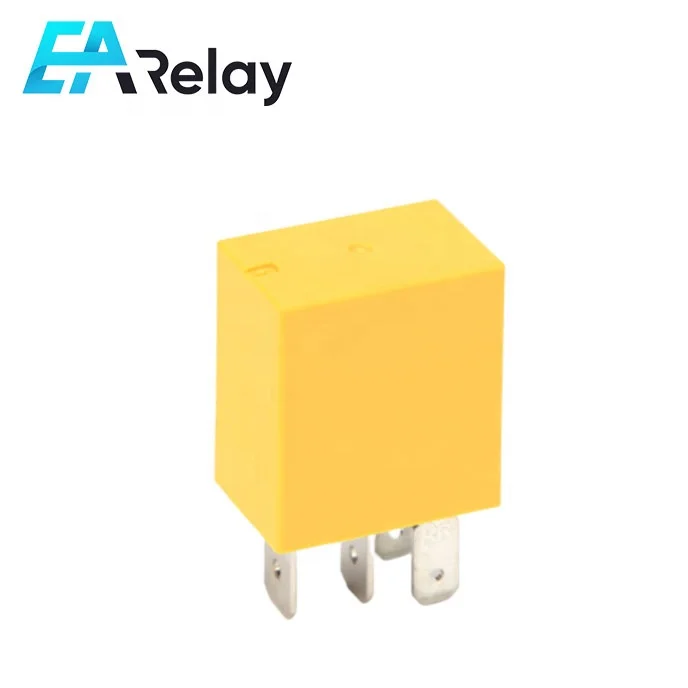

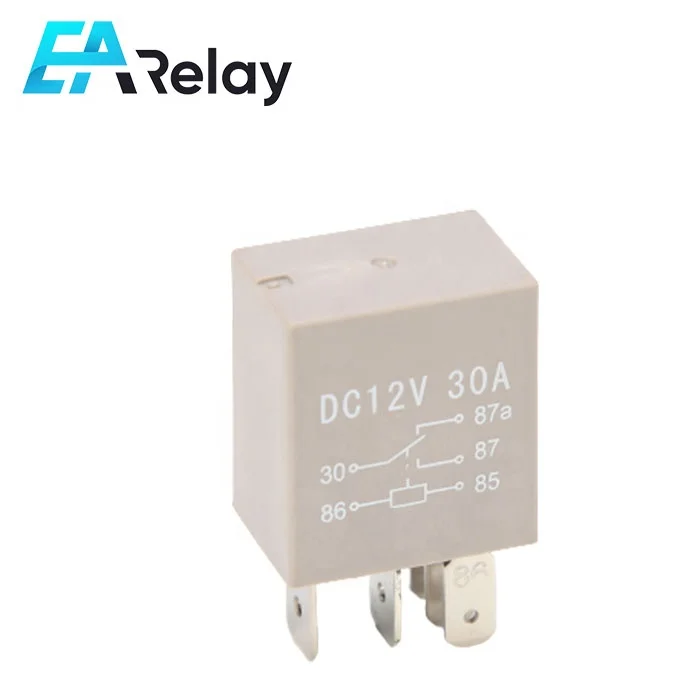

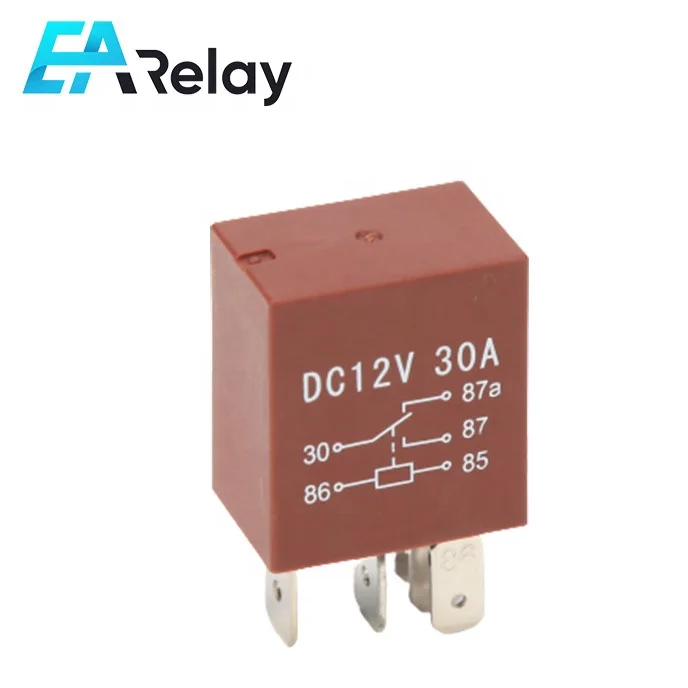

Product Display
Main Features
40A switching capability
1 form A、1 form C contact form
Sealed IP67 and dust cover types
1 form A、1 form C contact form
Sealed IP67 and dust cover types
Outline dimensions: 23.0X15.5X25.5mm
Typical Application
– Reverser, Fan, Air conditioning, Fuel Flow Meter, Differential lock, High beam/low, auxiliary lamps
– Fiat; GM: Corsa, Omega, Monza, Kadett 92, Ipanema, Vectra; Chrysler; Ford: New Fiesta 10/…13, Fusion 13/…/18, Edge 16/…/19,
Fiesta 10/…/13. DAF, FORD, IVECO, SCANIA, VOLVO: Caminhões; MERCEDES-BENZ: Caminhões Atego, Axor, O-500, OF, OH
– Fiat; GM: Corsa, Omega, Monza, Kadett 92, Ipanema, Vectra; Chrysler; Ford: New Fiesta 10/…13, Fusion 13/…/18, Edge 16/…/19,
Fiesta 10/…/13. DAF, FORD, IVECO, SCANIA, VOLVO: Caminhões; MERCEDES-BENZ: Caminhões Atego, Axor, O-500, OF, OH
Specifications | ||
Contact Form | 1A, 1C | |
Contact Material | AgSnO2 | |
Max Operating Current | 40A | |
Max Operating Voltage | 27VDC | |
Rated Load（Resistive load） | 1A: 40A 13.5VDC 20A 27VDC 1C: NO/NC 40A/30A 13.5VDC 20A/15A 27VDC | |
Insulation Resistance | 100MΩ | |
Dielectric Strength（Coil and Contact） | 500VAC/M | |
Ambient Temperature | -40°C~+85°C | |
Operate/Release Time | 10ms/10ms | |
Mechanical Life | 1 X107 | |
Electrical Life | 1 X105 | |
Terminal Type | Quick connection | |
Coil Ratings | ||||||||||||||
Standard | Normal voltage (VDC) | Pick-up voltage (VDC) | Drop-out voltage (VDC) | Coil resistance (Q±10%) | Parallel resistance (Q±5%) | Equivalent resistance (Q±10%) | Coil Power (W) | |||||||
12 | 8.4 | 1.2 | 90 | - | - | 1.6 | ||||||||
12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | ||||||||
24 | 16.8 | 2.4 | 360 | - | - | 1.6 | ||||||||
24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | ||||||||
External Dimensions and Diagrams
