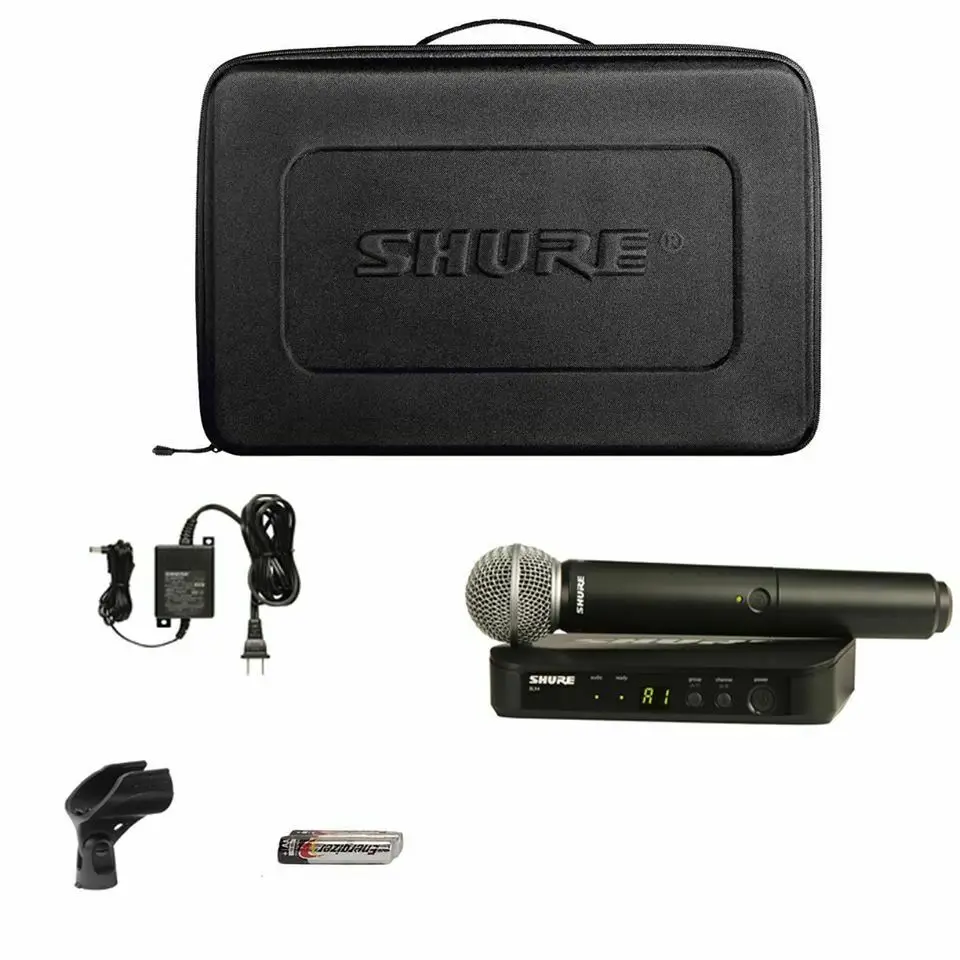

Package Includes:
- BLX4 wireless receiver
- SM58 handheld microphone with BLX2 wireless transmitter
- Microphone clip
- Power supply
- 2 AA batteries
- Carrying Case
- User guide
BLX2 Transmitter Features:
- Integrated microphone capsule design
- -10 dB gain attenuation
- Lightweight, rugged construction
- Color ID caps (available separately)
- Up to 14 hours of continuous use (2x AA batteries included)
- Up to 300 feet (100m) transmission radius (line of sight)
- Quick and easy frequency matching (GROUP and CHANNEL selection buttons)
- Two-color transmitter status indicator LED
-Green: “Ready” -Rapidly Flashing Red: “Controls Locked” -Solid Red: “Battery Power Low” (less than1 hour remaining) -Flashing Red/Power Down: “Batteries Dead” (replace batteries to repower transmitter)
BLX4 Single Channel Receiver:
- One-touch Quick Scan frequency selection quickly locates the best open frequency (in case of interference)
- Up to 12 compatible systems per frequency band (region-dependent)
- Two-color audio status indicator LED
-Green: Normal audio levels -Red: Excessive audio levels (overload/clipping)
- XLR and ¼” output connectors
Specifications:
- Operating Range: 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
- Available Frequencies: Between 524 – 865 MHz (available frequencies depend on applicable regulations in country where system used)
- Audio Range: 50 – 15,000 Hz (dependent on microphone type)
- Transmitter RF Output Power: 10 mW, typical (varies by region)
- Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
- Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
- Battery Life: Up to 14 hours
- Dynamic Range: 100 dB A-weighted
- System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 k Hz tone)
- Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
- Power Requirements:
-BLX1: 2 AA alkaline or rechargeable batteries(included) -BLX4: 12 – 18 V DC at 150 mA, supplied by external power supply
|
