750 подача гофрированного кровельного листа, формовочная машина
US $14500-$15000
Африканском стиле; Лидер продаж распродажа 1000 мм Глазированная роликогибочная машина для изготовления черепицы шаг плитки
- Категория: Board Making Machinery >>>
- Поставщик: BOTOU,SANYANGTONGTAI,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 8330.44 $* | 8747.0 $* |
| Aug-15-2025 | 8260.16 $* | 8673.47 $* |
| Jul-15-2025 | 6930.95 $* | 7277.44 $* |
| Jun-15-2025 | 8120.5 $* | 8526.77 $* |
| May-15-2025 | 7070.42 $* | 7424.82 $* |
| Apr-15-2025 | 7980.3 $* | 8379.96 $* |
| Mar-15-2025 | 7910.30 $* | 8306.12 $* |
| Feb-15-2025 | 7840.20 $* | 8232.64 $* |
| Jan-15-2025 | 7770.27 $* | 8159.12 $* |
Характеристики
Products Description

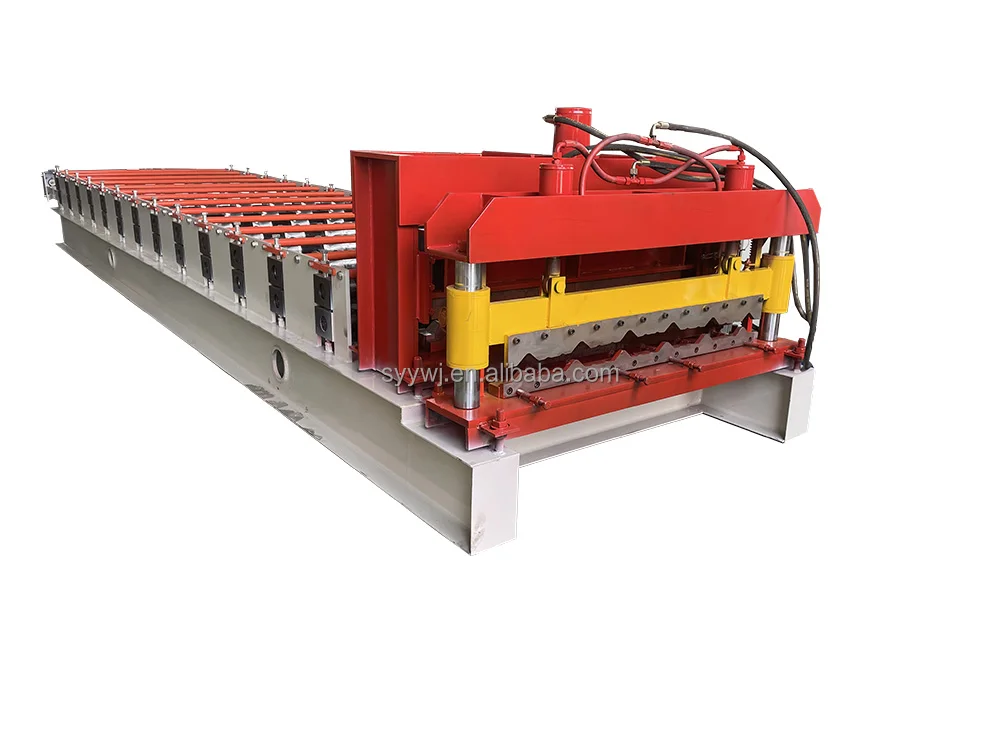

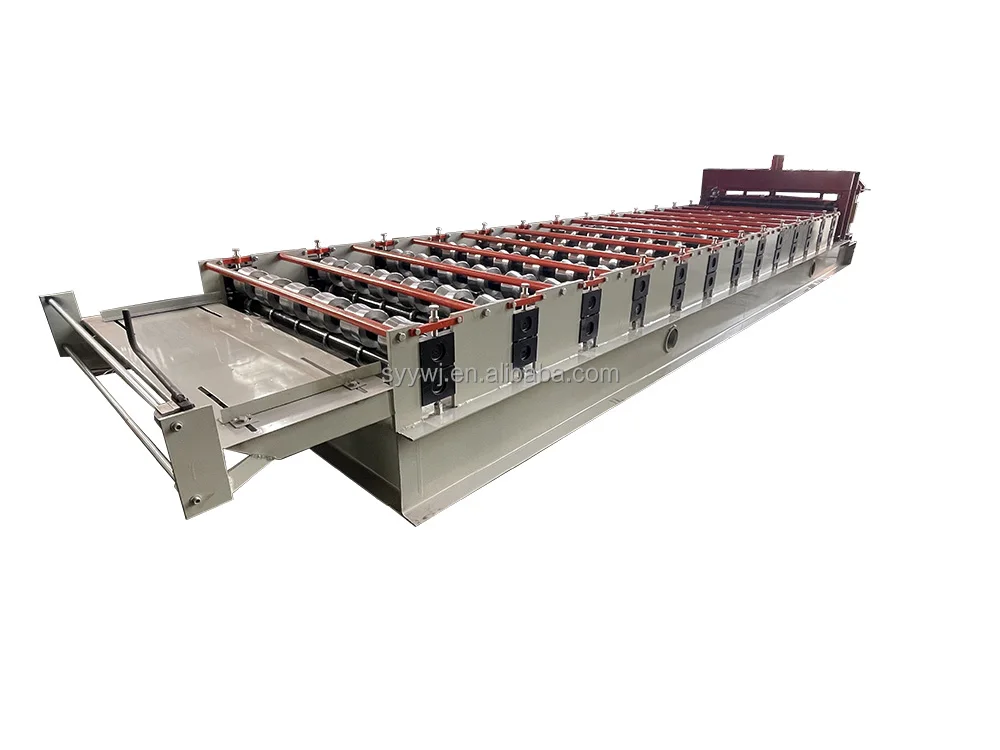

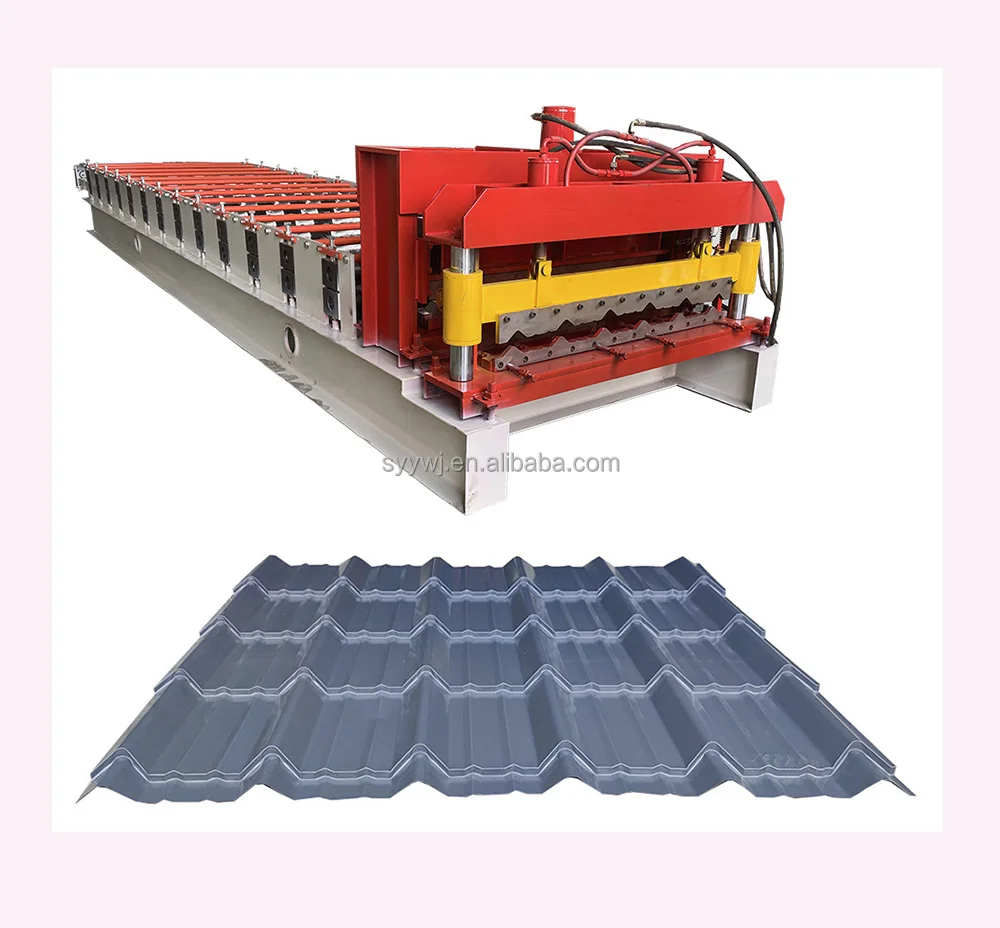

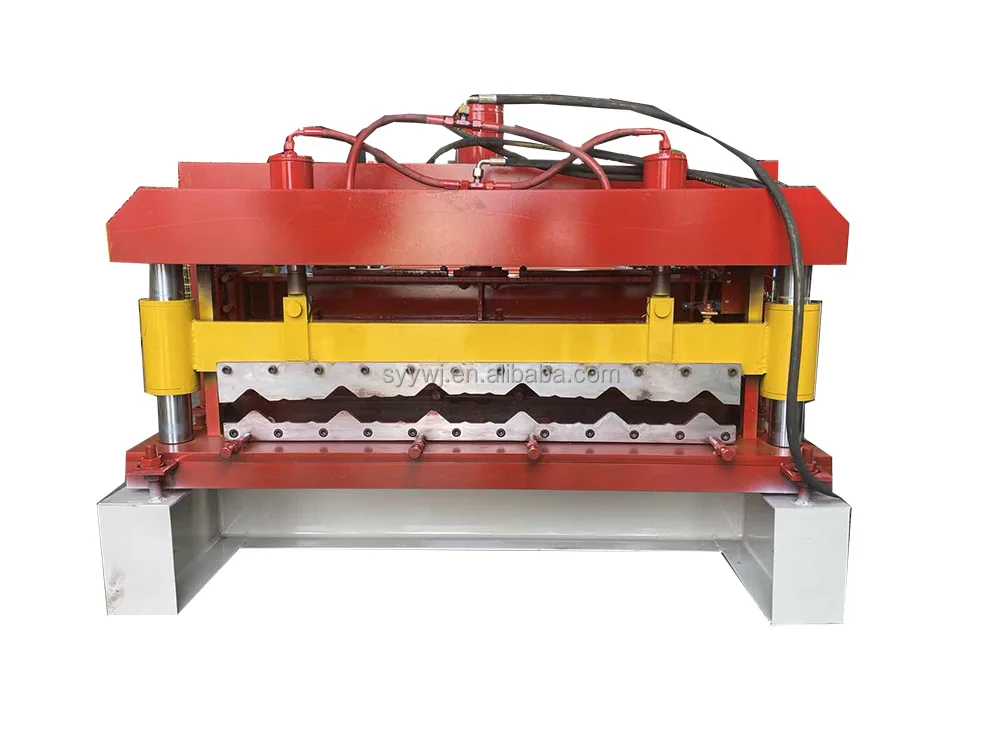

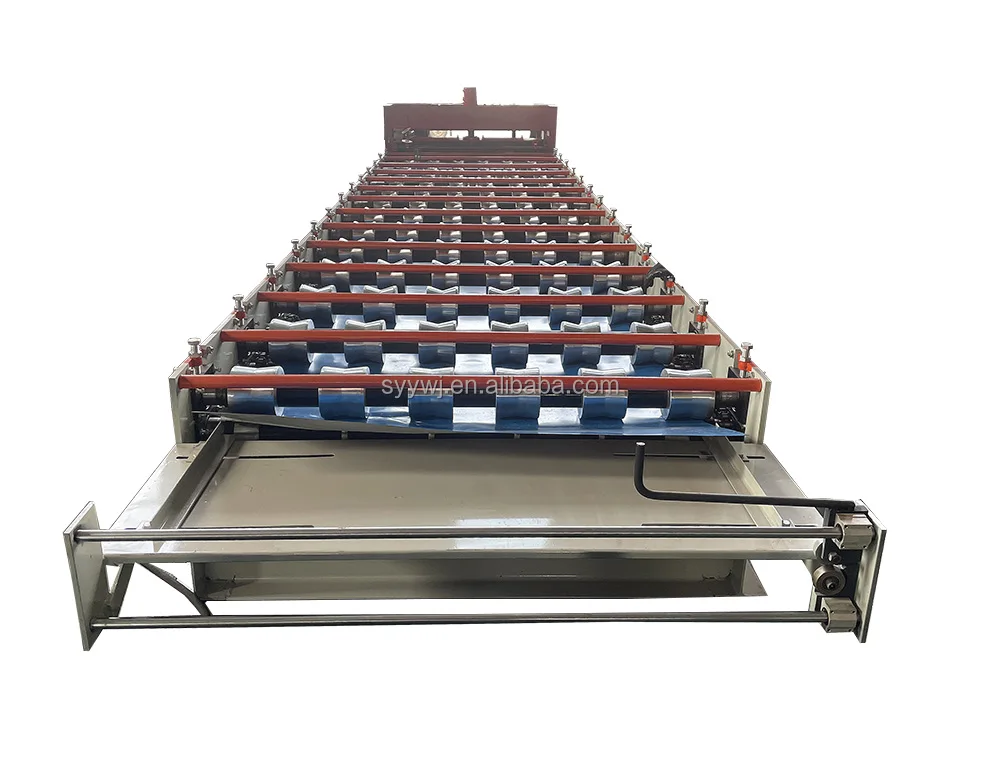

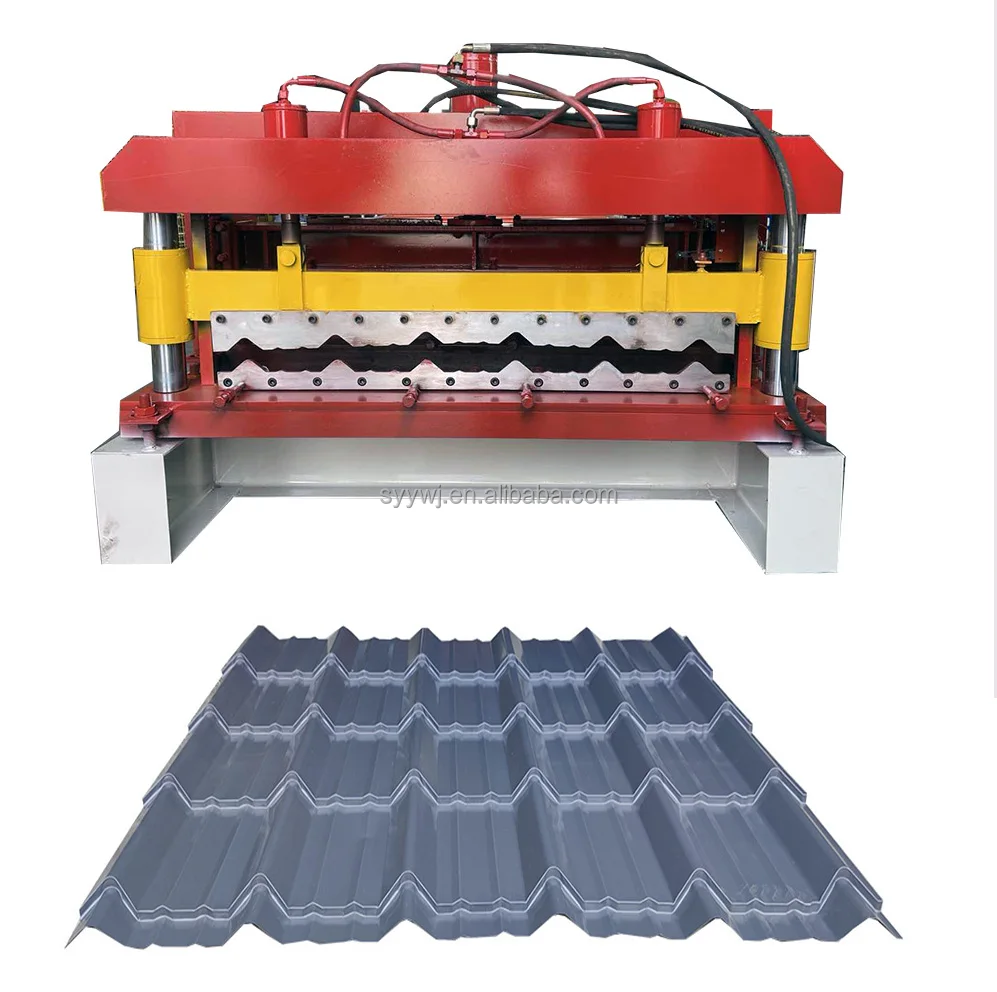

Africa used glazed tile roll forming machine step tile machinery
This cold roll forming machine is popular in African countries ,it is used for making glazed tile panels which will be used as the roof for buildings .Raw material is PPGI and commonly used material thickness is 0.3-0.6mm
We can customized sized and profiles as your request also
Product Paramenters
working flow
NO | Item | Specification | ||||
Raw material | GI | |||||
Material thickness | 0.3-0.6MM | |||||
Machine | Roller stations | 12 | ||||
Shaft | Solid ,75mm | |||||
Shaft material | 45# steel with Cr12 chromed , | |||||
Roller material | High grade 45# steel with Cr12 quenched | |||||
Middle plate thickness | 16mm | |||||
Machine size | 7*1.2*1.3m | |||||
Productivity | 30-50m/min | |||||
Cutter | Material | Cr12 | ||||
Method | Hydraulic cutting | |||||
Driving way | Chain 1 inch | |||||
Motor | 4KW | |||||
Hydraulic oil pump | 7.5KW | |||||
Voltage | 380V ,50HZ ,3 Phase | |||||
PLC | Delta from Taiwan | |||||
Invertor | Delta | |||||
Screen | Touch screen ,Delta | |||||
Encoder | Omron from Japan | |||||
Language | Chinese ,English or as your need | |||||
Details Images
Company Profile
Botou Sanyangtongtai Automation Equipment Manufacture Co.,ltd is a leading manufacturer for steel plate coiling
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and
load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates,expressway railings, colorful decorating and protecting steel plates for high-grade steel stucture residendces.
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and
load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates,expressway railings, colorful decorating and protecting steel plates for high-grade steel stucture residendces.
Main market
Certifications
Shipping
FAQ
Q1. What's your payment terms and delivery time?A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after
your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will
arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't
repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond
the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the
equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high
speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will
arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't
repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond
the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the
equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high
speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
