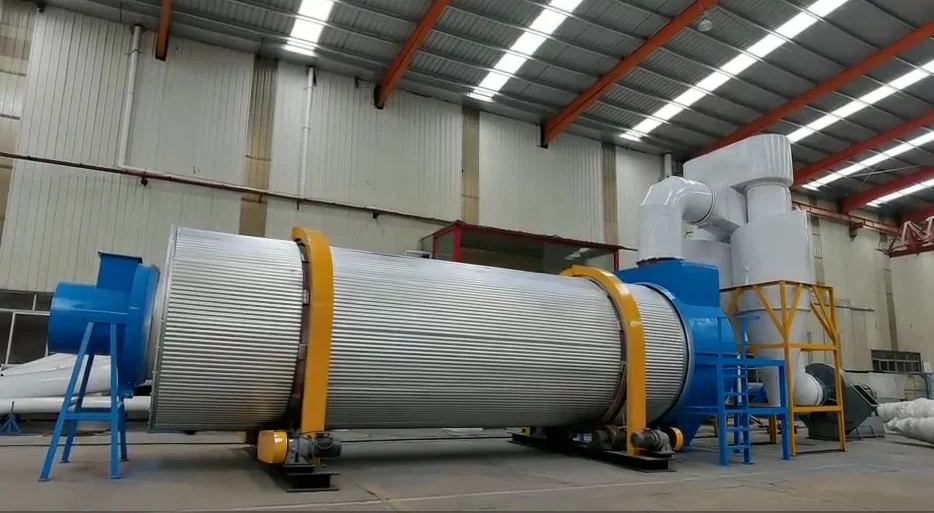

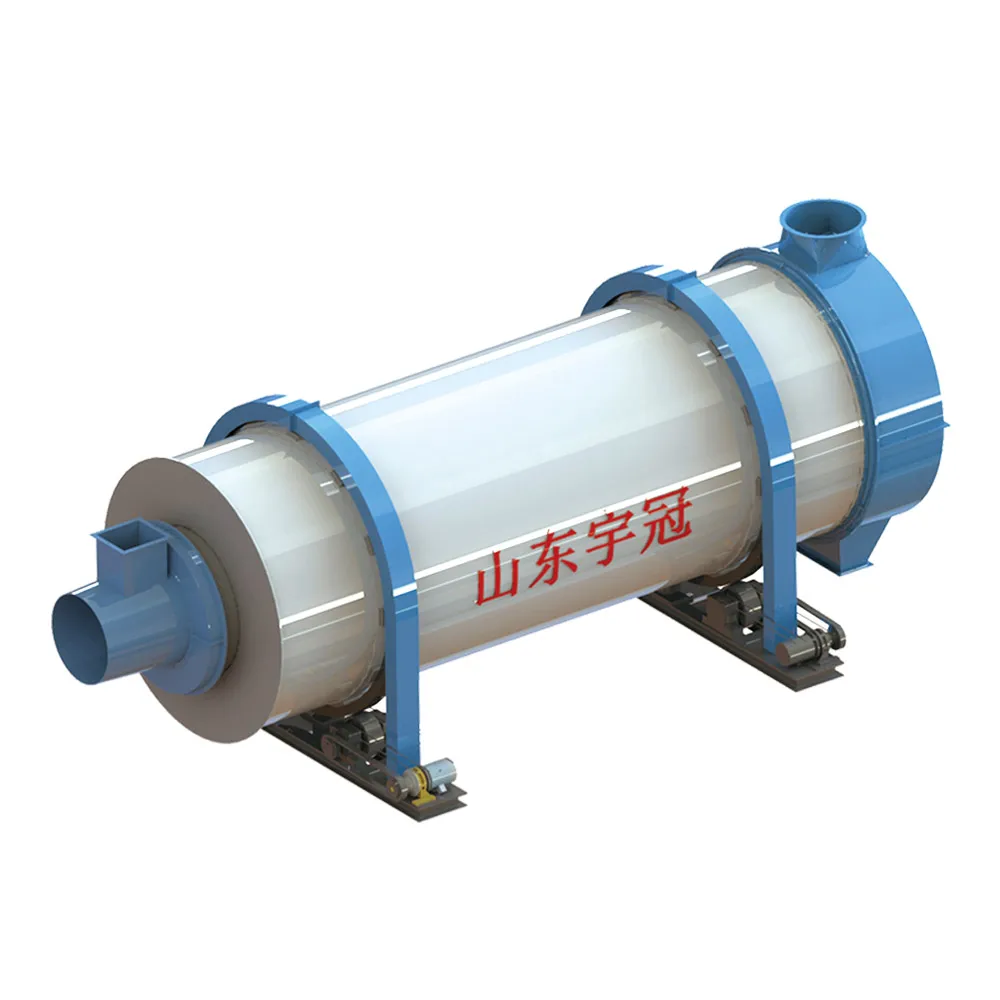

Rotexmaster Hot Selling Good Quality Biomass Wood Chips Fine Sawdust Rotary Dryer Machine with CE

Email: alice(at)rotexmaster.cn                            Tel/Whatsapp:0086 15562616769

Rotary Dryer Dryer for Wood Chips/Drum Rotary Dryer

• Drying is one of the important  unit operations  in process  industries and a number of  different types of  dryers ( Use  consistent spellings,  dryer vs. drier) are  available commercially  which basically vary in  the mode  of contact between the drying material and the  drying medium.


• Sawdust is a commomly used material for the production of wood pellets, Currently , the wet sawdust used for pellet production contains about 30%-55% water on wet basis.


• For  Production pellets, the raw material need to be dried to 8%-15% for the pelleting process.


• Variour types of dryers such as gas fuel dryer, steam dryer, and rotary dryers have been used for sawdust.


• Green wood chips also contains about 50-60% moisuture content. High moisutre content in the raw  material will obviously increase the drying cost of the material.


• So the dryer is an indispensable equipment in biomass pellet plant,especially for wood and sawdust that have a high moisture level.


• The dryer machine ROTEXMASTER we use is rotary dryer.

How does the Rotary Dryer Dryer for Wood Chips/Drum Rotary Dryer work?

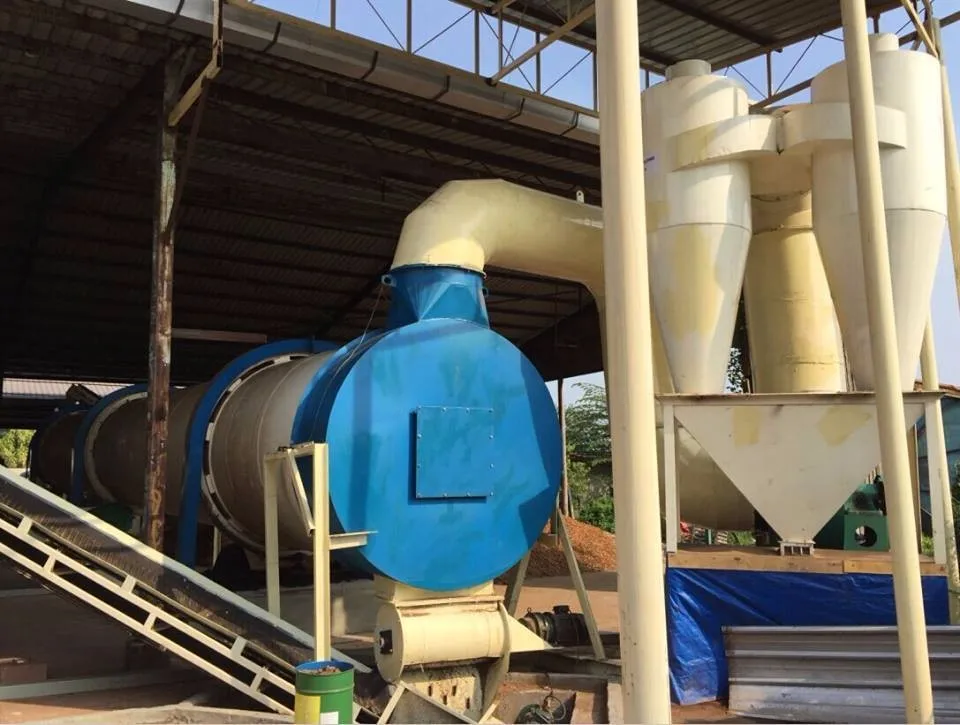

• The rotary dryer consists of feeding system, main body, Ducting System and Collector System. It need match chian stove oir hand stove.


• Smoke and air with high temperature produced by the stove are the heat source medium.


• When material enters the drum through the feeder, heat exchange between material and the hot air begins.


• Material will move along the bent plat on the wall of the drum by the effect of rolling and introduced air, which is called the concurrent flow drying technology.



Specifications of Rotary Dryer Dryer for Wood Chips/Drum Rotary Dryer



Model	YGHG1.2*12*1	YGHG1.5*12*1	YGHG1.5*18*1	YGHG1.8*18*1	YGHG2.2*18*1	YGHG2.2*24*1	YGHG2.8*24*1	YGHG3*24*1
Air Fan Power	15kw	18.5kw	30kw	37kw	55kw	90kw	132kw	160kw
Length	12m	12kw	18m	18m	18m	24m	24m	24m
Diameter	1.2m	1.5m	1.5m	1.8m	2.2m	2.2m	2.8m	3m
Evaporation Capacity	0.3-0.6t/h	0.5-0.9t/h	0.7-1.4t/h	1-1.9t/h	1.5-2.7t/h	2.2-3.4t/h	3.3-5.0t/h	3.76-5.6t/h
Inner Temperature	300-500℃	300-500℃	300-500℃	300-500℃	300-500℃	300-500℃	300-500℃	300-500℃
Outlet Temperature	90-100℃	90-100℃	90-100℃	90-100℃	90-100℃	90-100℃	90-100℃	90-100℃



Rotex Master Teamd And After Service Team

CE Certification of Rotex Master Products



About Us-ROTEXMASTER



Shandong Rotex Machinery CO.,LTD is a comprehensive manufacturer of bio-energy machinery, feed machinery,organic fertilizer machinery and production lines. located in Zhangqiu, Jinan, the company coverd 2.47 acre area, with more than usd 6.5million turnover, is the leading company in this field.Our main products are pellet machine, hammer mill, dryer, cooler as well as the auxiliary equipment. We are dedicated to develop and supply high quality products for domestic and overseas customers. and has wined an outstanding reputation in international market.
