BSIDE ACM92 постоянного/переменного тока 100A 0 1/1mA Инструменты для ремонта автомобилей амперметр переменного напряжения сопротивление Гц V-оповещения Тестер целостности Цифровые токоизмерительные

BSIDE ACM92 постоянного/переменного тока 100A 0 1/1mA Инструменты для ремонта автомобилей амперметр переменного напряжения сопротивление Гц V-оповещения Тестер целостности Цифровые токоизмерительные

Категория: Clamp Meters >>>
Поставщик: Twenty-Six,(shenzhen),Technology,Co.,Ltd.

Цена:22,00 $ - 22,34 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	26.39 $*	27.43 $*
Aug-15-2025	26.19 $*	27.60 $*
Jul-15-2025	22.3 $*	23.64 $*
Jun-15-2025	26.91 $*	27.76 $*
May-15-2025	22.18 $*	23.18 $*
Apr-15-2025	25.60 $*	26.3 $*
Mar-15-2025	25.55 $*	26.54 $*
Feb-15-2025	25.93 $*	26.3 $*
Jan-15-2025	24.2 $*	25.69 $*

Характеристики

Product Description

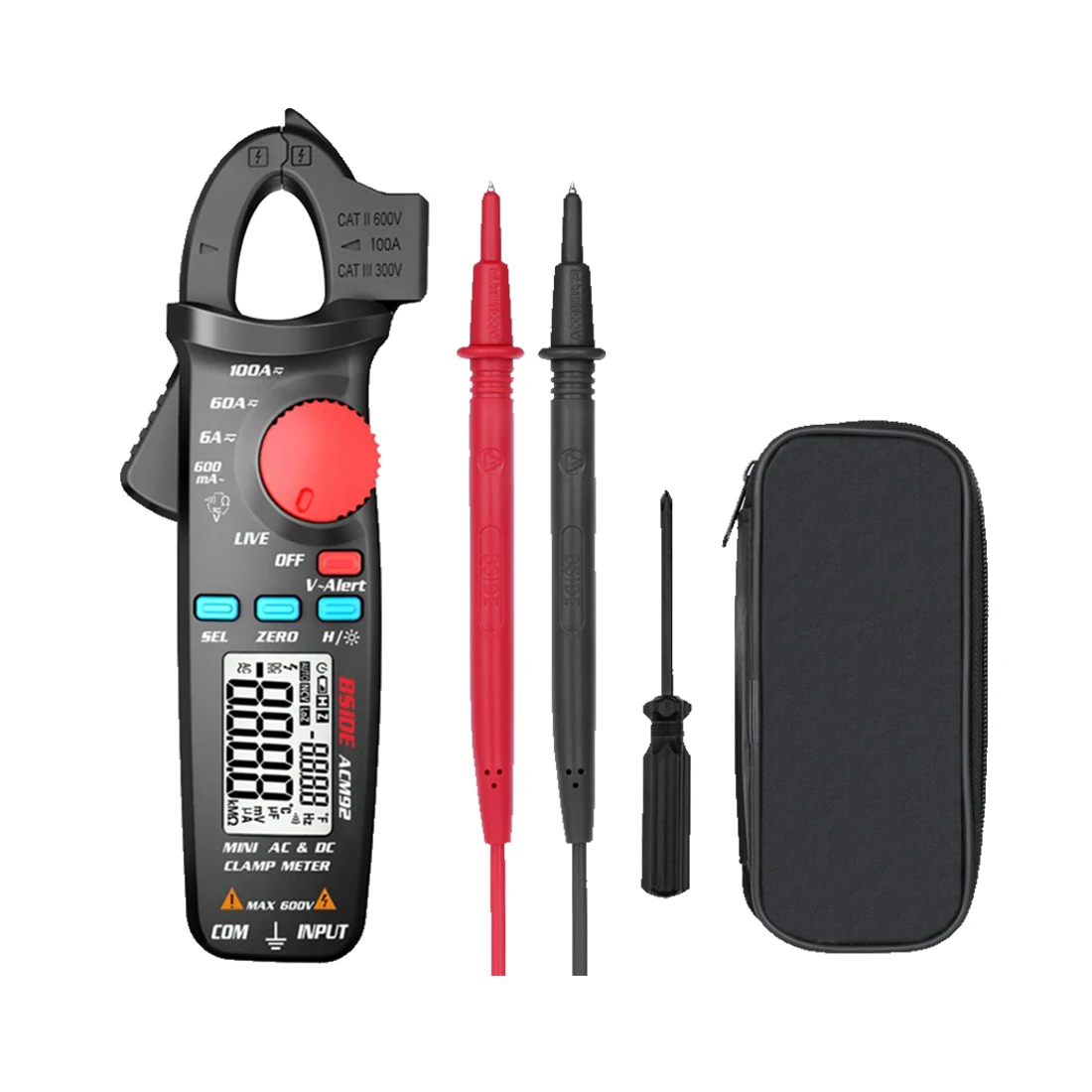

BSIDE ACM92 Digital Clamp Meter

Specifications:

Product name:	BSIDE ACM92 Digital Clamp Meter
Display:	6000 counts
DC voltage:	600V 0.1V ±(1.0%+5 counts)
AC Current:	600mA ±(3.0%+10 counts) / 6A,60A,100A±(2.5%+10 counts)
Resistance:	6000Ω 1Ω ±(1.0%+3 counts)
Frequency:	60Hz/1000Hz 0.1Hz/1Hz ±(1.5%+5 counts)
Frequency(by jaws):	60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5 counts)
Continuity:	If the resistance less than 30Ω, the beeper sounds
V-Alert (Non-contact Voltage Detection):	Yes
Battery Type:	1.5V (AAA) x 2
Size:	179mm x 67mm x 36 mm
Weight:	About 137g

Features:

[Upgraded Clamp Meter]: Upgraded chips make it more steady and accurate when measuring low current, especially super low level current, greatly enhance testing experience.

[0.1mA AC Resolution]: Delivers 0.1mA AC resolution and sensitivity.

[1mA Resolution]: Delivers 1mA resolution and sensitivity, which make it a great a tool for measuring such as parasitic draws.

[Dual Line Display]: Dual line display can show both AC voltage/current and frequency on the screen.

[Activate V-Alert at Any Function]: V-Alert function can be activated at any function not only greatly enhance testing experience, but also let you not worry voltage detector consumes too much space.

Product Description:

Ultra-portable tools for advance electricians.

More focus on DC/AC current test, test results are more stable and accurate.

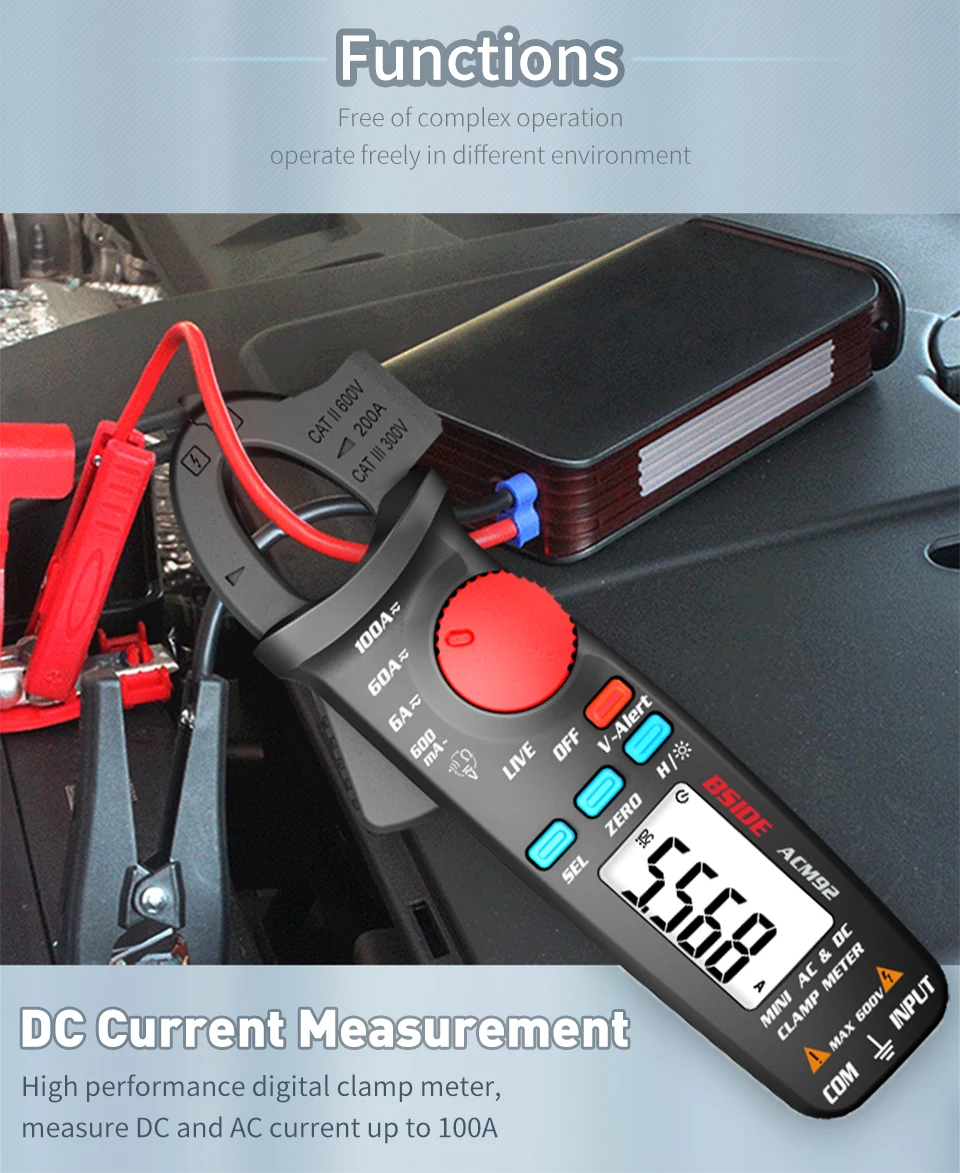

The DC AC current can be tested quickly, accurately and safely without damaging the insulation on the line surface.

Max display value: 6000 Counts.

DC/AC Current Range 0~100A (1mA Resolution), AC Current 0~600mA (0.1mA Resolution),

Compared with similar products, The ACM92 still has 1mA accuracy (0~6A) for a larger measurement range.

Has Zero Clear Function, DC test is more accurate.

When testing AC Voltage / Current, Simultaneous Display Frequency.

Support one-handed switching of all test functions, making operation more convenient and quick.

LCD display with backlight for clear reading.

Has Data hold, Low battery indication functions, Auto power off features, Added back hooks.

With overload protection on all ranges.

Specifications:

Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+10 counts)
AC current:
600mA 0.1mA ±(3.0%+10 counts);
6A/60A/100A 0.1mA/0.001A/0.01A/0.1A ±(2.5%+10 counts)
DC voltage: 600V 0.1V ±(1.0%+5 counts)
AC voltage: 600V 0.1V ±(1.0%+3 counts)
Resistance: 6000Ω 1Ω ±(1.0%+3 counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.5%+5 counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5 counts)
V-Alert: LCD display flashes and alarm buzzer sounds when detected AC voltage
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2
Size: 179 x 67 x 36 mm
Weight: 137g

Note 1:

The battery is not included in the package due to Aviation Security Check

ACM92 (7) ACM92 (17) ACM92 (9) ACM92 (12) ACM92 (8) ACM92 (3) ACM92 (10) ACM92 (4) ACM92 (5) ACM92 (13) ACM92 (6) ACM92 (16) ACM92 (14) ACM92 (11) ACM92
