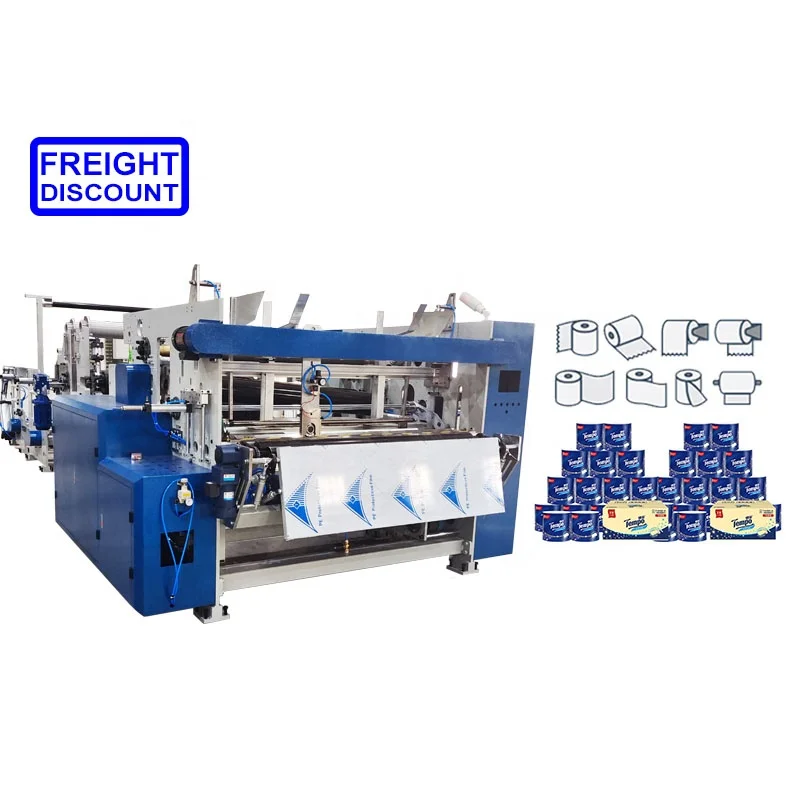

OEM бренд машина для производства туалетной бумаги поставка с завода
- Категория: Paper Production Machinery >>>
- Поставщик: Quanzhou,Sinor,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 23741.28 $* | 24928.11 $* |
| Aug-15-2025 | 23541.37 $* | 24718.43 $* |
| Jul-15-2025 | 19751.10 $* | 20739.86 $* |
| Jun-15-2025 | 23142.16 $* | 24299.26 $* |
| May-15-2025 | 20150.30 $* | 21158.53 $* |
| Apr-15-2025 | 22743.42 $* | 23880.88 $* |
| Mar-15-2025 | 22544.60 $* | 23671.53 $* |
| Feb-15-2025 | 22344.38 $* | 23461.80 $* |
| Jan-15-2025 | 22145.31 $* | 23252.55 $* |
Характеристики
Product Description
Equipment Parameter
| Control Unit | Electrical control,Scheider Control buttons,Taiwan Proximity switch |
Maximum material width
| 1750mm |
| Maximum material diameter | 1100mm |
| Maximum rewinding diameter | 300mm |
| Finish Product Diameter | 90-140mm |
| Finish Product Inner Diameter | 38-48mm |
| Performation Distance | 100-150mm |
| Production Speed | 0-180m/min |
| Parameter Set | HMI Touch Screen |
| Pneumatic System | 3 HP Air Compressor ,Minimum Pressure |
| Total Power | 7.5-15kw |
| Unwind Stands | 2 or 3 stands |
| Unwinding Transmission | Variable Stepless Sped Regulation |
| Rewinding Unit | With Core Or Coreless |
| Dimension | 7800*3000*1720mm |
| Pneumatic system | Air pressure:> 4kg/cm2 (provided by buyer) |
| Machine Model | 1092 1575 2200 2400 2600 2800 3000 |
| Width Of Jumbo Roll (mm) | 1350 1750 2150 2350 2550 2650 2950 |
Performation Distance
| 4 anvil Blades (90-150mm)
|
| Finished Product Diameter | 90-280mm |
| Production Speed | 200-230m/min |
| Unwind Stands | 1 or 3 stands (need to specified) |
| Main Power | 14-45kw 380v 50hz 3 phases |
| Diamension | according to customers requirement |
| Weight | 6-15T |
| Edge Embossing | Steel To Steel Embossing Rollers |
| Full Embossing | Steel To Rubber Embossing Rollers |
| Option | Coreless Rewinding |
| Vacuum Control | 1 set roots vacuum pump of 22kw (TAIWAN) |
| Pneumatic System | Air Pressure > 4kg /m Provided by buyer |
Product Processing
Company Information
SINOR GROUP CO.,LIMITED focus on Paper Processing Machine for more than 10 years in China Domestic Market.
WE have full experience on Paper Processing Machine, such as: Toilet Paper Making Machine, Napkin Tissue Making Machine, Facial Tissue Making Machine and also Packing Machine for this products,etc.
Upon more than 10 years experience in this field, SINOR starts to go aboard and open Foreign Market in different countries on recent years. In order to provide the Right & Best Machines for our customers in different countries, SINOR try our best to learn from customers and study national conditions from customer’s market.
Our mission is to provide a More Cost Efficient Solution for our customers. Suitable is the Best Way, Best for customers, for local market and even for our future. We treat it as our responsibility in every business.
Packaging & Shipping
FAQ
Q: Can you provide the installation videos?
A: Yes, we will provide.
Q: What's the production time?
A: Generally it is 40-60 working days, it depends on your customized requirements.
Q: How long is your warranty?
A: One year of the machine, wearing parts not included.
Q: Can your company do customized machine?
A: Yes we can. We have 3 experienced engineers to support customized designs.
Q: How about your after-sales services?
A: We offer online instructions or onsite if needed.
