Автоматическое реле 12 в 30
- Категория: Auto Relays >>>
- Поставщик: Wenzhou,Ningyue,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.36 $* | 0.94 $* |
| Aug-16-2025 | 0.68 $* | 0.2 $* |
| Jul-16-2025 | 0.70 $* | 0.83 $* |
| Jun-16-2025 | 0.75 $* | 0.47 $* |
| May-16-2025 | 0.89 $* | 0.59 $* |
| Apr-16-2025 | 0.54 $* | 0.18 $* |
| Mar-16-2025 | 0.86 $* | 0.23 $* |
| Feb-16-2025 | 0.46 $* | 0.18 $* |
| Jan-16-2025 | 0.45 $* | 0.66 $* |
Характеристики

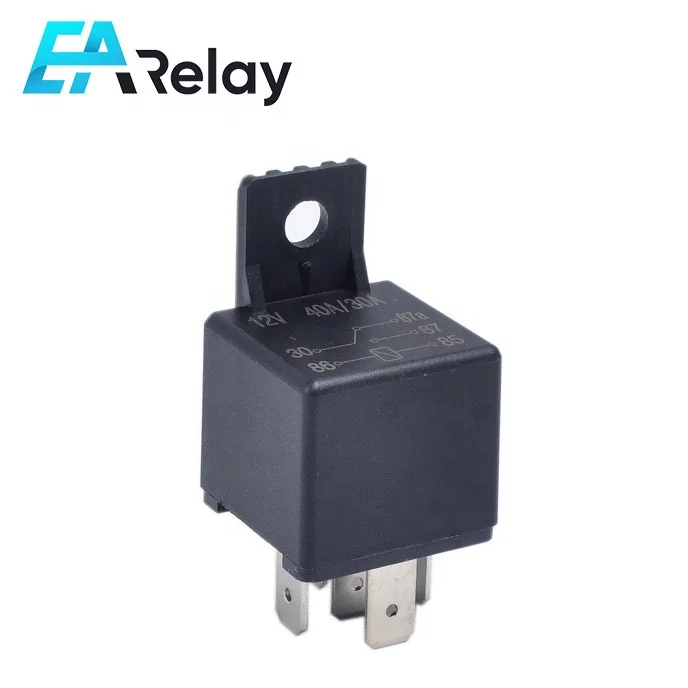

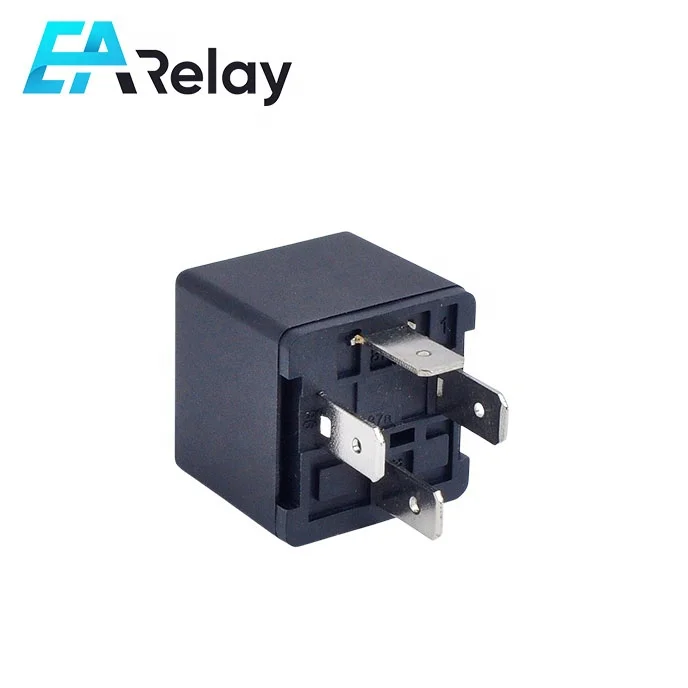

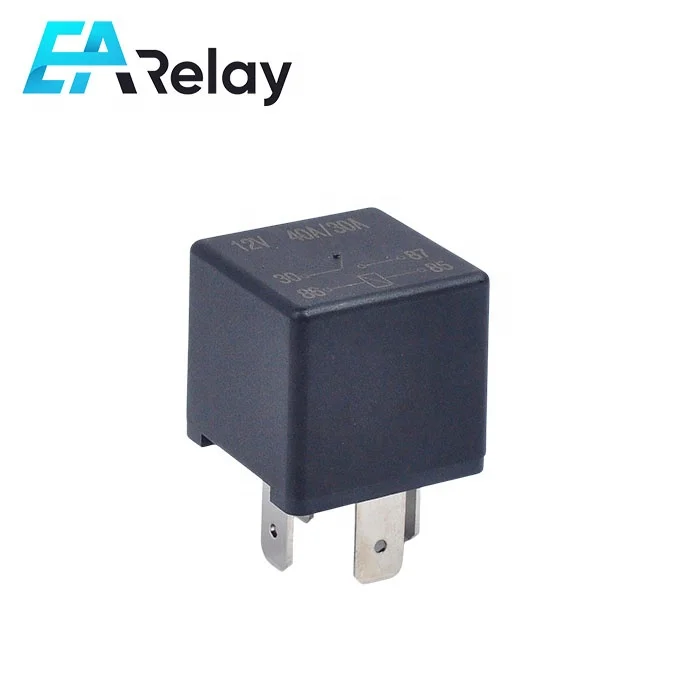

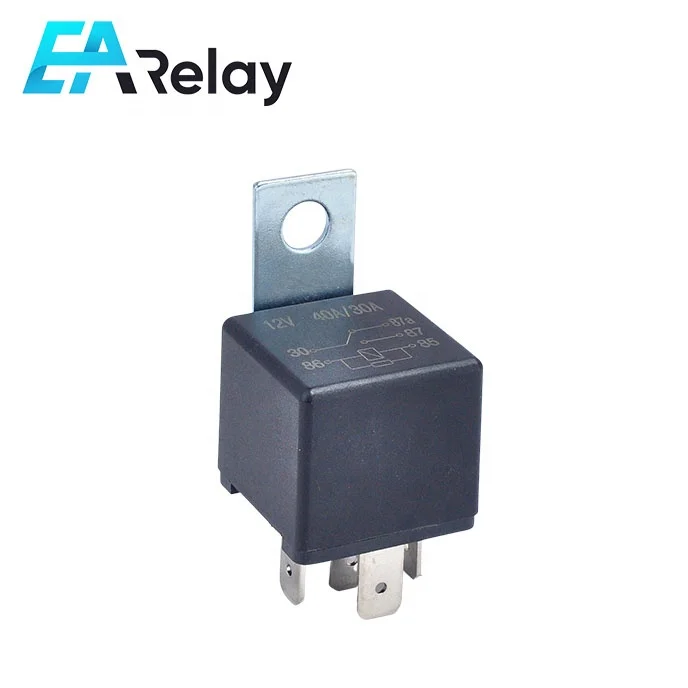

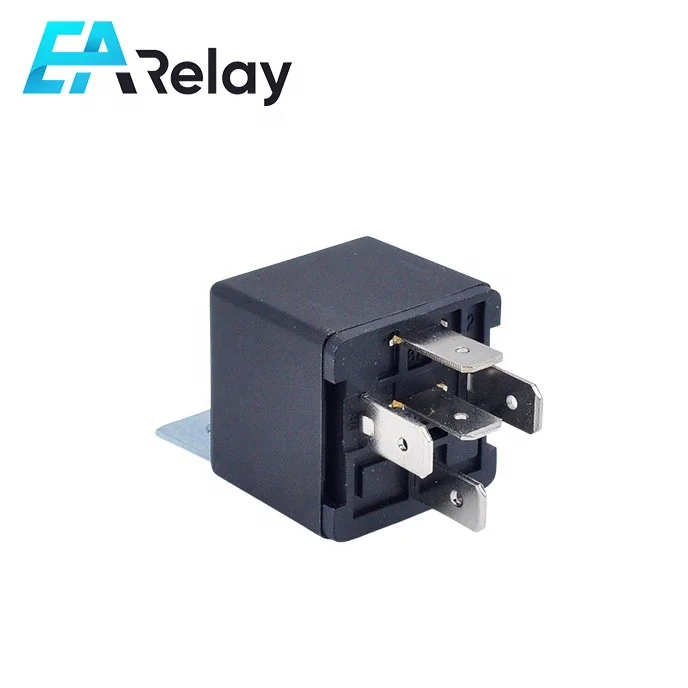

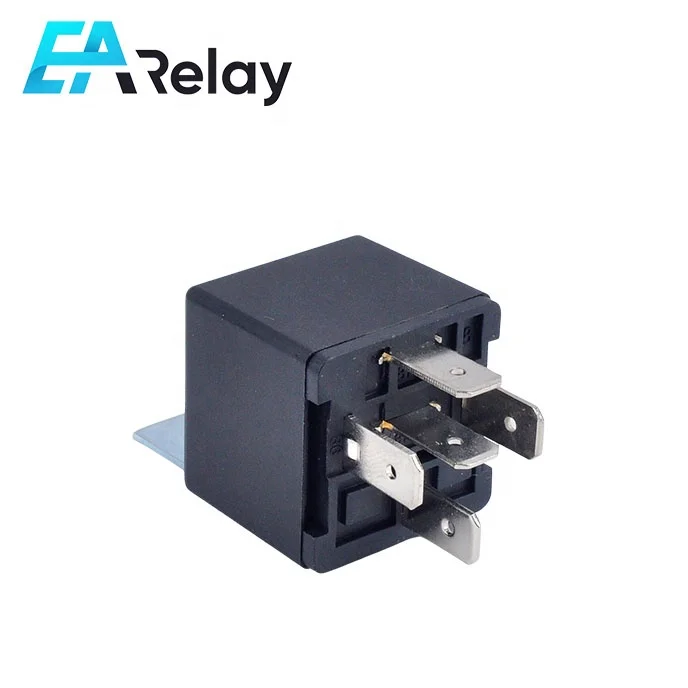

Product Display
Main Features
40A switching capability
1 form A、1 form C、contact form
Dust cover types available
Outline dimensions: 26.0X26.0X25.0mm
1 form A、1 form C、contact form
Dust cover types available
Outline dimensions: 26.0X26.0X25.0mm
Typical Application
– Universal, Relay Electric fuel pump, General Purpose, Start Relay;
– Fiat: Palio; Ford; GM: Corsa – Everyone, Agile 2012; Hyundai: Accent, Elantra, HR100; Kia: Bongo, Picanto; New Holland; Toyota:
Corolla 2002 /…/ 2007; Troller; VW: Kombi diesel, Gol, Saveiro, Santana, Quantum, Logus, line ab-9, Golf III 91 / … 02; Citroën;
PEUGEOT.
– Fiat: Palio; Ford; GM: Corsa – Everyone, Agile 2012; Hyundai: Accent, Elantra, HR100; Kia: Bongo, Picanto; New Holland; Toyota:
Corolla 2002 /…/ 2007; Troller; VW: Kombi diesel, Gol, Saveiro, Santana, Quantum, Logus, line ab-9, Golf III 91 / … 02; Citroën;
PEUGEOT.
Specifications | ||
Contact Form | 1A, 1C | |
Contact Material | AgSnO2 | |
Max Operating Current | 40A | |
Max Operating Voltage | 27VDC | |
Rated Load（Resistive load） | 1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC | |
Insulation Resistance | 100MΩ | |
Dielectric Strength（Coil and Contact） | 500VAC/M | |
Ambient Temperature | -40°C~+85°C | |
Operate/Release Time | 10ms/10ms | |
Mechanical Life | 1 X107 | |
Electrical Life | 1 X105 | |
Terminal Type | Quick connection | |
Coil Ratings | ||||||||||||||
Standard | Normal voltage (VDC) | Pick-up voltage (VDC) | Drop-out voltage (VDC) | Coil resistance (Q±10%) | Parallel resistance (Q±5%) | Equivalent resistance (Q±10%) | Coil Power (W) | |||||||
12 | 8.4 | 1.2 | 90 | - | - | 1.6 | ||||||||
12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | ||||||||
24 | 16.8 | 2.4 | 360 | - | - | 1.6 | ||||||||
24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | ||||||||
