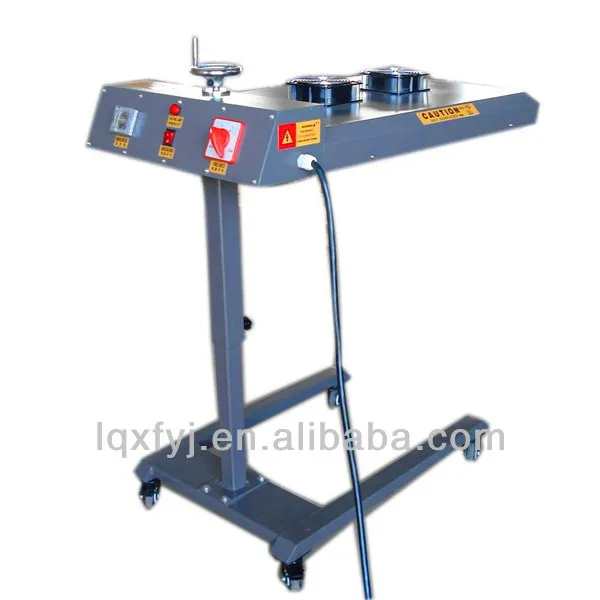

Передвижная инфракрасная флэш-сушилка трафаретная печать для

Type:  far infrared dryer.

         infrared dryer for screen printing.

         automatic infrared dryer,

         movable infrared dryer.

         t shirts screen printing flash dryer.

Application:

The flash dryer is a important equipment in printing process,especially in multi-color printing.you can dry the ink quickly to print next color by flash dryer. you needn’t wait ink to dry in printing if you have

Features:

1 the temperature fine-turning function.

2 drying height adjustable.

3 the operation simple and intuitive interface.

4 infrared heating tubes and replace them simple.

5 It could work in with Multicolor screen printing machine.  easy to operate

Technical details:

1. Heating area : 500*600mm.

2. drying tube: Black ceramic infrared heating tube.

3, Max temperature : 100°C.

4. the number of heating tube:6 pcs.

5. power : 3.6kw.

6. voltage: AC220V/50HZ.

7. adjust the length for up and down :180mm.

Packaging Detail:

1:wooden case of international standard.

2:machine shape size:900*500*1080 mm

3:package size:980*610*250 mm
