Description:

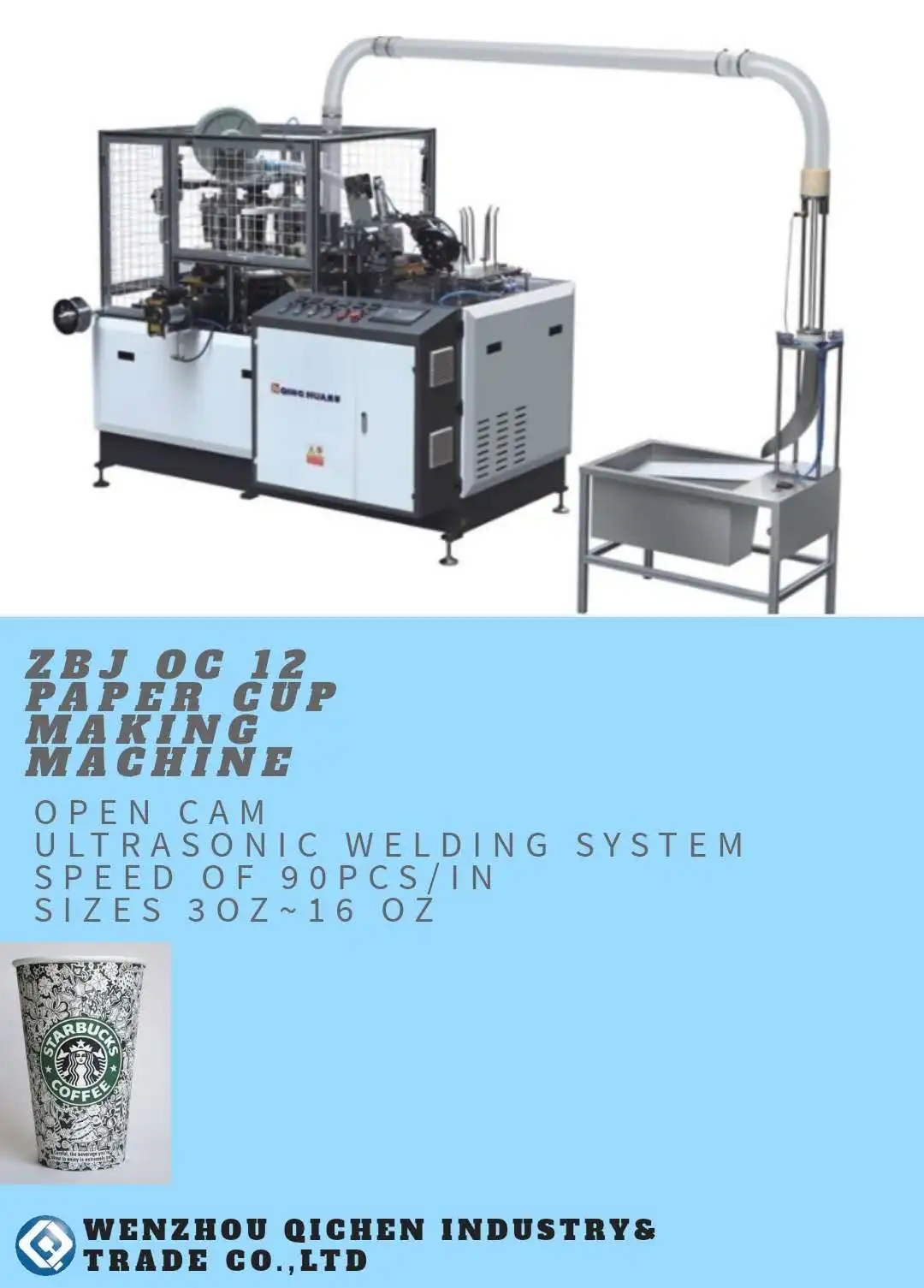

ZBJ-OC12 Open Cam Paper Cup Machine improved on our hot sale ZBJ-X12 model machine,

Absorb the High speed machine and medium speed machine advantage, more reliable and durable, competitive price.

Main improved:

•


  Adopt Open Cam (8-divide) for the dividing moving, compare with index gear box, easy maintenance, stable and reliable, easy replace broken parts.





•


  Main mechanism and movement control by quality gears, which is more efficient than chain and axis.





•


  Only ONE main turntable, more efficient and reliable.





•


  Bottom disk straight punched and send to the cup body , less wastage and precision.





•


  Robot straight lift the cup body to main mold.





•


  Servo motor control the bottom disk, precision and reliable.





•


  Working power only 3.5KW, save power cost.





•


  Automatic Oil Lubrication system, long life time.





•


  All procedure sensor detect (sensors control all steps), Less wastage & fault, Reliable.





•


  HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.





•


  Quality electronic parts, bearing, material, machine life long.





•


  With cup stacker/collector, one worker can run 2~3 sets machines.












































































































  HS Code:	8441309000
  Name:	Open Cam Paper Cup Machine
  Model:	ZBJ-OC12 Heater	ZBJ-OC12 Ultrasonic
  	Cup Stacker/Collector:(include: blower, 2meter pipe, counter and pack desk) Some Cup not suitable for cup collector, Cup will turn over in the pipe.
  	Safety Fence (prevent worker hand into machine, better look, more safe)
  Model	ZBJ-OC12 Heater	ZBJ-OC12 Ultrasonic
  Paper Cup Size:	40ml ~ 16oz	3 ~ 16oz
  Rated Speed:	70~90PCS/minute, 7oz stable 80pcs/minute Speed affected by cup size, paper quality & thickness
  Raw Material:	One side PE Coated Paper	One-side or Two sidePEcoated paper
  Suitable paper weight:	140~250gsm	180~350gsm
  Power Source:	50Hz, (380V 3-phase, 50Hz),(Better use 380V 3-phase) * if User power different? Please INFO US IN ADVANCE.
  Total Power:	8KW	10KW	15KW
  Working Power:	3.5 KW	4.5 KW	13.5KW  Self hot air
  Total Weight:	GW/NW: 2600/2500KG
  Pack Size (L*W*H)	2250 x 1230 x 1950mm
  Working Air Source:	Air pressure:0.4Mpa;  Air Out-put:0.6m³/minute User should BUY Air Compressor
  Cup Side Welding:	Pre-heating + Heater	Ultrasonic
  Cup Bottom Heating:	Heater (40ml~100ml)	Hot Air(Need Air compressor supply air) Or Self Hot Air (blower hot air)
  	Hot Air (100ml~12oz)
  Cup Bottom Knurling:	Heater	Heater Knurling (if use single PE coated paper)
  		Cool Device (circle water), for double PE coated paper
  We Reserve the right to alter specifications without prior notice.










It makes both one-side or two-side PE-film-coated paper cups after running a whole procedure of automatic Multi-step pre-printed-cup-fan-paper Feeding (Multi-step paper-feed and Anti-back device to keep the accurate position), cup-body-side welding, silicone-oil lubricating(for top curling), robot transfer cup body, bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging and collecting.



 We can provide our customers  with anything he needs related to paper cups production like:



we can supply the whole line from the flexo printer to the packing machine.

we can provide  raw material like paper fan (single / double PE ... )and paper roll .

we do open business  seeking our customers satisfaction .



 THE WHOLE PRODUCTION LINE :

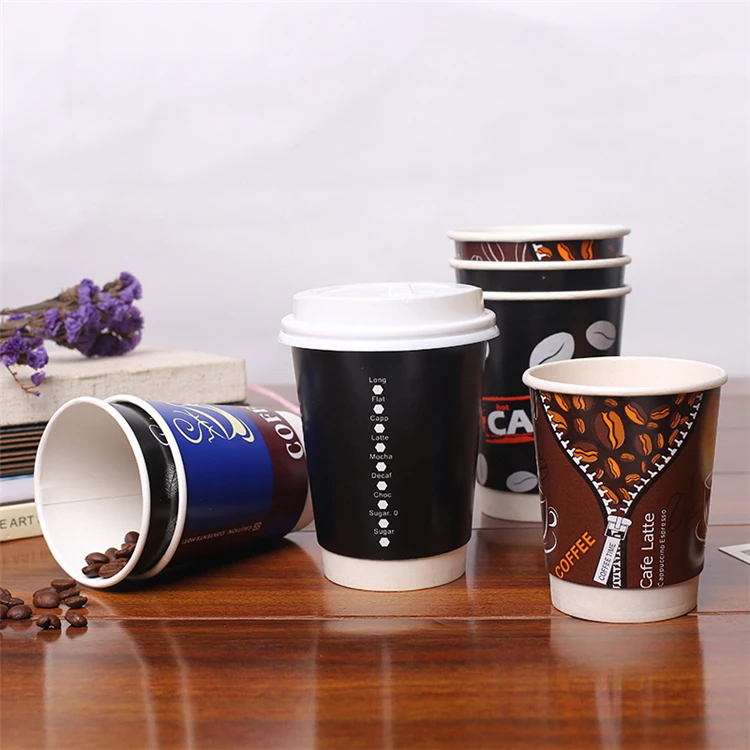

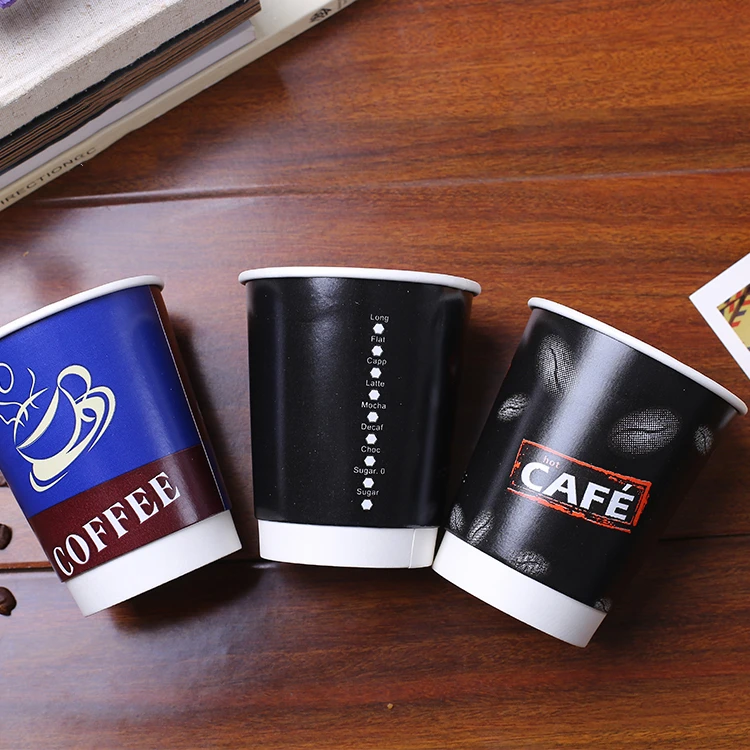

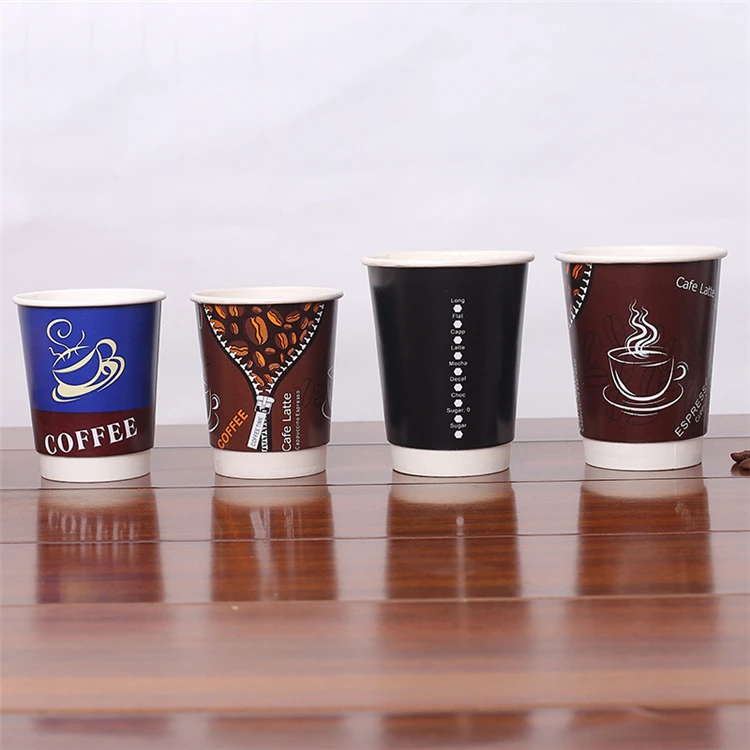

   CUSTOMISED PAPER CUPS :

Workshop:
