Резак для бумаги, диаметр 44 мм
US $61.00-$64.00
DS-D с двойными стенками на машины для производства бумажных стаканчиков гофрированными
- Категория: Paper Production Machinery >>>
- Поставщик: Pingyang,Dush,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.68 $* | 0.51 $* |
| Aug-15-2025 | 0.49 $* | 0.19 $* |
| Jul-15-2025 | 0.39 $* | 0.9 $* |
| Jun-15-2025 | 0.67 $* | 0.54 $* |
| May-15-2025 | 0.48 $* | 0.1 $* |
| Apr-15-2025 | 0.73 $* | 0.6 $* |
| Mar-15-2025 | 0.18 $* | 0.98 $* |
| Feb-15-2025 | 0.9 $* | 0.89 $* |
| Jan-15-2025 | 0.72 $* | 0.89 $* |
Характеристики

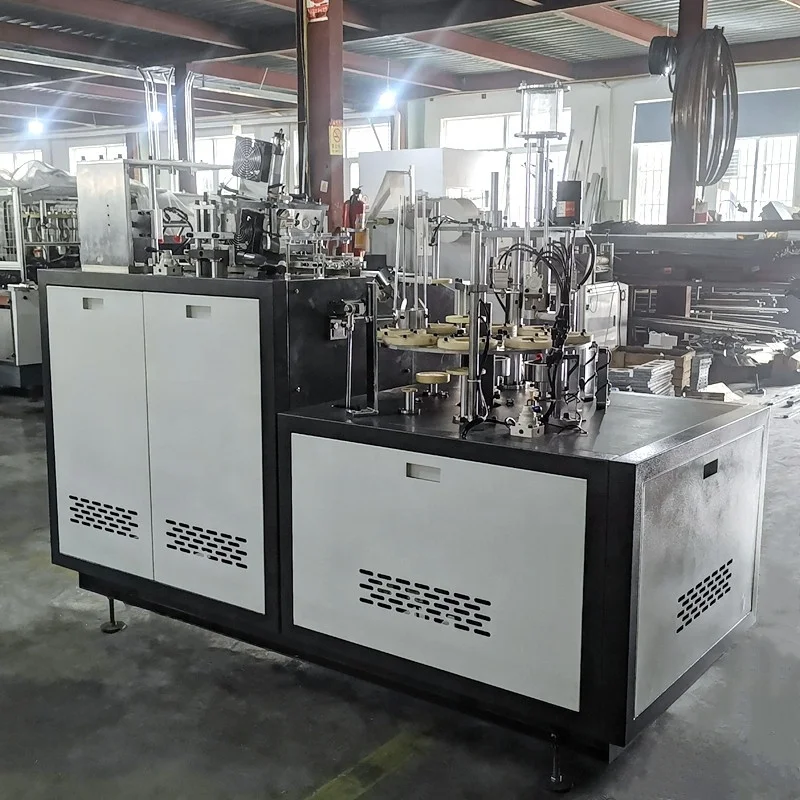

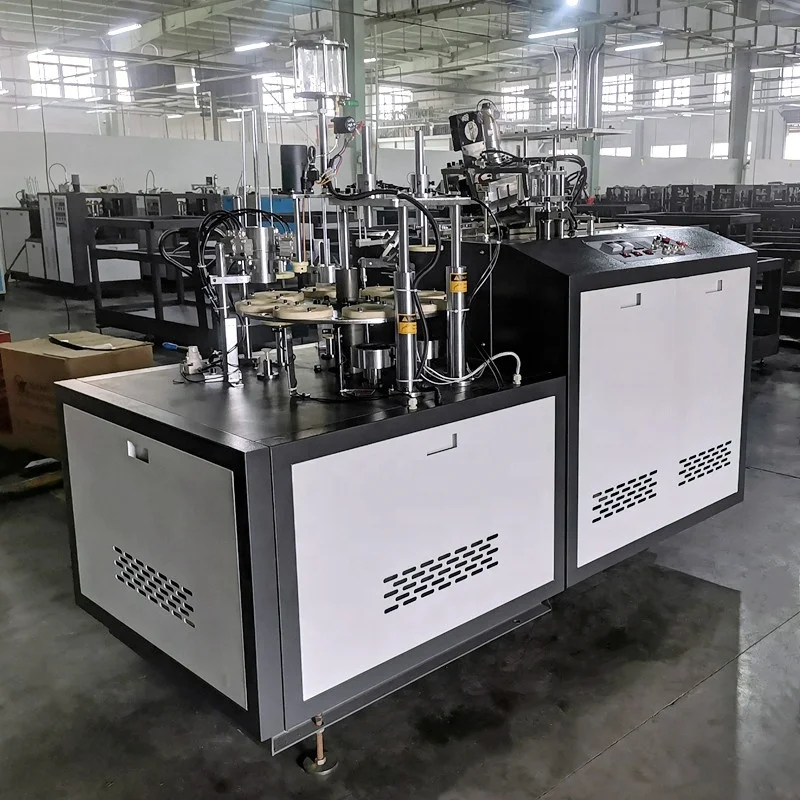

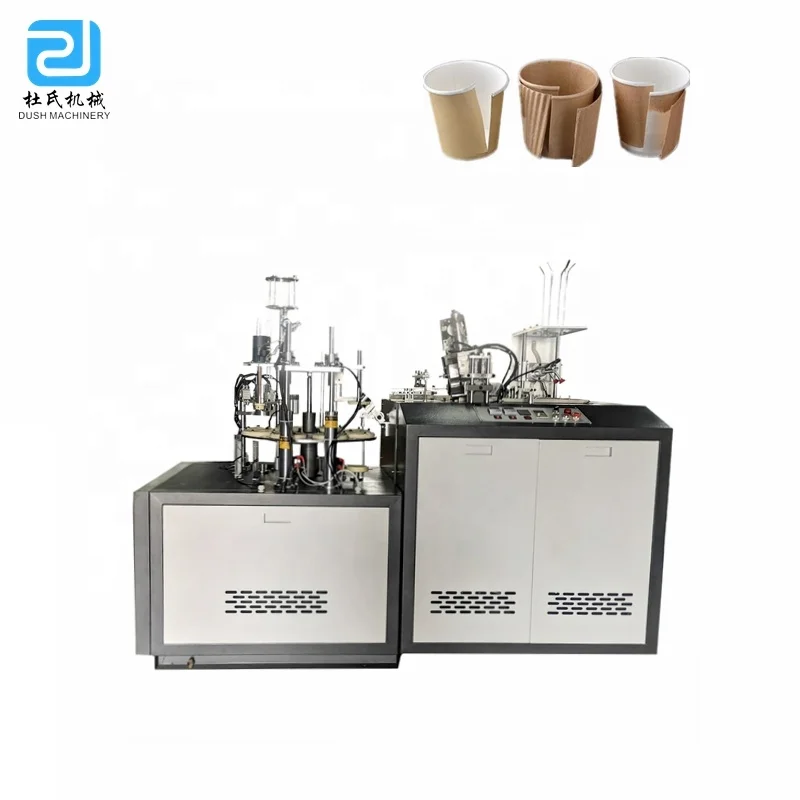

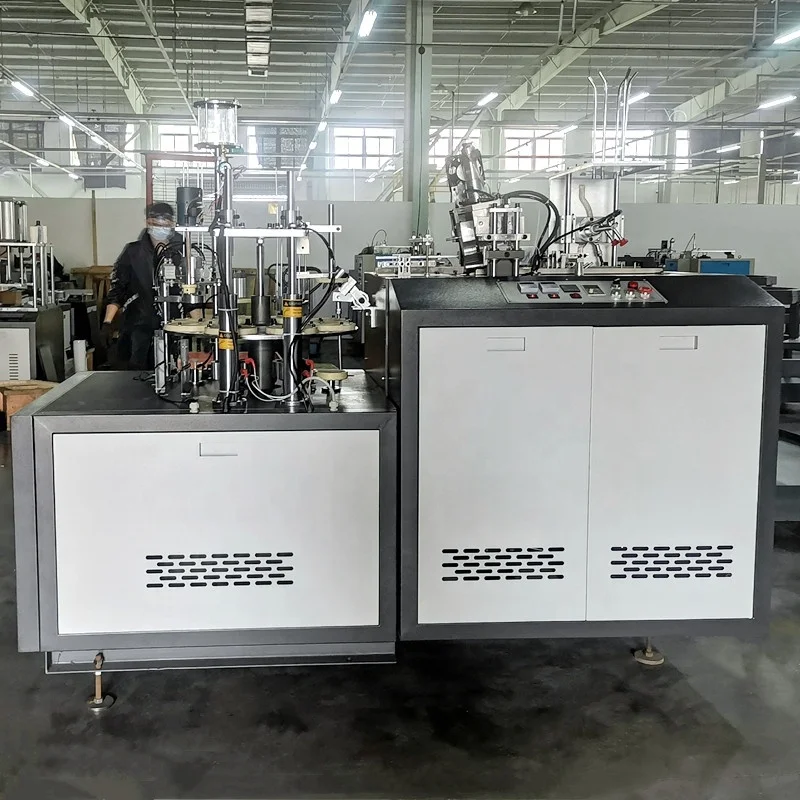

DS-D Double Wall Paper Cup Machine Ripple Wall Paper Cup Machine Hollow Wall Paper Cup Machine
You are in : Home>> Paper Cup Machine>>Double Wall (Sleeve) Paper Cup Machine>>
| DS-D Double Wall Paper Cup Machine Ripple Wall Paper Cup Machine Hollow Wall Paper Cup Machine |
| It is an automatic equipment to make second wall / sleeve over the inner cup/bowl (cup/bowl finished by paper cup/bowl |
| machine), wrapping the sleeve outside the paper cup/bowl . It has the function as making double wall paper cup/bowl after |
| running a whole procedure of automatic paper (fan sleeve) feeding, sleeve cone body sealing (by ultrasonic wave) water |
| glue spraying (spray glue inside the cone sleeve), cup/bowl feeding (absorb cup into the cone sleeve), inserting and bonding |
| and bonding sleeve to the cup, counting. It is an ideal equipment of making double wall/sleeve paper cup/bowl, such as cup |
| /bowl, such as straight sleeve cups, hollow sleeve cups, rippled or corrugated sleeve cups, etc. These cups are popular for |
| both hot and cold drink(tea, coffee, etc ). |
Product Description
TECHNICAL DATA | |
| Model Name | DS-D |
| Suitable Size | 4-16oz, or 16oz plus, mold changeable |
| Raw Material | 170-450gsm PE paper, vanishing printed paper, paperboard, etc |
| Capacity | 40-50pcs/min |
| Total Power | <=3.0kw |
| Air Flow/Pressure | >0.6mpa, 0.4m3/min,(need to buy an air compressor) |
| N.W./G.W. | 1000/1100kg |
| Power | 380v three phase,220v single phase,50hz, pls consult supplier for other type. |
| Packaging | 2220*1060*1850mm |
MAIN CHARACTERISTICS: |
1-Protective door and counting system is optional. |
2-Divided box/gear box 100 or 125 type is optional. |
3-Machine is with copper heating or ultrasonic sealing. |
4-Speed reducer is 1:30 100 type instead of 1:20 80 type. |
5-This is easy to make different type double wall cups by changing molds. |
6-Machine can connect with single wall cup machine, to produce the double wall/sleeve cups in one step |
Production Line
More Products
Pingyang Dush Machinery Co., Ltd is developed in various aspects for usage of machines. For example, the machine for |
coffee cups, tea cups, cold drinking cups(double sleeve), paper cups with handle, cake cups, paper plates/dishes, ripple |
wave papers, paper lunch boxes, tea hidden cups, hotel cups covers, paper bowls, some machines is not listed above, as |
tulip cups, automotive filters, filling and sealing cups, etc. If you have great interest in these machine, please click here for |
all catalog to check, or send an email to Ms. Daisy Shen for enquiry. |
Packaging & Shipping
Company Information
FAQ
| 1. ARE YOU MANUFACTURER OR TRADING COMPANY ? |
We are the manufacturer of the paper cup machine, die cutting machine, cake tray machine paper plate machine and also |
the burger box machine, etc. in China. |
| 2. WHERE IS YOUR FACTORY LOCATION? |
| Our company locates in Zhangqiao Village, Wanquan Town, Pingyang, Wenzhou, Zhejiang,China. Welcome to visit us in any time. |
| 3. HOW CAN I GET THE SAMPLES? |
| We can supply some free samples. Besides, the express charges will be paid in your side. |
| 4. WHAT ABOUT YOUR MACHINE DELIVER TIME ? |
| 25-30 days after getting the advance from client. |
| 5. HOW IS YOUR PAYMENT TERMS? |
We accept different payment terms, such as L/C, offshore account, T/T. |
The usual one is 30% T/T advance, balance before delivery |
| 6. BEFORE INQUIRY, WHAT INFORMATION SHOULD I PROVIDE? |
A. the cup volume, like 100ml,200ml... |
B. the cup detailed size, top, bottom, height, depth of bottom knurling |
| C. paper gsm, so i can recommend the most suitable machine |
| D. the sleeve type, like hollow type, ripple type, straight type, or all of them you need. |
If you have great interest in these machine, please send an email to Ms. Daisy Shen for enquiry. |
