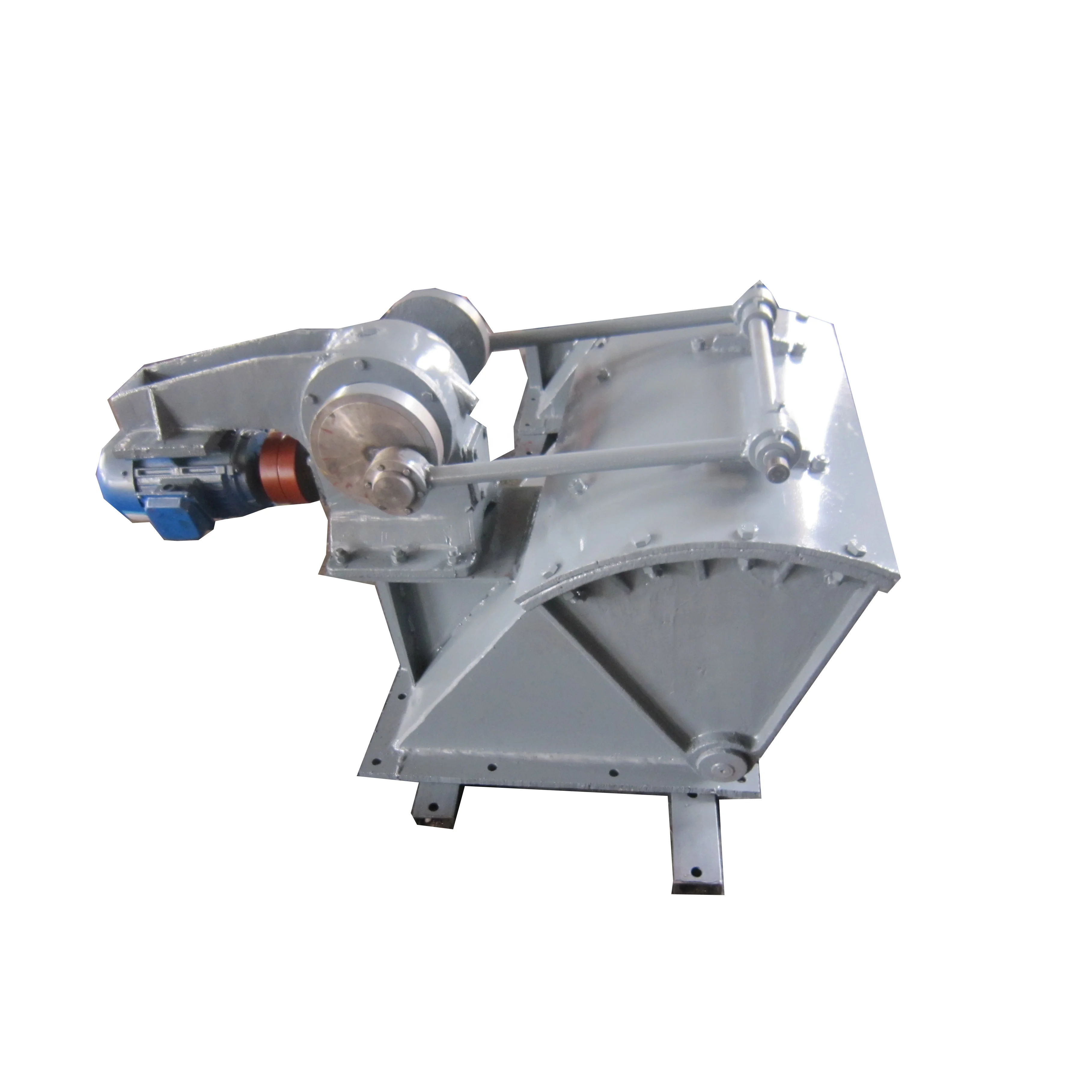

12t/h Mechanical Mining Mining Oscillating Feeder, Pendulum Feeder for Ball Mill
Product Description
Mining Oscillating Feeder is widely used in mineral processing industry, coal industry, build materials industry, chemical industry and other industries. It is fit for feeding small particle materials in ore bin, especially fit for the feeding process of ball mill with belt conveyor. It is able to deliver blocky and granular materials from storage silo to receiving device evenly, regularly and continuously in the production process.
Working Principle of Mining Oscillating Feeder
The machine is installed beneath the discharging opening of ore bin. Minerals fall in the ore feeding box from ore bin. When it works, via coupler, electric motor drive turbine reducer to operate; the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer. So, the mineral feeding process is finished. The mineral feeding quantity can be controlled by adjusting eccentric wheel or regulating the revolving speed of motor.
Structure of Mining Oscillating Feeder
The structure of Mining Oscillating Feeder is as below:
Technical Specification of Mining Oscillating Feeder
Modell | Motor | Max Feeding Size (mm) | Swaying | Capacity (t/h) | Dimension (mm) | Weight (kg) | ||
Model | Power (kw) | Frequency (t/min) | Stroke (mm) | |||||
300×300 | Y90S-4 | 1.1 | 25 | 68 | 0-90 | 0-8 | 950×455×435 | 200 |
400×400 | Y90S-4 | 1.1 | 35 | 47 | 0-120 | 0-12 | 1050×550×560 | 260 |
600×600 | Y90S-4 | 1.1 | 50 | 45 | 0-220 | 0-25 | 1295×820×745 | 560 |
Application
The Mining Oscillating Feeder is suitable for feeding various kinds of mineral ores smaller than 50mm. It is always applied to feed ball mill evenly in mining industry.
There are also other feeders for your option:
(1) ZSW series Grizzly Mining Oscillating Feeder
(2) DZ series Vibrating feeder
(3) Chute feeder which is usually applied to feed large sized stones for crushers or other equip.
Mining Oscillating Feeder Mining Oscillating Feeder Mining Oscillating Feeder
Packaging & Shipping
Small model Mining Oscillating Feeder is packed in plywood box;
Large model is packed in steel frame inside and plywood outside.
Company Information
Jiangxi Jinshibao Mining Machinery Manufacturing Co., Ltd has specialized in the mining equipment manufacturing for 25 years.
Shaking Table is one of our flagship products. The place we locate, Shicheng County, is the home of Shaking Table in China. Based on this, we grow up stronger and stronger.
25 Year-experienced skill ensure our product a stable structure and better performance. Among so many products from us, Shaking Table is the most popular one and enjoy a really good reputation and feedback from our customers from all over the world.
