Проводящее скользящее кольцо с диаметром отверстия 30 мм напряжение 400 В переменного тока
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Shenzhen,Senring,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.59 $* | 0.26 $* |
| Aug-19-2025 | 0.35 $* | 0.43 $* |
| Jul-19-2025 | 0.15 $* | 0.6 $* |
| Jun-19-2025 | 0.57 $* | 0.26 $* |
| May-19-2025 | 0.67 $* | 0.76 $* |
| Apr-19-2025 | 0.68 $* | 0.44 $* |
| Mar-19-2025 | 0.17 $* | 0.6 $* |
| Feb-19-2025 | 0.14 $* | 0.33 $* |
| Jan-19-2025 | 0.84 $* | 0.79 $* |
Характеристики

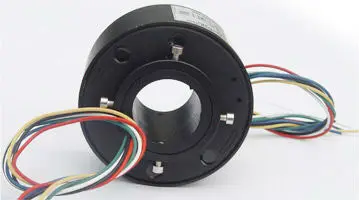

The SNH030, with 30.00mm through bore size and compact 99mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
SNH030 Dimensions
SNH030 Specifications(Standard)
- Contact Material
Precious metal brush,Silver plated rings
- Current Rating
2A,5A,10A,20A/per circuit
- Number of Circuits
2, 3, 4, 6, 12, 18, 24, 30, 36, 48, 56
- Operating Speed
400 rpm* continuous
- Lead Wire
UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)
- Voltage
400 VAC
- Operating Temp.
-40°C to 80°C
- Working Humidity
60%RH
- Torque
Approx. ≤8.95 g·m (for reference )
- Dielectric Strength
≥800V@50Hz between each circuit
- Insulation Resistance
800MΩ@ 400VDC
- Noise
Less than 60 mΩ @ 6 VDC, 50 mA, 5 rpm
- Housing Material
Aluminum Alloy
- Protection
IP54
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.
Options
- Longer lead lengths available
- Power and signal combinations
- Rotor and stator lead exits
- gold alloy brush,Gold plated rings
- IP65,IP68 are optional
- flange mounting is optional
