Объемный цветной дозатор пластиковых гранул
- Категория: Plastic Raw Material Machinery >>>
- Поставщик: Guangdong,Liansu,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1607.11 $* | 1687.99 $* |
| Aug-17-2025 | 1593.90 $* | 1673.71 $* |
| Jul-17-2025 | 1337.89 $* | 1404.66 $* |
| Jun-17-2025 | 1566.93 $* | 1644.34 $* |
| May-17-2025 | 1364.21 $* | 1432.48 $* |
| Apr-17-2025 | 1539.85 $* | 1616.59 $* |
| Mar-17-2025 | 1526.65 $* | 1602.64 $* |
| Feb-17-2025 | 1512.20 $* | 1588.71 $* |
| Jan-17-2025 | 1499.58 $* | 1574.32 $* |
Характеристики
Products Description
Model | output (kg/hr) | Stepping motor power (w) | Storage bucket (L) | Screw rod outer diameter (mm) | plastic granule (mm) | Color master ratio accuracy | Voltage |
LSCM-8 | 0.1-6 | 60 | 6 | 8 | 3-5 | ±0.3-1% | 1￠, 400V, 50HZ |
LSCM-10 | 0.2-10 | 60 | 6 | 10 | 3-5 | ±0.3-1% | 1￠,400V，50HZ |
LSCM-12 | 0.5-15 | 60 | 6 | 12 | 3-5 | ±0.3-1% | 1￠,400V，50HZ |
LSCM-16 | 3-40 | 60 | 6 | 16 | 3-5 | ±0.3-1% | 1￠,400V，50HZ |
LSCM-20 | 5-50 | 60 | 6 | 20 | 3-5 | ±0.3-1% | 1￠,400V，50HZ |
LSCM-30 | 8-70 | 60 | 6 | 30 | 3-5 | ±0.3-1% | 1￠,400V，50HZ |
Mconvey provides overall solution for plastic material handling system：
1.Material storage system
2.Material drying&dehumitifing sytem
3.Dosing& weighing system
4.Compound & mixing system
5.Control system
2.Material drying&dehumitifing sytem
3.Dosing& weighing system
4.Compound & mixing system
5.Control system
If you want more details, please contact us
Details Images
Production Detail
Motor
1.The motor is a stepping motor designed by ourselves. It has sufficient torque at low speed, not easy to get stuck, and is stable at high speed. Its failure rate is further lower than reducer+brushless DC motor which is widely used by other suppliers.
Screw
1.Materail:SUS304 stainless steel screw, more durable
2.The screw and motor are directly connected by ingenious clamping mode, no connecting component between them, which makes them more stable in cooperation and operation, and there is almost no jamming or idling.
PLC Controller
1.PLC control, touch screen display, and easy to operate and understand
2.With Ethernet communication function, data can be transmitted, and the amount of material recovered from the doser on the day can be recorded and stored;
Product Schematic diagram
Working principle:
* The signal from the control box is transmitted to the motor, and the motor starts operation to drive the screw rod to rotate through the coupling. * The color master batch in the hopper falls into the screw rod, and then is squeezed by the screw rod, and conveyed to the base by the screw rod. A weighing sensor is used to precisely control the output of the color master batch to realize the proportional addition of the color master batch, so as to achieve the purpose of accurately metering and conveying the color master batch.
Scope of application:
* Suitable for automatic proportioning and mixing of new materials, secondary materials, color master batches or additive materials;
* The signal from the control box is transmitted to the motor, and the motor starts operation to drive the screw rod to rotate through the coupling. * The color master batch in the hopper falls into the screw rod, and then is squeezed by the screw rod, and conveyed to the base by the screw rod. A weighing sensor is used to precisely control the output of the color master batch to realize the proportional addition of the color master batch, so as to achieve the purpose of accurately metering and conveying the color master batch.
Scope of application:
* Suitable for automatic proportioning and mixing of new materials, secondary materials, color master batches or additive materials;
* With the screw diameter of 12mm, 16mm or 20mm, and four models that provide different output of 0.1-50kg/h;
*Suitable for extruder and injection molding machine, only a little wiring is required for switching, and its rotation speed is automatically adjusted with the processing speed of the extruder to maintain a fixed color master batch ratio.

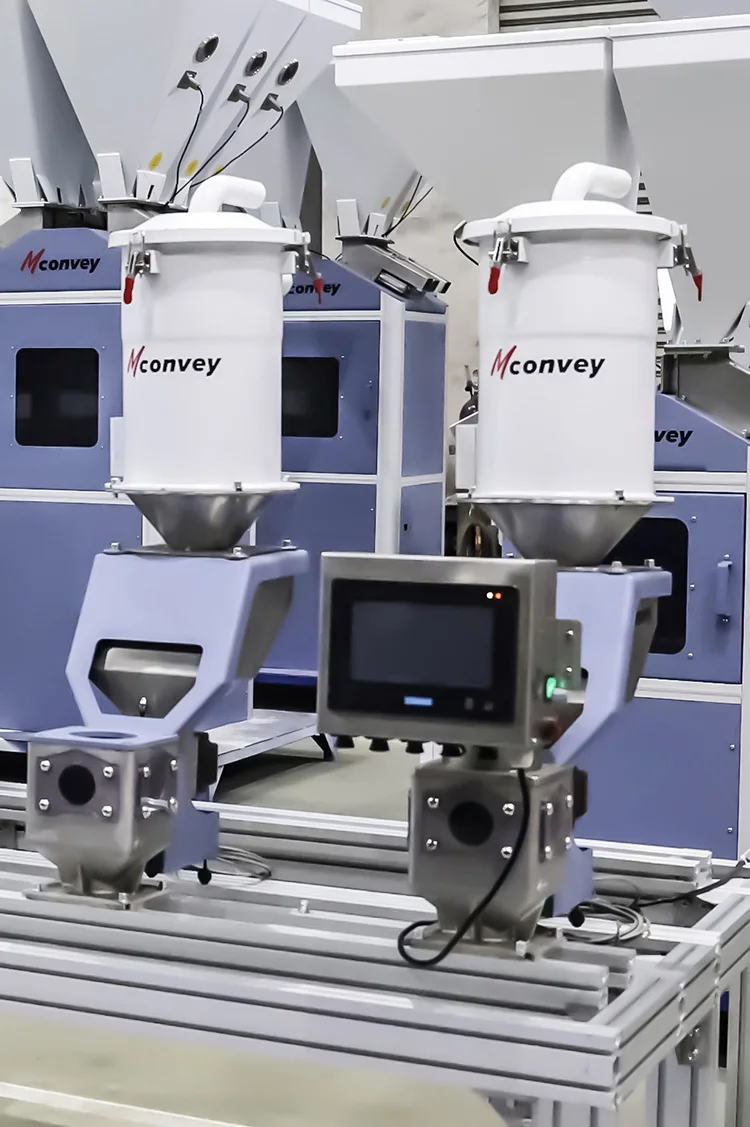

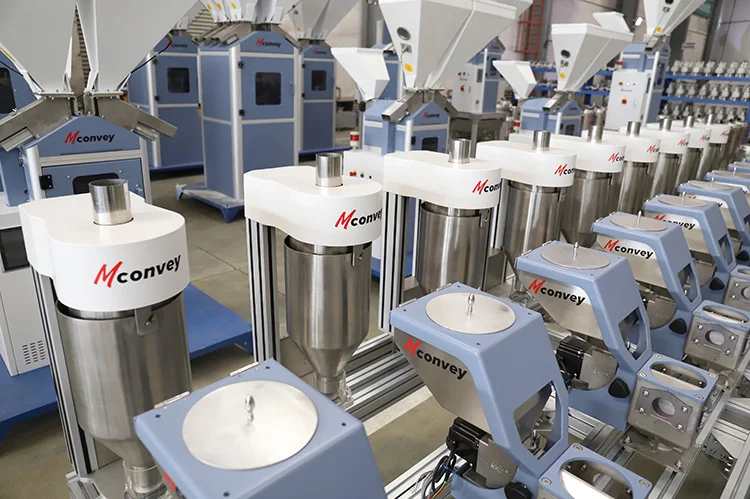

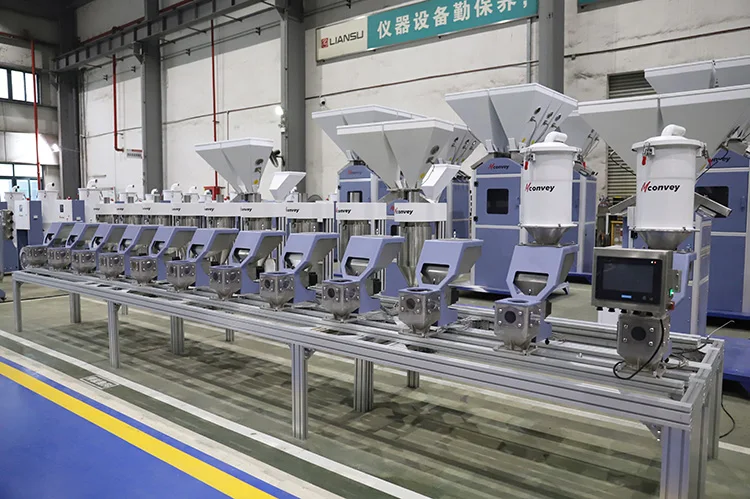

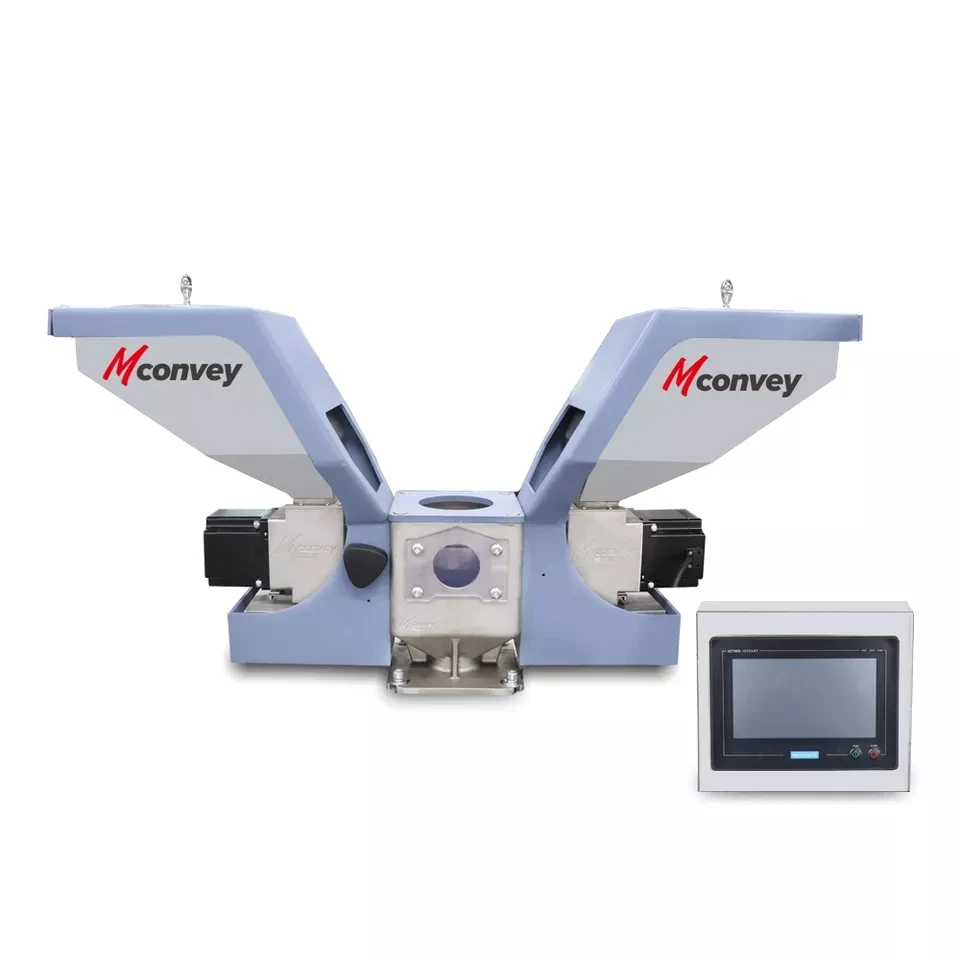

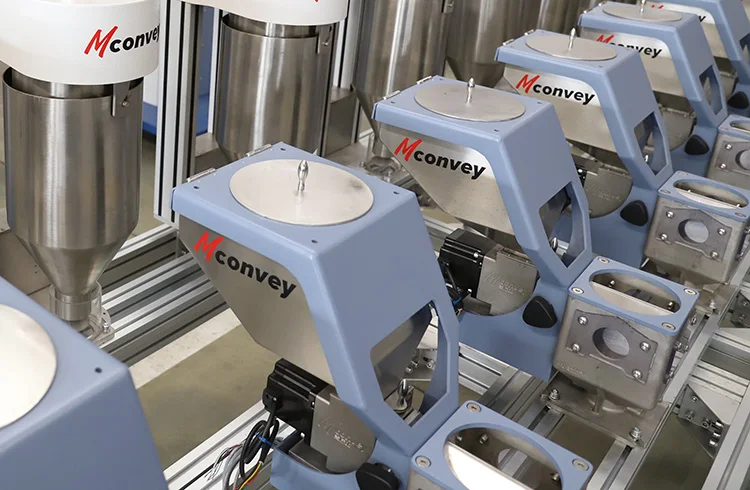

Product display
