Характеристики

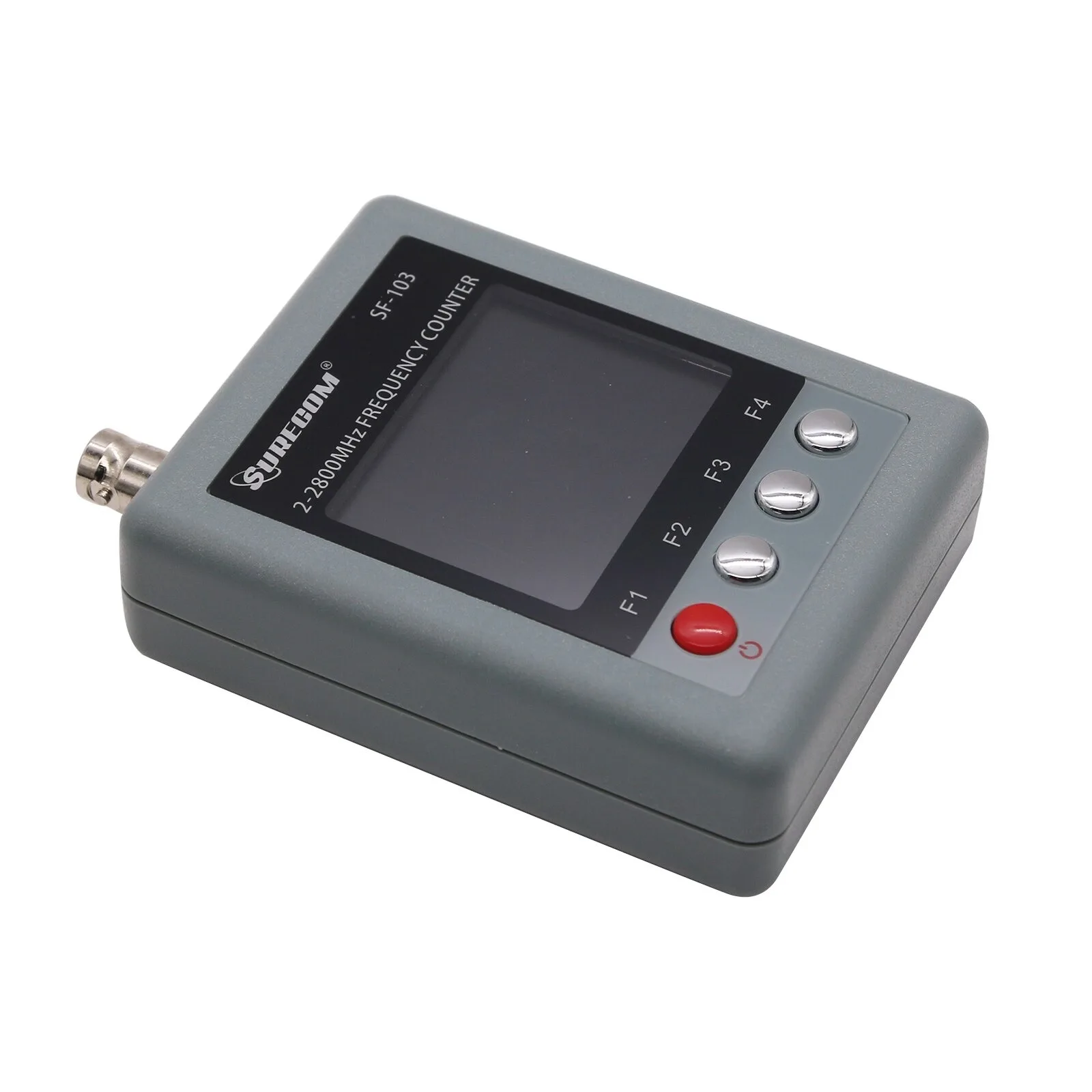

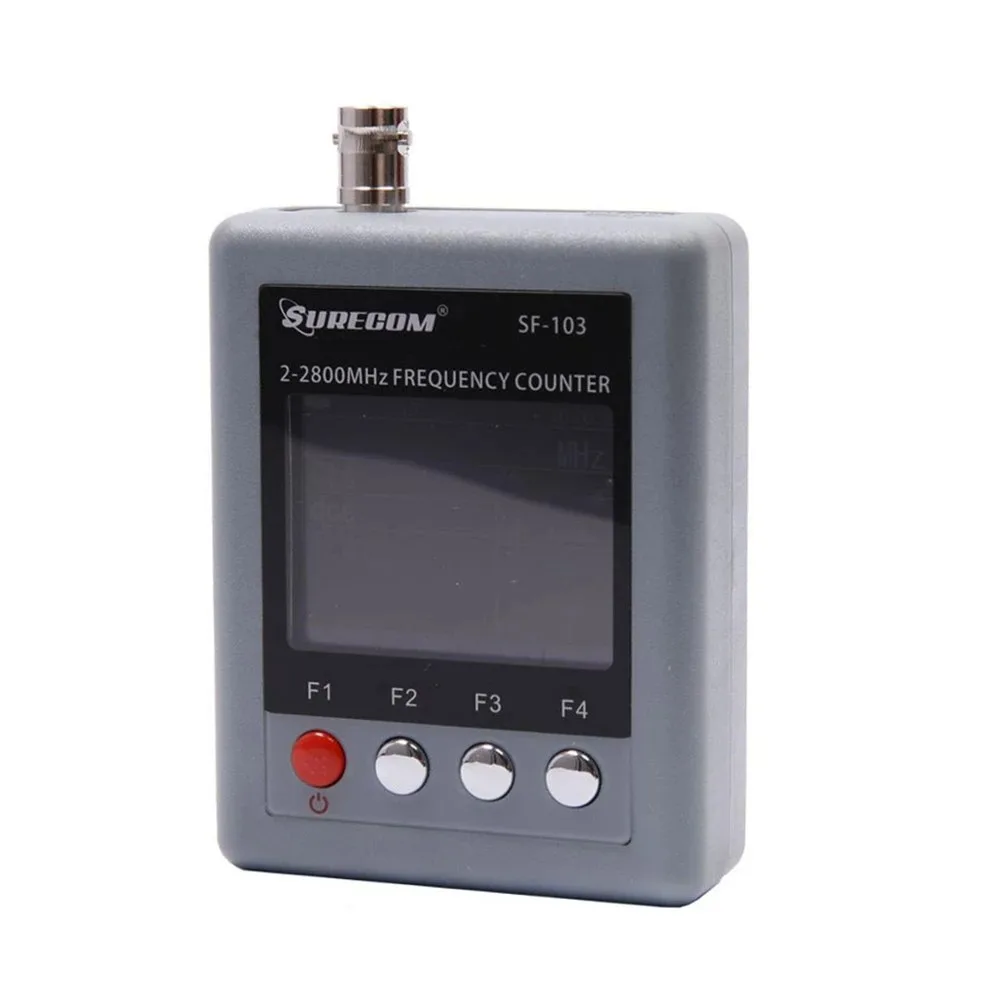

Portable Surecom Digital Hand-held Radio Frequency Counter SF-103
Product Description
Introduction:
* The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator. it is the tool of choice for maintenance personnel ,test frequency and signal strength for wireless enthusiasts.
* This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.
* There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure.
* Its four-button control is easy to use and its small size allows you to carry it anywhere you like.
* Work by TCXO(Temperature Compensate X'tal (crystal) Oscillator) ,In the range of -45 ℃ ~ 65 ℃ can reach ± 2 ~ ± 4ppm accuracy
* This include very interesting frequency areas such as 2m HAM radio, all VHF and UHFDMR Radio signal e frequency counter.
* GUI Battery level
Feature & Specification:
* Frequency range two select : 2MHz-200MHz / 27MHz -2800MHz
Feature & Specification:
* Frequency range two select : 2MHz-200MHz / 27MHz -2800MHz
* CTCSS/DCS Decoder
* Frequency counter Digital mode for DMR radio
* Work by TCXO( Temperature Compensate X'tal (crystal) Oscillator) 2~2.5ppm
* Frequency Response time: 0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec)
* TFT Color Display 240 x 320 ,LCD Dim level setting
* Build-in Li-ion battery
* Net Weight: 113g
* 4 buttons control
＊Auto power off 1-9minutes
* Charging battery LED indicator
Item Name | Portable Surecom Digital Hand-held Radio Frequency Counter SF-103 |
Model | SF-103 |
Frequency Range | 2MHz-2800MHz |
Digital Radio Signal | DMR |
Frequency digital | 0.000 or 0.0000 or 0.00000 or 0.000000 ( +-0.001) |
Signal Attenuation S.W | Auto Gain |
Frequency Response Time | 0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec) |
TFT LCD | 320 x 240 pixels |
TCXO crystal Oscillator | +- 2.5ppm |
Battery Build-in | 1500mah Li-ion Battery |
Current Consumption | 30-50MA |
Charger In | Micro USB +5V |
Impedance Input | 50Ω (BNC) |

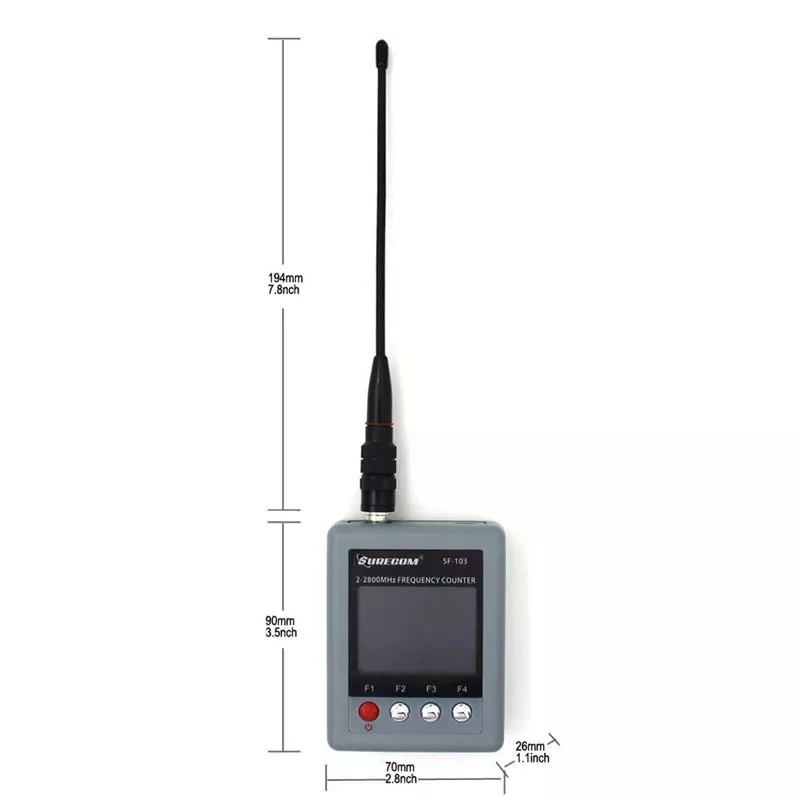

Size | 70 x 25 x 90mm (not include socket & Antenna) |
Weight | 113g |
Functions: | ||
Frequency range Select | 2MHz-200MHz / 27MHz -2800MHz | |
Gate Speeds Select | 0.1 / 0.25 / 0.5 / 1.0 Second | |
Code of CTCSS/DCS | must be in 132-173 / 200-260MHz / 400-519MHz (For Analog Radio Only) | |
Auto power off | Yes (1 - 9mins) | |
Battery level | Yes | |
