HSZ-VT chain block vital 1ton 2ton 3ton 5ton lifting vital chain block

Application

HSZ-VT series Chain Block is one kind of use simple, carries the convenience the manual hoisting machinery , is suitable for the factory, the mine , the construction site , the agricultural production as well as the wharf , the dock , the warehouse and so on , serves as the mounting machinery , the hoisting up cargo and the loading and unloading vehicles, especially regarding open-air and non-power source work, has its important function.



Characteristic

1. Safety, reliable , durable.

2. Performance, and easy to use and easy maintenance .

3. Small and easy carry .

4. Rational structure, running a smooth, beautiful appearance .



Technical parameters



Model	Unit	VT1/2	VT1	VY1 1/2	VT2	VT3	VT5	VT10	VT20
Capacity	t	0.5	1	1.5	2	3	5	10	20
Standard lifting height	m	2.5	2.5	2.5	3	3	3	3	3
Test load	t	0.75	1.5	2.25	3	4.5	7.5	15	25
Hmin Headroom(hook to hook) Hmin	mm	285	315	340	380	475	600	700	1000
Chainpull to lift full load	N	221	304	343	314	343	383	392	392
No.of load chain fall lines		1	1	1	1	2	2	4	8
Diameter of load chain	mm	6.3	6.3	7.1	8	8	9.1	9.1	10
Dimensions		125 111 24 134	147 126 28 154	183 141 34 192	147 126 34 154	183 141 38 192	215 163 48 224	360.5 163 64 224	585 191 82 224
Net weight	kg	8.4	11	13.5	21	22	40	77	130
Gross weight	kg	9.4	12	14.5	22	23	41.5	85	140
Packing measurement (L*W*H)	cm	30x17x32	30x17x32	30x17x32	28x19x23	30x17x32	40x20x34	62x50x26	75x65x27
Extral weight perment of extra lift	kg	1.7	1.7	2.3	2.5	3.7	5.3	9.7	19.4

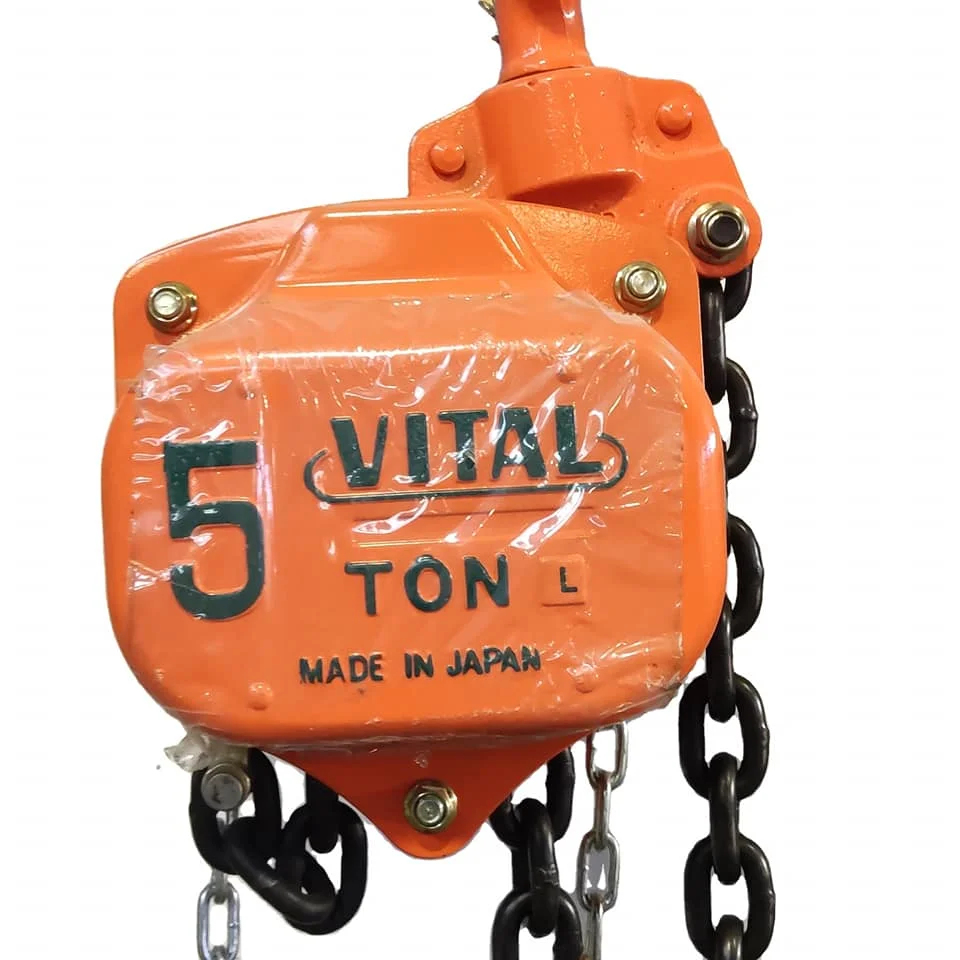

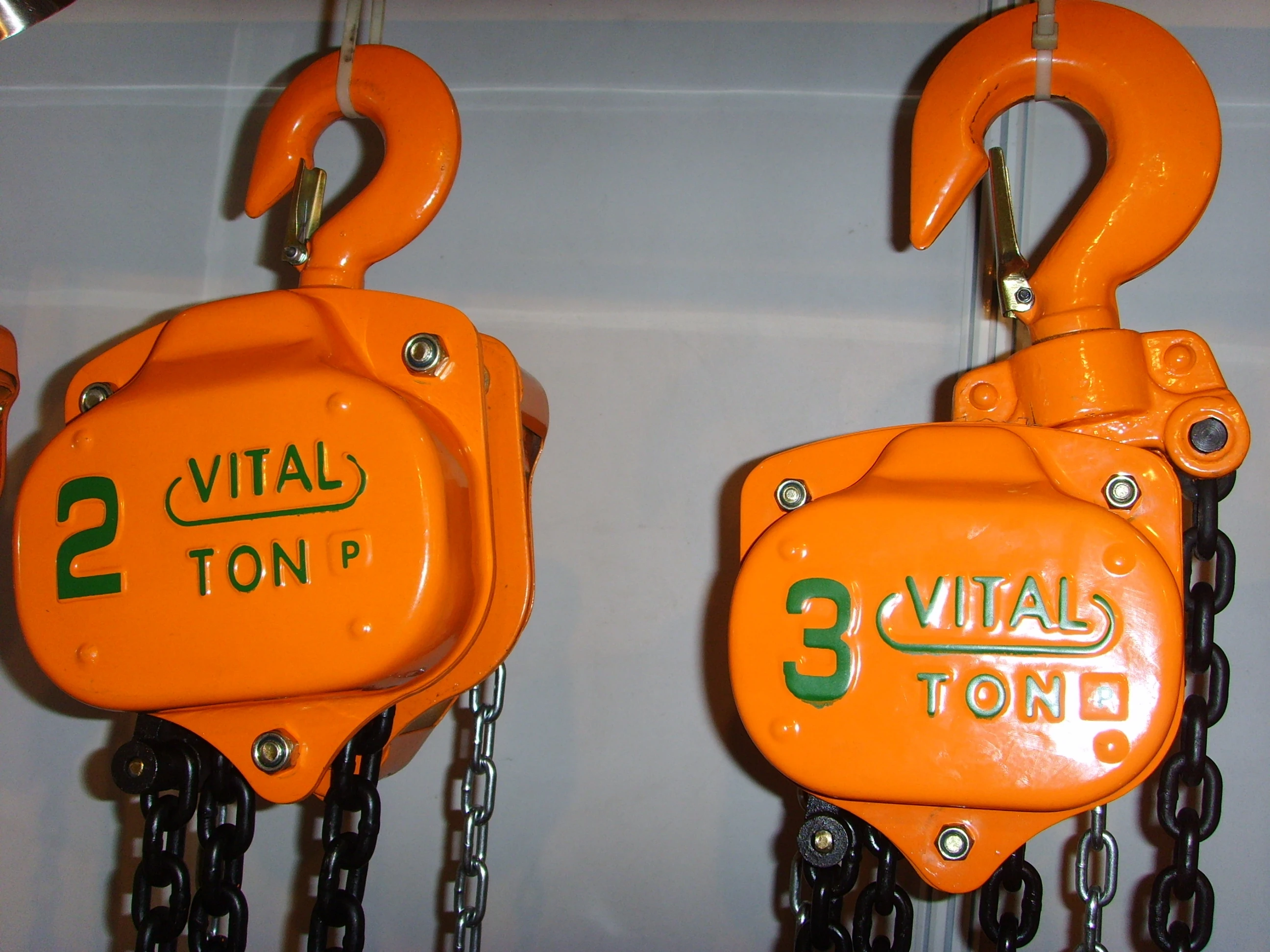

HSZ-VT Series chain block photos

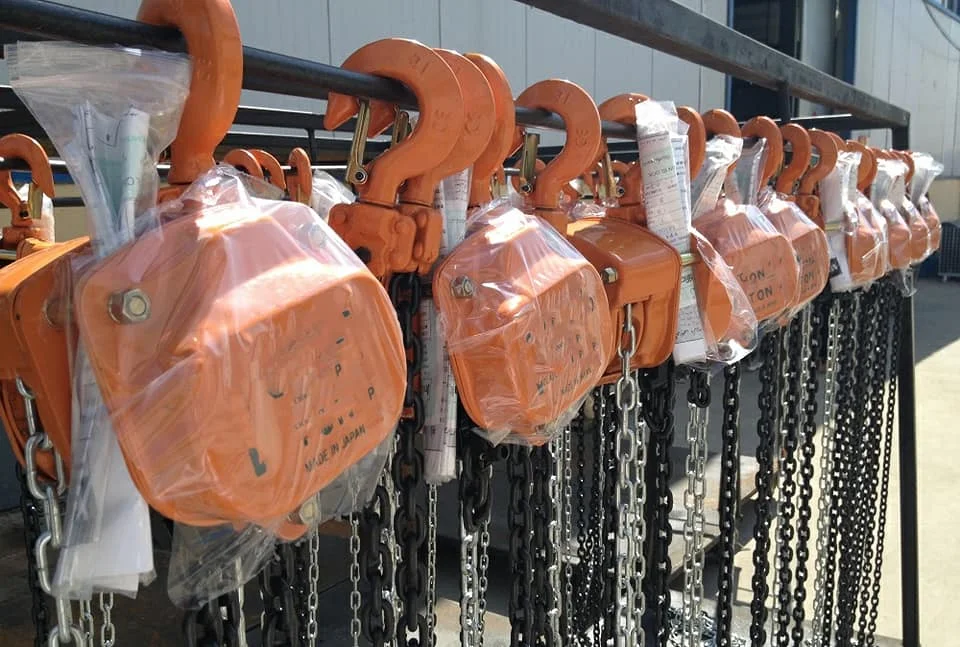

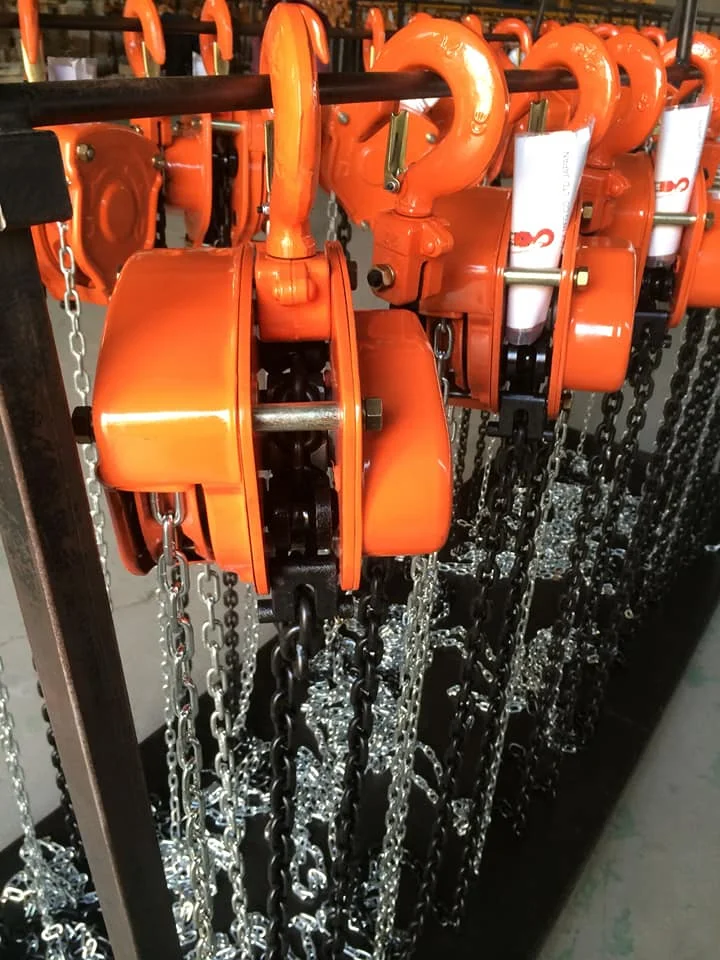

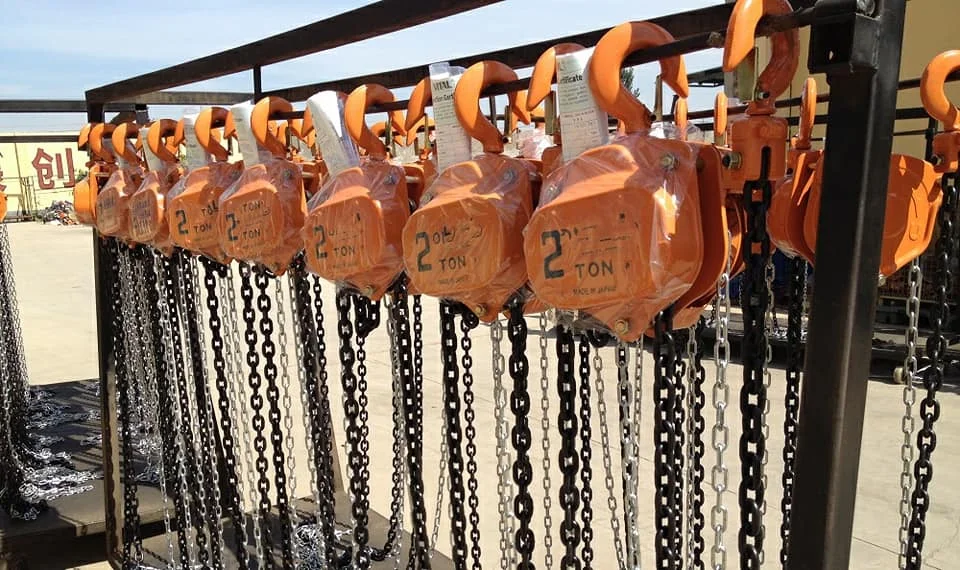

More chain hoist photos

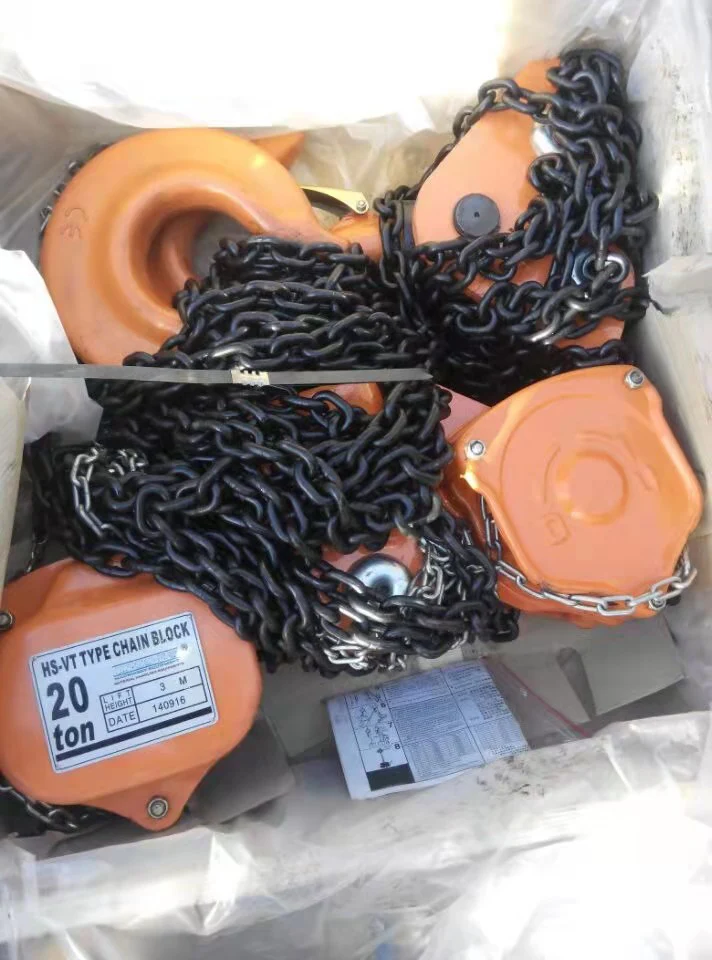

Package :
