Product Description

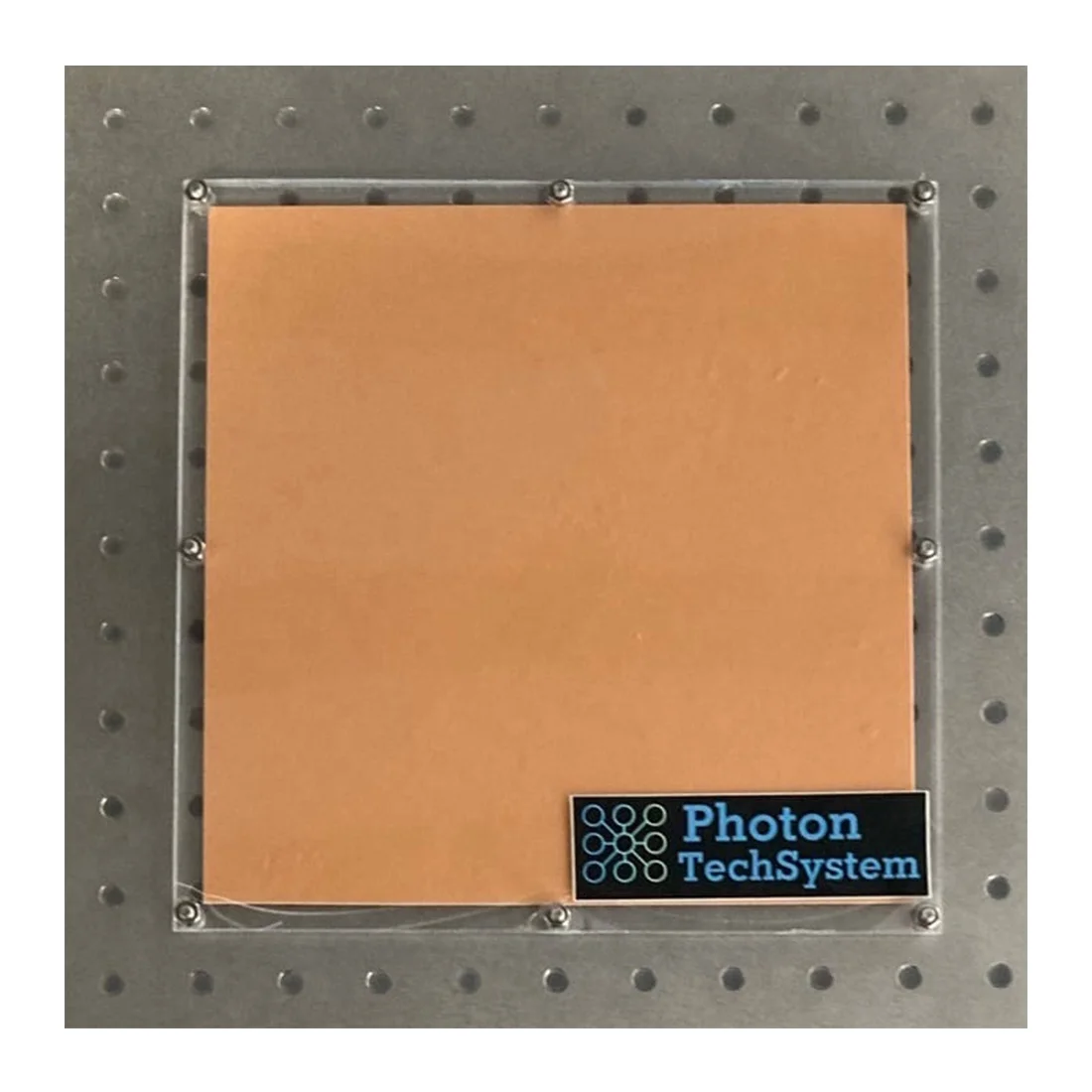

Laminated Luminescent Screens (LS2 series)

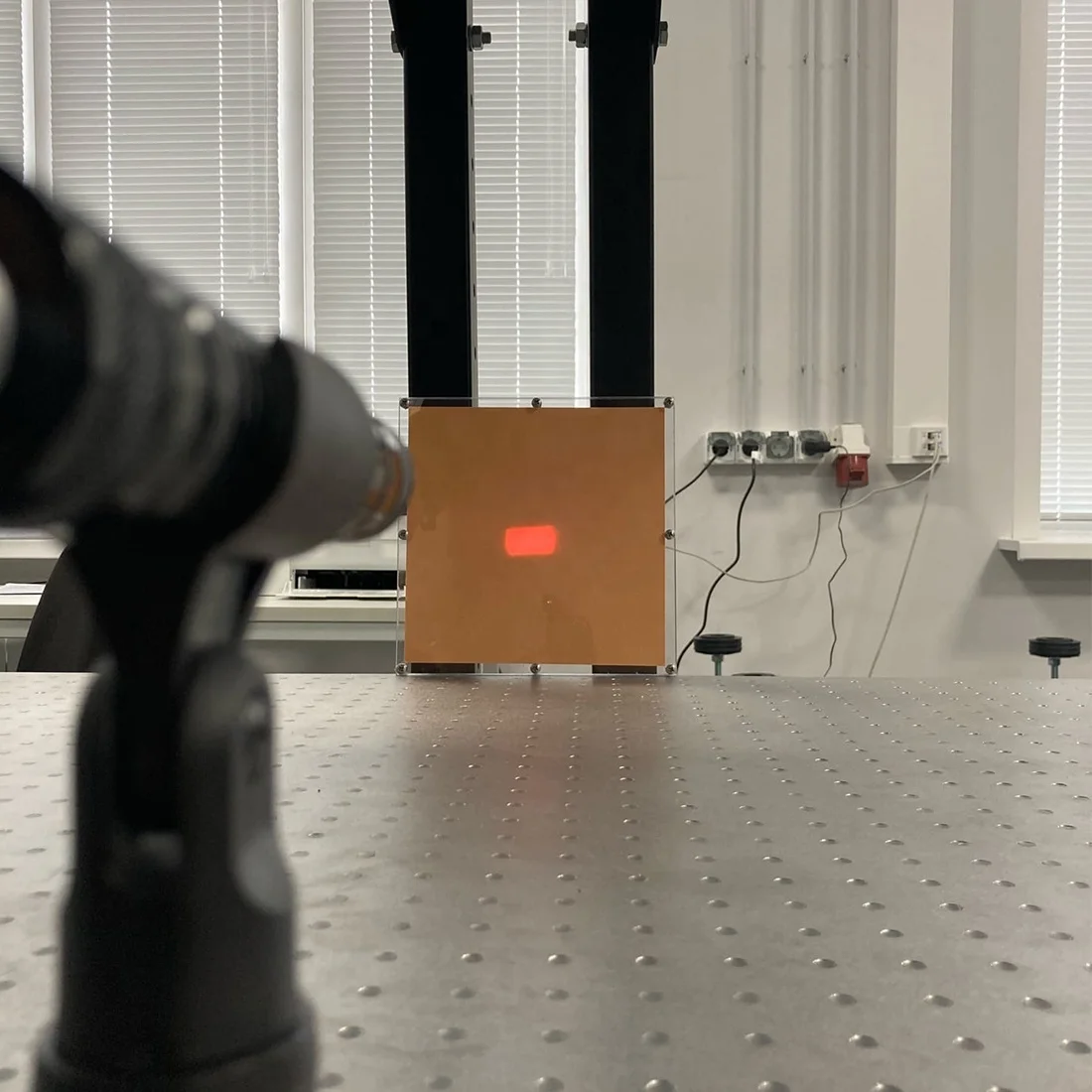

Screens visualize infrared radiation of continuous and pulse lasers and control the beam pathway. Due to the large dimensions, the screens can detect laser beams with a large aperture. Screens can also be used to control scattered and reflected radiation for safe operation with lasers.The polymer base allows the use of screens in various field and weather conditions.
There are three options for the manufacture of screens: with a laminating coating, without a laminating coating and with an adhesive base.
There are three options for the manufacture of screens: with a laminating coating, without a laminating coating and with an adhesive base.
Features:
- The ability to work with large-aperture laser beams;- Scattered and reflected radiation control
- The ability to work in the field
- High mechanical characteristics;
- Custom-made large screens possible
Luminescent Screens LS1-1 (1)
Polymer Type: IR1
$ 1500
Active region, mm: 250 x 250
Absorption Spectral Ranges, μm: 0,75-1,5
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <6 (@808 nm), <2 (@960 nm), <250 (@1470 nm) Color of Emission: Red-orange
Charging Required for Emission: Yes
$ 1500
Luminescent Screens LS1-2 (1)
Polymer Type: IR1
Active region, mm: 200 x 200
Absorption Spectral Ranges, μm: 0,75-1,5
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <6 (@808 nm), <2 (@960 nm), <250 (@1470 nm) Color of Emission: Red-orange Charging Required for Emission: Yes
$ 1000

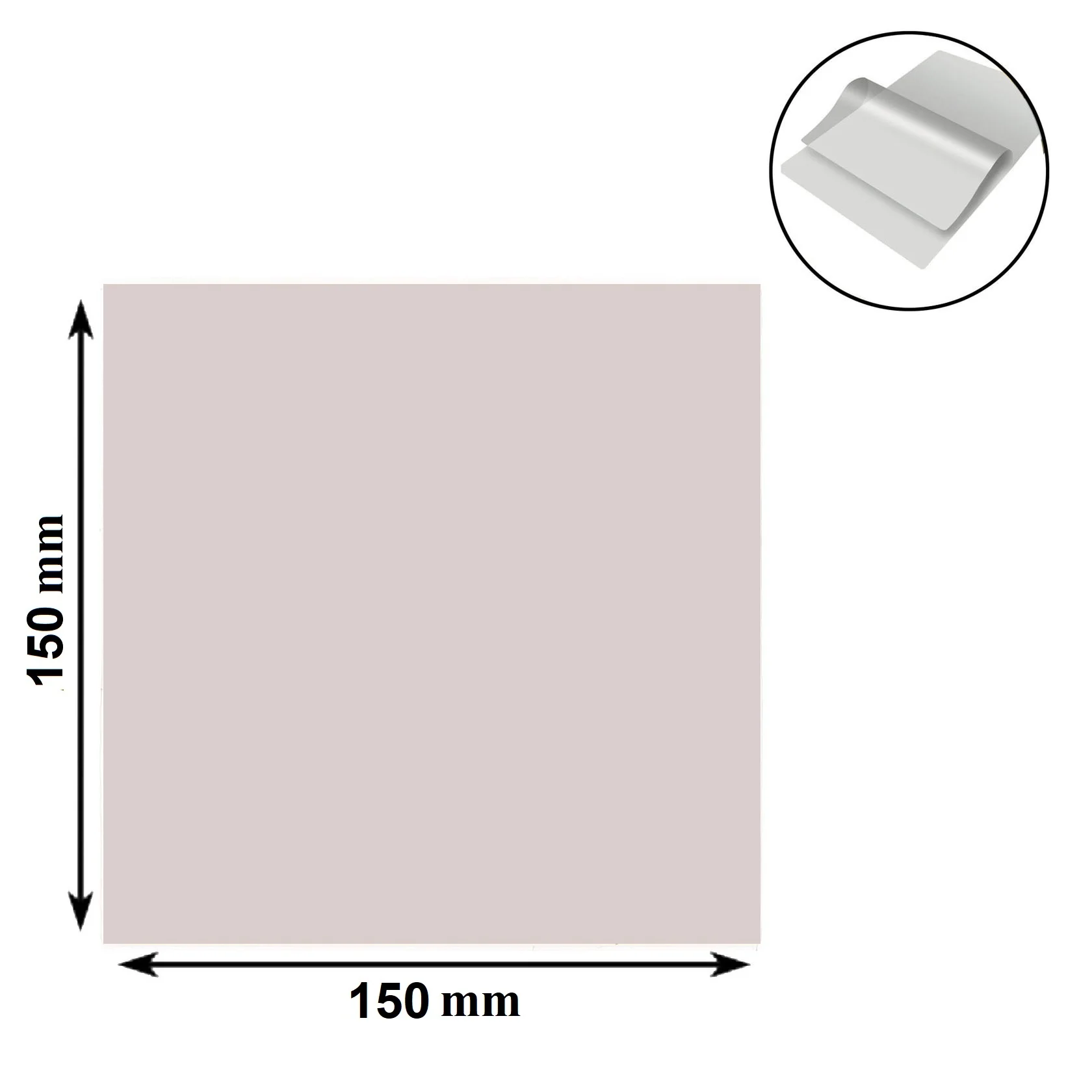

Luminescent Screens LS1-3 (1)
Polymer Type: IR1
Active region, mm: 150 x 150
Absorption Spectral Ranges, μm: 0,75-1,5
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <6 (@808 nm), <2 (@960 nm), <250 (@1470 nm)
Color of Emission: Red-orange
Charging Required for Emission: Yes
Active region, mm: 150 x 150
Absorption Spectral Ranges, μm: 0,75-1,5
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <6 (@808 nm), <2 (@960 nm), <250 (@1470 nm)
Color of Emission: Red-orange
Charging Required for Emission: Yes
$ 550

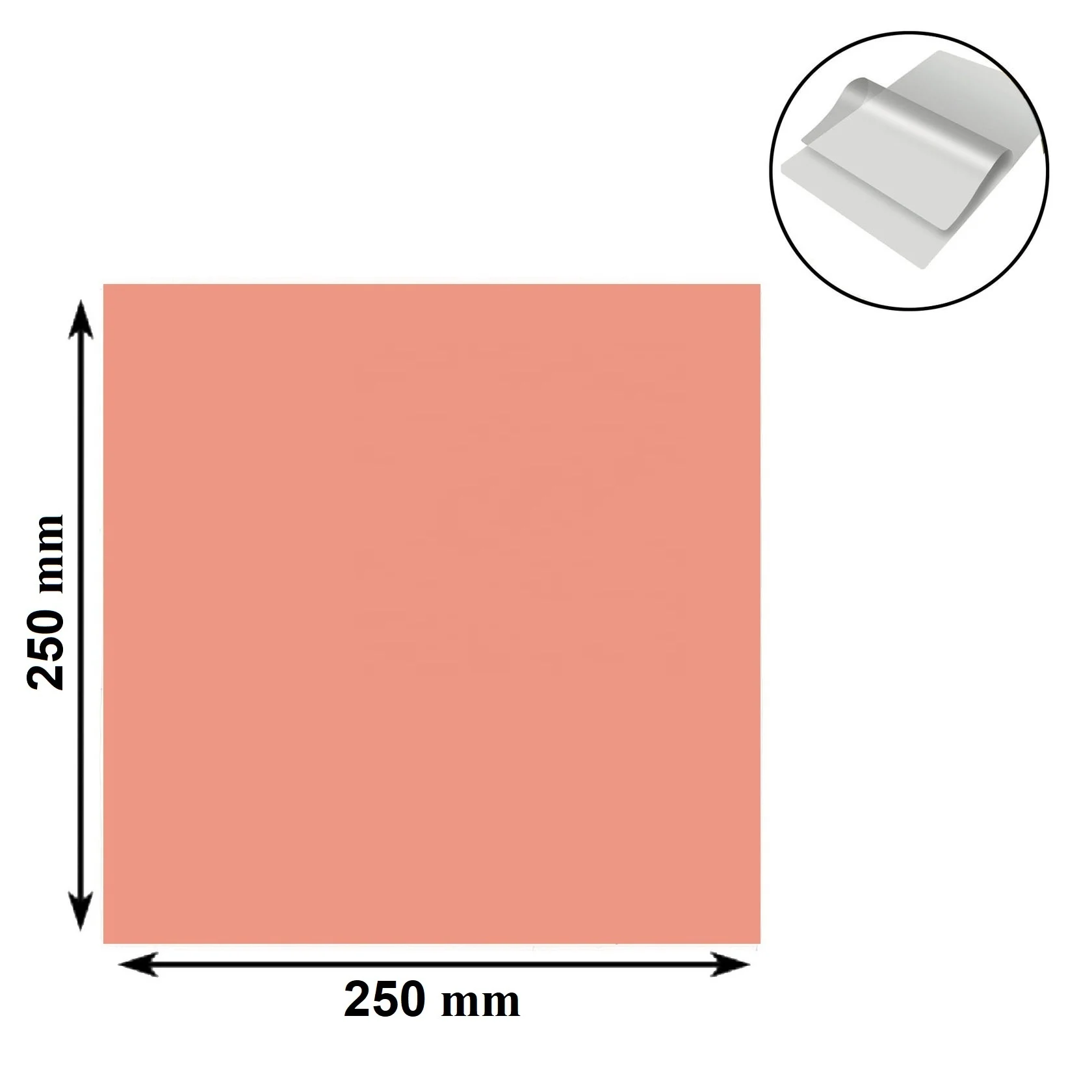

Luminescent Screens LS1-1 (2)
Polymer Type: IR2
Active region, mm: 250 x 250
Absorption Spectral Ranges, μm: 0,75-2,13+
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <20 (@808 nm), <20 (@960 nm), <2 (@1550 nm), <500 (@1940 nm)
Color of Emission: Red
Charging Required for Emission: Yes
$ 1500
Active region, mm: 250 x 250
Absorption Spectral Ranges, μm: 0,75-2,13+
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <20 (@808 nm), <20 (@960 nm), <2 (@1550 nm), <500 (@1940 nm)
Color of Emission: Red
Charging Required for Emission: Yes
$ 1500
Luminescent Screens LS1-2 (2)
Polymer Type: IR2
Active region, mm: 200 x 200
Absorption Spectral Ranges, μm: 0,75-2,13+
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <20 (@808 nm), <20 (@960 nm), <2 (@1550 nm), <500 (@1940 nm)
Color of Emission: Red
Charging Required for Emission: Yes
Active region, mm: 200 x 200
Absorption Spectral Ranges, μm: 0,75-2,13+
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <20 (@808 nm), <20 (@960 nm), <2 (@1550 nm), <500 (@1940 nm)
Color of Emission: Red
Charging Required for Emission: Yes
$ 1000
Luminescent Screens LS1-3 (2)
Polymer Type: IR2
Active region, mm: 150 x 150
Absorption Spectral Ranges, μm: 0,75-2,13+
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <20 (@808 nm), <20 (@960 nm), <2 (@1550 nm), <500 (@1940 nm)
Color of Emission: Red
Charging Required for Emission: Yes
Active region, mm: 150 x 150
Absorption Spectral Ranges, μm: 0,75-2,13+
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <20 (@808 nm), <20 (@960 nm), <2 (@1550 nm), <500 (@1940 nm)
Color of Emission: Red
Charging Required for Emission: Yes
$ 550
Luminescent Screens LS1-1 (2)
Polymer Type: IR4
Active region, mm: 250 x 250
Absorption Spectral Ranges, μm: 0,78-1,07; 1,45-1,64
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <2 (@808 nm), <0,175 (@960 nm), <100 (@1550 nm)
Color of Emission: Green
Charging Required for Emission: No
$ 1500
Active region, mm: 250 x 250
Absorption Spectral Ranges, μm: 0,78-1,07; 1,45-1,64
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <2 (@808 nm), <0,175 (@960 nm), <100 (@1550 nm)
Color of Emission: Green
Charging Required for Emission: No
$ 1500
Luminescent Screens LS1-2 (2)
Polymer Type: IR4
Active region, mm: 200 x 200
Absorption Spectral Ranges, μm: 0,78-1,07; 1,45-1,64
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <2 (@808 nm), <0,175 (@960 nm), <100 (@1550 nm)
Color of Emission: Green
Charging Required for Emission: No
Active region, mm: 200 x 200
Absorption Spectral Ranges, μm: 0,78-1,07; 1,45-1,64
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <2 (@808 nm), <0,175 (@960 nm), <100 (@1550 nm)
Color of Emission: Green
Charging Required for Emission: No
$ 1000
Luminescent Screens LS1-3 (2)
Polymer Type: IR4
Active region, mm: 150 x 150
Absorption Spectral Ranges, μm: 0,78-1,07; 1,45-1,64
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <2 (@808 nm), <0,175 (@960 nm), <100 (@1550 nm)
Color of Emission: Green
Charging Required for Emission: No
Active region, mm: 150 x 150
Absorption Spectral Ranges, μm: 0,78-1,07; 1,45-1,64
Damage Threshold, mW/cm2: >700
Spectral Sensitivity, μW/cm2: <2 (@808 nm), <0,175 (@960 nm), <100 (@1550 nm)
Color of Emission: Green
Charging Required for Emission: No
$ 550
Specification
Brand Name | Photonic Technology Systems |
Model Number | LS2 |
Color of Emission | Red-orange |
Charging Required for Emission | Yes |
Customized support | OEM, ODM |
Place of Origin | Russia, Mordovia republic, Saransk city |
Packing & Delivery
Each Laser Beam Visualizer is packed into plastic envelope.
We deliver orders with help of these International shipping services:
FAQ
1. Can I get samples?
Yes, we will send test samples. Sending a test batch is under discussion.
2. Can I have my own customized product?
Yes, we will send test samples. Sending a test batch is under discussion.
2. Can I have my own customized product?
We can custom-design products. We can discuss all the conditions with you, just write to us.
3. How long does it take to calculate the shipping cost?
The average shipping cost estimate takes 1 to 3 business days.
3. How long does it take to calculate the shipping cost?
The average shipping cost estimate takes 1 to 3 business days.
Company Profile
Welcome to Photonic Technology Systems
The research and production company "Photonic Technology Systems" was founded by a group of scientists in 2017 with funding by the Foundation for Assistance to Small Innovative Enterprises. The company is located in the National Research Mordovia State University (Saransk, Russia)
PhotonTechSystems LLC manufactures educational photonics kits, laser beam visualizers, laboratory furniture for laser experiments, optomechanical components and other high-tech products. Our goal is to integrate the results of scientific and educational activities in the field of photonics and business. PhotonTechSystems are based on the spirit of partnership, continuous development and high quality.
Why to choose us?
◙ Unique photonics educational kits for universities and schools
◙ Own production and ware house
◙ High customer focus and competitive pricing
◙ Own production and ware house
◙ High customer focus and competitive pricing
◙ PhotonTechSystems are based on the spirit of partnership, continuous development and high quality.
◙ Our goal is to integrate the results of scientific and educational activities in the field of photonics and business.
