Изготовление размеров под заказ Водонепроницаемость широкого спектра IR2-1 лазерного луча визуализатор для контроля
- Категория: Other Test Instrument >>>
- Поставщик: Photonic,Technology,Systems,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 133.41 $* | 136.57 $* |
| Jul-16-2025 | 108.4 $* | 110.68 $* |
| Jun-16-2025 | 131.53 $* | 134.90 $* |
| May-16-2025 | 130.32 $* | 133.70 $* |
| Apr-16-2025 | 104.20 $* | 106.75 $* |
| Mar-16-2025 | 128.59 $* | 131.85 $* |
| Feb-16-2025 | 127.61 $* | 130.68 $* |
| Jan-16-2025 | 126.36 $* | 129.37 $* |
Характеристики
Product Description

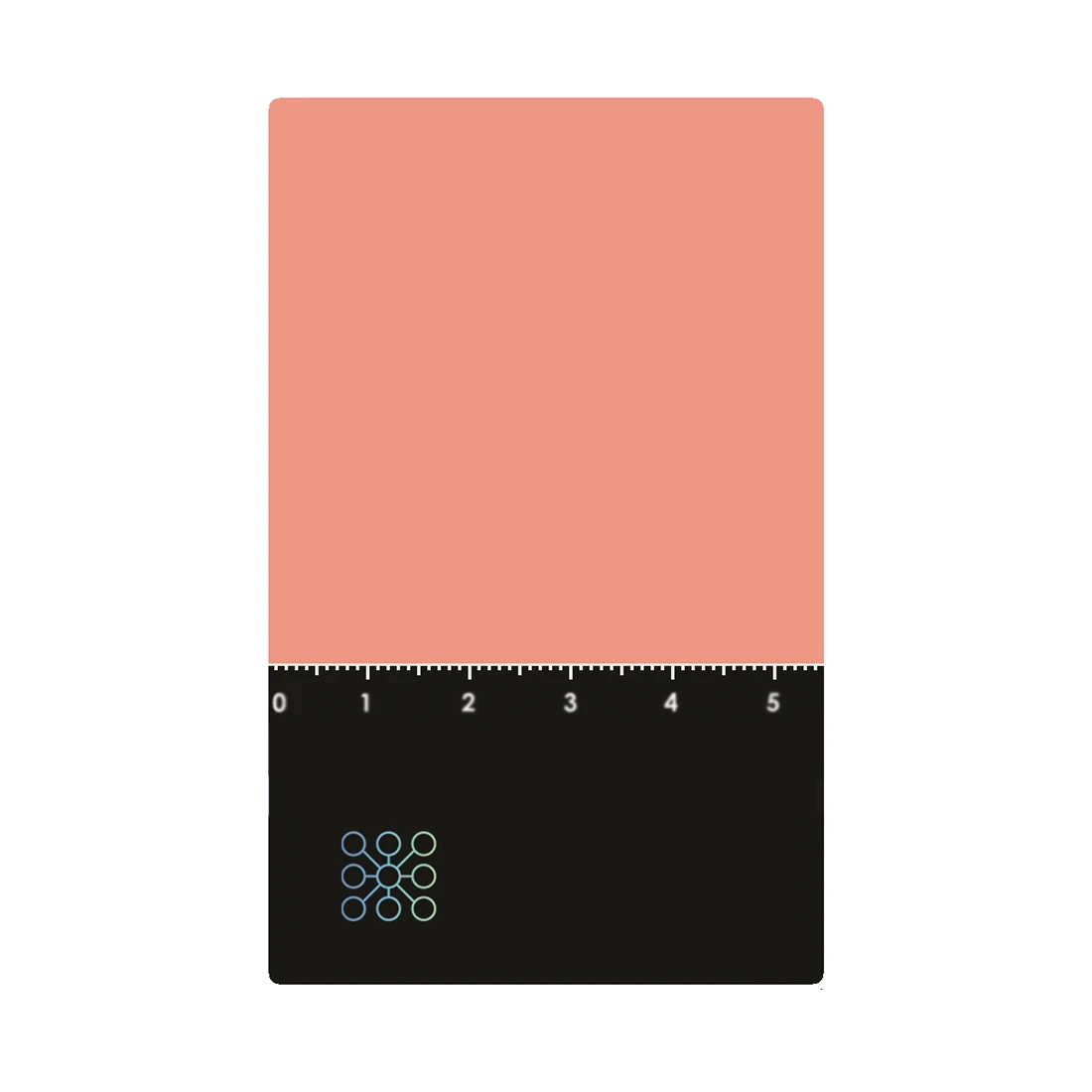

The IR2 series visualizers are a plastic card with a working surface made of luminescent polymer. Due to the polymer base, visualizers have high mechanical characteristics and high moisture resistance. Infrared sensor cards IR2 visualize laser radiation in the spectral range 0,75-2,13+ μm and control the beam path for safe operation with the laser.
Features
○ Thin card of hard plastic is easy to operate and more durable
○ The broad spectral range of 0,75 – 2,13+ μm allows to visualize the radiation of different commercial lasers (laser diode, fiber laser, YAG:Nd and others);
○ High moisture resistance and high mechanical characteristics
○ The broad spectral range of 0,75 – 2,13+ μm allows to visualize the radiation of different commercial lasers (laser diode, fiber laser, YAG:Nd and others);
○ High moisture resistance and high mechanical characteristics
Specification
Warranty | 1 year |
Brand Name | Photonic Technology Systems |
Model Number | IR2-1 |
Card Size, mm | 86 x 54 |
Active region, mm | 50 x 54 |
Absorption Spectral Ranges, μm | 0.75-2,13+ |
Damage Threshold, mW/cm2 | >700 |

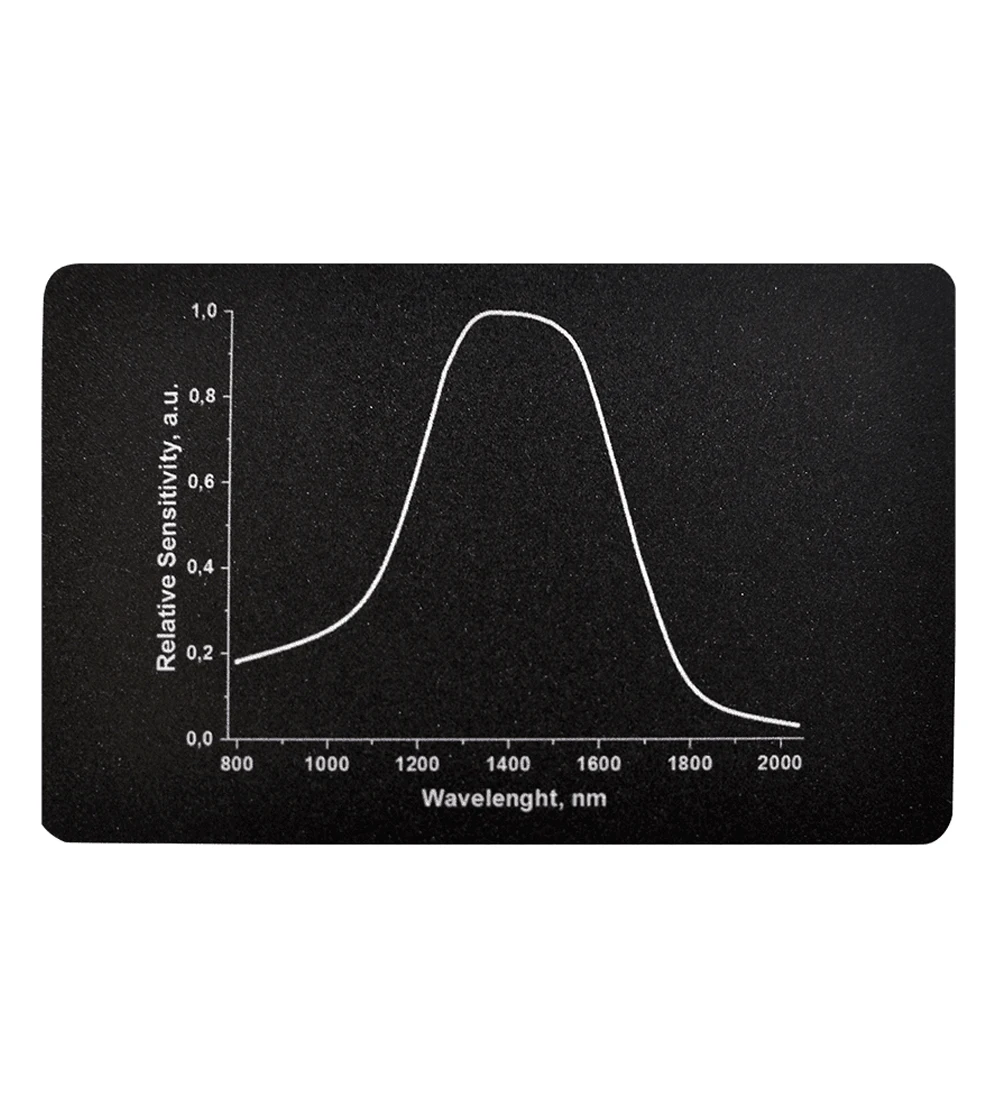

Spectral Sensitivity, μW/cm2 | <6 (@808 nm), <2 (@1550 nm), <500 (@1940 nm) |
Color of Emission | Red |
Features | Waterproof |
Charging Required for Emission | Yes |
Customized support | OEM, ODM |
Place of Origin | Russia, Mordovia republic, Saransk city |
Packing & Delivery
Each Laser Beam Visualizer is packed into plastic envelope.
We deliver orders with help of these International shipping services:
FAQ
1. Can I get samples?
Yes, we will send test samples. Sending a test batch is under discussion.
2. Can I have my own customized product?
Yes, we will send test samples. Sending a test batch is under discussion.
2. Can I have my own customized product?
We can custom-design products. We can discuss all the conditions with you, just write to us.
3. How long does it take to calculate the shipping cost?
The average shipping cost estimate takes 1 to 3 business days.
3. How long does it take to calculate the shipping cost?
The average shipping cost estimate takes 1 to 3 business days.
Company Profile
Welcome to Photonic Technology Systems
The research and production company "Photonic Technology Systems" was founded by a group of scientists in 2017 with funding by the Foundation for Assistance to Small Innovative Enterprises. The company is located in the National Research Mordovia State University (Saransk, Russia)
PhotonTechSystems LLC manufactures educational photonics kits, laser beam visualizers, laboratory furniture for laser experiments, optomechanical components and other high-tech products. Our goal is to integrate the results of scientific and educational activities in the field of photonics and business. PhotonTechSystems are based on the spirit of partnership, continuous development and high quality.
Why to choose us?
◙ Unique photonics educational kits for universities and schools
◙ Own production and ware house
◙ High customer focus and competitive pricing
◙ Own production and ware house
◙ High customer focus and competitive pricing
◙ PhotonTechSystems are based on the spirit of partnership, continuous development and high quality.
◙ Our goal is to integrate the results of scientific and educational activities in the field of photonics and business.
