Product Description

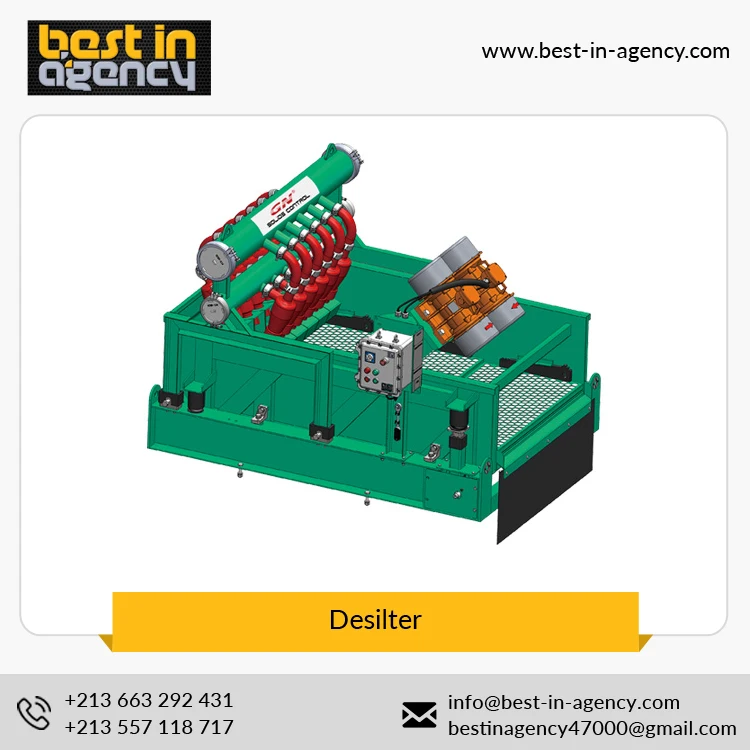

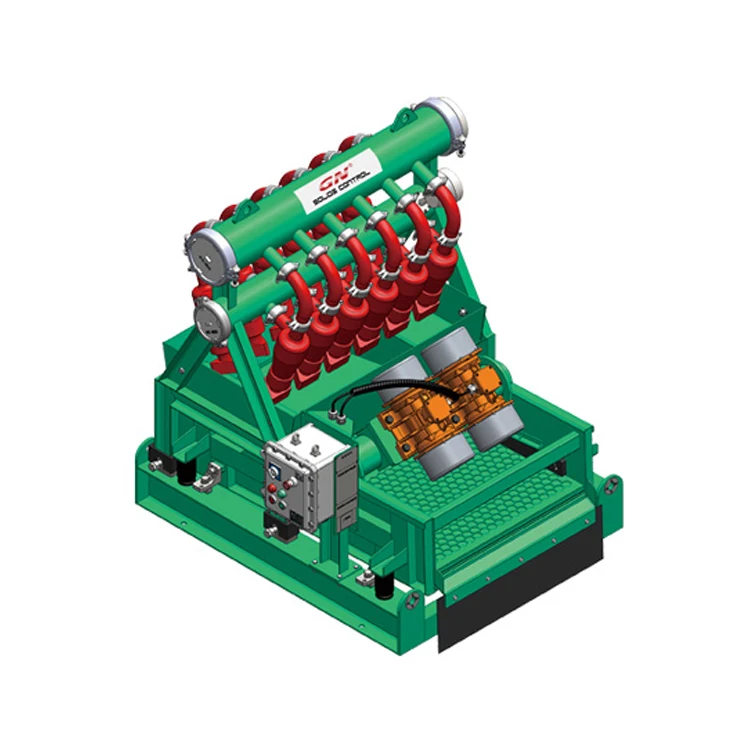

High performance Solid Control Equipment Hydrocyclone Desilter for Drilling Mud





Desilter is the third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter, they are divided into Desander and Desilter. Usually the cone diameter is less than 6″is called Desilter, and used as the third-control equipment in drilling operation. We commonly used 5 "and 4" cone to separate solid-phase particle size 15-47μm in the drilling fluid. Based on customer requirements and capacity, we can select groups of cone into Desilter.GN Desilter works very well with Solids control system other equipments.





Mini Mud Desilter



The GN Mini Mud Cleaner is innovative products for drilling fluids cleaning. The traditional desander desitler without Shale Shaker is only available for unweighted drilling mud.The traditional mud cleaner is oversized for some applications,and the mud cleaner is relatively more expensive. The innovative GN Mini cleaner is an ideal option for both weighted and unweighted drilling mud with the most cost effective solution for drilling. Further more, the GN Mini Cleaner is the best choices for small mud system for HDD,CBM, water well drilling, mining exploration industry etc.

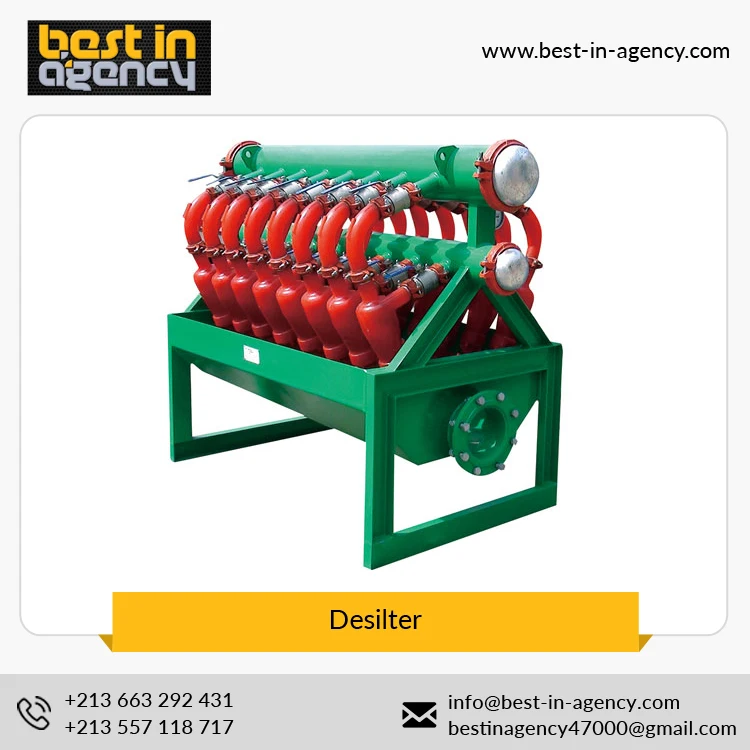

Desilter for drilling mud



We are a China exporter of desilter and desander equipments for Indian, Russian,middle east.etc.Oilfield Company of the United States and Century Int'l Oilfield Equipments LLC of the United Arab Emirates etc. choose us as desilter supplier.Our factory and company are Quality Management System ISO 9001-2000 certified.GN Solids Control operate international oil gas drilling mud separation system sales,service,manufacturing,distribution serivce.Buy desilter from China manufacturer,good quality,best price..Your best hydrocyclone desilter for drilling mud circulation system.




























Specifications













































































































ModelGNZJ752F-8NF/12NFGNZJ703F-D8NF/D12NFGNZJ703F-S16NFGNWS-12NF/16NF
Capacity120/240m³/h (528/1056GPM)360m³/h
(1584GPM)
240/360m³/h
(1056/1584GPM)
Desilter Size4″
Desilter Qty8/12 Pcs16 Pcs12/16 Pcs
Working Pressure0.25~0.4Mpa
Feeding SizeDN150
Output SizeDN200
Bottom Shaker Specs.Shaker ModelGNZS752FGNZS703FN/A
Vibration ModeLinear Motion
Vibration Motor2×1.0Kw2×1.72Kw
Screen Qty2 Panels3 Panels
Screen Size750×900mm700×1250mm
Screen Area1.35m²2.63 m²
Adjust G Force≤7.1G(Adjustable)≤7.5G(Adjustable)
Vibration
Amplitude
3.92~5.62mm4.14~5.96mm
Deck Angle Range+2°-1~+5°
EX StandardExdIIBt4/IECEX/A-TEX
Weight1057/1097kg1813/1839kg1974kg504/539kg
Dimension: mm1676×1745×17192419×2150×16082419×2150×21262189×900×1511
