CYCO BSPT male 1/4 дюйма 16 отверстий плоский вентилятор спрессованный воздух высокая ударность Форсунка для нарезания нити материал
- Категория: Cleaning Equipment Parts >>>
- Поставщик: Dongguan,Changyuan,Spraying,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.90 $* | 1.35 $* |
| Jul-16-2025 | 1.68 $* | 1.55 $* |
| Jun-16-2025 | 1.42 $* | 1.86 $* |
| May-16-2025 | 1.34 $* | 1.61 $* |
| Apr-16-2025 | 1.50 $* | 1.52 $* |
| Mar-16-2025 | 1.83 $* | 1.88 $* |
| Feb-16-2025 | 1.44 $* | 1.14 $* |
| Jan-16-2025 | 1.82 $* | 1.7 $* |
Характеристики
Products Description
BSPT male 1/4 inch 16 orifices flat fan compressed air high impact F Wind Jet Nozzle for Threading Material moving

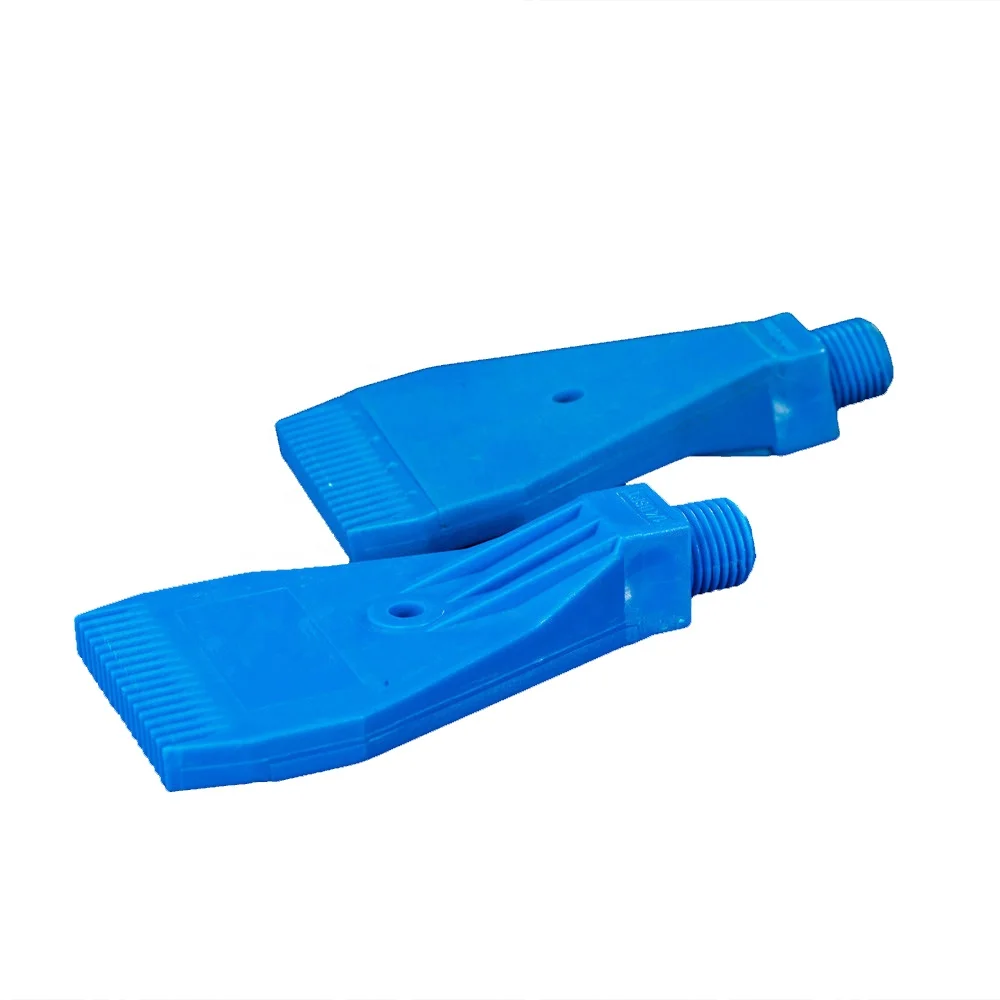

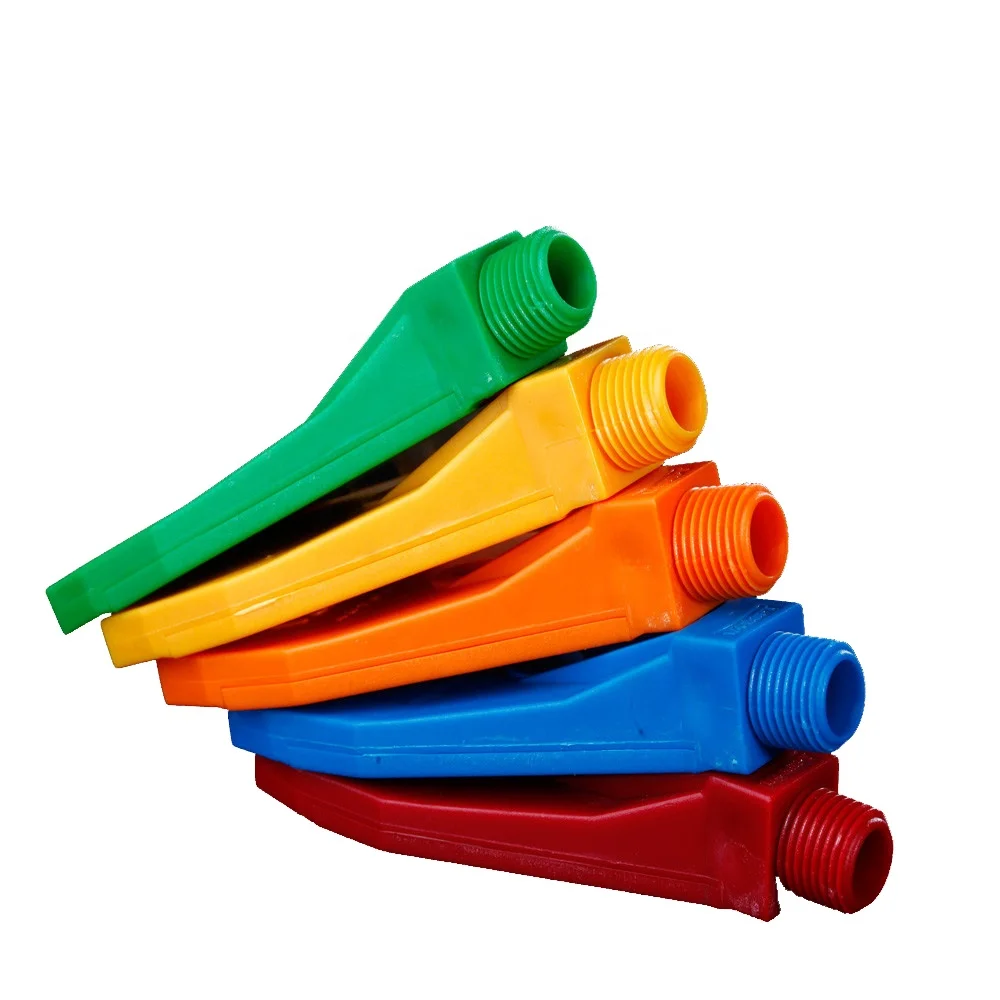

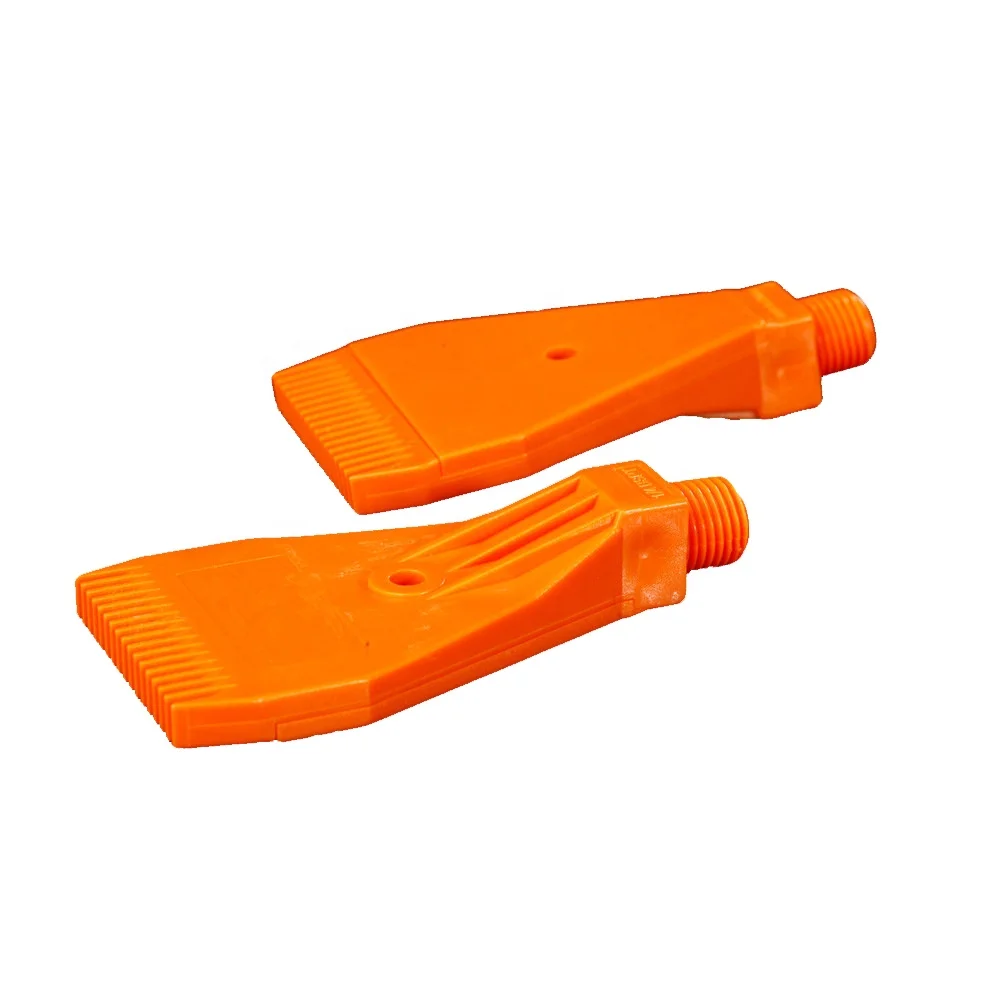

F Wind Jet Nozzle features a high impact, flat fan distribution of compressed air. It is available in durable ABS plastic or
aluminum alloy. It produces a quiet, efficient, controlled flat fan distribution of compressed air. The air stream is discharged through 16 precision orifices that ensure uniform distribution and spray pattern integrity. It fits through 1/4 inch inlet connection with BSPT male screw thread. Two convenient mounting holes on the ABS model ensure correct positioning on the header or manifold or fixed applications, offering uniform distribution of air curtain. Plastic F Wind Jet Nozzle withstands temperatures up to 77℃ at 7 bar. While aluminum alloy F Wind Jet Nozzle withstands temperature of 250℃ and pressure about 30 bar. The nozzles are designed for cooling, drying, and blow-off applications in conveyor, clean-in-place and hand-held set-ups.
Application:
1. Parts cooling
F Wind Jet Nozzle features a high impact, flat fan distribution of compressed air. It is available in durable ABS plastic or
aluminum alloy. It produces a quiet, efficient, controlled flat fan distribution of compressed air. The air stream is discharged through 16 precision orifices that ensure uniform distribution and spray pattern integrity. It fits through 1/4 inch inlet connection with BSPT male screw thread. Two convenient mounting holes on the ABS model ensure correct positioning on the header or manifold or fixed applications, offering uniform distribution of air curtain. Plastic F Wind Jet Nozzle withstands temperatures up to 77℃ at 7 bar. While aluminum alloy F Wind Jet Nozzle withstands temperature of 250℃ and pressure about 30 bar. The nozzles are designed for cooling, drying, and blow-off applications in conveyor, clean-in-place and hand-held set-ups.
Application:
1. Parts cooling
2. Parts drying
3. Parts washing
4. Material moving
5. Threading
Specification
Product name | F Wind Series |
Material | Aluminum alloy, ABS plastic |
Thread size | 1/4'' |
Thread type | BSPT |
Pressure | ABS at 7 Bar (102 Psi), Aluminum Alloy at 30 Bar (435 Psi) |
Capacity | 0.3-1223 L/min |
Orifice diameter | 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm |
Drop size | 100-300μm |
Application | 1. Parts cooling 2. Parts drying 3. Parts washing 4. Material moving 5. Threading |
Company Profile
Dongguan Changyuan Spraying Technology Co.,Ltd
Dongguan Changyuan Spraying Technology Co., Ltd. which was found in the year 1997 is a professional Hi-tech Spraying
&Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of spray nozzle products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.
&Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of spray nozzle products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.
CYCO offers a wide range of highly competitive spray nozzle products. Our main products include spray nozzle,water
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle. Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so on.And our products have been exported to many foreign countries, such as USA, German, England, Japan,Korean,Russia,India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle. Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so on.And our products have been exported to many foreign countries, such as USA, German, England, Japan,Korean,Russia,India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
Advanced Production Equipments:
8 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines.2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
2 Laser marking machines.
8 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines.2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
2 Laser marking machines.
Our factory
Production Process
Product packaging
Transportation
FAQ
Q1. Can you help me with my project?
-Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings, pictures of the area you want to cool/mist and we'll send you a quote for free.
Q2. Can I have a sample order for this nozzle?
-Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
Q4. How do you ship the nozzles and how long does it take to arrive?
-We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
-Yes, we offer 3 months warranty to our formal products.
Q6. How to order?
-Step 1 : send an inquiry
-Step 2 : confirm the operating conditions
-Step 3 : product recommendation and quotation
-Step 4 : sampling
-Step 5 : confirm order details and make a payment
-Step 6 : proceed with product preparation upon receipt of payment
-Step 7 : shipping
Q7. Nozzle Questions?
-We have answers. With over 21 years experience and 5,000,000+ nozzles shipped, you can trust us with your spray application. Call or contact us today to learn how partnering with CYCO can make your project a success.
