Характеристики
Products Description

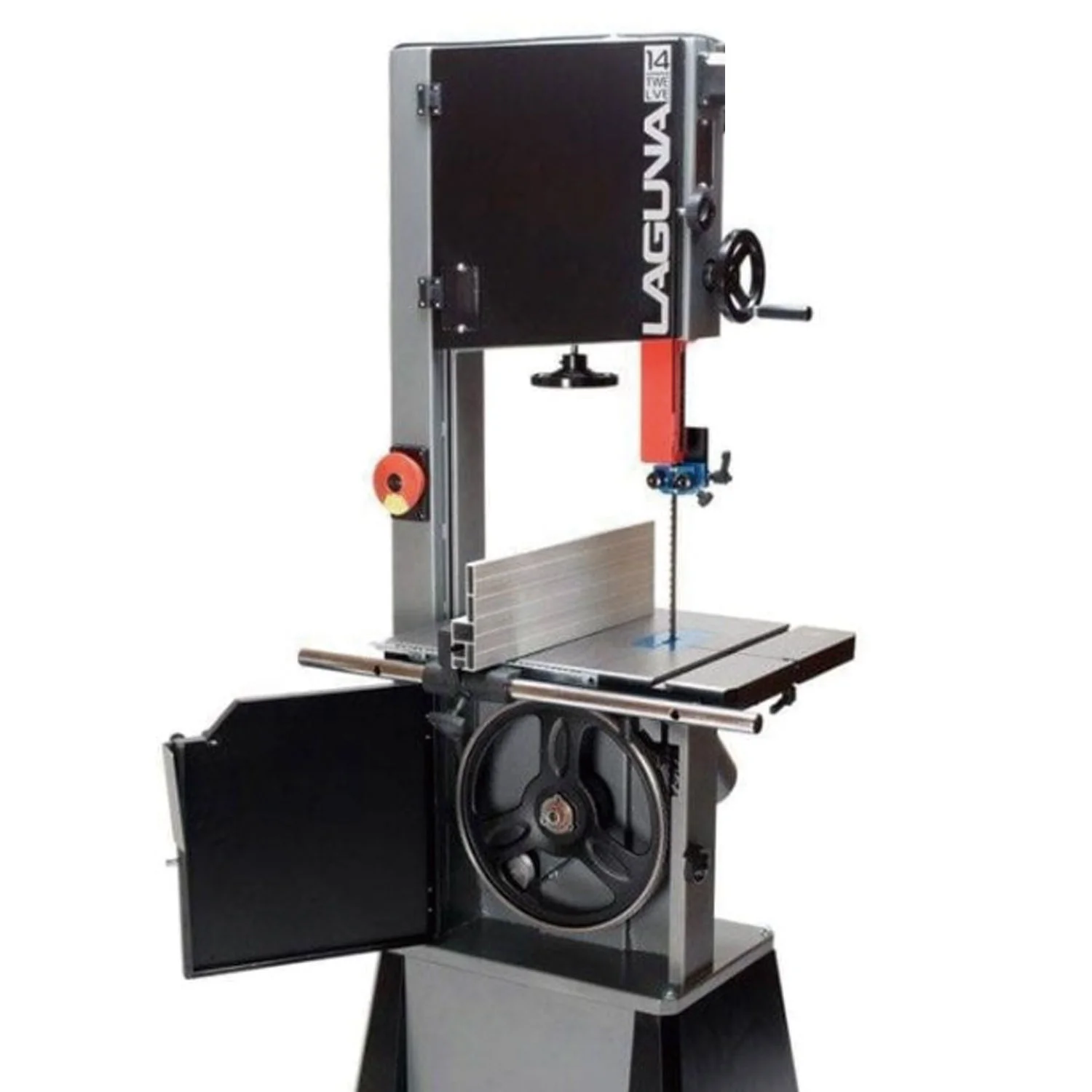

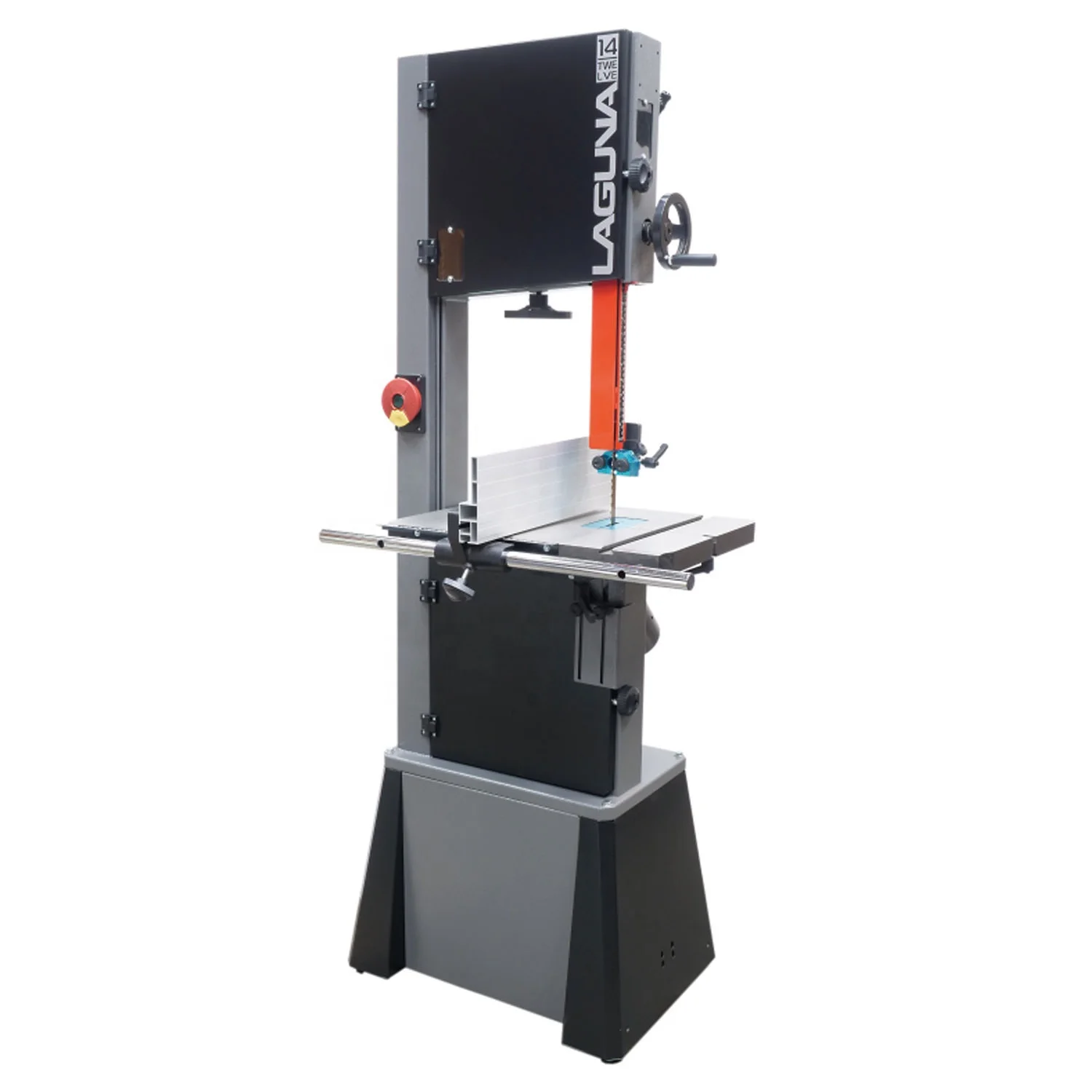

Laguna 14|12 Band Saw | ||||||||
When launched in the USA in 2015, the 14/12 Bandsaw won multiple awards and is now the best seller on that continent. The premium build quality, large depth of cut and professional features have made it a favorite of joinery shops and high-end DIY home workshops. These high-end features include a pyramid shaped spine that minimizes any frame distortion when the blade is fully tensioned, ensuring cutting accuracy. One of the most distinctive advantages of the Laguna bandsaw range over all other brands is the famous ceramic blade guide system. They create 10 points of contact on the blade allowing easy set up and highly accurate cuts even when re-sawing deep timber. Using long life ceramic guides allows for a much larger blade contact area than traditional bearing guides. The result is more support for the blade and greater cutting accuracy. The motor provides enough power to operate at the full 330mm (13") cutting depth. There is a quick blade release tension lever that makes blade changing faster and this is complimented with an easy to view blade tension scale indicator to easily ensure correct tension set up. The precision ground cast iron table is mounted onto an oversized double cast iron trunnion with two locking points that ensure there is a solid surface to work from. The table tilts to 45 degrees with a positive Stop at 90°. A flip plate allows reverse tilt up to 7 degrees when required. In the center of the table is an anodized aluminum throat plate with 4 adjusting screws to ensure a perfect flush fit. The parallel fence runs smoothly along a polished solid steel bar. The locking screw is fitted with a brass end to ensure a positive lock which will not let you down and creep during repeat work. The measuring scale is marked in both Inches and MM. The rigid aluminum high/low fence ensures full and precise timber support for both large and small work pieces. Solid cast iron wheels are electronically / dynamically balanced & fitted with polyurethane one-piece tyres designed to run cooler & last longer than conventional tyres. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended. Double windows allow you to check both tension & tracking while the machine is running. There is a premium anodized aluminum throat plate with fine adjustment for ultimate accuracy. Efficient dust extraction is achieved through a 100mm (4") diameter outlet located just underneath the table. A deflector sends the dust into the collection port before it comes into contact the lower wheel and other moving parts - extending their lifespan. | ||||||||
Features
* World-class fit and finish Laguna is known for

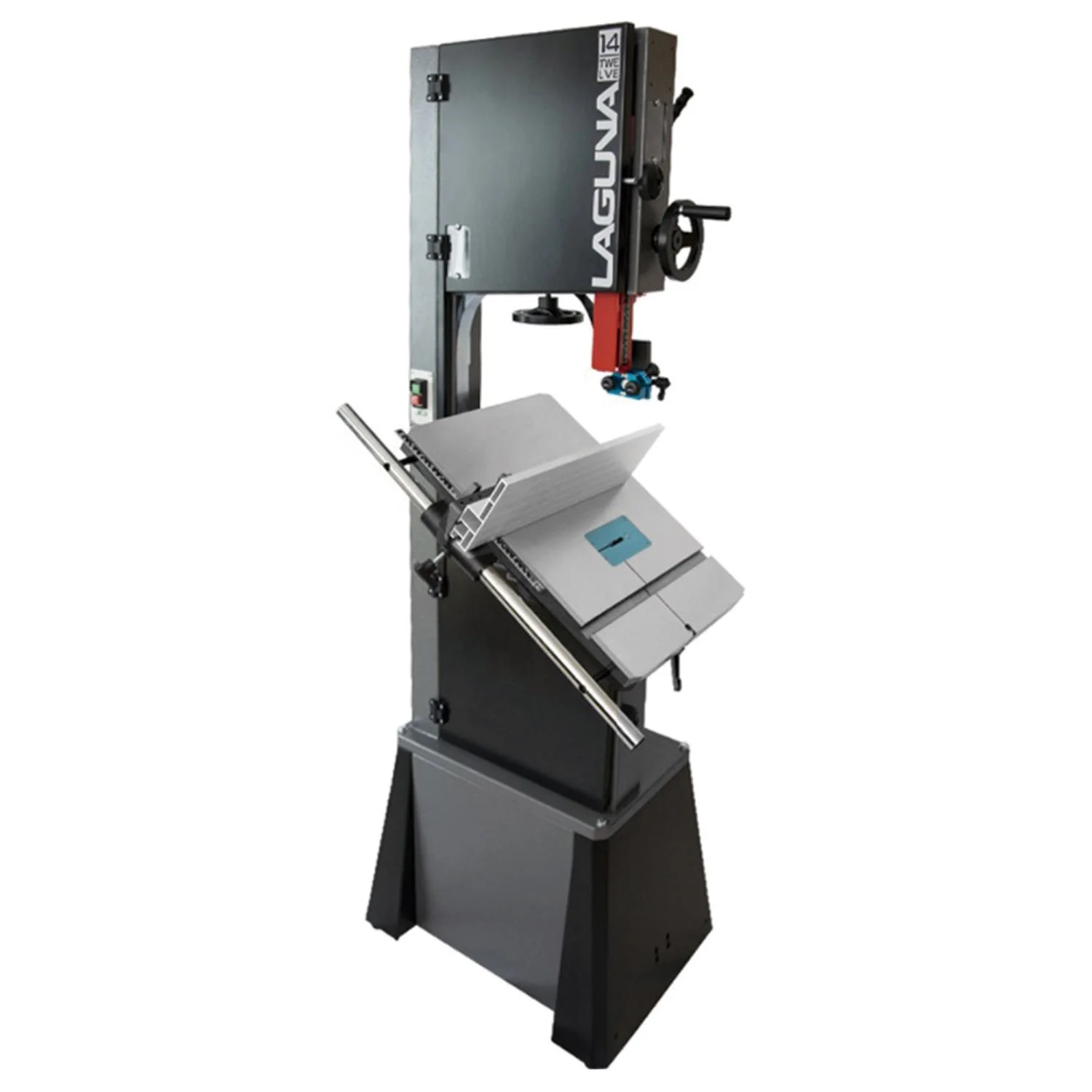

* Precision ground work table tilts 45° right and 7° left, and a positive Stop at 90°
* Oversized double cast iron trunnion supports work table

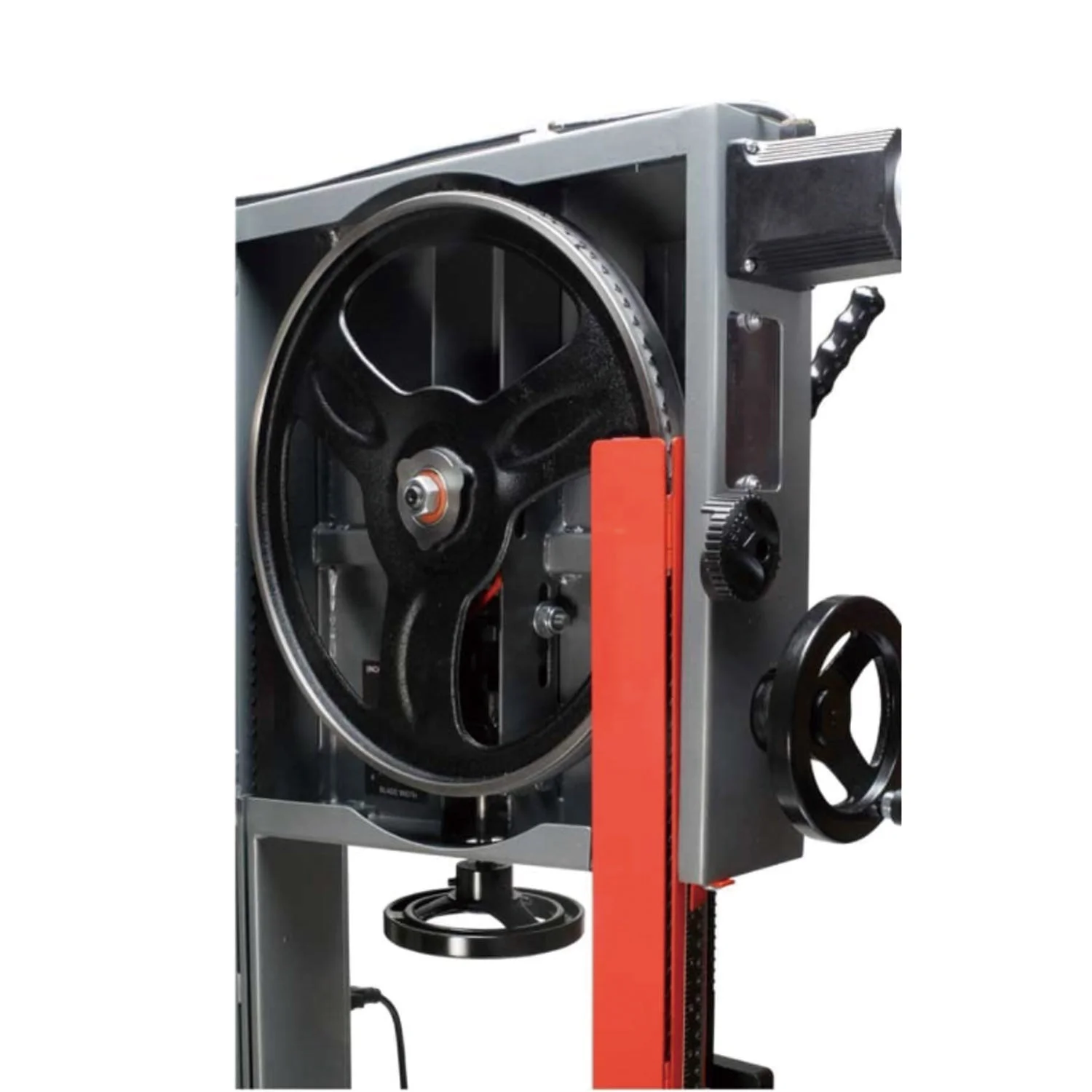

* Dynamically balanced solid cast iron wheels

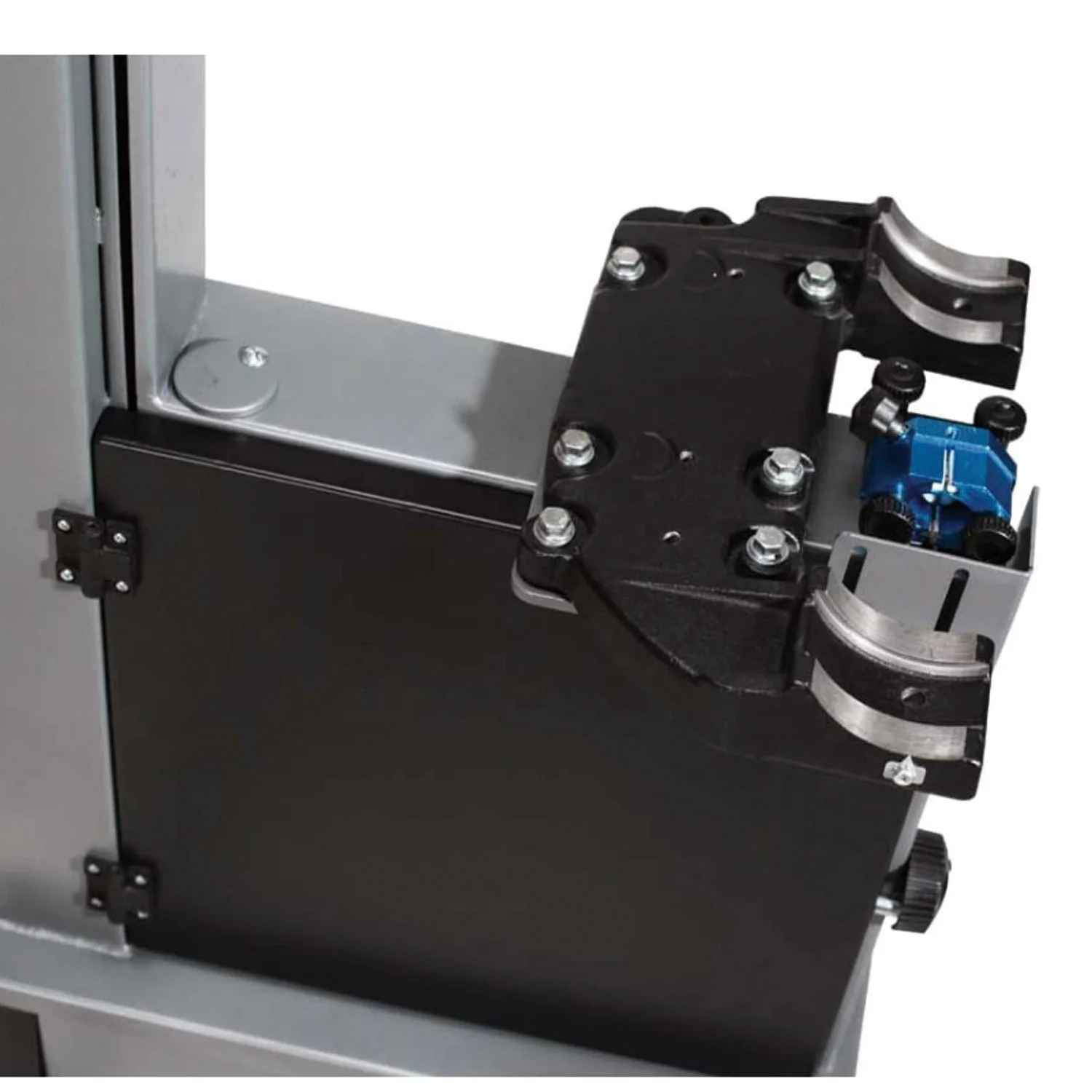

* Ceramic blade guide system allows easy set up and highly accurate cuts even when re-sawing deep timber
* The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended
* Powerful 1.75hp induction motor
* Large 330mm (13") cutting depth
* The rigid aluminum high/low fence runs smoothly along a polished solid steel bar

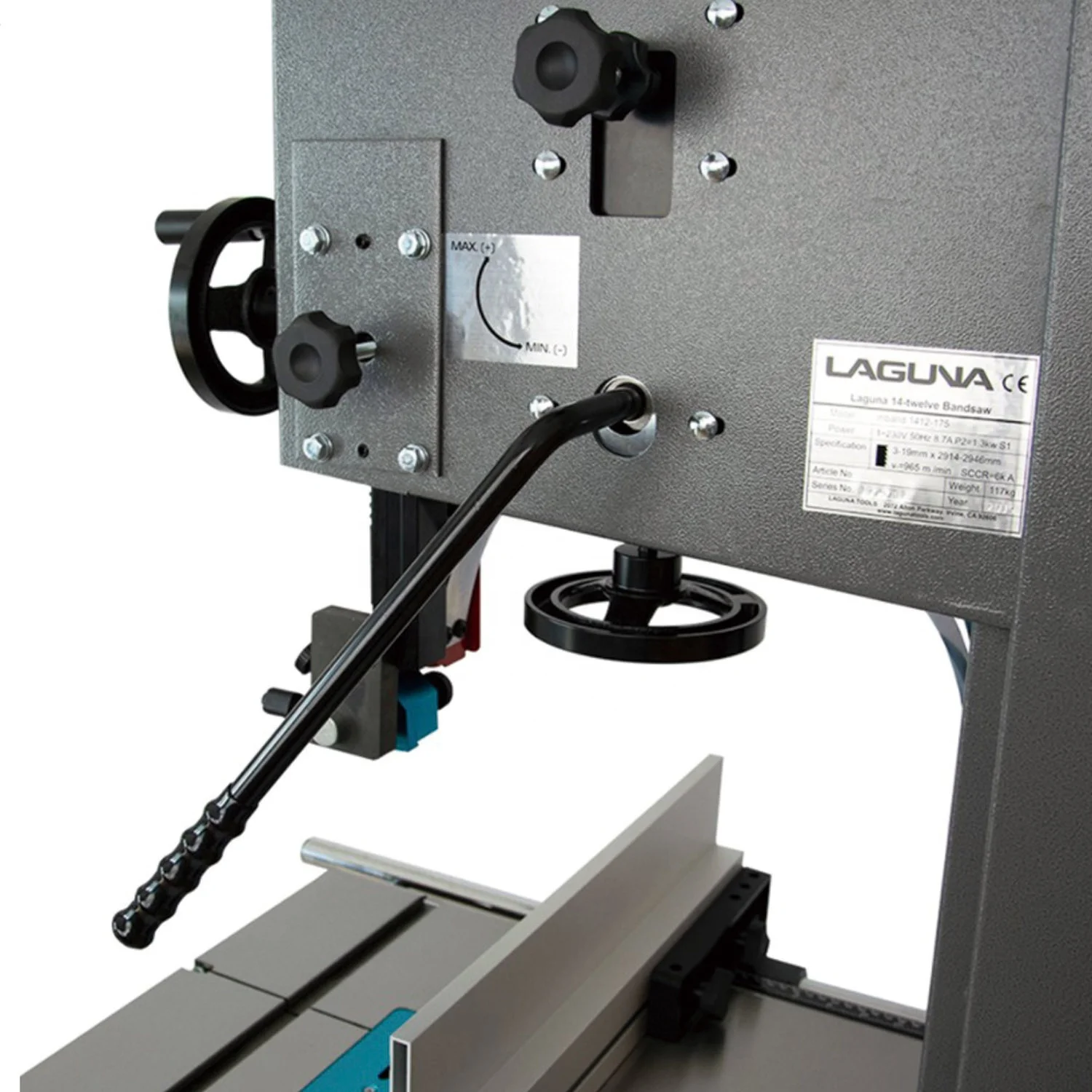

* Quick blade release tension lever complimented with an easy to view blade tension scale indicator
* Double windows allow you to check both tension & tracking
* 100mm dust port underneath the table
Details Images
Specification | ||||||||
Model | Laguna 14|12 | |||||||
Motor (Induction) | 1.3kw (1-3/4hp) | |||||||
Power supply | 220-240v/50hz/1ph | |||||||
Recommended breaker size | 16Amp | |||||||
Max. cutting depth | 330mm (13") | |||||||
Cast iron wheels size | 355mm (14") | |||||||
Throat depth | 340mm | |||||||
Max. cutting width with fence | 310mm | |||||||
Fence length | 457mm | |||||||
Fence height (high/low) | 140mm / 12mm | |||||||
Table size | 400 x546mm | |||||||
Table tilting | 45° right and 7° left | |||||||
T-slot | 19mm – 25mm | |||||||
Blade length | 2921mm | |||||||
Blade width | 3-19mm | |||||||
Dust port | 100mm | |||||||
Overall size | 800 x683 x1784mm | |||||||
Net weight | 117kgs | |||||||
Gross weight | 160kgs | |||||||
Packing dimensions | 1397 x560 x635mm | |||||||
