Новая машина для брикетирования угля/машина порошка
- Категория: >>>
- Поставщик: Zhengzhou,Hengxing,Heavy,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.60 $* | 0.3 $* |
| Aug-15-2025 | 0.76 $* | 0.20 $* |
| Jul-15-2025 | 0.58 $* | 0.98 $* |
| Jun-15-2025 | 0.88 $* | 0.31 $* |
| May-15-2025 | 0.21 $* | 0.52 $* |
| Apr-15-2025 | 0.94 $* | 0.68 $* |
| Mar-15-2025 | 0.68 $* | 0.38 $* |
| Feb-15-2025 | 0.21 $* | 0.94 $* |
| Jan-15-2025 | 0.8 $* | 0.93 $* |
Характеристики

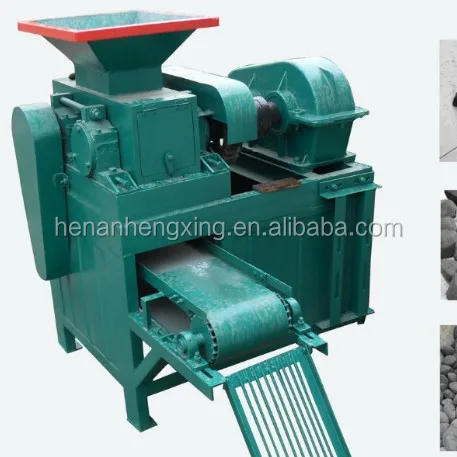

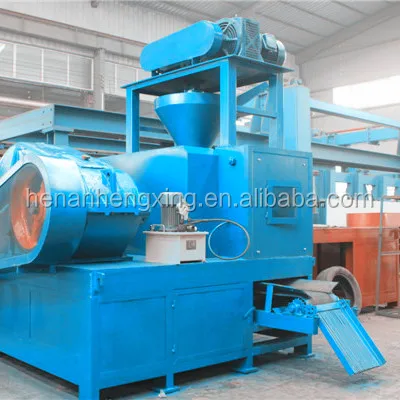

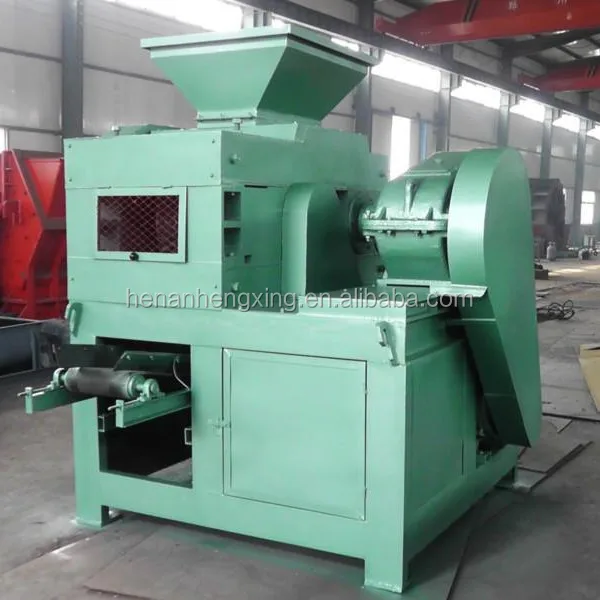

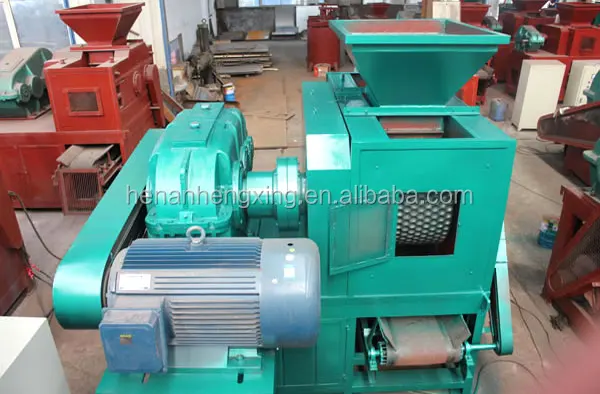

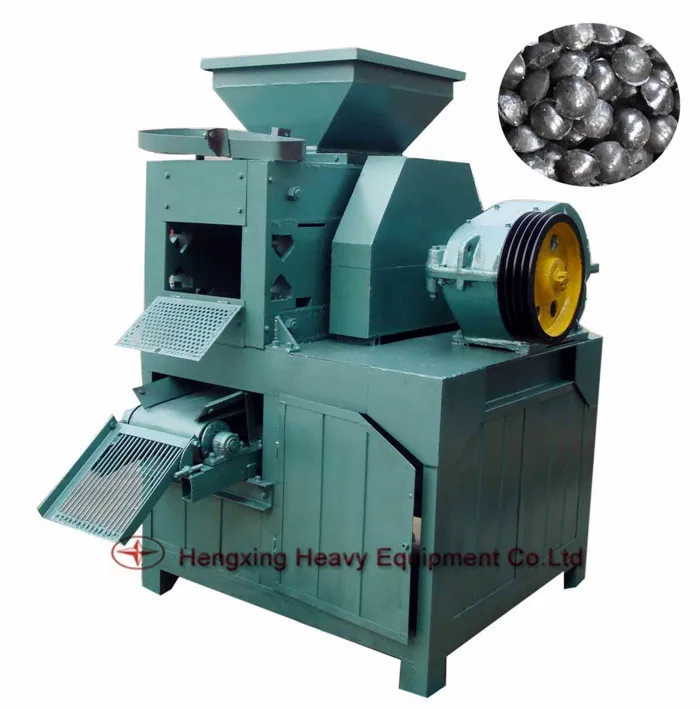

New coal briquette machine/ ore powder briquetting machine
Product Description
the caol briquette machine can press coal powder into coal briquettes.Both Electric engine and Diesel engine are optional.Capacity : from 2t/h to 30 t/h flexible.
Brief Introduction to Process of Coal Briquette Press Machine
Pulverized coal molding process can be divided into cold press molding and hot press molding, which is dominated by cold press molding. Coal press molding is also divided into binder forming and no binder forming, which is dominated by binder forming. According to national conditions of our country, pulverized coal molding more uses cold press molding which is adding binder, medium and low pressure and without drying.
Why we need coal briquette machine
At present, people do take the protection of the environment very seriously and the "environmental law" has been released by all nations government. At the same time, the environment protection regulations are getting more and more rigorous. But in many cold areas, due to the need to burn a large number of coal each year and the annual emissions of soot and sulfur dioxide are more, these places have become the hardest hit by air pollution. Many countries have begun to rectify the polluted coal boilers, dismantle heavily polluted large chimneys massively, promote the use of clean fuel and develop the central heating and the use of briquette. The burning of coal will be gradually canceled.
In that case then, the role of coal briquette machine is thus more important than ever before. All things equal, the finished coal briquettes of coal briquette machine will improve coal economization efficiency, the ratio up to 30% ~40%. They enjoy the features of long combustion time, less dust and coal ash and full burning and so on. The soot emissions can be reduced by more than 90%, the particulate emissions reduce 80%, sulfur dioxide emissions reduce more than 70%, nitrogen oxide emissions reduce 30% -50% or more and carcinogens emissions reduce 60% -90%.It is especially effective in saving energy and environmental protection and fully in line with industrial policy which is advocated by various countries in the world.
Features of coal briquette machine:
1. High efficiency coal briquetting machine
2. Apply for many kinds of powder like charcoal, coal, mineral, metal. etc
3. Make round type or pillow type or oblong type charcoal ball
4. The products have high density, high strength, and high hardness
Working principle of coal briquette machine:
1. This coal briquetting machine can press charcoal powder, charcoal dust, coal powder, etc into round ball, oval ball or pillow-shaped charcoal

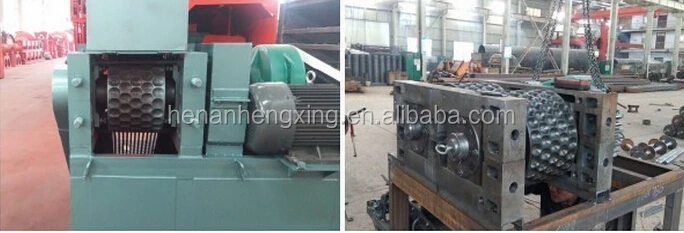

2. This series of coal briquetting machine will pass the power on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll.
3. Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger. When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished product from the powder ball.
Main Technical Parameters of coal briquette machine:
Model | HXXM-360 | HXXM-400 | HXXM-500 | HXXM-650 | HXXM-750 | HXXM-850 | HXXM-1250 | Remark | |||
Capacity | hour | 4T/h | 8T/h | 11T/h | 18T/h | 25T/h | 35T/h | 70T/h |
|
| |
Annual | 10000T | 20000T | 30000T | 50000T | 70000T | 100000T | 200000T |
|
| ||
Roller width | 250mm | 280mm | 300mm | 336mm | 400mm | 500mm | 650mm | (65Mn) |
| ||
Roller diameter | 360mm | 400mm | 500mm | 650mm | 750mm | 850mm | 1250mm |
| |||
Motor Power | 7.5kw | 11-15kw | 18.5-22kw | 20-30kw | 45kw | 75kw | 130kw | According to the material | |||
Main shaft speed(rpm) | 18 | 15 | 13 | 13 | 13 | 10 | 10 |
|
| ||
Reducer | ZQ350 | ZQ400 | ZQ500 | ZQ650 | ZQ750 | ZQ850 | ZQ1250 | Standard type |
| ||
ZQ400 | ZQ500 | ZQ650 | ZQ750 |
|
|
| strengthen type |
| |||
Pressure form | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | select any type | |||
Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar |
| ||||
|
| Hydraulic and constant pressure | Hydraulic and constant pressure | Hydraulic and constant pressure | Hydraulic and constant pressure | Hydraulic and constant pressure | |||||
Roller Material | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | casting | select | ||
Alloy steel | Alloy steel | 9cr2Mn | 9cr2Mn | 9cr2Mn | 9cr2Mn | 9cr2Mn | forging, |
| |||
Alloy steel | Alloy steel | Alloy steel | Alloy steel | Alloy steel | pressure casting |
| |||||
Structure form | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | select any type |
| ||
four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure |
| ||||
Shape | custom | custom | custom | custom | custom | custom | custom | Usually |
| ||
size | 30-60mm |
| |||||||||
Coal briquette machine customer site :
Packaging & Shipping
The coal briquette machine will start delivery in 30 days after payment. It will be packed in the export standard container, its main motor and spare parts will be put in the water-proof and sealed wooden case.
We promise that the coal briquette machine will be shipped to you timely and safely.
Our Services
All-round service provided in the trade process
-Pre-sale services
Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant
processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to
visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and
translators for the visiting customers.
-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance
by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the
mine site to guide the installation, trial run test, and training operators until the plant works normally.
-After-sale services
Normally, the equipment warranty is 18 months since installation, but can extend as long as 24 months as
the clients’ request. Equipment spares will be offered with manufacturing cost in at least 10 years since
the order is placed. To establish long term cooperation, we will regularly call and email our clients, to
check the equipment working condition, offer suggestions for maintenance,and if necessary we will pay
a visit to clients to solve the problems caused during equipment working.
Company Information
What we offer?
We are developing heavy industrial machines and allowing mining companies to implement efficient and more effective ways of mining through our goods. We have variety of products available for sale. These products include Stone Crushers, Jaw Crushers, Cone Crushers, Hammer Crushers, and Sand making Machines, Sand Washing machines, Rod Mills, ball mill,, Ore Dressing Machines,rotary dryer,rotary kiln,coal briquette machine . Development of these machines had never been an easy task. Sand making equipments are offered by Hengxing Equipment with very nominal prices. The research facility of our industry enables our engineers to serve international market with new theories and develop a perfect solution for the mining world. Our Products have a great demand in all over the world.
Zhengzhou Hengxing Heavy Equipment Co.,Ltd is a joint stock corporation integrating with research, manufacture and sale which targeted at the large and medium sized series of heavy mining equipment. Our main products are stone crushing machines, sand making machine ,ball mill machine ,mineral ore dressing machines,rotary dryer,rotary kiln, AAC block making machine,coal briquetting machine,which were widely used in mineral processing and construction industry.
FAQ
In order to help you get a suitable coal briquette machine and provide you a preferential quotation,
Pls kindly provide the following information:
1. What's the materials to process?
2. What's the feature of the materials? Like density, moisture degree,input particle size and out put briquete size and briquette shape .
3. What's your capacity per hour?
4. What's the machine you want to buy?A single machine or a production line.
Contact us
Sara Pang
Mobile (Whatsapp): 0086 137 8347 1727
Email : sales006*zzhxmachine.com
Wechat/skype: sarapang6
Website: www.chinamineline.com
