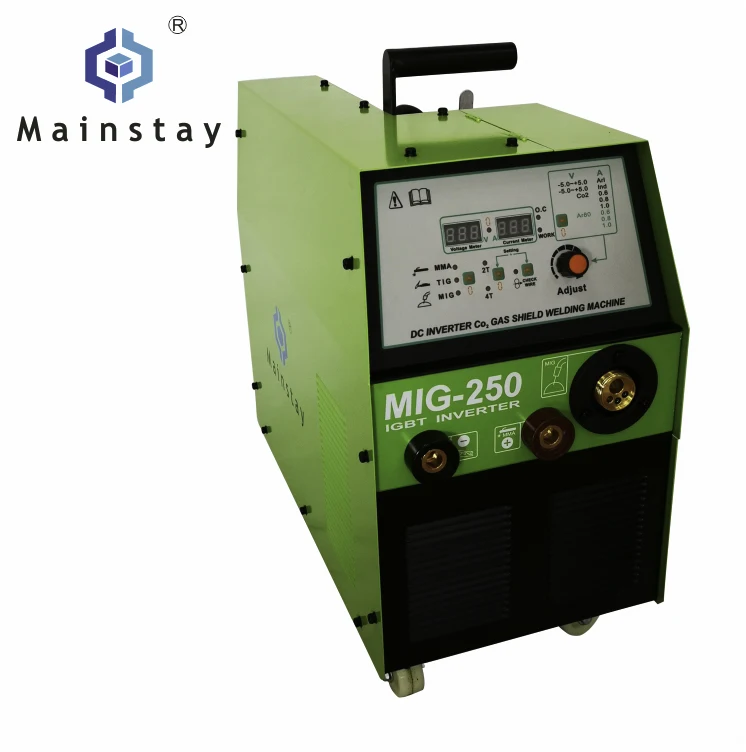

MIG250 Mobile Inverter Hobart MIG Welder

Co2 MIG Welding Machine Technical Features:





 Function Introduction

1,Adopt all digital and visual design,autosave welding parameters.
2,Wire diameter and gas are optional on panel.It is simple to operate with the
function "one knob control" to wire 0.6,0.8 and 1.0.
3,MIG/SPOT/MMA functions.
4,No breakdown and deformation for thin sheet
welding at small current 20Amp.
5,Wave function make better welding effect,
stable over small current,constant current
and 100% successful arc striking rate.
6,Portable integrated wire feeder design.
7,Suitable for medium and low carbon steel,
low alloy steel and stainless steel welding.





Main Technical specifications of Co2 MIG Welding Machine

Model / Item	MIG250--Co2 gas welding machine
Supply Voltage ( V )	AC220V±10% 3ph 50/60Hz
Rated Intput Capacity ( KVA )	9.2
Output Current Adjustment Range ( A )	50-250
Output Voltage Adjustment Range ( V )	15-29
No-load Voltage ( V )	50
Rated Duty Cycle ( % )	60
Type Of Wire Feeder	Intergrated
Speed Of Welding Wire ( m/min )	3-15
Flow ( L/min )	15-20
Overall Dimension ( mm )	528x270x490mm
Weight ( kg )	21
Suitable Welding Wire ( mm )	0.8-1.0
Welding Thickness ( mm )	0.5-10

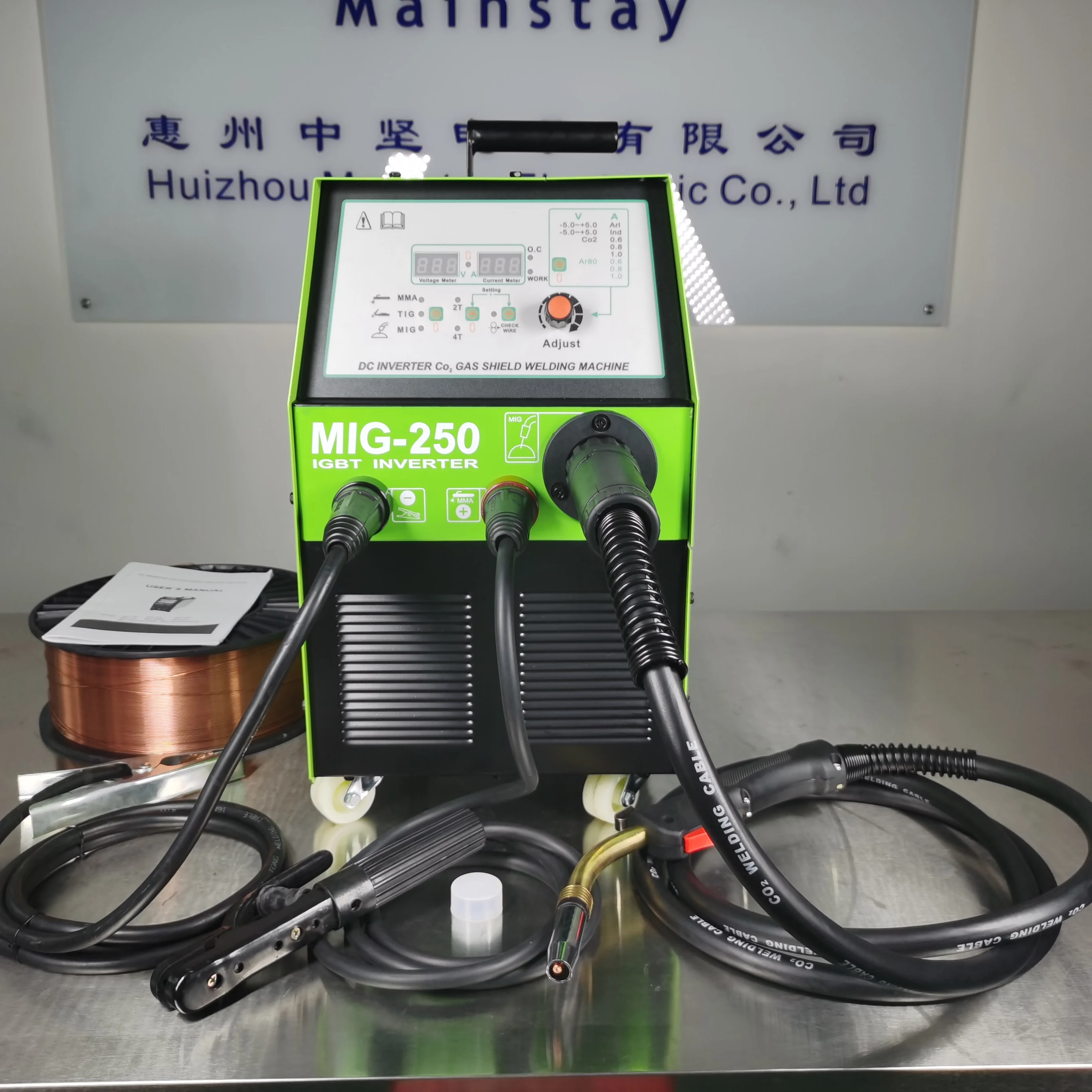

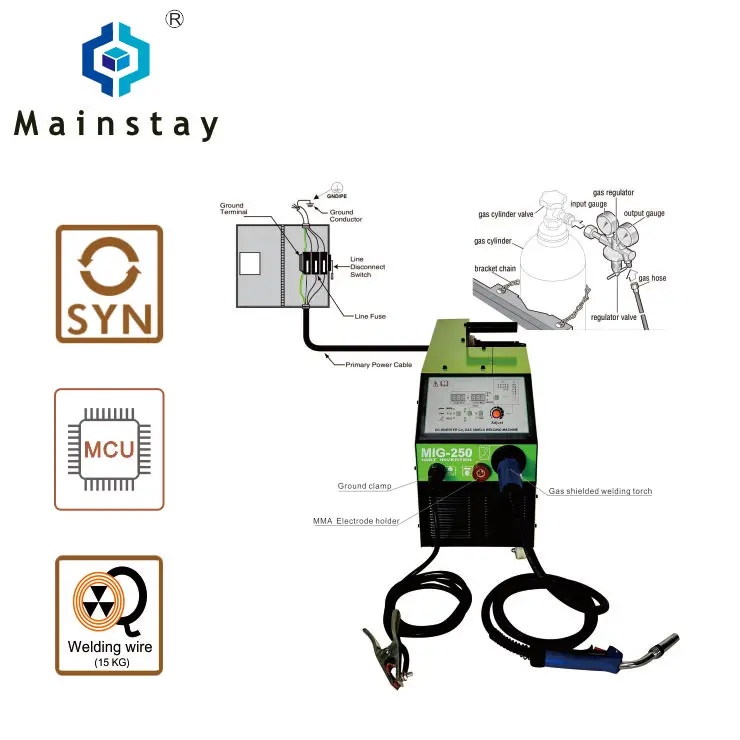

Components of Co2 MIG Welding Machine
