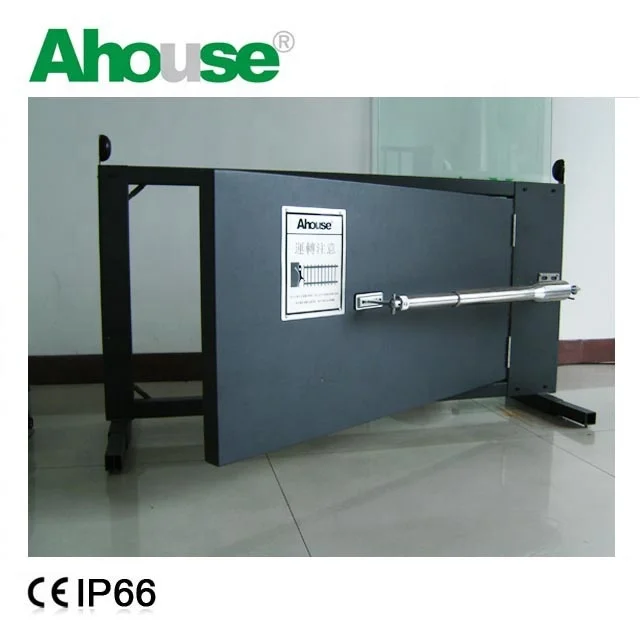

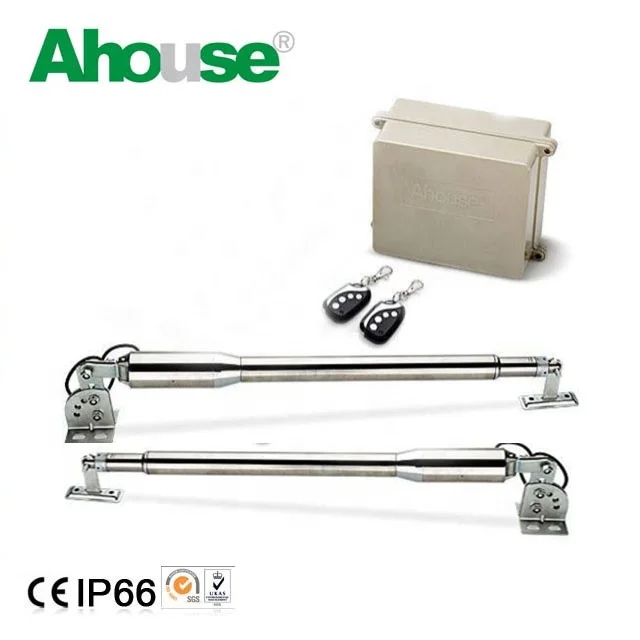

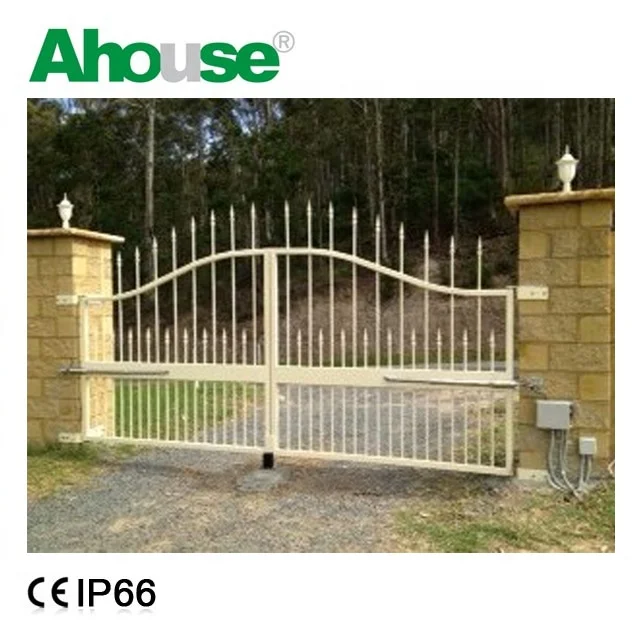

Description of Arm type swing gate opener:



1. Swing gate motor holds surface material of stainles steel,can be used for all types of stainless steel gates and iron gates.

2. DC 24V motor has over current detection and provide the best security.

3. Patent manual release function:toward the gate opening direction to rotate 90 degree and can easily perform the manual release function.

4. Automatic open and close time is adjustable.

5. At most 50 pcs remote controllers can be used for per set swing gate opener.

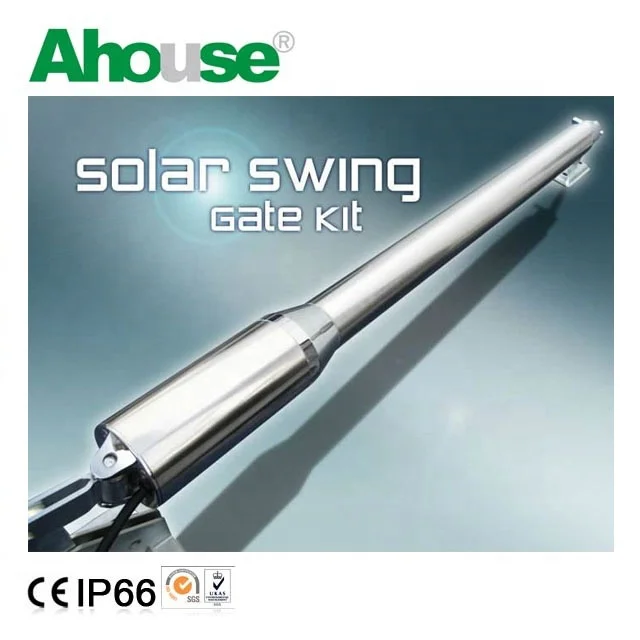

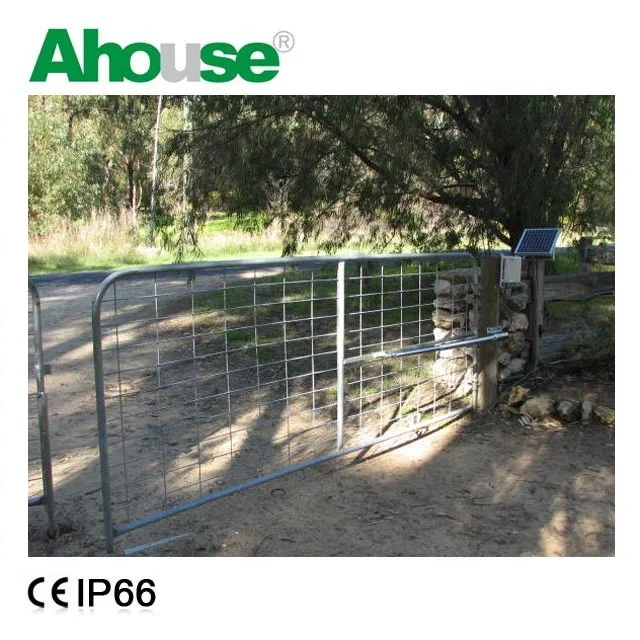

6. Can work with solar energy,no need complicated wiring settlement.

7. Can work with DC 24V backup battery for proper operation during power.

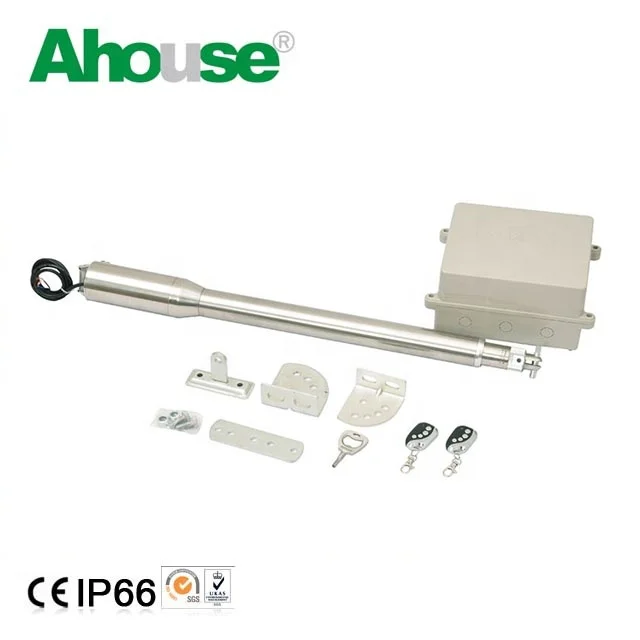

8. Optional parts: DC 24V outdoor lock (DS218),flashing light (UFO),photocell,push button,keypal system and extensional receiver box.

9. Easy installaton: No need to change the original design of the gate and gate post,no special requirement for the installation site.



Electrical:



Power supply	AC 110V-240V
Operating voltage	DC 24V
Electronic Controller	Microcontroller based
Safety detection	Over current detection
Safety barrier	Infrared beam senor (optional)
IP rating	IP66



Mechanical:



Model	EM3 plus	EM3	EM2
Max.piston stroke	450 mm	350 mm	200 mm
Max.length of motor	1255 mm	1030 mm	730 mm
Max.leaf's weight	250 kg/leaf	300 kg/leaf	300 kg/leaf
Suitable leaf's length	2 to 3.5 meters/ leaf	1.5 to 2.5 meters/ leaf	1 to 1.6 meters/ leaf
Frame housing	Stainless steel / alumnium alloy	Stainless steel /alumnium alloy	Stainless steel / alumnium alloy
Driving method	Screw driven piston type	Screw driven piston type	Screw driven piston type
Opening degree	0 to 110 degree	0 to 110 degree	0 to 110 degree
90 degree rotation time	8 to 12 seconds	8 to 12 seconds	8 to 12 seconds
Temperature	-25°C to +55°C	-25°C to +55°C	-25°C to +55°C



Transport type:



1. By courier.

2. By air.

3. By ship.
