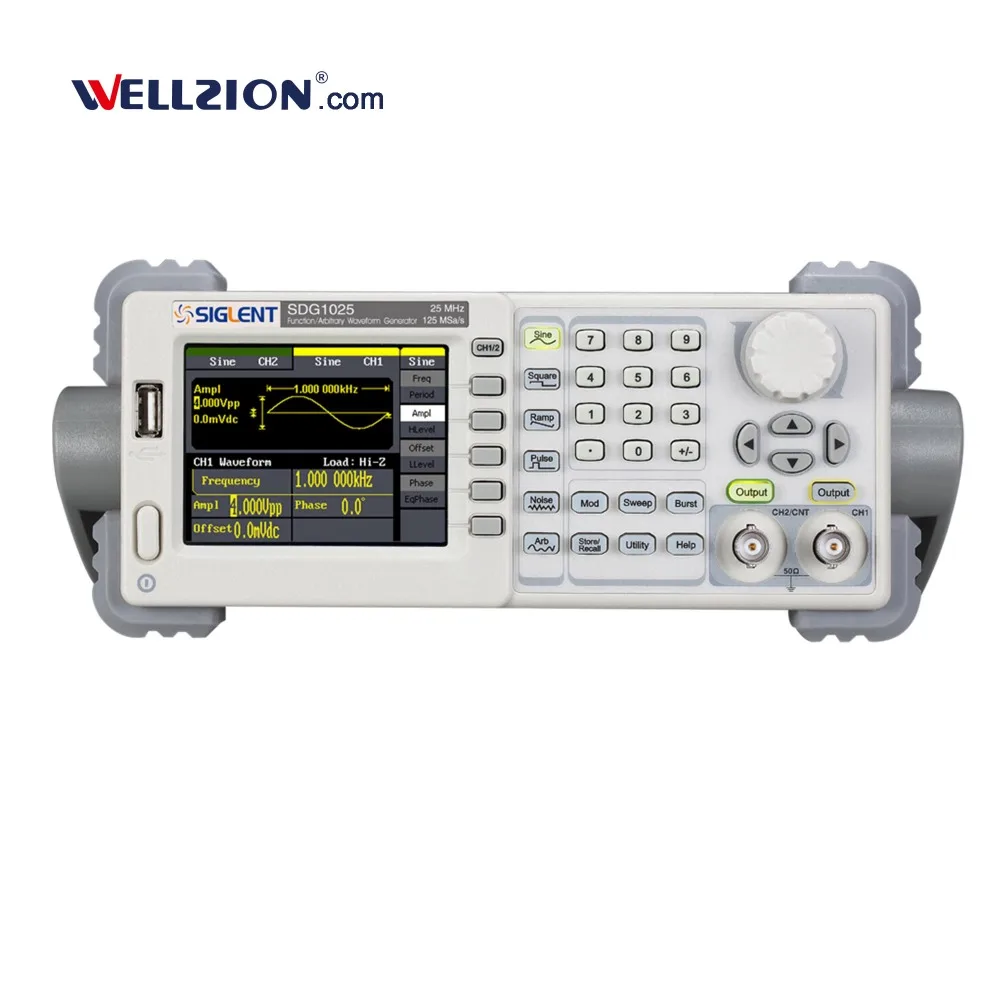

SDG1010,10MHz Siglent Arbitrary Waveform Signal Generator

Features and Benefits

• Dual-channel output,125MSa/s sample rate,14bit vertical resolution.
• 5 types of standard output waveform, built-in 48 arbitrary waveforms
• Complete set of modulation functions: AM,FM, PM, FSK ASK, PWM, linear/logarithmicsweep, burst
• Synchronous,signal,output,External modulation source input, 10MHz clock input,external trigger input, internal triggeroutput etc
• Channel coupling and duplication function
• Built-in accurate frequency counter enables to measure ranges 100MHz-200MHz (single channel)
• Standard interfaces: USB Device, USB Host,Optional interface: GPIB
• High precision clock(1ppm & 10ppm)is optional
• Supplied with powerful arbitrary editing software
• Remote control support

Specifications



Frequency Specification
Specification		SDG1005	SDG1010	SDG1020	SDG1025	SDG1050
Waveform		Sine, Square, Ramp, Pulse, Noise, Arbitrary
Sine		1μHz~5MHz	1μHz~10MHz	1μHz~20MHz	1μHz~25MHz	1μHz~50MHz
Square		1μHz~5MHz	1μHz~10MHz	1μHz~20MHz	1μHz~25MHz	1μHz~50MHz
Pulse		500μHz~5MHz
Ramp/Triangular		1μHz~300kHz
Gaussian white noise		>5MHz (-3dB)	>10MHz (-3dB)	>20MHz (-3dB)	>25MHz (-3dB)	50MHz (-3dB)
Arbitrary		1μHz ~ 5MHz
Resolution		1μHz
Accuracy		Within 90daysv±50ppm within 1 year ±100ppm 18°C~28°C
Temperature coefficient		<5ppm/°C
Sine Spectrum Purity
Harmonic Distortion		CH1/CH2
DC~1MHz		-60dBc
1MHz~5MHz		-53dBc
5MHz~25MHz		-35dBc
25MHz~50MHz		-32dBc
Total harmonic waveform distortion		DC~20kHz,1Vpp<0.2%
Spurious signal(non-harmonic)		DC~1MHz<-70dBc 1MHz~10MHz<-70dBc+6dB/spectrum phase
Phase noise		10kHz Offset,–108dBc/Hz(typical value)
Square
Rise/fall time		<12ns(10% ~ 90%)
Overshoot		<5%(typical,1kHz,1Vpp)
Duty Cycle	1μHz ~10MHz	20%~80%
	10MHz(exclude)~20MHz	40%~60%
	20MHz(exclude))~25MHz	50%
Asymmetric(50% Duty Cycle)		1% of period+20ns(typical,1kHz,1Vpp)
Jitter		0.1% of period(typical,1kHz,1Vpp)
Ramp/Triangle
Linearity		<0.1% of Peak value output(typical,1kHz,1Vpp,100% symmetric)
Symmetry		0%~100%
Pulse
Pulse width		1800s, Max. 16 ns, Min. 8 ns resolution
Rise/Fall time (10% ~ 90%,typical,1 kHz,1Vpp)		7ns
Duty Cycle		0.1%Resolution
Overshoot		<5%
Jitter(pk-pk)		8ns
Arbitrary
Waveform length		16k points
Vertical resolution		14bits
Sample rate		125MSa/s
Min. Rise/Fall time		7ns(typical)
Jitter(pk-pk)		8ns(typical)
Storage in non-volatile RAM memory (10 in total)		10waveforms
Output Specification
Output		CH1		CH2
Amplitude		2mVpp~10Vpp(50Ω,≤10MHz) 2mVpp~5Vpp(50Ω,>10MHz) 4mVpp~20Vpp(high impedance,≤10MHz) 4mVpp~10Vpp(high impedance,>10MHz)		2mVpp~3Vpp(50Ω) 4mVpp~6Vpp(high impedance)
Vertical accuracy (100 kHz sine)		±(0.3dB+1mVpp of setting value)		±(0.3dB+1mVpp of setting value)
Amplitude flatness (compared to 100 kHz sine,5Vpp)		±0.3 dB
Channel phase deviation		<400ps (classic value,sine,50MHz,4vpp)
Cross talk		<-70dBc
DC Offset
Range(DC)		±5V(50Ω) ±10V(high impedance)		±1.5V(50Ω) ±3V(high impedance)
Offset accuracy		±(|setting offset value|*1%+3mV)		±(|setting offset value|*1%+3mV)
Waveform Output
Impedance		50Ω(typical)
Protection		short-circuit protection
AM Modulation(CH1/CH2)
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Source		Internal/External
Modulation waveform		Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Modulation depth		0% ~ 120%
FM Modulation(CH1/CH2)
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Source		Internal/External
Modulation waveform		Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Frequency deviation		0 ~0.5*bandwidth 10μHz resolution
PM Modulation(CH1/CH2)
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Source		Internal/External
Modulation waveform		Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Phase Deviation		0~360° ,0.1°Resolution
FSK Modulation(CH1/CH2)
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Source		Internal/External
Modulation waveform		50% duty-cycle square waveform(2mHz~50kHz)
ASK Modulation(CH1/CH2)
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Source		Internal/External
Modulation waveform		50% duty-cycle square waveform(2mHz~50kHz)
PWM Modulation(CH1/CH2)
Frequency		500μHz~20kHz
Source		Internal/External
Modulation waveform		Sine, Square, Ramp, Arbitrary(except DC)
External Modulation range		-6V~+6V (maximum width deviation)
Sweep(CH1/CH2)
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Type		linear/logarithmic
Direct		Up/down
Sweep time		1ms~500s
Trigger source		Manual, external, internal
Burst(CH1/CH2)
Waveform		Sine, Square, Ramp, Pulse, Arbitrary(except DC)
Type		Count(1~50,000 periods),infinite, Gated
Start/Stop phrase		0°~+360°
Internal period		1μs~500s
Gated source		External trigger
Trigger source		Manual, External or Internal
Rear Panel Connector
External modulation		±6V=100% modulation>5kΩ input impedance
External trigger		TTL compatible
Note: The external input voltage can’t be over ±6V, otherwise instrument gets damaged.
Trigger Input
Input Level		TTL compatible
Slope		Up or down (optional)
Pulse width		>100ns
Input impedance		>5kΩ,DC coupling
SYNC Output
Voltage level		TTL compatible
Pulse width		>50ns
Output impedance		50Ω (typical)
Max. frequency		2MHz
Frequency Counter
Measurement		Frequency, Period, Positive/negative pulse width, duty cycle
Frequency range		Single Channel:100mHz~200MHz
Frequency resolution		6bits/s
Voltage range (non-modulated signal)
Manual	DC coupling	DC offset range		±1.5VDC
		100mHz~100MHz		50mVrms~±2.5V
		100MHz~200MHz		100mVrms~±2.5V
	AC coupling	1Hz~100MHz		50mVrms~5Vpp
		100MHz~200MHz		100mVrms~5Vpp
Pulse width and duty-cycle measurement		1Hz~10MHz(50mVrms~5Vpp)
Input adjustment	Input impedance	1MΩ
	Coupling mode	AC,DC
	High-frequency rejection	ON/OFF
Trigger level range		-3V~ +1.8V
General Specification
Display		3.5inch TFT-LCD 320×240
Dimension		229(W)mm*105(H)mm*281(D)mm
Weight		2.6Kg (N.W);3.4Kg (G.W)
