Формовочная машина для кальяна
- Категория: Injection Molding Machines >>>
- Поставщик: Ningbo,Mingguang,Weiye,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.45 $* | 0.78 $* |
| Aug-20-2025 | 0.69 $* | 0.63 $* |
| Jul-20-2025 | 0.32 $* | 0.2 $* |
| Jun-20-2025 | 0.6 $* | 0.51 $* |
| May-20-2025 | 0.15 $* | 0.2 $* |
| Apr-20-2025 | 0.80 $* | 0.7 $* |
| Mar-20-2025 | 0.52 $* | 0.85 $* |
| Feb-20-2025 | 0.74 $* | 0.79 $* |
| Jan-20-2025 | 0.15 $* | 0.49 $* |
Характеристики
injection molding machine for disposable medical products
180T injection molding machine

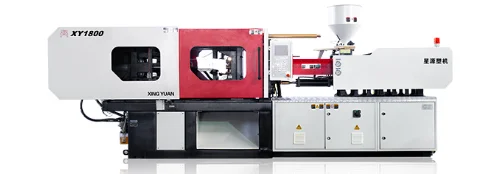

| SPECIFICATION | XY1800 | ||||
| A | B | C | D | ||
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 42 | 45 | 50 | |
| SCREW L/D RATIO | L/D | 23.6 | 22 | 19.8 | |
| SHOT VOLUME(THEORETICAL) | cm3 | 305 | 350 | 432 | |
| INJECTION WEIGHT(PS) | g | 277 | 319 | 393 | |
| INJECTION RATE | g/s | 138 | 160 | 196 | |
| INJECTION PRESSURE | MPa | 203 | 177 | 143 | |
| SCREW SPEED | rpm | 225 | |||
| CLAMPING UNIT | |||||
| CLAMP FORCE | KN | 1800 | |||
| OPEN STROKE | mm | 435 | |||
| SPACE BETWEEN TIE BARS(W*H) | mm | 480x480 | |||
| MAX.MOULD HEIGHT | mm | 520 | |||
| MIN.MOULD HEIGHT | mm | 180 | |||
| EJECTOR STROKE | mm | 135 | |||
| EJECTOR FORCE | KN | 50 | |||
| OTHER | |||||
| MAX.PUMP PRESSURE | MPa | 16 | |||
| PUMP MOTOR POWER | KW | 18.5 | |||
| HEATING POWER | KW | 12.5 | |||
| MACHINE DIMENSION(L*W*H) | m | 5.20x1.60x2.00 | |||
| OILTANK CUBAGE | L | 300 | |||
| MACHINE WEIGHT | T | 5.3 | |||
