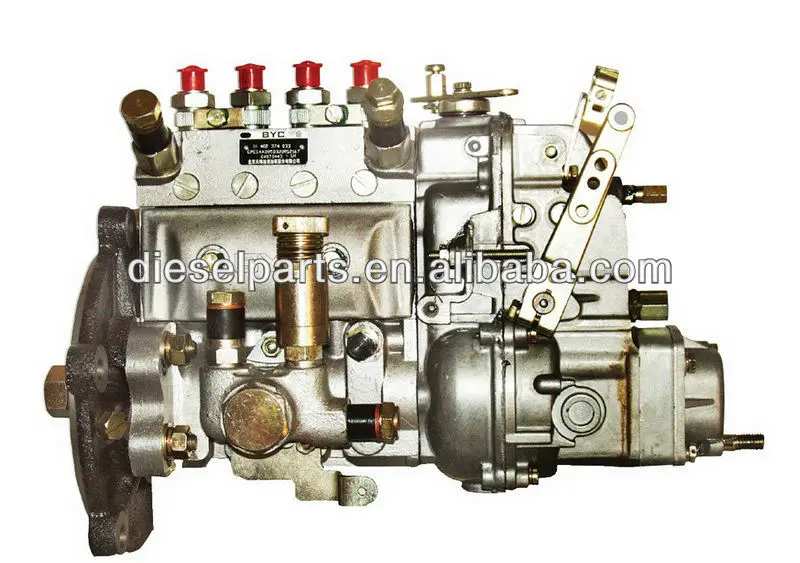

Топливный насос для впрыска двигателя TL4110/инъекция дизельного топлива BYC

Описание и отзывы

Трекер стоимости

Характеристики







AD series injection pump related presentations

Product Features:



Inline synthetic mechanical diesel fuel pump, the overall structure of the body, with side windows; camshaft drive plunger oil pressure, isovolumetric the oil valve.



Application:
Trucks, tractors, generators, boats, water pumps, harvesters, etc.;



With RAD, RFD, RSV, RQA (V) speed governor and electronic speed governor used in conjunction;



The main technical parameters

Item	dia
Cylinder centre distance (mm)	32
Cam lift(mm)	10
Piston diameter (mm)	Φ 9.5,Φ 10,Φ 10.5,
Pump max speed( r / min)	1800
The max amount of oil circulating (mm3 / Cycle)	210
Max allowable pressure (Mps)	70
Number of cylinders	4,6,8
Cylinder Max power (Ps )	30





Products information

Offering high quality products and high quality service

1. Fuel nozzle: S, P, J, PN, ND series and common rail is on testing

2. Fuel injector: S, P, T, common rail, electronic controlled series

3. Delivery valve:

4. Plunger and barrel assembly:



5. Fuel pump

…

Products list



Part No.	Code	OE.Engine Type	Pump Type	OE. NO.
10402374034	AD4 034S	LOVOL 1004-4C02	CPES4AD95D320RS2154	T73208221
10402374037	AD4 037A	LOVOL 1004-4TRT82	CPES4AD100D320RS2156	T63211894A
10402374038	AD4 038A	LOVOL 1004	CPES4AD100D320RS2156	T63211895
10402374042	AD4 042S	LOVOL 1004-4T02Z	CPES4AD95D320RS2154	T63211933
10402374047	AD4 047A	LOVOL 1004	CPES4AD100D320RS2156	T63211893A
10402374048	AD4 048A	LOVOL 1004	CPES4AD100D320RS2156	T73208278A
10402374054	AD4 054S	LOVOL 1004 - 4	CPES4AD95D320RS2154	T63211903
10402374061	AD4 061S	LOVOL 1004-41	CPES4AD95D320RS2154	T73208303
10402374062	AD4 062A	LOVOL 1004-4TRT90	CPES4AD100D320RS2156	T63211941B
10402374063	AD4 063A	LOVOL 90	CPES4AD100D320RS2156	T73208312
10402374065	AD4 065S	LOVOL 1004-4.15C01	CPES4AD95D320RS2154	T73208314
10402374066	AD4 066S	LOVOL 1004-4L03	CPES4AD95D320RS2154	T73221112
10402374071	AD4 071S	LOVOL 1004-4	CPES4AD95D320RS2154	T63211902
10402374074	AD4 074A	LOVOL 1004-4T	CPES4AD95D320RS2154	T73208338
10402374080	AD4 080A	LOVOL 1004-4T	CPES4AD100D320RS2156	T73208327
10402374081	AD4 081S	LOVOL 1004-4Z19	CPES4AD95D320RS2154	T73208348
10402374082	AD4 082A	LOVOL 1004-4T	CPES4AD100D320RS2156	T73208324
10402374084		LOVOL90	CPES4AD100D320RS2156
10402374087	AD4 087S	LOVOL 1004-4E01	CPES4AD95D320RS2154	T73208369
10402374092	AD4 092S	LOVOL 1004-4E01	CPES4AD95D320RS2154	T73208377
10402374093	AD4 093S	LOVOL 1004-4FLT03	CPES4AD95D320RS2154	T73208389
10402374096	AD4 096S	LOVOL 1004-4TC04	CPES4AD100D320RS2156	T73208409
10402374099	AD4 099A	LOVOL1004-4TC12	CPES4AD100D320RS2156	T832080001
10402374100	AD4 100A	LOVOL1004-4TC10	CPES4AD100D320RS2156	T832080002
10402374104	AD4 014S	LOVOL1004-4TWC03	CPES4AD100D320RS2199	T832080012
10402374112	AD4 112S	LOVOL1004-4TC13	CPES4AD100D320RS2156	T832080025
10402374115	AD4 115S	LOVOL1004-4E02	CPES4AD95D320RS2154	T832080042
10402374119	AD4 119S	LOVOL1004-4E03	CPES4AD95D320RS2154	T832080047
10402374123	AD4 123A	LOVOL80PS	CPES4AD100D320RS2156	T832080062
10402374124	AD4 124A	LOVOL1004-4TWC03	CPES4AD100D320RS2199	T832080063

Excellent services

1).Be promptly to reply each inquiry within 12 hours

2).Quality controlled in the factory from sample to mass production;

3).Various payment methods acceptable: Western Union T/T or L/C

4). Vision of Beijing Global trade: To become the world's leading supplier of fuel injection system.
