Стекловолоконная ткань с силиконовым резиновым

Описание и отзывы

Трекер стоимости

Характеристики

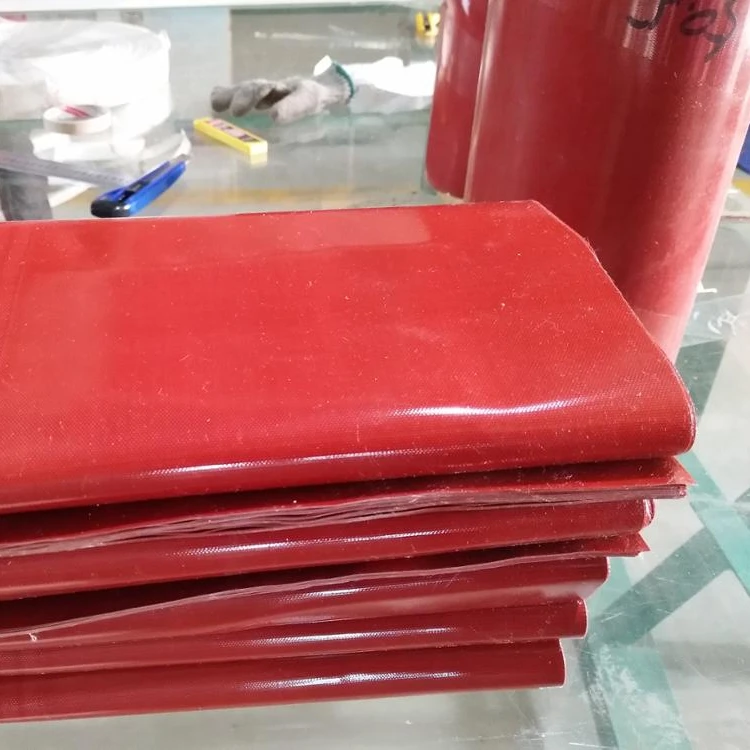

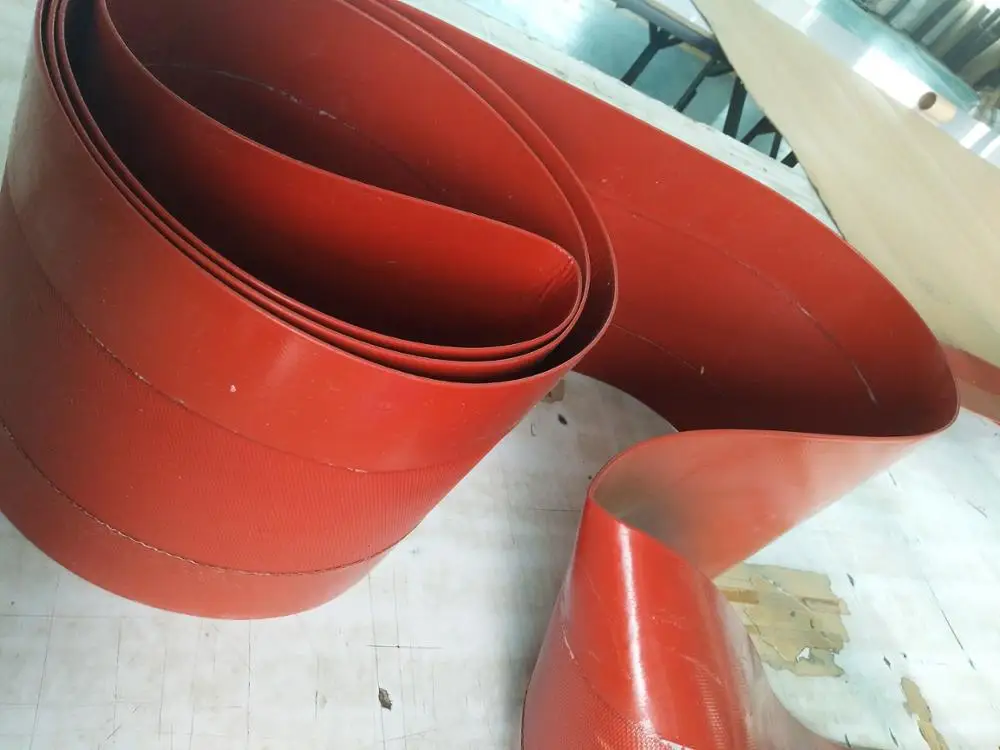

Silicone Rubber Coated Fiberglass Cloth used to wrap pipe line, perfect to reduce heat loss

Silicone Rubber Coated Fiberglass Cloth is constructed from a fiberglass base cloth and impregnated or coated one side or both sides with a specially compounded silicone rubber, which enhanced the strength, fireproof, high temperature insulation ozone, oxygen, sun, weather and oil workability.

Properties:

1. Service Temperature -70°C~300°C

2. Ozone, oxide, light and weathering aging resistance, excellent weather ability used in outdoors and ages may be reached to 10 years.

3. High insulation: dielectric constant from 3 to 3.2, breakdown voltage from 20 to 50KV/mm

4. Physical and chemical properties.

Applications:

1. Serve as a welding defender, heat protection quilt, foundry splash protection.

2. Conveyor belt and expansion joints.

3. Electrical insulation, chemical corrosion resistance, packing material.

4. Used for aerospace, marine, chemical industry, power plant, auto-manufacture, construction, piping flexility and sealing industry.



 Main Specification:

Model			Breaking Strength  (n/50mm)	Bursting Strength	Combustible	width
	mm	mil
YS-5015	0.15	6	1500/1200	2.0	≤25%	0—1500mm
YS-5025	0.25	10	1800/1500	2.1	≤25%	0—1500mm
YS-5040	0.40	16	2000/1600	2.2	≤25%	0—1500mm
YS-5050	0.50	20	2200/1800	2.3	≤25%	0—3000mm
YS-5060	0.60	24	2400/2200	2.4	≤25%	0—3000mm
YS-5070	0.70	28	2500/2300	2.4	≤25%	0—3000mm
YS-5080	0.80	31	2600/2400	2.5	≤25%	0—3000mm
YS-5090	0.90	35	2800/2600	2.5	≤25%	0—3000mm
YS-5100	1.00	40	3000/2800	2.6	≤25%	0—3000mm
YS-5120	1.20	47	3400/3000	2.5	≤25%	0—3000mm
YS-5150	1.50	59	3700/3300	2.8	≤25%	0—3000mm
YS-5200	2.00	79	4200/3800	3.5	≤25%	0—3000mm
YS-5300	3.00	118	6500/6200	5.0	≤25%	0—1000mm
