compressed air flow meter/flow meter gas/

argon gas flow meter

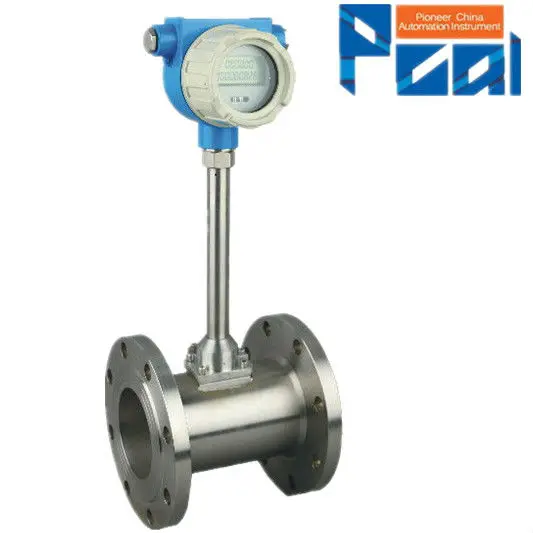

Introduction

The series of Vortex Flowmeter is based on Carmen Vortex Principle, which adopts piezoelectric crystal as testing

components. It is a new kind of stress detecting vortex flowmeter. It has the advantages of wide range rate, high

accuracy, low pressure loss, good medium generality, pulse signal output proportional to flow, convenient to

connect with computer etc. The detector probe of sensor and the vortex generating body are installed separately,

and the high temperature resistant piezoelectric crystal doesn't contact with medium, so the instrument is simple

structure, good generality, and high stability.



LUGB series Vortex Flowmeter sensor can be used to detect and measure the flow of all kinds of gas, fluid and

steam.



LUGB flowmeter sensor can be used to match with our company's MT6000 series flow totalizer. It also can match

with computers and sensors of temperature, pressure, or density to compose high accuracy mass flow or heat flow detecting and measuring system.





Feature:

1. Better vibration resistance



2. High accuracy , high reliability, easy to use



3 .Lower limit of flow rate,up to the conventional vortex flowmere1/2to 1/4



4. Unique design of amplify board,



5.Wide range in general,up tp 1:30pm,~1:50



6.Easy debug and simple operation.with HART communication function(operational;)



7.Can be used wit variety of vortex sensor for a various of medium measurement



8.Instant flow display and cumulative total,percentage ,frequency display;



9.4~20mA output,0~5KHZ frequency output,the vortex pulse output





Specification:

Measured medium:	All kinds of gas, fluid and steam
Nominal diameter:	20-300mm (ontology-type)
	300-1000mm (Insertion type)
Operating environment:	Environment temperature -40°c~55°c
	Relative humidity:≤90%
Nominal Pressure:	1.6Mpa 2.5Mpa 4.0Mpa
Measurement Range:	Gas and steam: 4.5-45m/s
	Fluid: 0.45-4.5 m/s
Measurement Accuracy:	±0.5% ±1%
Output Signal:	LUGB series- A Pulse signal (current or voltage pulse)
	LUGB series-B Current signal (4-20mA)
Safety Protection:	Intrinsically-safe explosion-proof type
	Explosion-proof level: ia II CT1-6
	Anti-corrosion type( for corrosive medium)
Power Supply:	DC24V
Mounting Method:	Flange-collection-type, ,
	Flange- Card-type
	Insert-type
