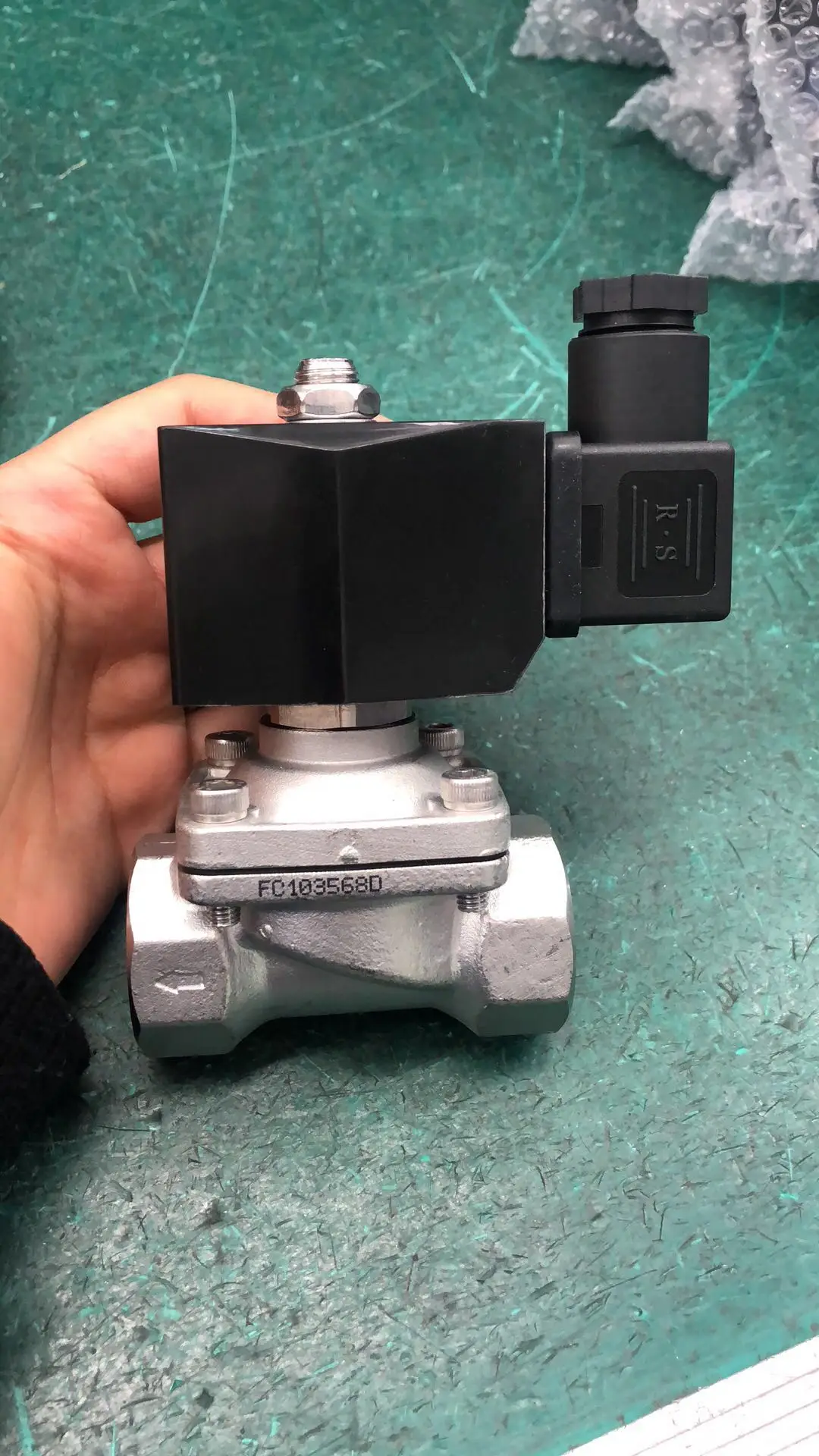

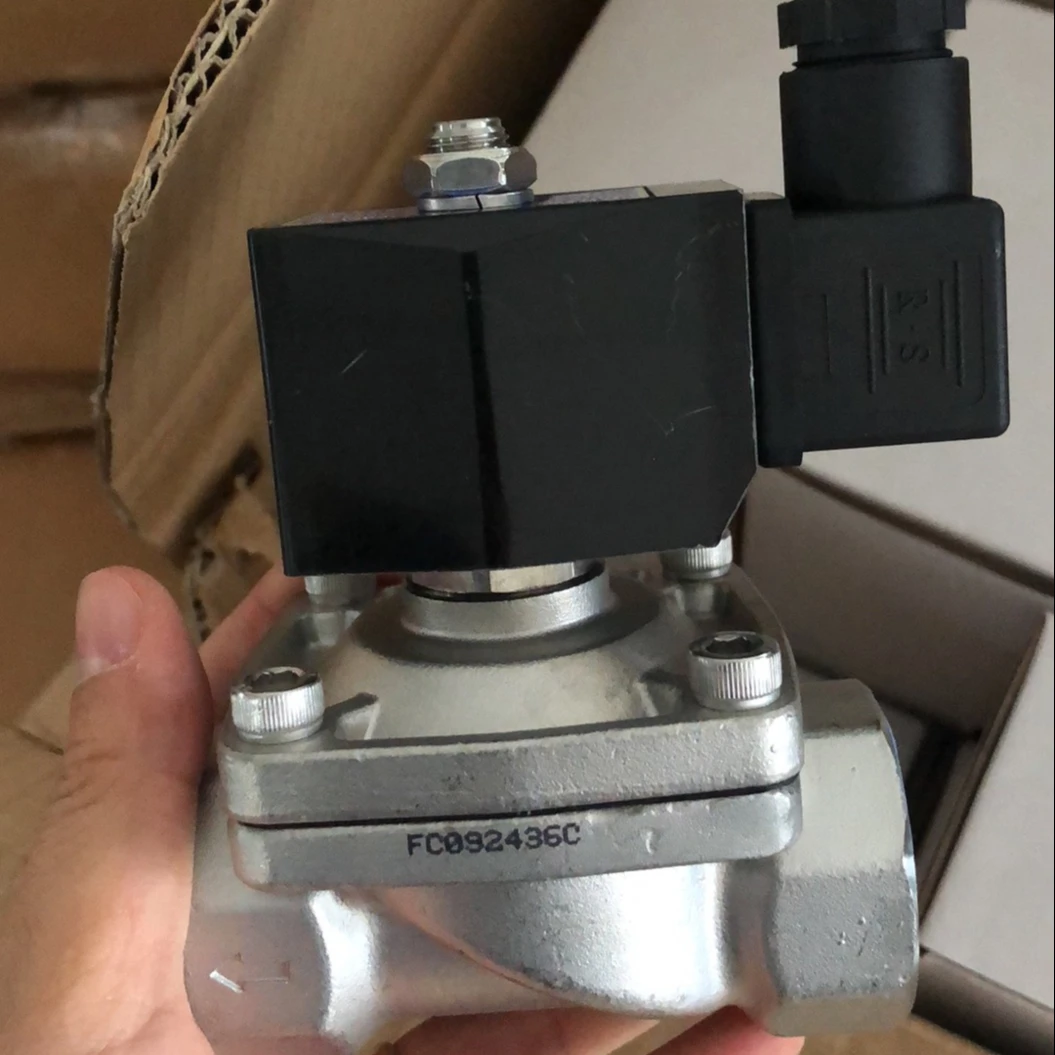

ZW-20J 2-ходовой водяной Соленоидный клапан 24 В постоянного тока G3/4

working medium:water,liquid,air,light oil(viscosity≤20cst)
medium temperature:-5 ~ 80℃
working pressure:0~10bar (details see specification table)
working type:semi direct acting(NC)
valvebody material:forged brass SS304
sealing material:NBR
interface:G thread NPT thread
working voltage:AC220~240V AC110V 50/60Hz DC24/12V
DN10~25 AC 28VA DC 18W
DN32~50 AC 45VA DC 31W IP65 H degree
options:EPDM(-10~130℃)
VITON(-10~120℃)
Es low power energy saving coil LED light connector
Rc thread lead wire iron coil

Coil plastic capsulation workshop corner

Performance testing machine for solenoid coil

To guarantee the quality, each solenoid coil has been tested bin the aspects of resistor, laps, current, power and withstand voltage.

German spectrometer

All the metal components of solenoid valve have been tested by OXFORD spectrometer to ensure the rightness of material, which meets various requests for production

Iron-hand digital control lathe

High-tech iron-hand operating, each operator can manage more than 5 sets digital control lathes,which greatly improve the production efficiency and sharply reduce the production cost. So we can offer more discount to the customer.

High performance digital automatic testing machine for solenoid valve

Each solenoid valve has been tested of high pressure, low pressure,leakage and so on, to ensure that we can offer satisfied products for our customers.

solenoid valve assembly line

All the workshops are equipped with air conditioner, to create a clean, comfortable working environment for the employees.

                2017 EXPO exhibition in shanghai                                     2018 in shanghai PTC exhibition

                 2018 AQUATECH in beijing                                    2018 china international industry fair in shanghai

2017 AQUATECH IN Amsterdam
