XKLT-600/700/800

Fully automatic non woven box bag making machine





Product introduction:

This machine is suit for non woven fabric material, can fully automatic make non woven bag products with different bag size, as flat bag, shopping bag, gift bag, clothes bag, handle loop bag, vest bag, shoe bag and so on.



Features:
1. This machine adopt Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. It could control auto pneumatic handle punching on machine.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, east to operate, firm sealing, beautiful and decent.






Suitable for non-woven fabric material. It can make following bags:
1. Flat Bag (D-cut Bag)
2. T-shirt Bag (Vest Bag)
3. handle loop non woven bag

4. Flat Bag with Bottom Folding (stand up bag)

5. Box Bag

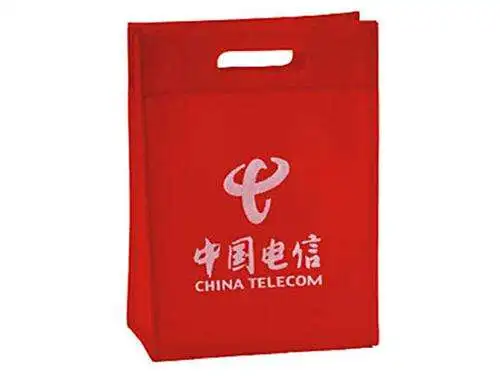

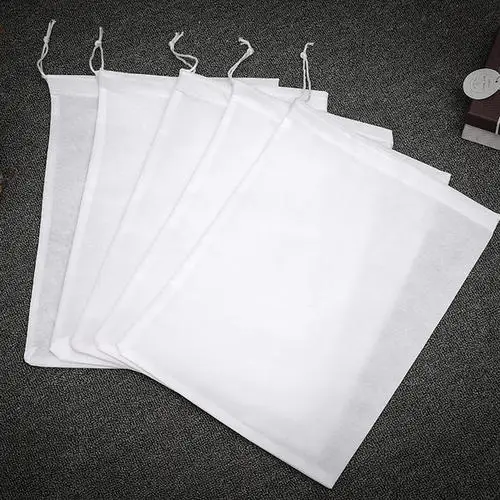

Sample Bags:











Technical Parameter:



Model:	XKLT-600	XKLT-700	XKLT-800
Max.   Bag  Length	600mm	700mm	800mm
Max.   Bag  Width	580mm	680mm	780mm
Machine  Speed	30-100  bags/min.	30-100  bags/min.	30-100  bags/min.
Max.   Fabric  Width	1300mm	1500mm	1700mm
Total  Power	17kw	19kw	20kw
Machine  Weight	2500kg	2600kg	2700kg
Air  Pressure	2MPa	2MPa	2MPa
Material  Thickness	30-100  gram/square meter	30-100  gram/square meter	30-100  gram/square meter
Max.   Fabric  Diameter	800mm	800mm	800mm
Voltage	220V/380V	220V/380V	220V/380V
Machine  Dimension	8500× 1800× 2300mm	8500× 1900× 2300mm	8500× 2000× 2300mm

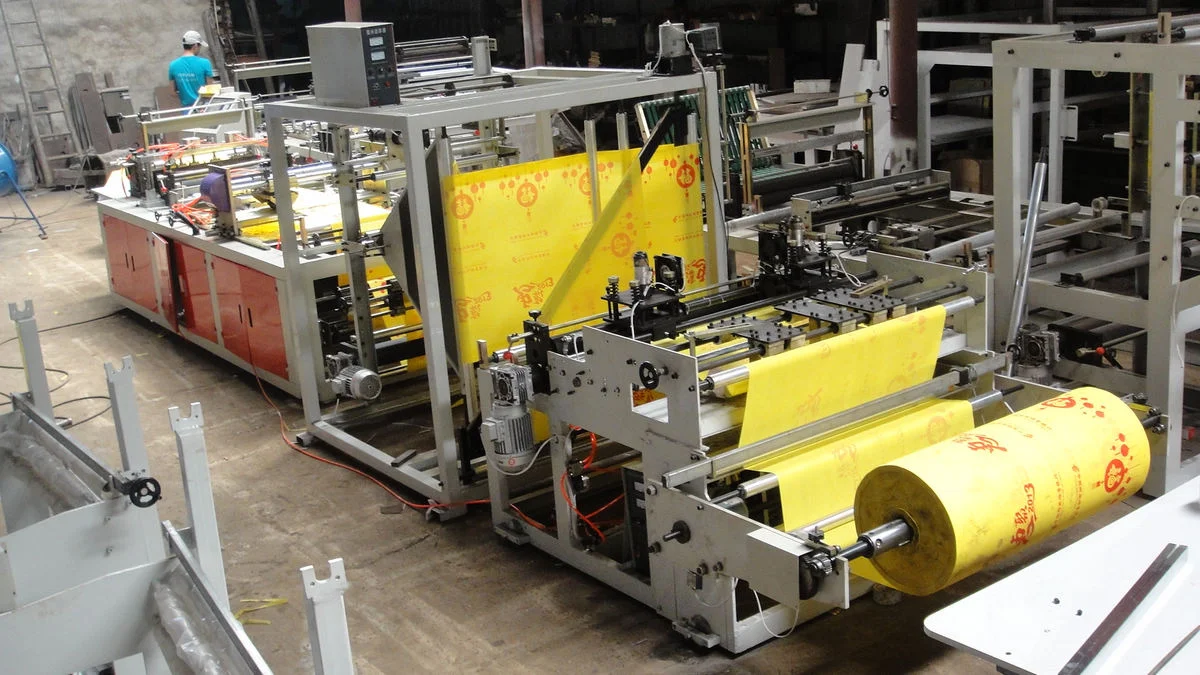

machine delivery photos:

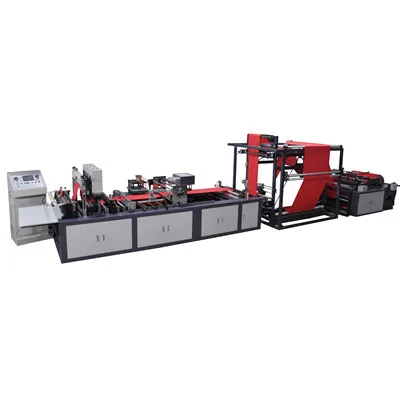

  machine:









CE Certificate:



Please send us inquiry for more informations, we will supply you good machine price & good machine price. Thank you.
