6KVA Online UPS With Isolation Transformer

CP Series UPS contraposes all types of computers and sophisticated electronic equipment needs,aims fine quality, excellent functionality and capacity operation to design.It maintains the traditional advantages of online machine, improving protection circuit, IGBT drivers balance, high-frequency charging performance. This product is the best office supply partnersto provide the best pure sine wave power. This series UPS can be used in personal computers, telecommunications, medical equipment, banking systems, rail transport, electricity, research and so on.

Key feature

u1 phase in 1 phase out

u100/110/120/220/230/240 VAC to 100/110/120/220/230/240 VAC

uLow frequency online pure sine wave online UPS with charger

uStable performance for advanced digital circuit system.

uThe sixth generation IGBT and  high-speed static switch shift technology

uWith internal transformer, ensuring input/output isolate completely

uTransfer time 0ms, no interruption from AC state to DC state

uWide input voltage,25% mutative is allowable

uIntelligent battery charger, durable and worry-saving

uPerfect protection function, short circuit, over load, over temp, battery hi/low protection

uDirect LCD data display and LED work status display

uParallel&redundancy function:can make 2 units in parallel

uCommunication interface RS232,remote control SNMP card is optional

uFull specification, from 1KVA to 40 KVA

u1/1 phase and 3/1 phase are available

Machine Principle

The UPS is a multiple proctective uninterruptible power system,with output isolation transformer,double convertion and digitization function.When AC is normal,it will filter the interruption from AC, and change AC rectifier into pure DC firstly, then change DC into pure sine wave output AC by inverter.At the mean time,the battery will be charged.When AC is abnormal,the DC stocked by battery will invert to AC to output,guaranteeing the loads can get the high quality power electricity;It will shift to bypass automatically to supply power while the inverter is off or have faults.

Specification

Model	CP1KVA	CP2KVA	CP3KVA	CP4KVA	CP6KVA	CP8KVA	CP10KVA	CP15KVA	CP20KVA	CP30KVA	CP40KVA
Capacity	0.8KW	1.6KW	2.4KW	3.2KW	4.8KW	6.4KW	8KW	12KW	16KW	24KW	32KW
Input voltage	1 phase 110/220/230VAC ± 15%
Input frequency	50HZ or 60HZ ± 5%
Output voltage	110/220/230VAC ± 1%
Output frequency	50HZ ± 5%
Voltage tolerance	±2%
Transient response	±4% (100% load)
Wave form	Sine wave THD < 3%
Overload capacity	100~125% for 60 sec >150% (go to by pass when load is more than 150%)
Power factor	0.8~1, LAG
Crest factor	>3:1
Battery type	Sealed lead-acid, maintenance free
Battery voltage	48VDC	96VDC		192VDC
Charge current	1-10A(Adjustable)
Efficiency	>85%
Switch time	Zero
Protection	Input over-current, breaker, over load, over temp, bypass
EMI filter	10~100KHZ in 40dB, 100KHZ~100MHZ in 70dB
Auto alarm utility failure	Alarm every 4 sec for 90 min
Low battery	Alarm every 1 sec (auto shutdown & restart)
Overload	Continuous buzzer for 60 sec then bypass
Fault	Continuous buzzer
LED display	AC input/bypass/inverter/low battery /overload/fault
LCD display	Input/output/battery voltage, input/output frequency, load percentage, UPS status
Interface	AC fault, low battery, bypass inverter, remote intelligent software
Environment temp	0~40 °C
Package dimension(mm)	1K 640*290*480	2K\\3K 700*325*535		4K/6K/8K 630*265*610			10K 625*400*1000	15K/20K 810*480*1300		30K/40K 900*520* 1380
(D*W*H)
Gross Weight (KG)	20.5	27	45	63	76	77	95	185	245	332	352
Humidity	20~90% (non-condensing, max)
Audio noise	<58dB (with a distance of 1 meter)

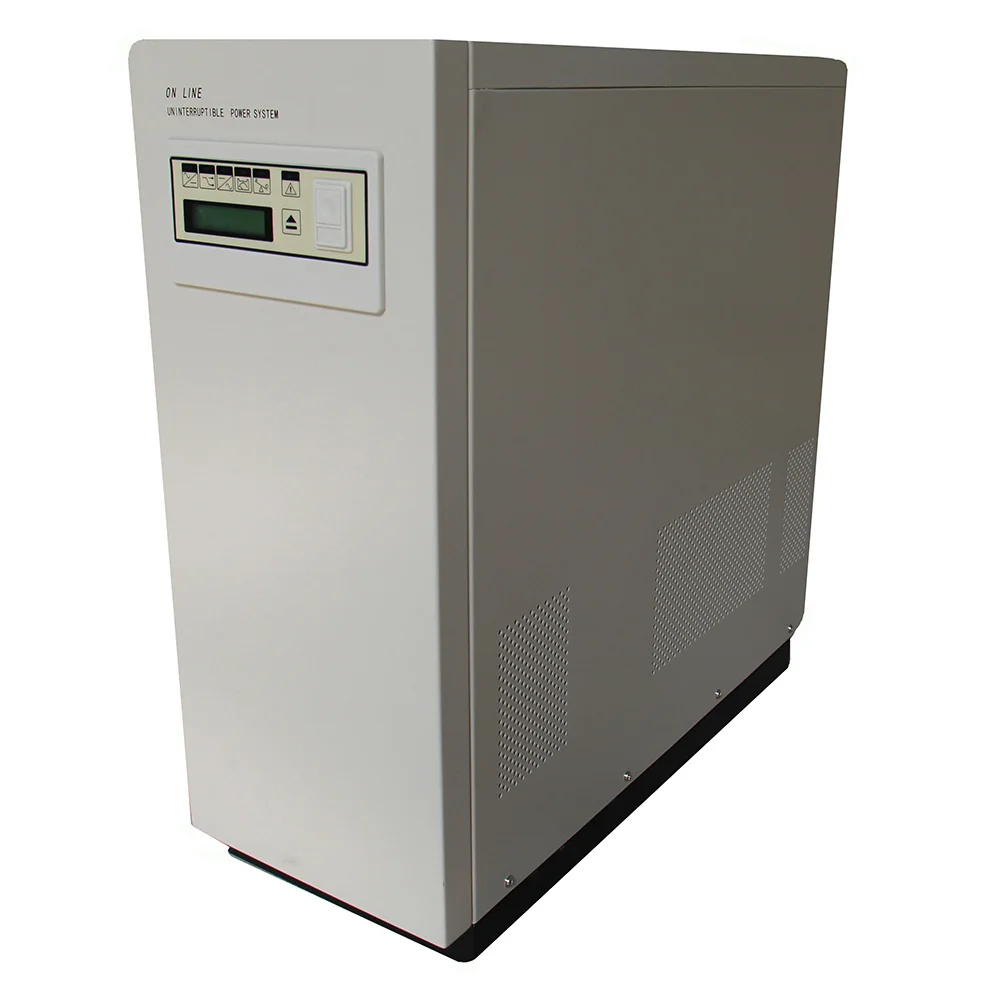

CP4KVA to 8KVA Product Picture
