1.Introduction

1.1.            Application:

    It can constitute an circumferential seam automatic welding system with proper welding sources and welding gun, to achieve automatic welding, and improve welding speed and quality. It’s mainly used in instrument, bellows, medical device and electronic components and other precision workpeice.

1.2.            Components:

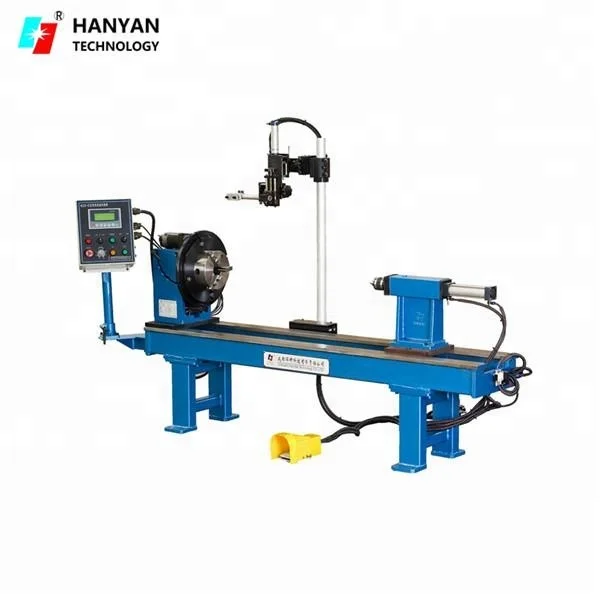

    It main consist of rotation headstock, tailstock, lathe bed, 3-D adjusting mechanism, pneumatic lifter, travel mechanism and PLC controlling system. Combined structure is convenient for installation, and has a good mobility.

1.2.1.      Lathe Bed: With guide rail, and the distance between headstock and tailstock is adjustable.

1.2.2.      Rotation Headstock: Driven by DC gear motor, has stepless speed regulation function and welding current detection switch.

1.2.3.      Tailstock: Operate hand whell, and impart motion to center.

1.2.4.      Adjustable 3-D Device: Adjust torch position accurately.

1.2.5.      Pneumatic Lifter: Lift up torch automatically.

1.2.6.      Travel Mechanism: Automatic longitudinal seam welding and carriage movement achieved.

1.2.7.      Control System: Advanced PLC controlling system, humanized operation interface, high degree automation, stable and reliable performance.

1.3.            Welding Process:

1.3.1.      Welding Mode: torch fixed, workpiece rotating. Automatic welding.

1.3.2.        Welding Method: It can be used with argon arc welding machine (supporting the use of wire feeder), CO2/MAG/MIG welding machine, pulsing welding machine or other welding sources to form an automatic girth (longitudinal) seam welding system.



2. technical parameters



Model	HF-300W
Control power supply	Single phase 50Hz AC 200V
Welding power supply	Three phase 50Hz AC 380V
Workpiece thickness	According to the shape of opening
Workpiece diameter	200 mm≥φ≥10mm
Workpiece length	≤1200mm
Headstock rotation speed	1~10 r/ min
Workpiece rotation diameter	≤550mm
Spindle bore	φ≤50mm
Spindle output torque	≤72N·m
Workpiece weight	≤50Kg
Torch lifting height	100mm(pneumatic)
Tailstock travel stock	150mm(pneumatic)
Headstock adjustable angle	0°,30°,45°,60°,90°
Torch 3-D adjustable range	X:±30mm, Y:±50mm, Z:±30mm
Max. welding current	500A



WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZED IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS.
