roved 40hp wood chipper with direct factory :

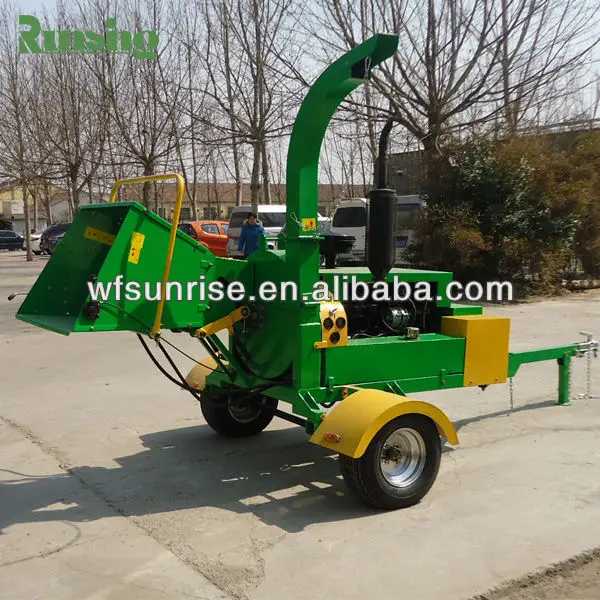

Weifang Runsing DWC-40 40hp wood chiper :



1- DWC-40 Changchai diesel engine.

2- Hydrualic feeding system .

3- 360 degrees rotates discharge hood.

4- 3 blades: 1 stationary,2 rotary

5- Round flywheel house and square flywheel house,easy to change knifes.

6- We have 18hp,22hp,40hp models to choose.



Features:

.CE approved,easy to operate
.3 blades,easy to change
.9-13cbm/h capacity.
.10-80cm chips size.
.8 inch chip diameter.



Useage:



.This diesel wood chipper is used for cutting wood, branches and leaves into smaller wood chips,pieces,for covering crops  or mulching,specially for using granulated fuels.

.This wood chipper employs steel disc with rectangular blades mounted upon it and fans upon the

 other side. While the disc rotates, powered by PTO shaft or engines, the blades cut the wood ,branch or leaves into pieces and the fans blow the chips out from discharge chute.

Technical parameters:

Modle		DWC-18/DWC-22	DWC-40
Engine	model	professional or Changchai CY1105or1115 diesel engine	Laidong 4L22Bdiesel engine
	type	Singlec ylinder, Horizontal,four-stroke	Four cylinders, Horizontal,four-stroke
	Rated power	16.2KW/2200rpm	25.7KW/2350rpm
	Fule consumption rate	<245g/KW.h	<238g/KW.h
	Engine oil consumption	<1.5g/KW.h	<1.5g/KW.h
	Cooled style	Water-cooled (evaporation)	Water-cooled
	start	Electric start	Electric start
Feeding system		Mechanical or hydraulic	hydraulic
Chipper capability		150mm(Max.To 200mm)	200mm
Flywheel diameter		640mm	640mm
Flywheel weight		85kgs	85kgs
Blades numbers		1stationary blade,2 rotary blades	1 stationary blade,2 rotary blades
Feed Hopper inner Opening		200*220mm	200*220mm
Discharge Hood Height		2000mm	2000mm
Rated RPM		1080	1280
Weight		650kgs	800kgs
Working efficiency		7-11cbm/h	9-13cbm/h
