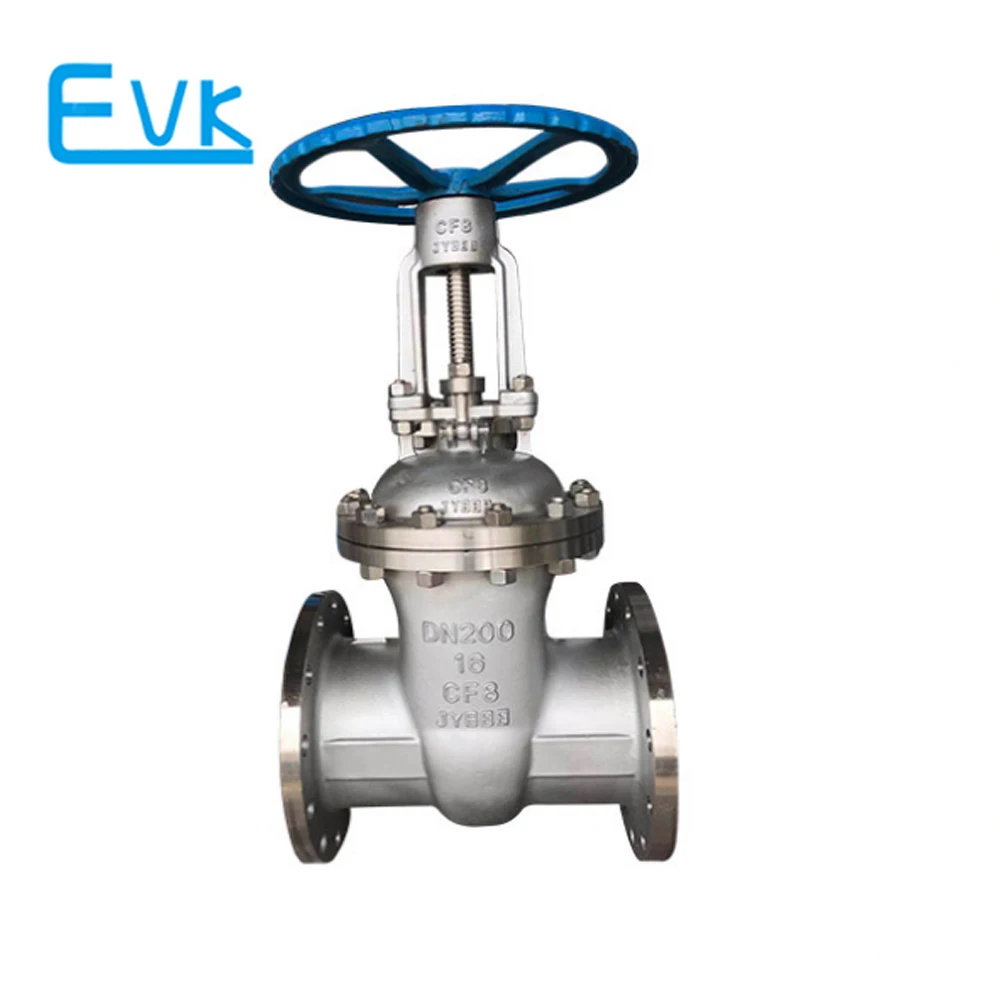

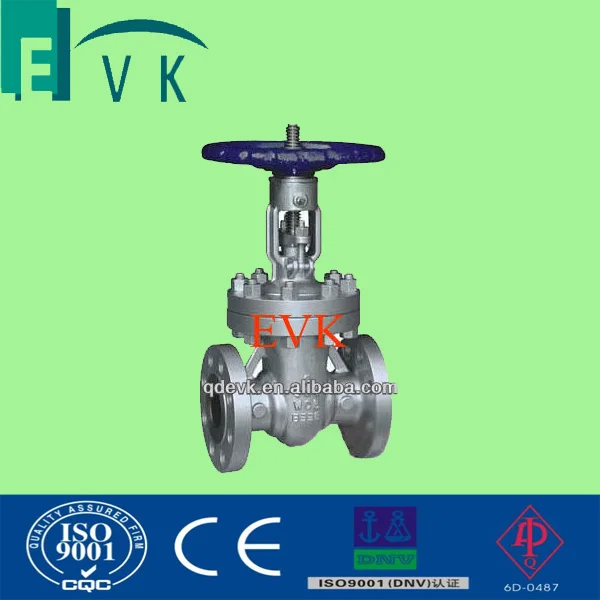

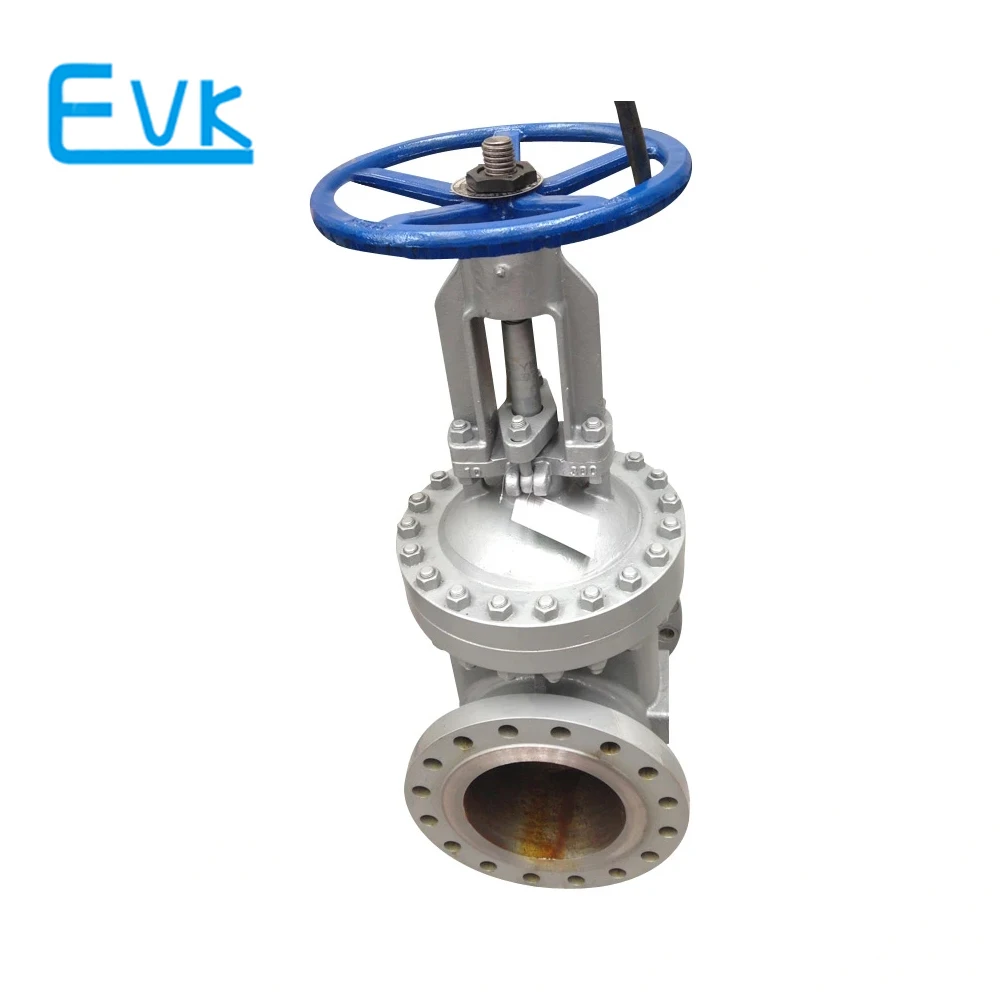

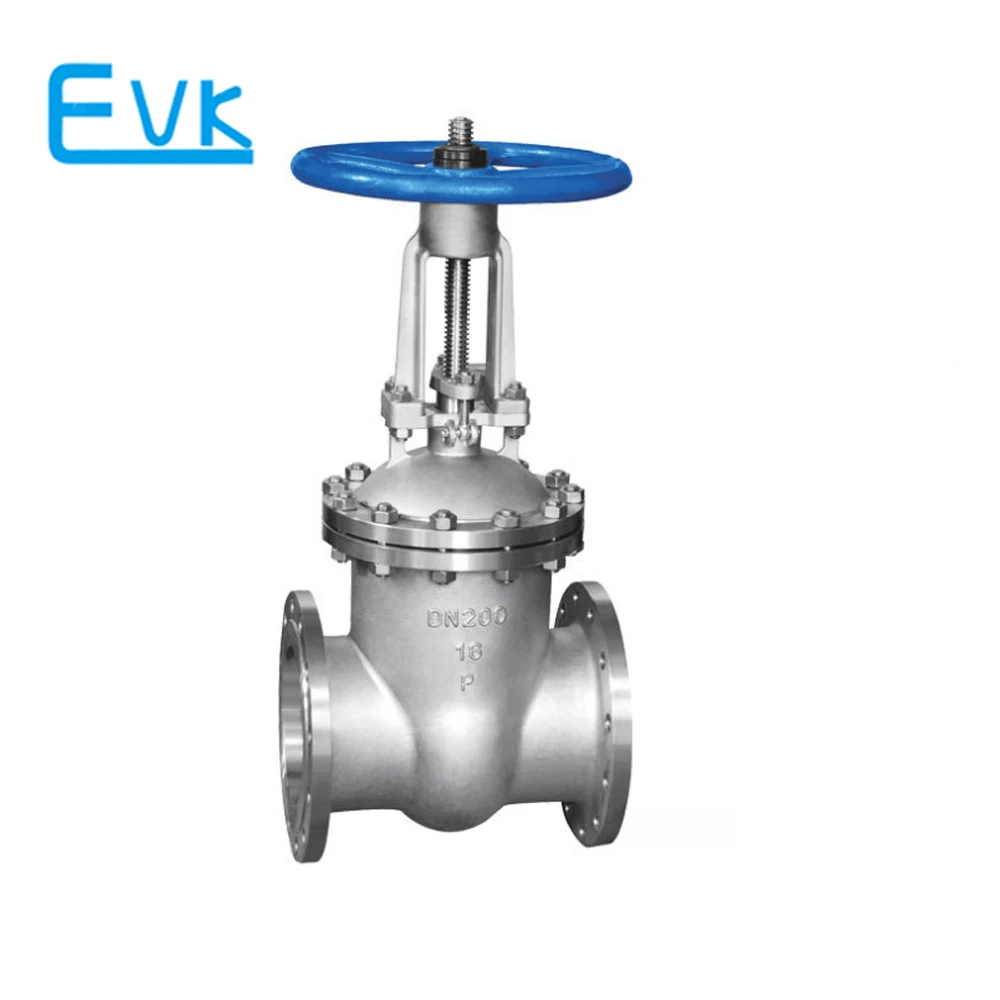

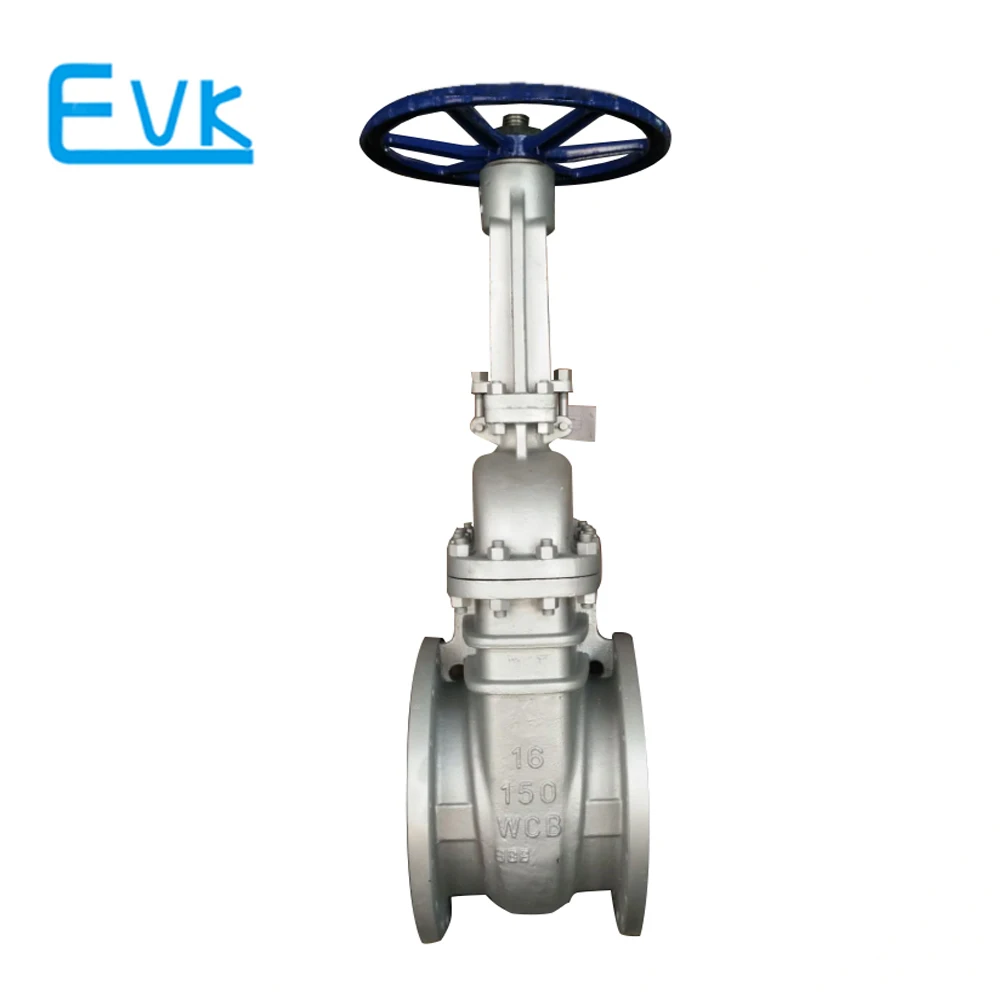

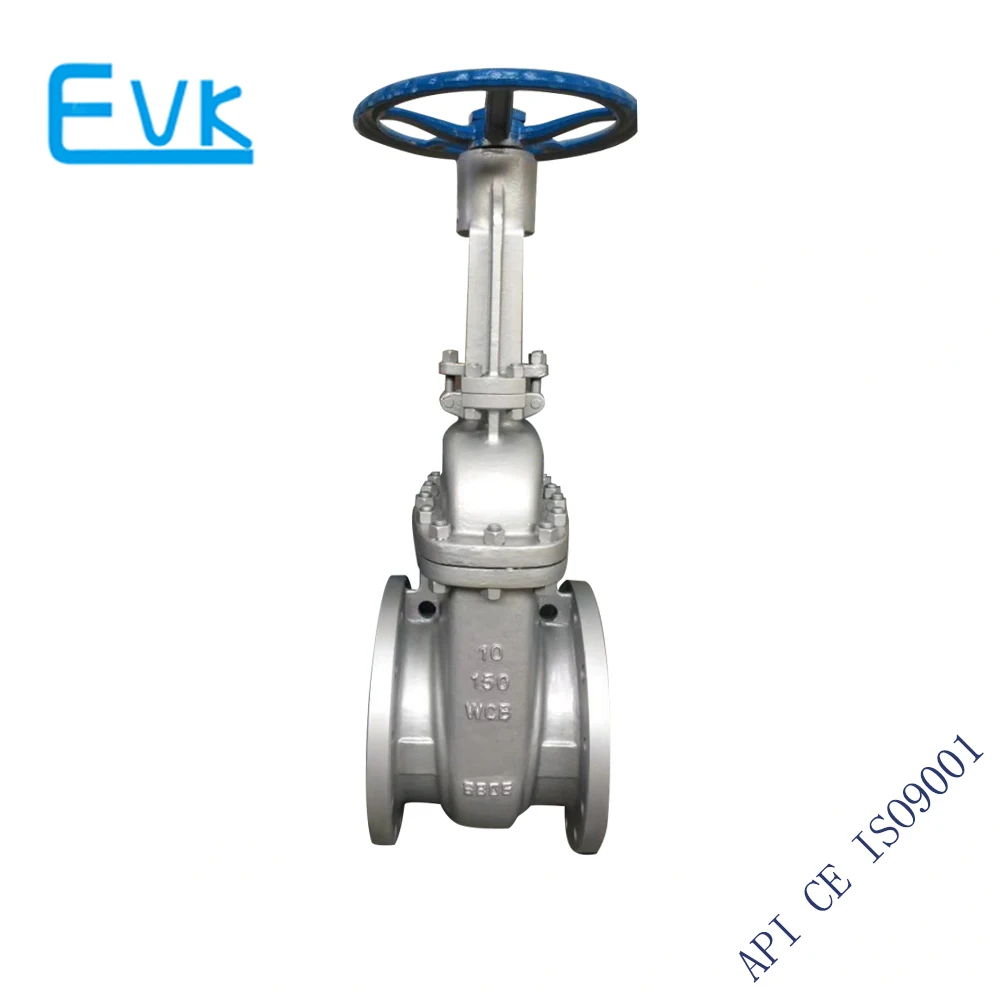

API Gate Valves (Carbon Steel,Stainless steel)



Our service



Competitive Prices:We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. So we can provide the straight factory price and service to our customer.



OEM Accepted:  We can make the products with the client's demand standard, and also have many experience on OEM.



Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc.



100% QC inspection Before Shipment.



Quick Delivery: We have the large stock for some hot products.









NO	Parts name	Materials
		WCB/Trim1	WCB/Trim5	WCB/Trim8	CF8/304	CF8M/316
1	Body	ASTM A216 WCB			ASTM A351 CF8	ASTM A351 CF8M
2	Gasket	Soft Iron+Graphite or 304+Graphite			Graphite + 304	Graphite + 304
3	Seat ring	A105+13Cr	A105+STL	A105+STL	ASTM A351 CF8	ASTM A351 CF8M
4	Disc	ASTM A216 WCB+13Cr	ASTM A216 WCB+STL	ASTM A216 WCB+13Cr	ASTM A351 CF8	ASTM A351 CF8M
5	Stem	ASTM A182 F6a			ASTM 182 F304	ASTM 182 F316
6	Backseat bushing	ASTM A182 F6a			ASTM A351 CF8	ASTM A351 CF8M
7	Packing	Graphite			Graphite	Graphite
8	Gland	ASTM A182 F6a			ASTM 182 F304	ASTM 182 F316
9	Gland eyebolt	ASTM A193 B7			ASTM A193 B8	ASTM A193 B8M
10	Eyebolt nut	ASTM A194 2H			ASTM A 194 8	ASTM A 194 8M
11	Eyebolt pin	ASTM A36			304SS	316SS
12	Gland flange	ASTM A216WCB			ASTM A351 CF8	ASTM A351 CF8M
13	Bonnet bolt	ASTM A193 B7			ASTM A193 B8	ASTM A193 B8M
14	Bonnet nut	ASTM A194 2H			ASTM A 194 8	ASTM A 194 8M
15	Bonnet	ASTM A216 WCB			ASTM A351 CF8	ASTM A351 CF8M
16	Nipple	CARBON STEEL			CARBON STEEL	CARBON STEEL
17	Stem nut	ASTM A439 D2			ASTM A439 D2	ASTM A439 D2
18	Yoke sleeve nut	CARBON STEEL			CARBON STEEL	CARBON STEEL
19	Hand wheel	DUCTILE CAST IRON			DUCTILE CAST IRON	DUCTILE CAST IRON
20	Hand wheel nut	CARBON STEEL			CARBON STEEL	CARBON STEEL
21	Set screw	ASTM A193 B7			ASTM A193 B7	ASTM A193 B7

Desin And Manutacture  API6D,API 600

Descriptions:



1) Sizes: 2"-24"

2) Pressure: 150LB, 300LB, 600LB,900LB,1500LB,2500LB

3) Valve Body: ASTM A216 WCB/CF8/CF8M

4) Disc: ASTM A216 WCB/CF8/CF8M

5) Bonnet: ASTM A216 WCB/CF8/CF8M

6) Seal: Stainless Steel D507Mo, D577

7) Stem: 1Cr13, F6a



8) Yoke nut: ZCuAL10Fe3, ASTM A439 D-2



9) Hand wheel: Malleable Cast Iron, Ductile Iron, and WCB



10) Standards: GB, ANSI API, Russia Standard



11) Type: Rising Stem Gate Valve



12) Connection type: Flange end



13) Control method: Manual



14) Body experiment: 2.94MPa/7.67MPa/15.3MPa



15) High-pressure fluid seal: 2.16MPa/5.62MPa/11.23MPa



16) Low pressure aero seal seals: 0.6MPa



17) Suitable medium: Water, Vapor, Oil
