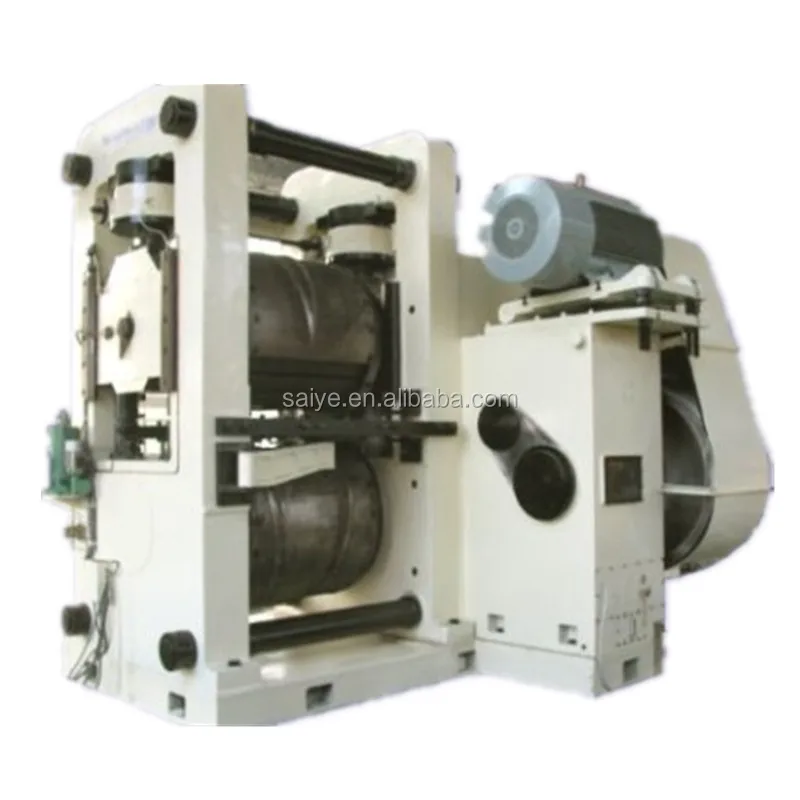

D46 series double stick cross wedge rolling mill



1. Cross wedge rolling is a new hotting processing produces steps uranium forgings, and rolls the steps uranium with revolvers expecially.

2.The rolled pieces achieve the final shape of products almost, and the material utilization is higher. When used to blank for the die forging, it can distributes the blank accuratly.

3.The cross wedge rolling is divided two types, double stick cross wedge rolling mill and plate cross wedge rolling mill.

4.The working institutions and transmission ones of the D46 series double stick cross wedge rolling mill are combined together. So it has seval characters, such as compact structure, beautiful shape, and the smaller area covered. Because equipped with a brake and a clutch, the machine can realize several modes, including continuous, semi-automatic single and adjustment mode.

5. A worm and gear is installed on the upper roller which can be adjusted up and down to change the distance between the two rollers.

6. The phase can be adjusted by the under roller, on which a mechanism is installed in the gear box, and the mechanism can realize the rotary motion.

7. The machine has a overload protection device which can protected the machine, and it can not only roll all sorts of large and medium-sized axial parts, but also can be used to blank for the die forging production line, and provide precise blank for the die forging process.



technical data:



Specifications	DA46-500	DA46-630	DA46-800	DA46-1000	DA46-1250	DA46-1500
distance between the rollers	500	630	800	1000	1250	1500
diameter of the rollers	400	500	630	780	980	1150
length of the rollers	500	600	800	900	1100	1300
max rolled diameter	35	50	80	100	120	160
adjustment of the distance between the rollers	12	15	20	25	30	35
speed of the rollers		15	20	25
The phase Angle adjustment of the rollers	30
power	30	45	75	160	200	245
