Характеристики
1. Introduction
1.1. Application:

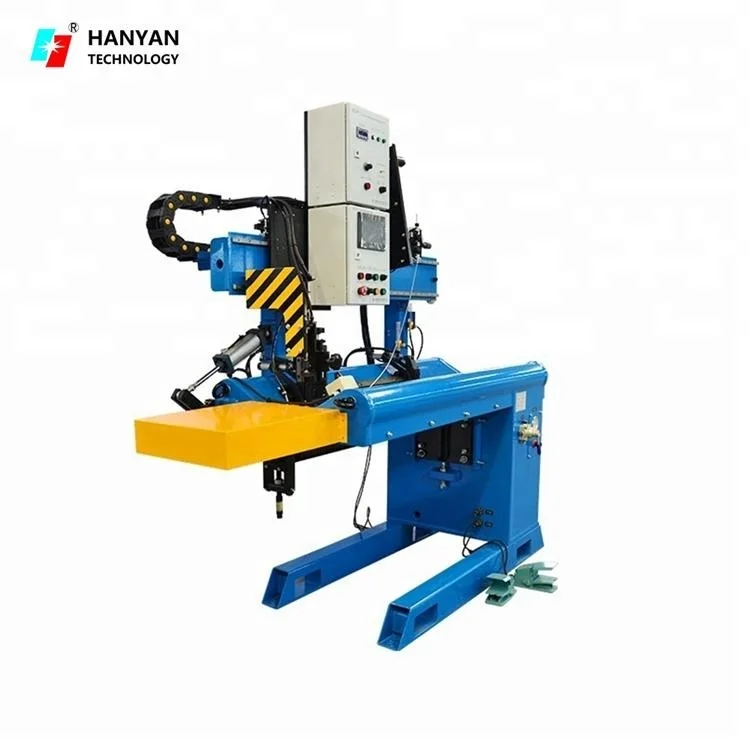

ZFJ1000A longitudinal seam automatic welding lathe is a standard product which designed and manufactured by our company, with a piano type clamping device to provide consistent and even clamping force, and cooling workpiece meantime, thus reduce distortion and over welding, moreover one-side welding with back formation is achieved.
1.1.1. Base material: stainless steel, carbon steel, aluminum alloy, heat resisting alloy, titanium alloy and others.
1.1.2. Shape of workpiece: cylindrical, conical, boxlike, laminar etc.
1.2. Components:
It’s a cantilevered structure, main components include lathe bed, pneumatic piano type clamping device, guiding beam, mandrel, electric carriage, pneumatic lifter, torch 2-D adjusting mechanism, pneumatic system and electrical control system etc. pneumatic piano type clamping device and copper backing evenly clamp the workpiece, 2-D adjusting mechanism is used to regulate the welding initial position.
1.3. Welding Process:
It can constitute an automatic welding system with TIG/MIG/MAG/PAW/SAW or other welding source and torch.
2.Technical Parameters
Model | ZF-1000 |
Controller power supply | Single phase 50Hz AC 200V |
Welding power supply | Three phase 50Hz AC 380V |
Workpiece thickness | 0.5~6.0mm |
Workpiece diameter | 700 mm≥φ≥115mm |
Workpiece length | ≤1000mm (torch in vertical status) ≤700mm (torch in slant status) |
Carriage speed range | 100~1800mm/min |
Torch lifting height | 100mm |
Torch position adjustable range | Y: ±30mm, Z: ±30mm |
Max. welding current | 500A |

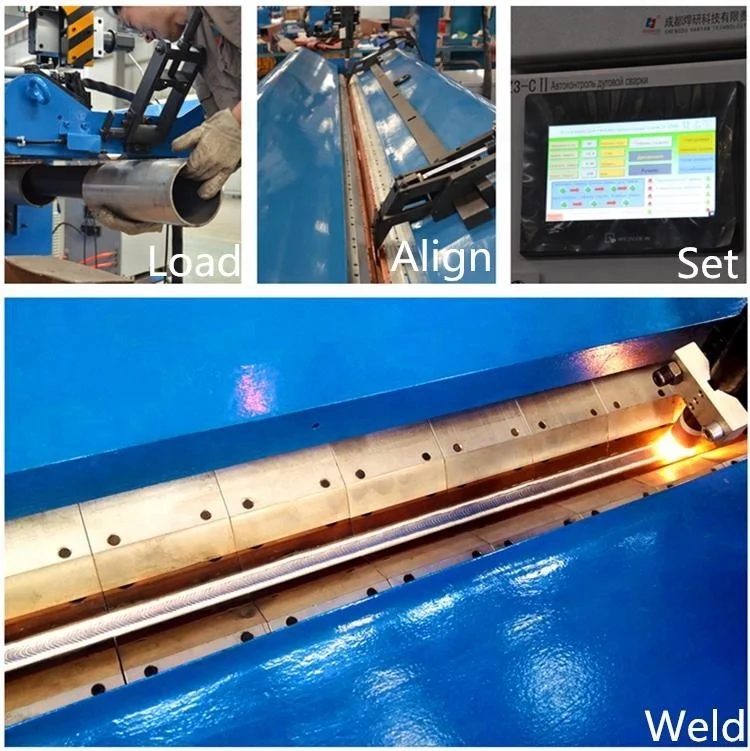

What can be welded?
Metal Sheet Pipes Cones and Boxes weldidng machine.
******Customizable******
if this kind of machine can not meet your automatic welding application. please contact us for customer driven's solution, or see more references as following:
Details

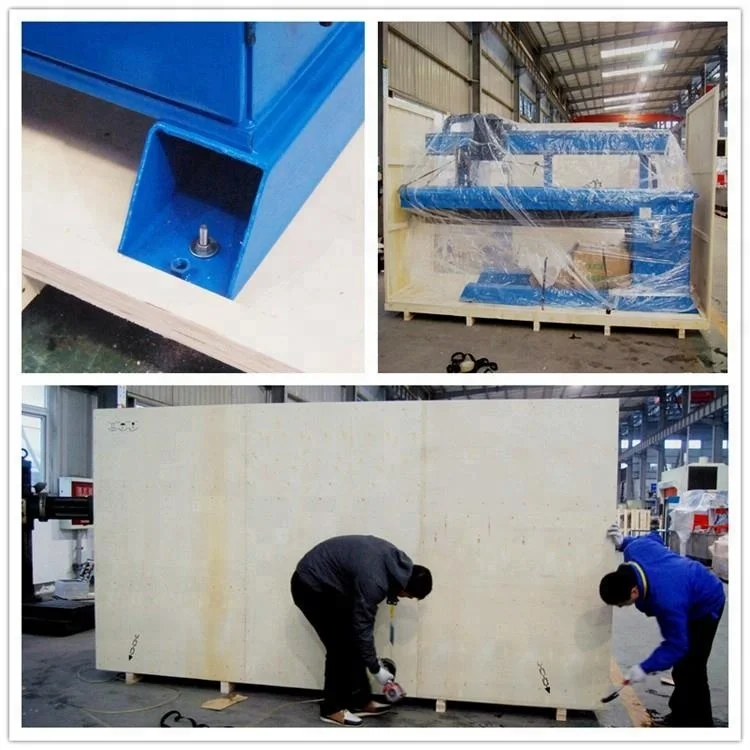

 | Caution
(operator safty) |
Forklift postion
(easy to move) |  |
 | Galvanized screw
(prevent from rust) |
Visit
In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
In our factory:
Company Information
Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.
From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.
We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZES IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS.
