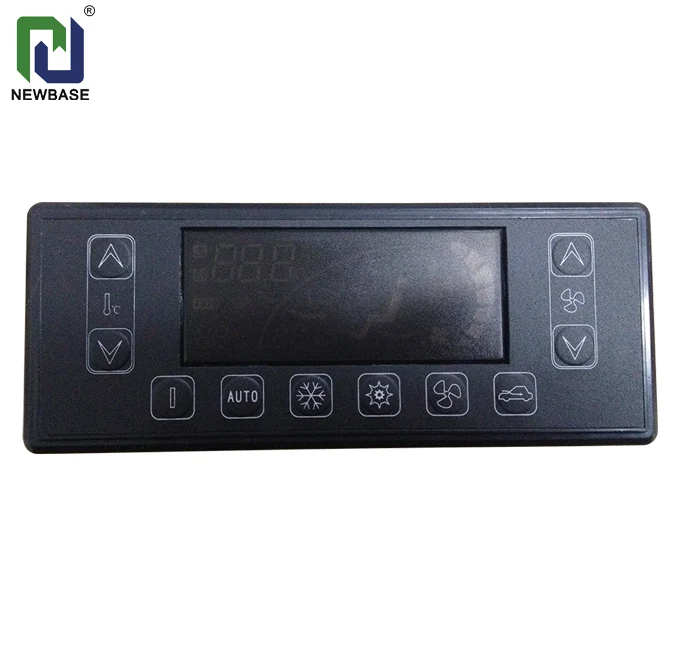

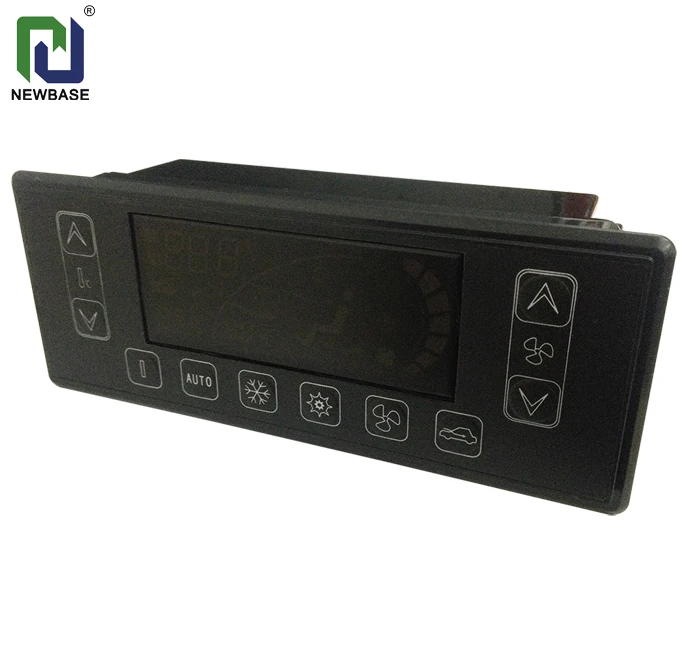

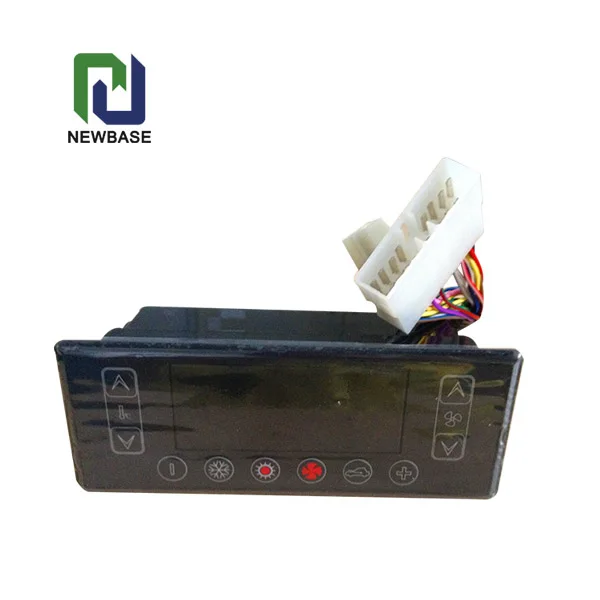

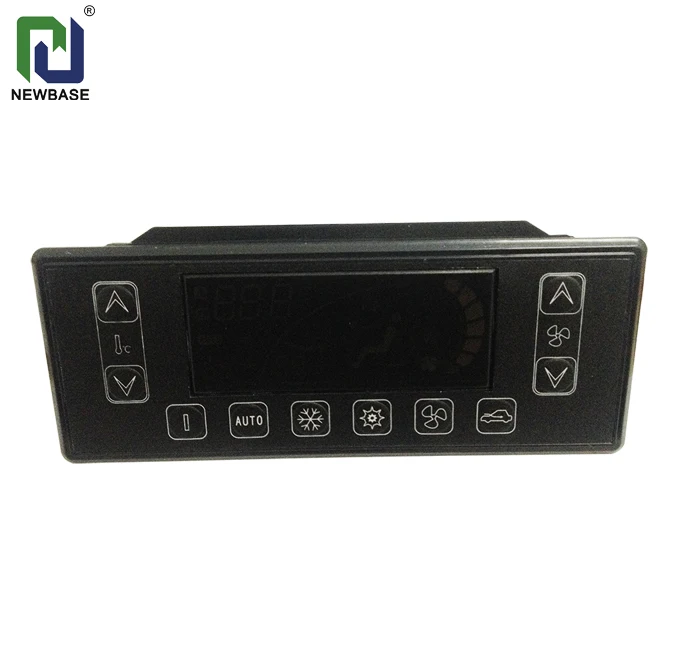

Контроллер системы охлаждения и обогрева воздуха

1)Interior temp. sensor (25  °c ,Rb=5k,B=3274)

2)Defrost sensor1/2 ( 25  °c ,Rb=5k,B=3274 )

3)Pressure sensor

4)ACC power (battery)

5)Backlight power

6)A/C Power (generator)

7)Exterior temperature sensor(  25  °c ,Rb=5k,B=3274 )

1)Excitation for individual generator ( Max.0.3A )

2)passenger seat fan high ( Max.0.3A )

3) passenger seat fan medium ( Max.0.3A )

4) passenger seat fan low ( Max.0.3A )

5)Fresh air on ( Max.0.3A )

6)water pump output( Max.0.3A )

7)water valve output (Max.0.3A )

8)cooling output (Max.0.3A )

9)driver seat fan high (Max.0.3A )

10) driver seat fan medium (Max.0.3A )

11)driver seat fan low(Max.0.3A )

Set temp. for dual digit display,accuracy 1 °c;

Interior temp. dual digit display,accuracy 1 °c;
