LR-LINK бренд LREC9202CT хорошая цена I211-AT PCIe * 1 Gigabit одного RJ45 мульти порт lan

Описание и отзывы

Трекер стоимости

Характеристики

Good price Intel I211-AT PCIe*1 Gigabit Single RJ45 multi port lan card

Description:

LREC9202CT multi port lan card is a PCI-E bus support, manageable gigabit RJ45 Single Port Network Card.The Card contains two transmit and two receive queues for the single port. It has advanced interrupt-handling,IPv4 and IPv6 checksum offload,TCP/UDP checksum offload features and the Auto-Negotiation (Nway) function ,Jumbo Frame support.With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Supports ACPI, compliant with PCI Express2.1. Full range of drivers are provided for major Operating Systems.

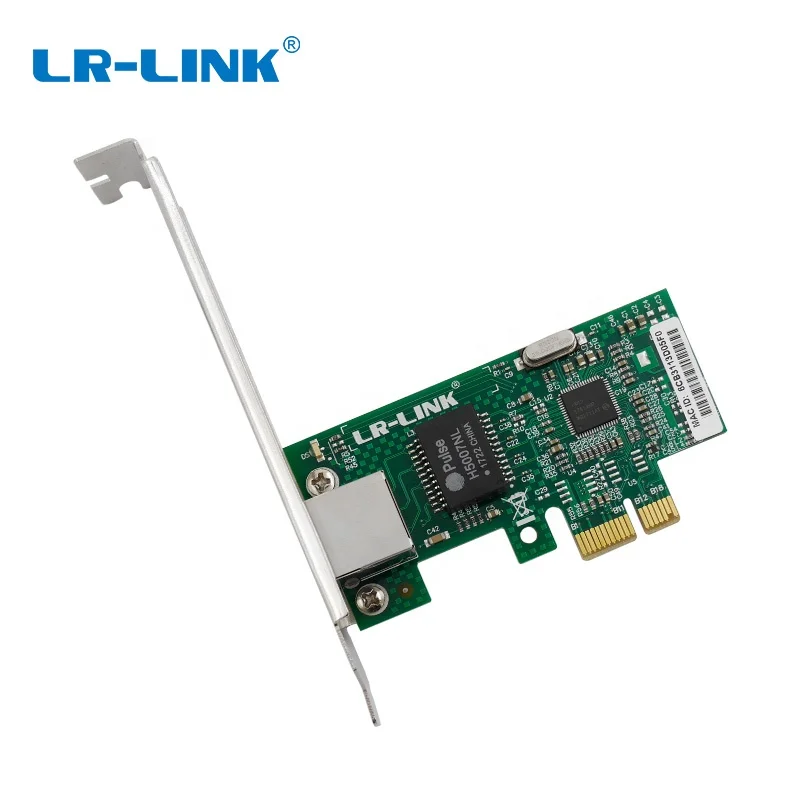

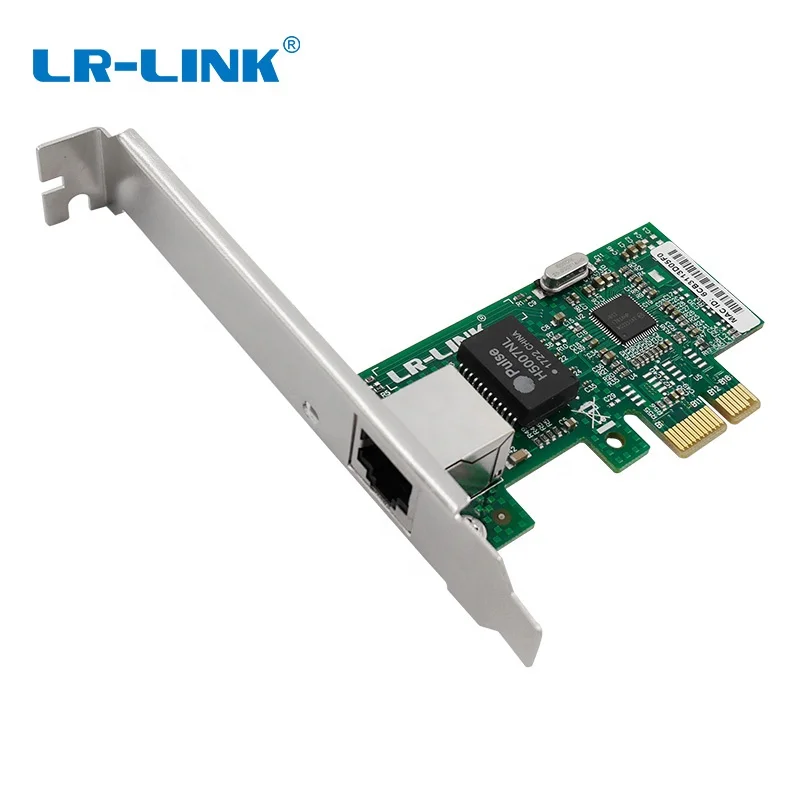

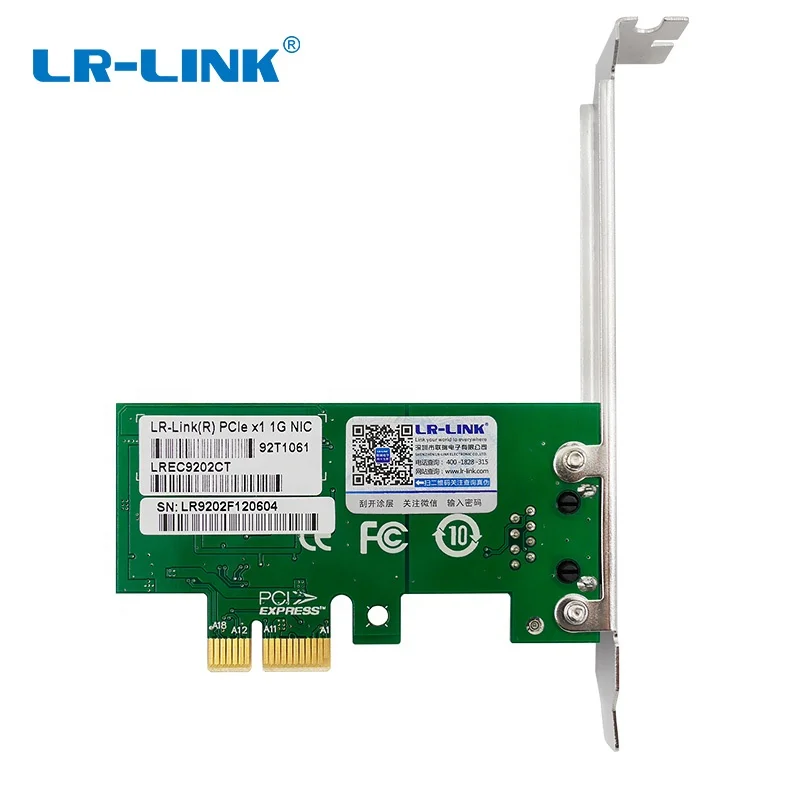

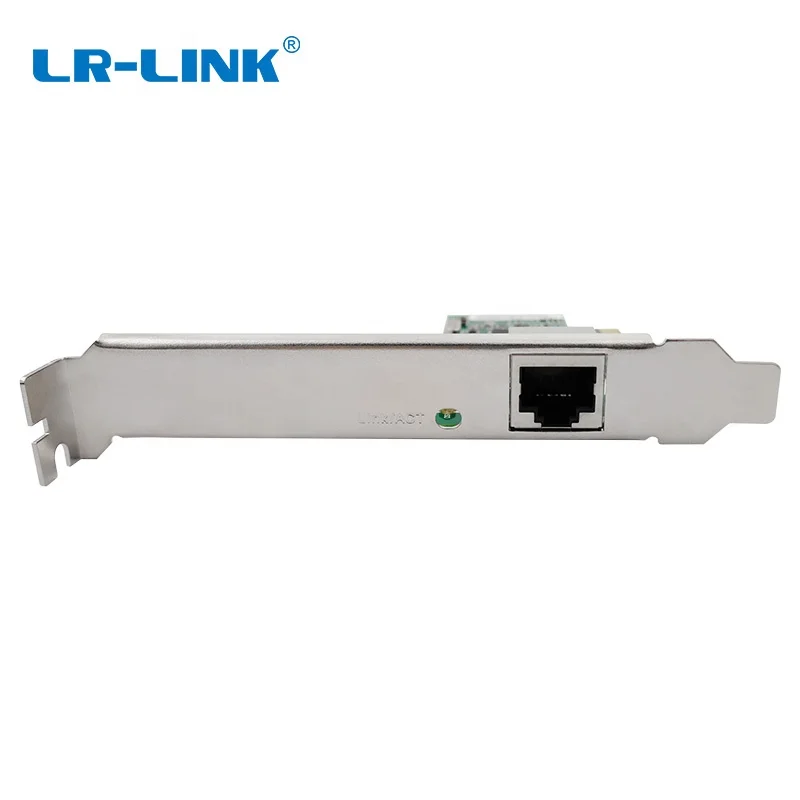

Product picture:



Features:

On-chip integrated Switching Voltage Regulator (iSVR);

IEEE* 802.3* auto-negotiaton;

1 Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY

specifications compliant;

Integrated PHY for 10/100/1000 Mb/s for multi-

speed, full, and half-duplex;

IEEE 802.3x and IEEE 802.3z compliant flow control

support with software-controllable Rx thresholds

and Tx pause frames;

Automatic cross-over detection function (MDI/

MDI-X);

IEEE 1588 protocol and 802.1AS implementation;

PXE support;

IEEE 802.3az - Energy Efficient Ethernet (EEE);

Smart Power Down (SPD) at S0 no link/Sx no link

Active State Power Management (ASPM);

LAN disable function;

Full wake up support:

• Advanced Power Management (APM) Support–

[formerly Wake on LAN]

• Advanced Configuration and Power Interface

(ACPI) specification v2.0c

• Magic Packet* wake-up enable with unique MAC

address

ACPI register set and power down functionality sup-

porting D0 and D3 states;

MAC Power Management controls;

Low Power Link Up - Link Speed Control.



Specification:



Main Parameters
Brand	LR-LINK
Model	LREC9202CT
Type	Gigabit copper network card
Transfer Rate	10/100/1000Mbps Nway Auto-negotiation
Bus	PCI Express
Connector	RJ45
Number of Ports	1
PXE	Support
Jumbo Frame	9.5KB
LED Indicator	1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex
Field of Application	Desktop
Chipset	Intel I211-AT
Bracket	High-profile /Low-profile Bracket
Network standard	IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab)
Drivers	Microsoft Windows 7*,Microsoft Windows Vista* (32 & 64 bit),Microsoft Windows XP* (32 & 64 bit), Microsoft Windows CE*,Microsoft Windows NT*,Microsoft Windows 2000 Server*,Microsoft Windows Server 2003* (32 & 64 bit),SCO UnixWare* 7.x ,Open Unix* 8.0 ,Novell ODI*,Novell Netware*,SUSE Linux Enterprise Server* 9.0 , Red Hat Enterprise Linux* 4.0 ,Linux*,FreeBSD* ,Sun Solaris* ,Microsoft DOS*,VMWare ESX*
