VSI Sand Production Line

Introduction of VSI Sand Production Line

1. VSI Sand Production Line is a new product designed by our company after absorbing the asvanced technology at home and abroad.

2. Our VSI Sand Production Line production function to deal with side length of not more than 500 mm, not more than 350Mpa compressive strength of the various coarse, medium and fine material( granite, limestone, concrete, etc).

3. VSI Sand Production Line is widely used for crushing hard materials in the following industries: mineral, quarry, water conservancy and hydropower, high way, rail way, chemical industry, building materials and so on.

Features of VSI Sand Production Line

1: Simple structure;

2: High quality rotor with heavy design and strict inspection;

3: Larger bearing specification and higher carrying capacity;

4: Particularly used to crush harder and causticity materials;

5: Rotor analysis ensures stableness and reliability.

Working Principle of VSI Sand Production Line

when the VSI Sand Production Line working, driven by the motor, the rotor high-speed rotation, the material is entering the latter,

with the rotor hammer impact on the broken plate, and then back to the lining was broken again, and finally discharged from the entrance and exit.

Main Technical Parameters of VSI Sand Production Line

Model	Specifications (mm)	Feeding size Opening (mm)	Max Feeding Size (mm)	Capacity (t/h)	Power (KW)	Weight (Excluding motor Kg)
PF-0607	644×740	320×770	100	10-20	30	4000
PF-0807	850×700	400×730	300	15-30	30-45	8130
PF-1007	1000×700	400×730	300	30-50	37-55	9500
PF-1010	1000×1050	400×1080	350	50-80	55-75	12127
PF-1210	1250×1050	400×1080	350	70-120	110-132	14000
PF-1214	1250×1400	400×1430	350	130-180	132-160	18579
PF-1013	1000×1300	650×1350	400	80-120	90-110	12000
PF-1315	1320×1500	860×1520	500	160-250	180-260	19000
PF-1320	1320×2000	860×2030	500	360-350	300-375	24000

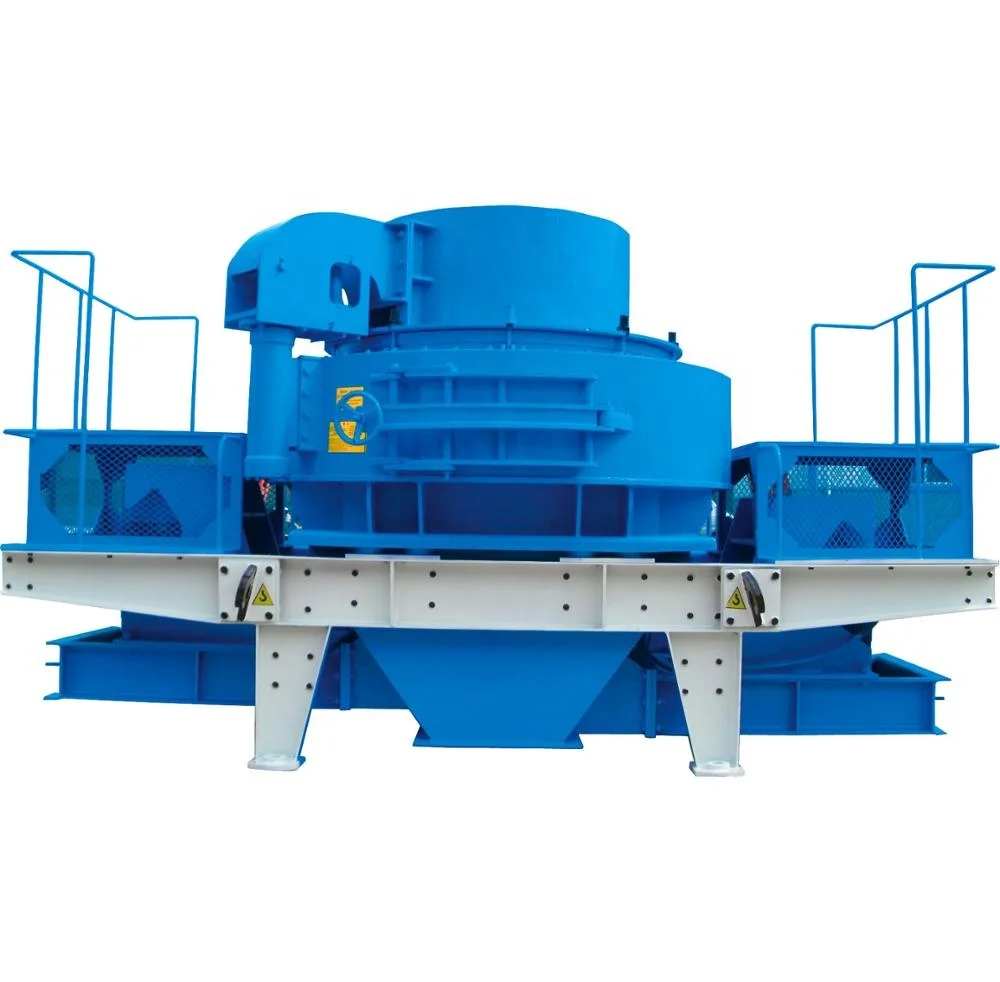

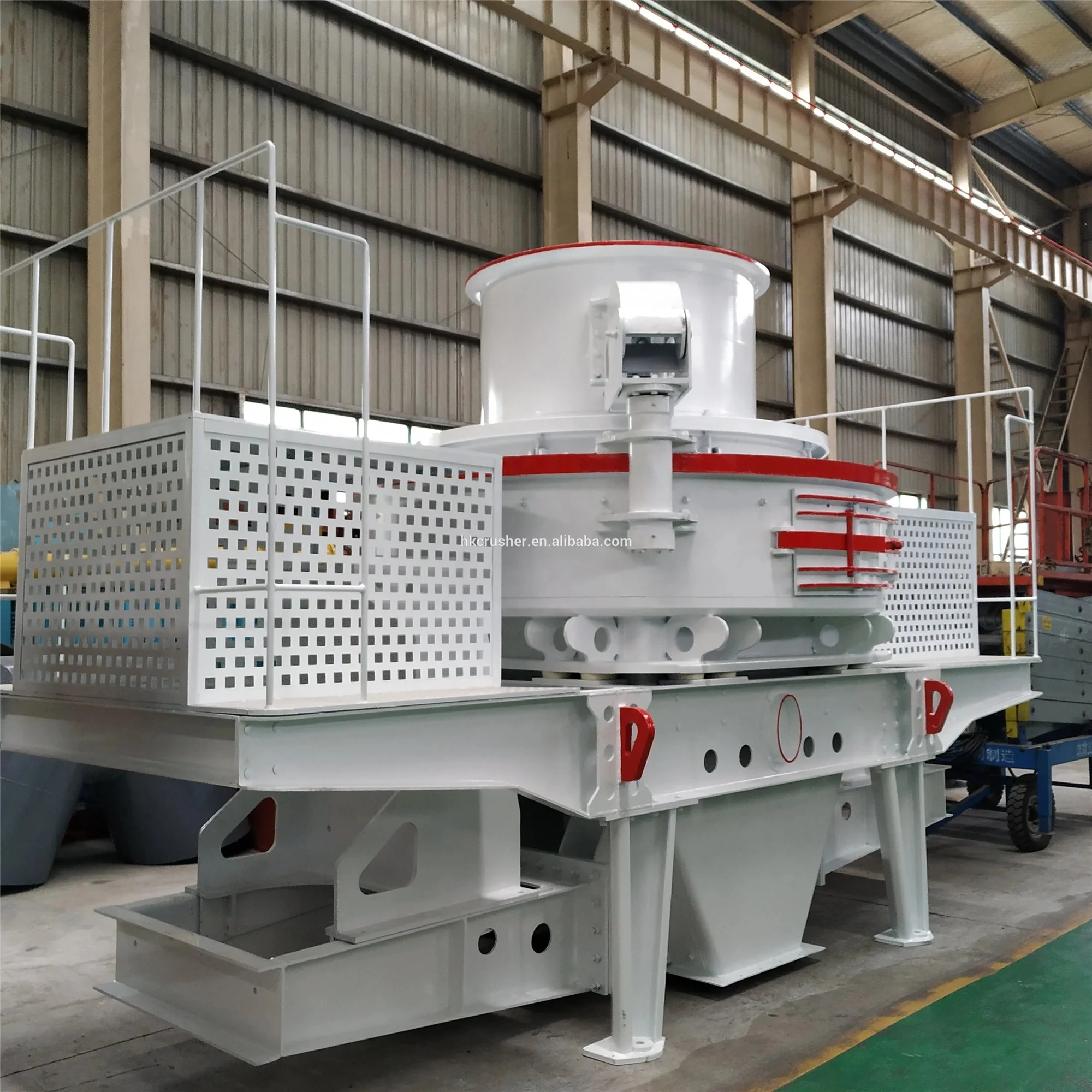

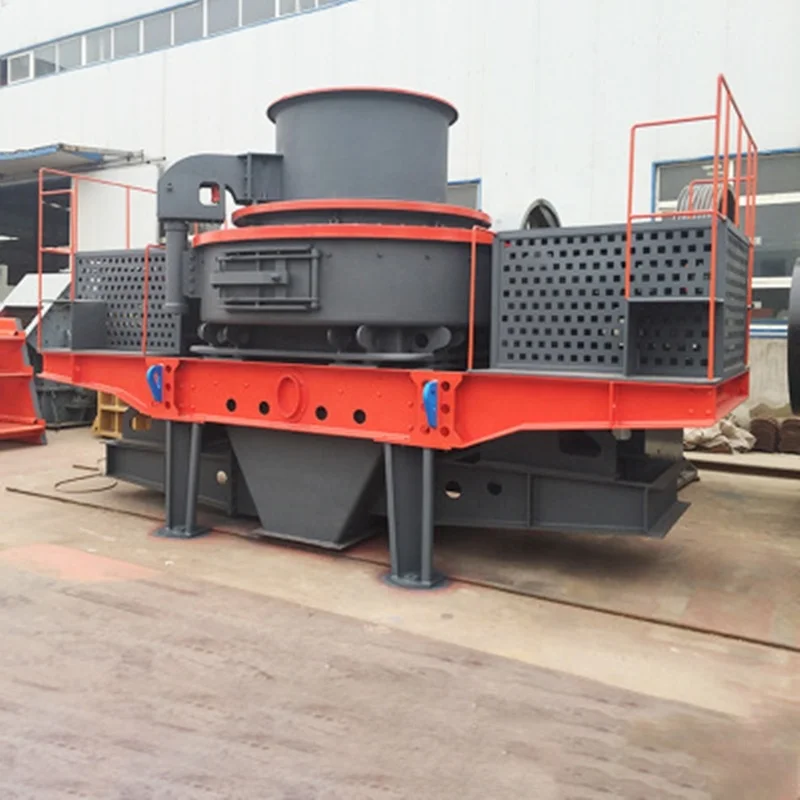

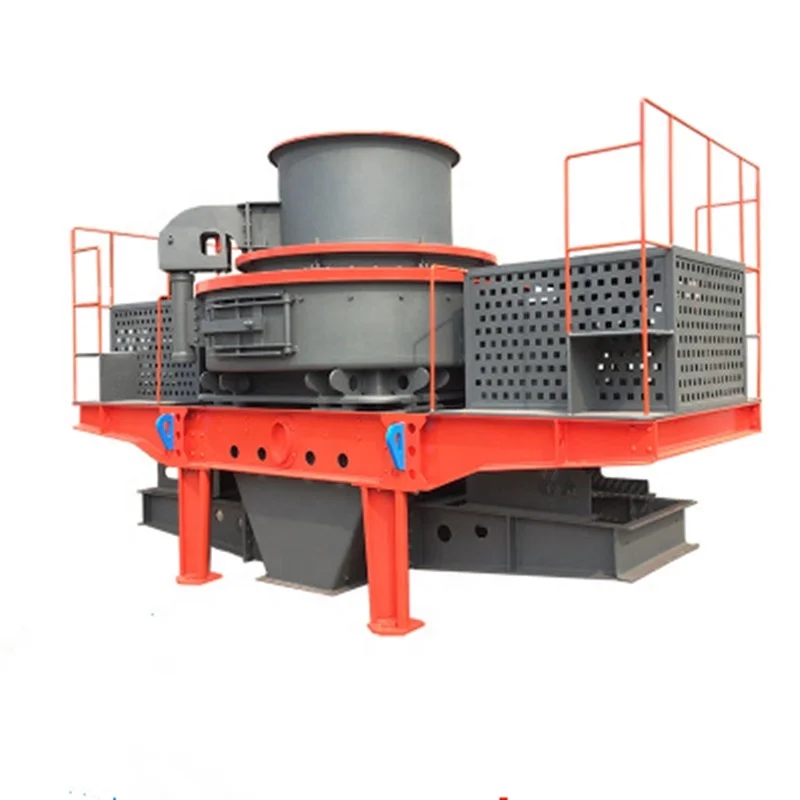

Pictures of VSI Sand Production Line

Scene Rendering of VSI Sand Production Line

Warranty of VSI Sand Production Line

1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost.

After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place.

But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).

2. Our professional service includes: Free training, Guidance Installation and Debugging.

3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
