hydro generator power plant Francis kaplan pelton turbine 1000KW



Water Head	10m-700m
Power range	50KW-20MW
Frequency	50HZ/60HZ
Generator Voltage	400V, 800V, 6300V, 10500V
Layout pattern	Horizontal or Vertical
Material	Stainless Steel ZG0Cr13Ni4Mo
Excitation	Brushless or Static excitation system
Lifespan	50 years
Runner diameters	0.35m-4m
Generator Insulation	F/F

Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.

It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.

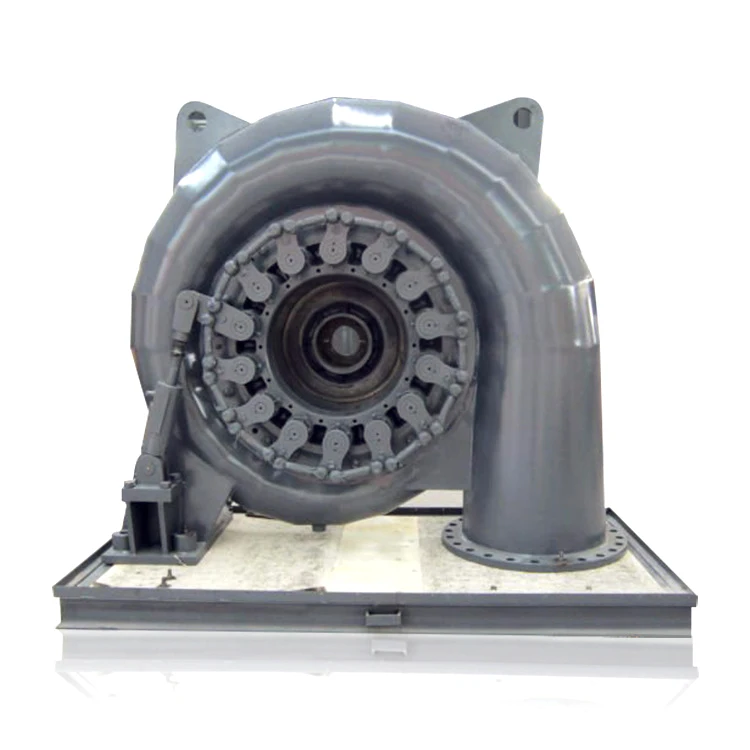

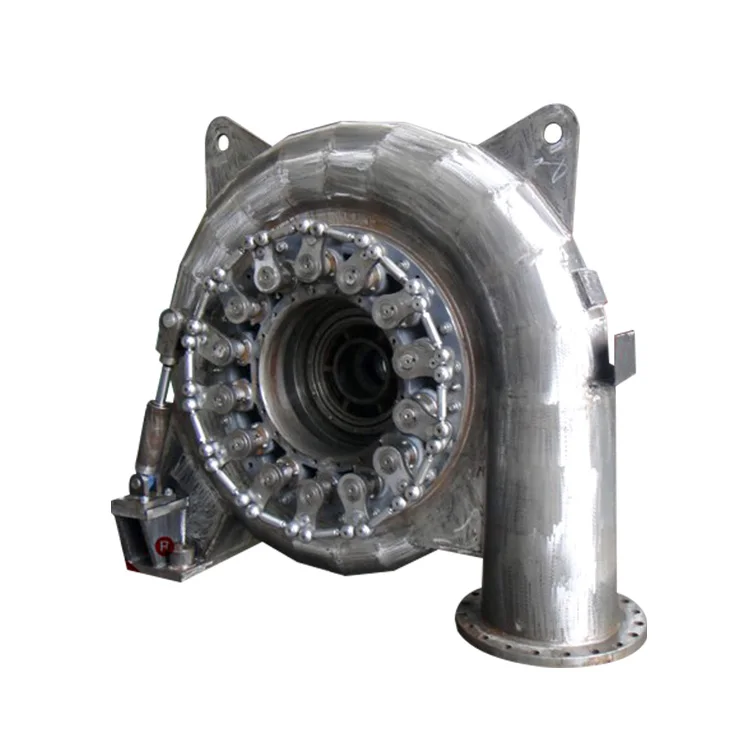

Horizontal Francis turbine unit, with horizontal shaft, could be 2 or three supports. Which is normally one stair arrangement. Simple structure, easier operation and maintainence.

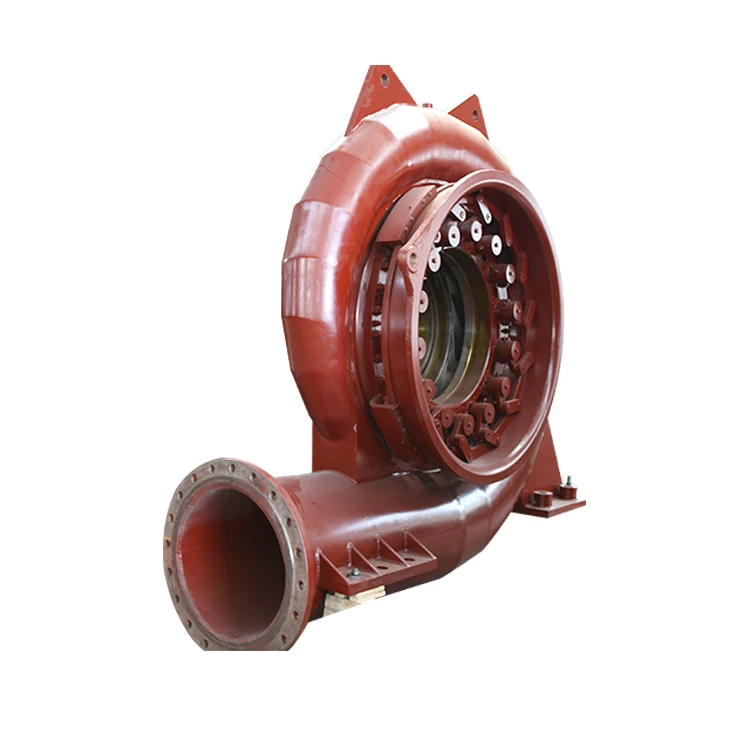

Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and stay ring etc parts, are suit to runner diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine for your hydro power project.
