Цифровая микроскопическая камера 10MP USB 2

Цифровая микроскопическая камера 10MP USB 2

Категория: Microscopes >>>
Поставщик: Ningbo,Haishu,Honyu,Opto-Electro,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.16 $*	0.21 $*
Aug-19-2025	0.63 $*	0.89 $*
Jul-19-2025	0.92 $*	0.61 $*
Jun-19-2025	0.83 $*	0.91 $*
May-19-2025	0.99 $*	0.5 $*
Apr-19-2025	0.5 $*	0.65 $*
Mar-19-2025	0.46 $*	0.19 $*
Feb-19-2025	0.6 $*	0.78 $*
Jan-19-2025	0.84 $*	0.37 $*

Характеристики

Product Description

Note:

1.3MP, 2.0MP, 3.1MP, 5.1MP, 8MP, 9MP, 10MP, 14MP USB2.0 Microscope Cameras are available.

3.1MP, 5.1MP, 6.3MP, 8.5MP, 10MP, 14MP, 16MP, 18MP USB3.0 Microscope Cameras are available.

CMOS.17.U1000

10MP USB2.0 Microscope Digital Camera

Key Features

• USB2.0 high speed digital camera with CMOS sensor

• Capable of recording real-time, high-definition videos and capturing 10MP still images

• Compatible with Windows XP/Vista/7/8, Mac OS X and Linux

• Capable of being attachable to any microscopes, telescopes, endoscopes with C-mount

Description

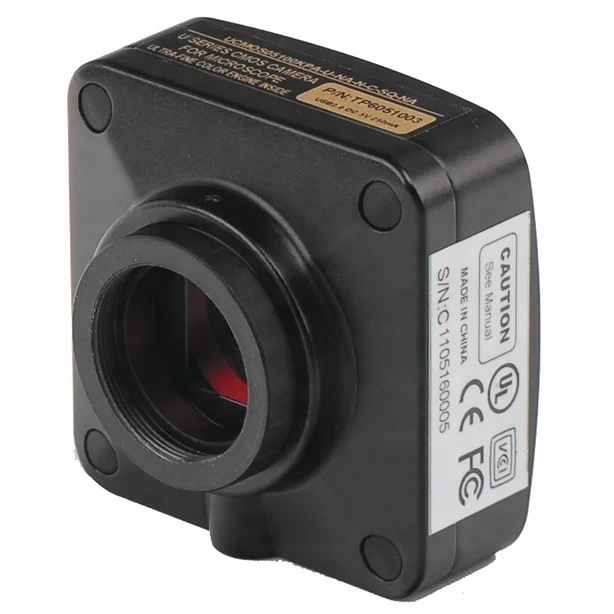

The CMOS.17.U1000 USB2.0 microscope camera, equipped with advanced CMOS color sensor, is characterized by compact design and small dimension. With built-in C-mount compatibility and various adapters, it can be attached to any microscope, telescope, and endoscope with C-mount. Capturing high resolution images, recording real-time specimen video, and image manipulation can be achieved through the user-friendly software attached. The advanced software can be compatible with Windows XP/Vista/7/8, Mac OS X and Linux.

Specification

Hardware Configuration
Max. Resolution	3584 x 2748 (10 Mega Pixels)
Pixel Size	1.67μm x 1.67μm
Frame Size and Rate	1.9fps/3584 x 2748, 8fps/1792 x 1374, 27fps/896 x 684 (Multiple Speed Level)
Sensor Model	APTINA MT9J001
Scan Mode	Progressive
Sensor Size	1/2.3inch (6.119mm(H) x 4.589mm(V), Diagonal 7.649mm)
Sensitivity	0.31v/lux-sec(550nm)
DynamicRange	65.2dB
A/D Converter	12-bit, 8-Bit R.G.B to PC
SN Ratio	34dB
Spectral Range	400-650nm (with IR-filter)
Binning	1 x 1, 2 x 2, 4 x 4
Exposure	Electronic Rolling Snap(ERS), 0.38~2000ms, ROI Auto & Manual
Color Rendering Technique	Ultra Fine^TM Color Engine
White Balance	One Push ROI White Balance/ Manual Temp-Tint Adjustment
Capture/Control API	Native C/C++ SDK, DirectShow, Twain
Capture Mode	Still Picture and Video
Software Environment
Operating System		Windows XP / Vista / 7 / 8 (32 & 64 Bit)
		OS X (MAC OS X)
		Linux (Kernel 2.6 or Above)
PC Requirements		CPU: Equal to Intel Core2 2.8GHz or Higher
		Memory:2GB or More
		USBPort:USB2.0 High-speed Port
Operating Environment
Operating Temperature		-30~70°C
Storage Temperature		-40~85°C
Operating Humidity		30~80%RH
Storage Humidity		10~60%RH
Power Supply		Over USB Port

Optional Accessory

Order Number	Specification Description
ADA.17.FMA050	0.5x Fixed Adapter for Eyepiece Tube or Trinocular Tube(23.2mm)
ADA.17.AMA050	0.5x Adjustable Adapter for Eyepiece Tube or Trinocular Tube(23.2mm)
ADA.17.EDA30	23.2mm to 30mm Eyepiece Adapter
ADA.17.EDA305	23.2mm to 30.50mm Eyepiece Adapter
